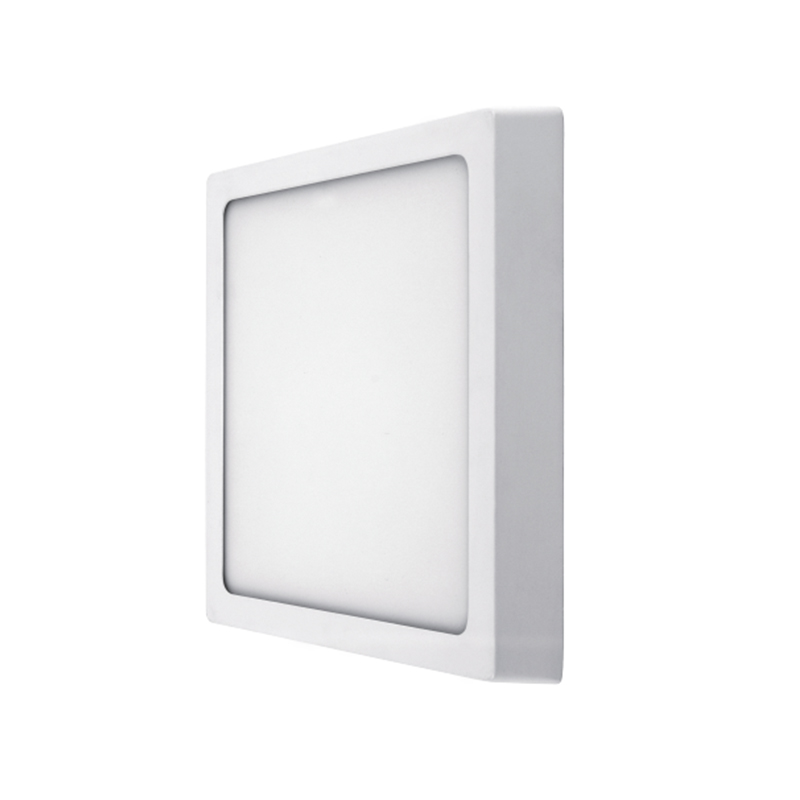

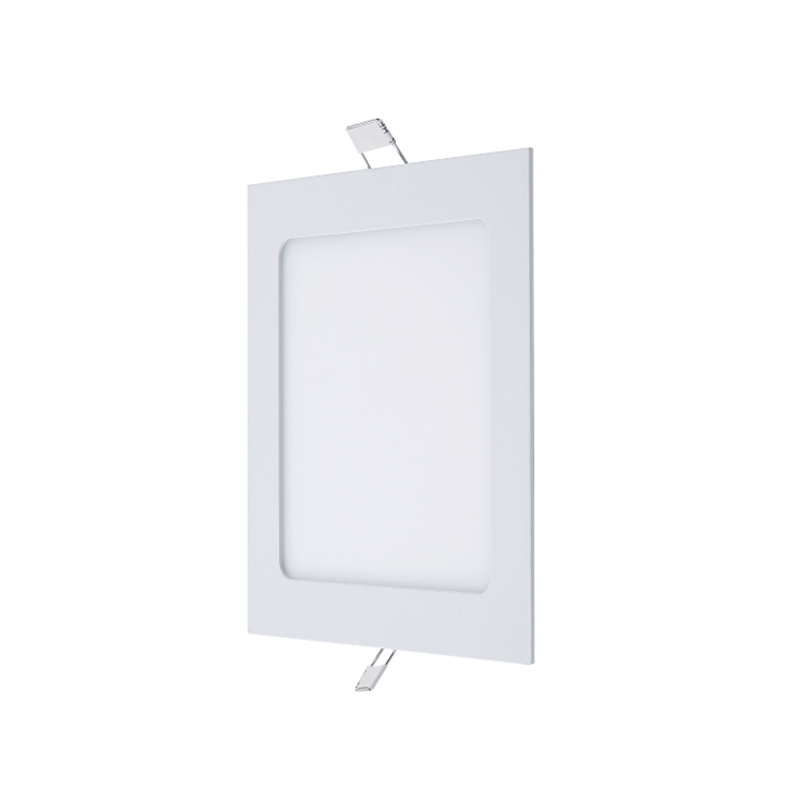

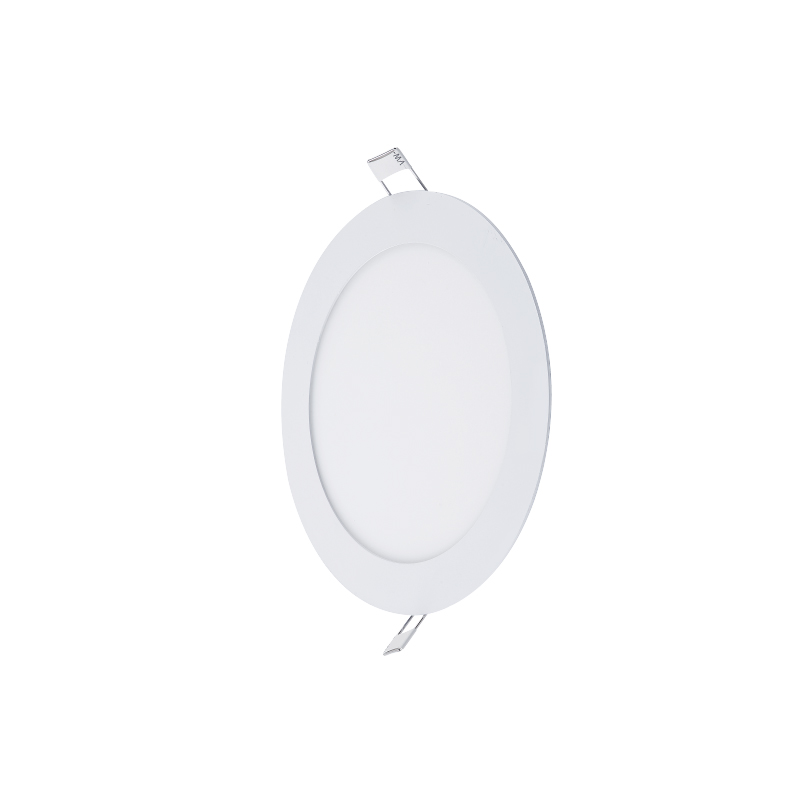

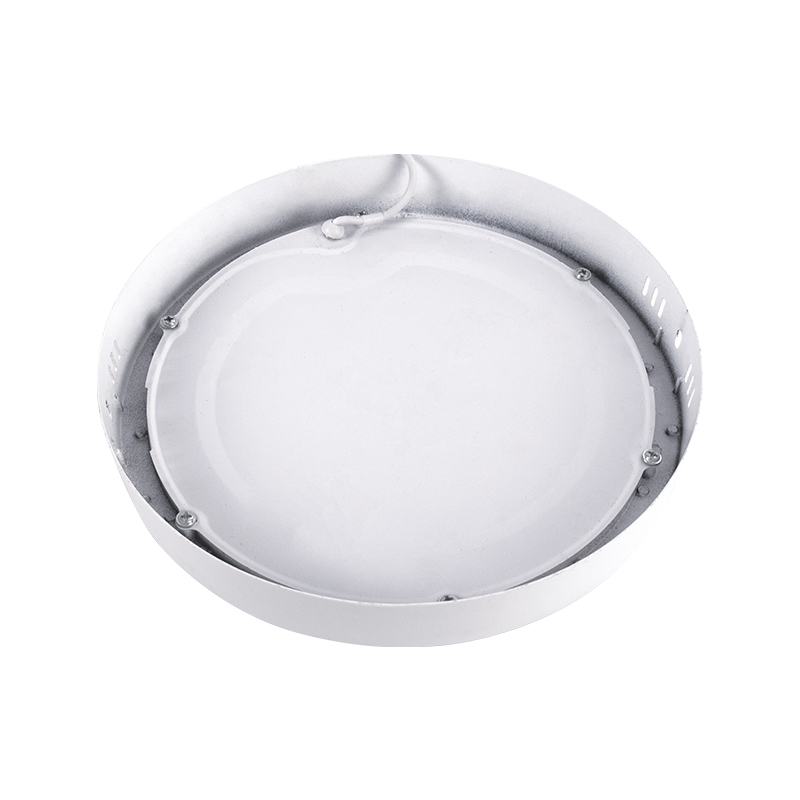

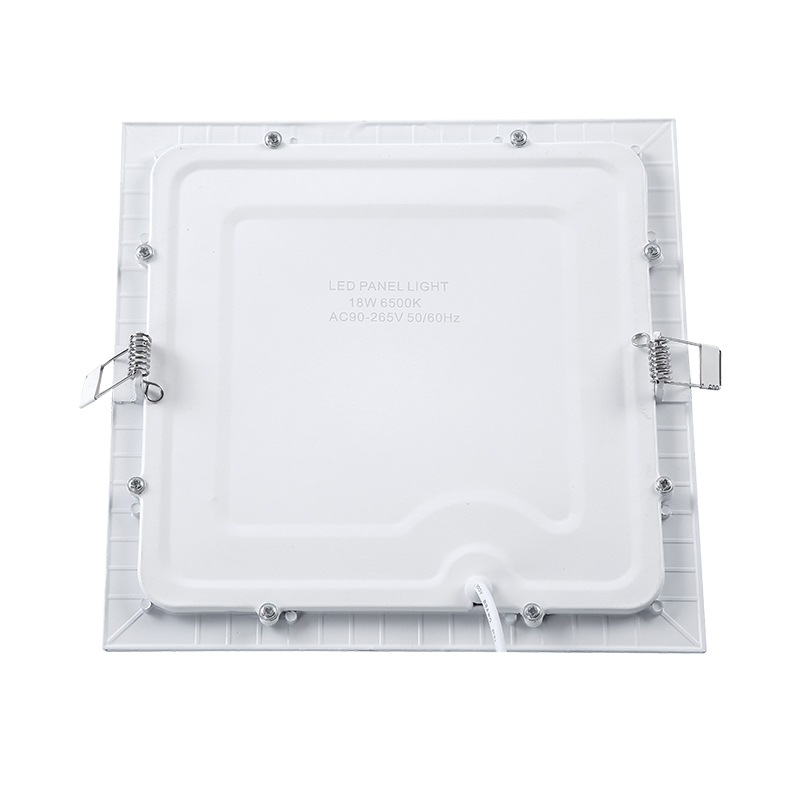

LED Small Panel Light

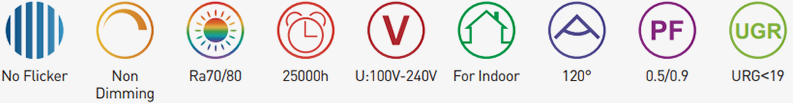

  • Versatile Installation: Can be installed as recessed or suspended.
  • IP54 Rating: Dust and water-resistant for indoor use.
  • Tri-color Selectable: DIP switch to choose between three color temperatures.
  • Flicker-free Option: Available in a flicker-free version to protect eye health.
  • Dimmable Option: Features dimmability to control light intensity.
  • High Efficiency: Up to 80% light efficiency.
  • Long Lifespan: Rated at 20,000 hours of operation.
  • Wide Voltage Range: Operates from 17V to 265V.
  • Designed for Indoor Use: Suitable for interior lighting applications.
  • Ra80+ Color Rendering Index: High color rendering quality ensuring true colors.
  • PF >0.5 Power Factor: Indicates efficient power usage.
  • UGR<19 Uniform Glare Ratio: Ensures comfortable lighting without glare.


Downlaod Inquiry
PREV: LED DownlightNEXT: LED DOB Backlit
  • LED Small Panel Light
  • LED Small Panel Light
  • LED Small Panel Light
  • LED Small Panel Light
  • LED Small Panel Light
  • Xin Guang Yuan (New Lights) Lighting Technology Co., Ltd.
  • Xin Guang Yuan (New Lights) Lighting Technology Co., Ltd.
  • Xin Guang Yuan (New Lights) Lighting Technology Co., Ltd.
  • Xin Guang Yuan (New Lights) Lighting Technology Co., Ltd.
  • Xin Guang Yuan (New Lights) Lighting Technology Co., Ltd.
Xin Guang Yuan (New Lights) Lighting Technology Co., Ltd.
Application

Residential homes: Ideal for living rooms, bedrooms, and other living spaces.
Office spaces: Suitable for creating a comfortable working environment.
Schools and libraries: Provides clear and non-glaring light for learning spaces.
Hospitals and clinics: Appropriate for patient rooms and examination areas.
Supermarkets and malls: Enhances shopping experiences with bright, uniform lighting.

Parameters
Model No.

Dimension

WxLxH(mm)

 Rated Power Lumen Efficacy Color Temp. Frame Color PCS/CTN CTN MEAS.
XGYSPLSR-ALU-E6 XGYSPLSS-ALU-E6 Ф120*28 120*120*28 6W 60lm/W 3000K-6500K White Silver 60 41*39.5*27
XGYSPLSR-ALU-E12 XGYSPLSS-ALU-E12 Ф170*28 172*172*28 12W 65lm/W 3000K-6500K White Silver 40 42*36.5*37
XGYSPLSR-ALU-E18 XGYSPLSS-ALU-E18 Ф223*28 220*220*28 18W 65lm/W 3000K-6500K White Silver 20 47.5*41*24.5
XGYSPLSR-ALU-E24 XGYSPLSS-ALU-E24 Ф300*28 295*295*28 24W 60lm/W 3000K-6500K White Silver 20 62.5*40*32

Model No.

Dimension

WxLxH(mm)

 Rated Power Lumen Efficacy Color Temp. Frame Color PCS/CTN CTN MEAS.
XGYSPLRR-ALU-E3 XGYSPLRS-ALU-E3 Ф85*12 85*85*12 3W 50lm/W 3000K-6500K White Silver 100 49*30.5*26
XGYSPLRR-ALU-E4 XGYSPLRS-ALU-E4 Ф109*12 105*105*12 4W 60lm/W 3000K-6500K White Silver 100 62.5*30.5*31.5
XGYSPLRR-ALU-E6 XGYSPLRS-ALU-E6 Ф120*12 120*120*12 6W 60lm/W 3000K-6500K White Silver 100 62.5*30.5*31.5
XGYSPLRR-ALU-E9 XGYSPLRS-ALU-E9 Ф145*12 145*145*12 9W 60lm/W 3000K-6500K White Silver 40 42.5*30.5*37.5
XGYSPLRR-ALU-E12 XGYSPLRS-ALU-E12 Ф172*12 172*172*12 12W 60lm/W 3000K-6500K White Silver 40 42.5*30.5*37.5
XGYSPLRR-ALU-E15 XGYSPLRS-ALU-E15 Ф192*12 192*192*12 15W 60lm/W 3000K-6500K White Silver 30 47*45*27
XGYSPLRR-ALU-E18 XGYSPLRS-ALU-E18 Ф220*12 220*220*12 18W 55lm/W 3000K-6500K White Silver 30 47*45*27
XGYSPLRR-ALU-E24 XGYSPLRS-ALU-E24 Ф300*12 300*300*12 24W 55lm/W 3000K-6500K White Silver 20 62.5*31*34
