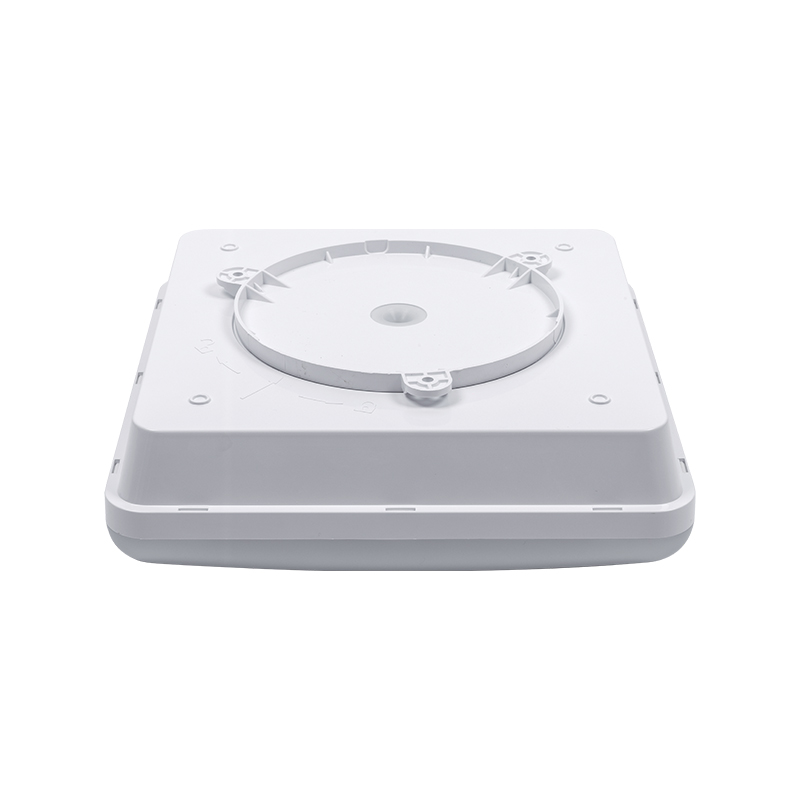

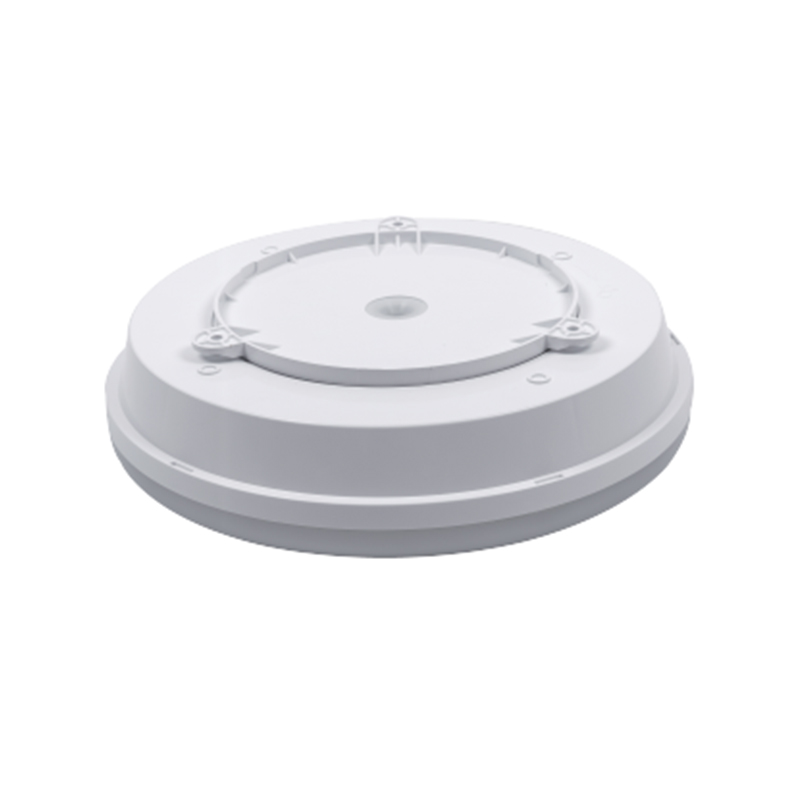

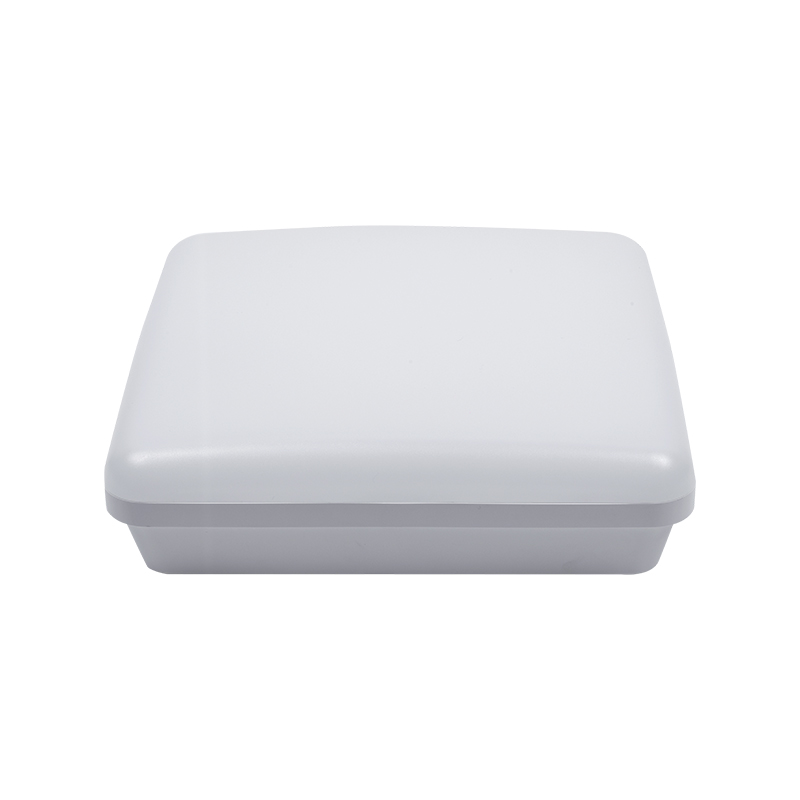

Full Plastic Downlight - HY04 Model

  • Adjustable 3-step color temperature
  • Microwave sensor
  • Emergency mode function
  • Non-polarized design
  • Dimmable option available
  • IP54 rated for protection against dust and water splashes
  • Operates on 230V AC voltage
  • Designed for indoor use
  • Power Factor (PF) of 1.0
  • Impact resistance (IK) value of 0.5
  • Color Rendering Index (CRI) of at least 80 (Ra80)



  • Full Plastic Downlight - HY04 Model
  • Full Plastic Downlight - HY04 Model
  • Full Plastic Downlight - HY04 Model
  • Xin Guang Yuan (New Lights) Lighting Technology Co., Ltd.
  • Xin Guang Yuan (New Lights) Lighting Technology Co., Ltd.
  • Xin Guang Yuan (New Lights) Lighting Technology Co., Ltd.
Xin Guang Yuan (New Lights) Lighting Technology Co., Ltd.
Application

Residential Living Rooms: Ideal for general home lighting where adjustable color temperatures can create different moods and ambiances.
Commercial Offices: Suitable for workspace lighting due to the dimmable feature and high CRI, which enhances visual comfort and productivity.
Institutional Classrooms: Provides a comfortable learning environment with adjustable lighting that can help reduce eye strain and improve focus.
Industrial Warehouses: Can be used in less demanding industrial areas where IP54 protection is sufficient and energy efficiency is important.
Public Building Entrances: Excellent for entrance areas of public buildings where the microwave sensor ensures lights turn on when needed, enhancing security and energy conservation.

Parameters
Model No.

Dimension

WxH (mm)

Rated Power Lumen Efficacy Color Temp. Material IP Level PCS/CTN CTN MEAS.
XGYCL2-HY04R-E15 Ф220*60 15W 85 lm/W 3000K-6500K Full PC IP54 10 47*34*24.7
XGYCL2-HY04R-E18 Ф280*60 18W 85 lm/W 3000K-6500K Full PC IP54 10 69.5*30*30.7
XGYCL2-HY04R-E24 Ф330*60 24W 85 lm/W 3000K-6500K Full PC IP54 10 69.5*35*35.7
XGYCL2-HY04S-E15 Ф220*60 15W 85 lm/W 3000K-6500K Full PC IP54 10 47*34*24.7
XGYCL2-HY04S-E18 Ф280*60 18W 85 lm/W 3000K-6500K Full PC IP54 10 69.5*30*30.7
XGYCL2-HY04S-E24 Ф330*60 24W 85 lm/W 3000K-6500K Full PC IP54 10 69.5*35*35.7
