Single-Head Surface-Mounted GU10/MR16 Spotlight Housings
- Individual Lighting Position: Each mounting body carries one separately aimed spotlight point.
- Alternative Base Footprints: Round and compact rectangular formats support different ceiling layouts.
- Multiple Head Profiles: Cylindrical and angular forms provide distinct visible geometries.
- Black or White Finish: Both colour choices are listed across the family.
| Ceiling connection | Direct fixing in dry interiors |
|---|---|
| Size data | See the detailed matrix below |
| Product role | Enclosure for a separately sourced light source |
| Movement | Joint permits repositioning |
|---|---|
| Material sets | Aluminum and steel; selected construction also incorporates PC |
| Supply boundary | Light source and socket kit ordered separately |
Technical Specifications
Model Specifications
| Model | Structure | Dimensions (Source Order) | Body Materials | Finish |
|---|---|---|---|---|

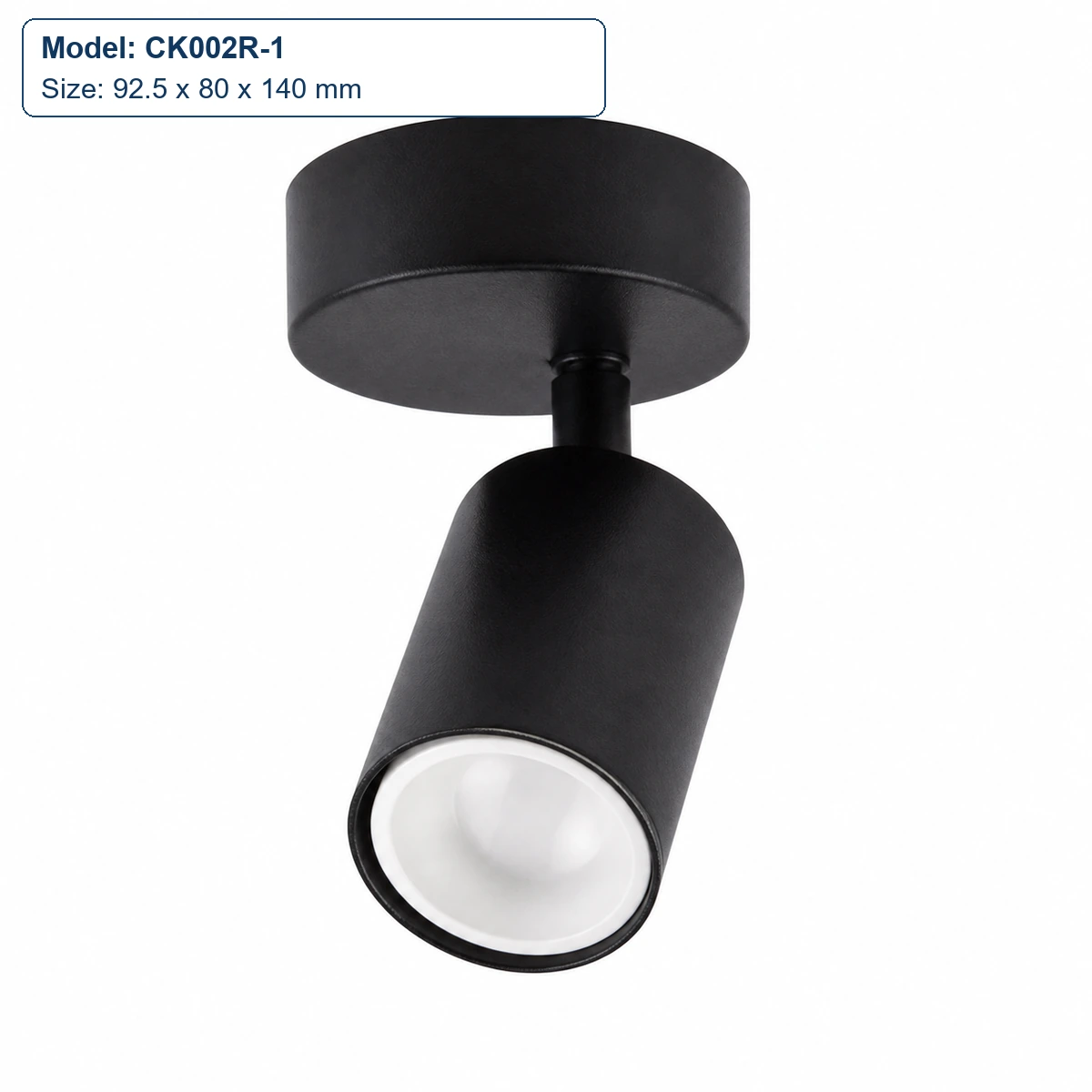

| CK002R-1 | Round-base cylindrical single head | 92.5 x 80 x 140 mm | Aluminum + steel | Black / white |

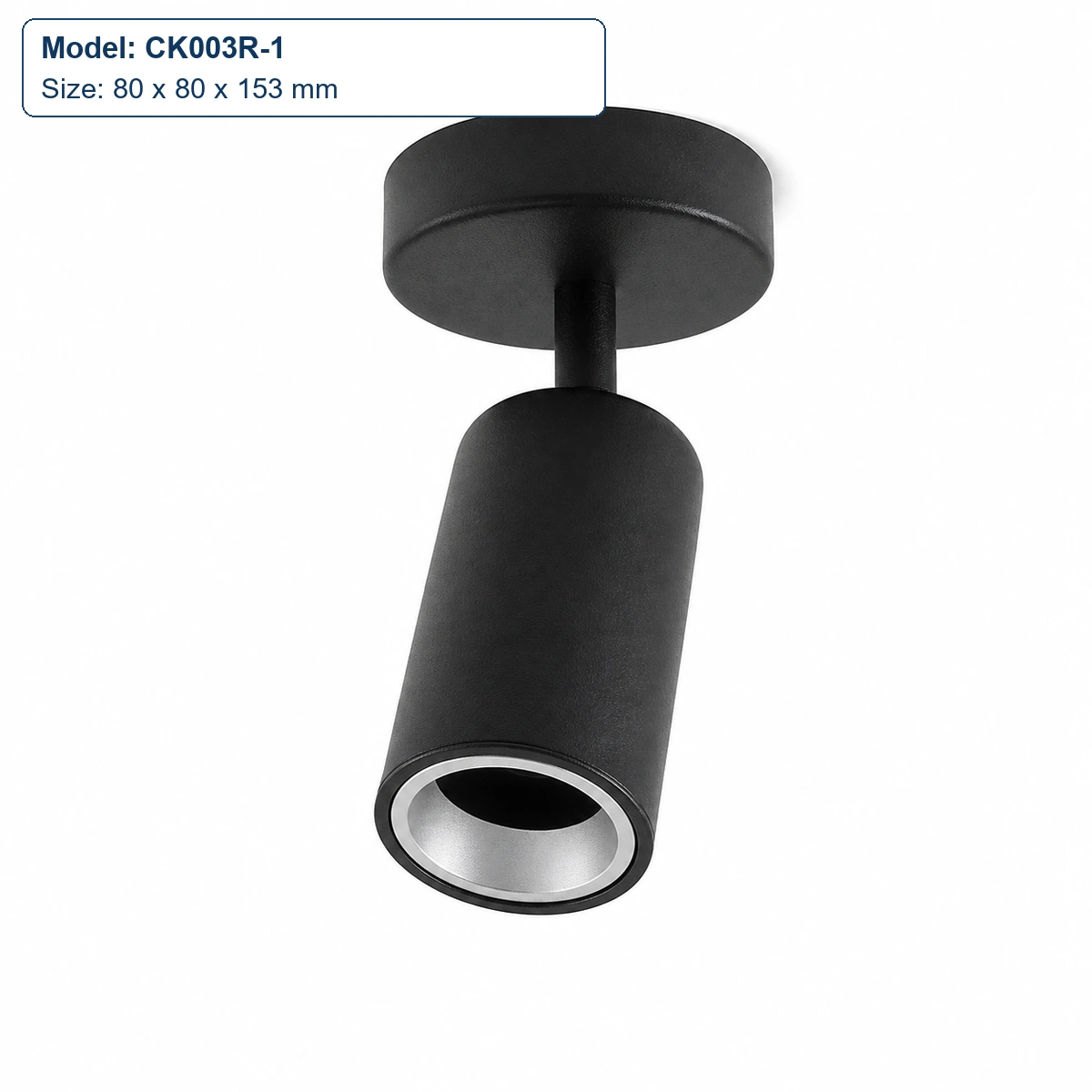

| CK003R-1 | Round-base cylindrical single head | 80 x 80 x 153 mm | Aluminum + steel + PC | Black / white |

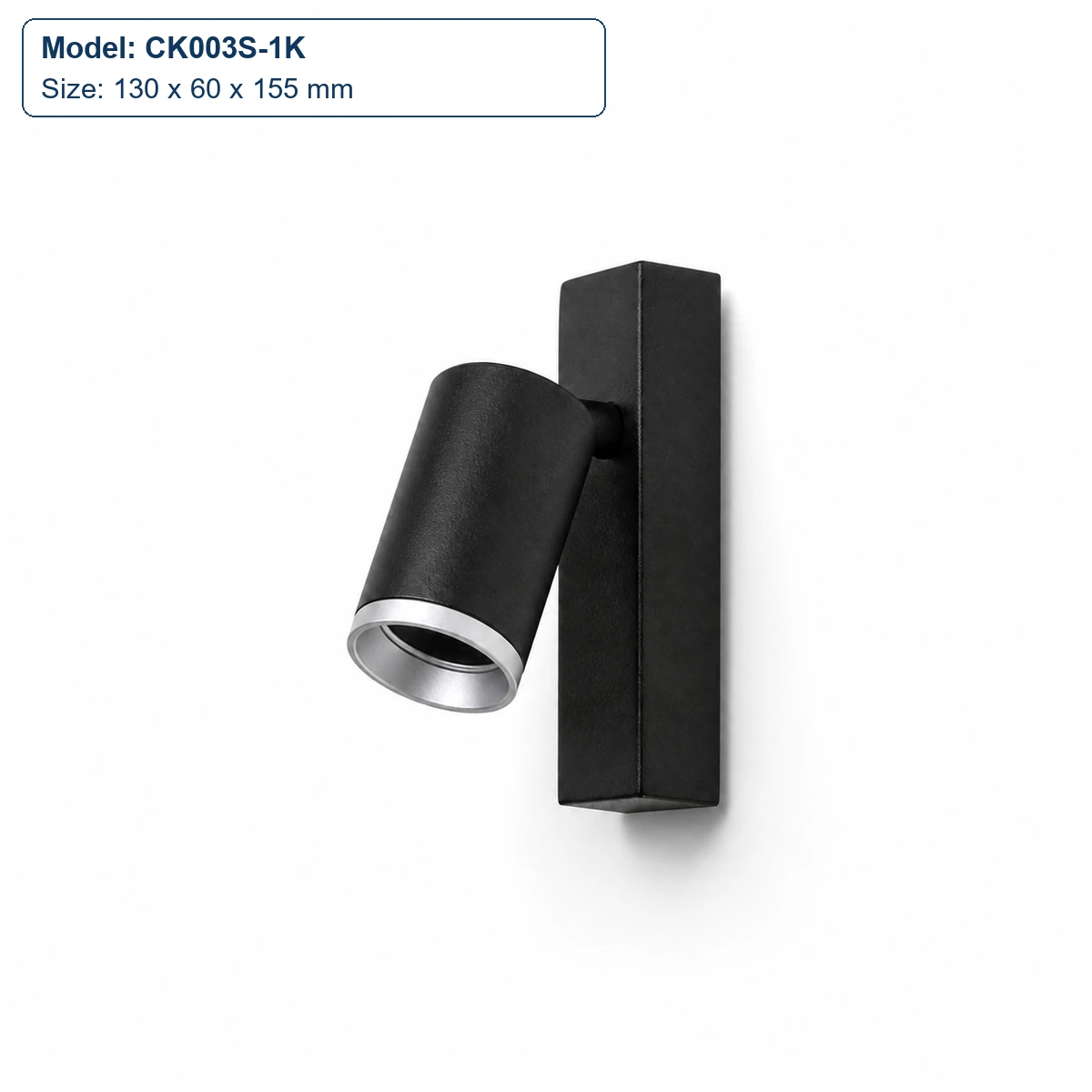

| CK003S-1K | Compact rectangular-base single head | 130 x 60 x 155 mm | Aluminum + steel + PC | Black / white |

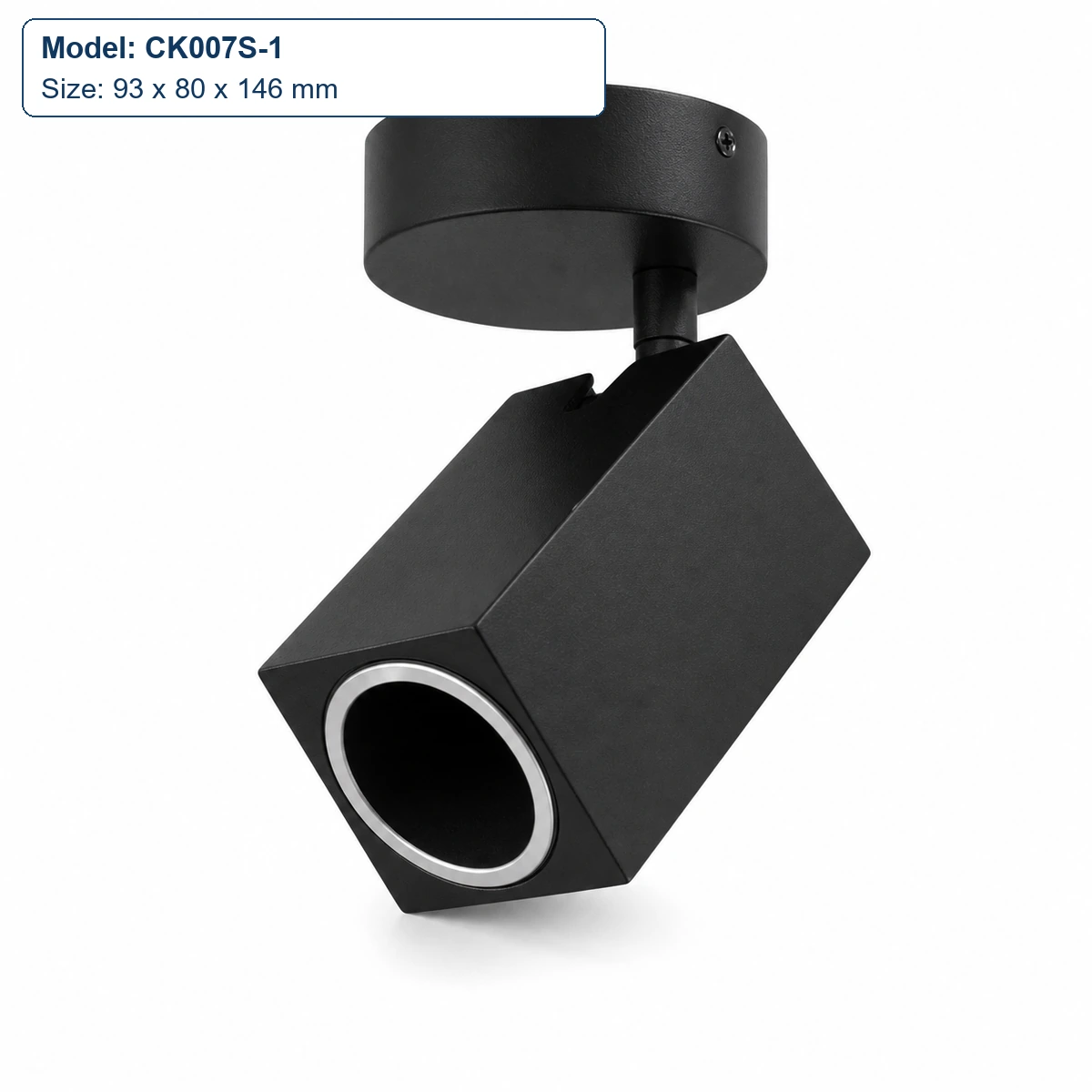

| CK007S-1 | Round-base angular single head | 93 x 80 x 146 mm | Aluminum + steel | Black / white |
Product Description
Product Details
Product Construction
A metal ceiling cover conceals the fixing point and supports one jointed enclosure with a front lamp opening. The assembled housing provides an adjustable surface-mounted position for a separately selected light-source package.
Selection & Installation Notes
Choose the order code by ceiling-base shape, head form, dimensions, body materials and finish. Then verify the GU10 or MR16 holder, lamp envelope, electrical supply, fixing surface, wiring space, aiming clearance and included parts against the approved specification and sample. Compare related options in our GU10, MR16 and E27 housing range.
Recommended Application
Applications

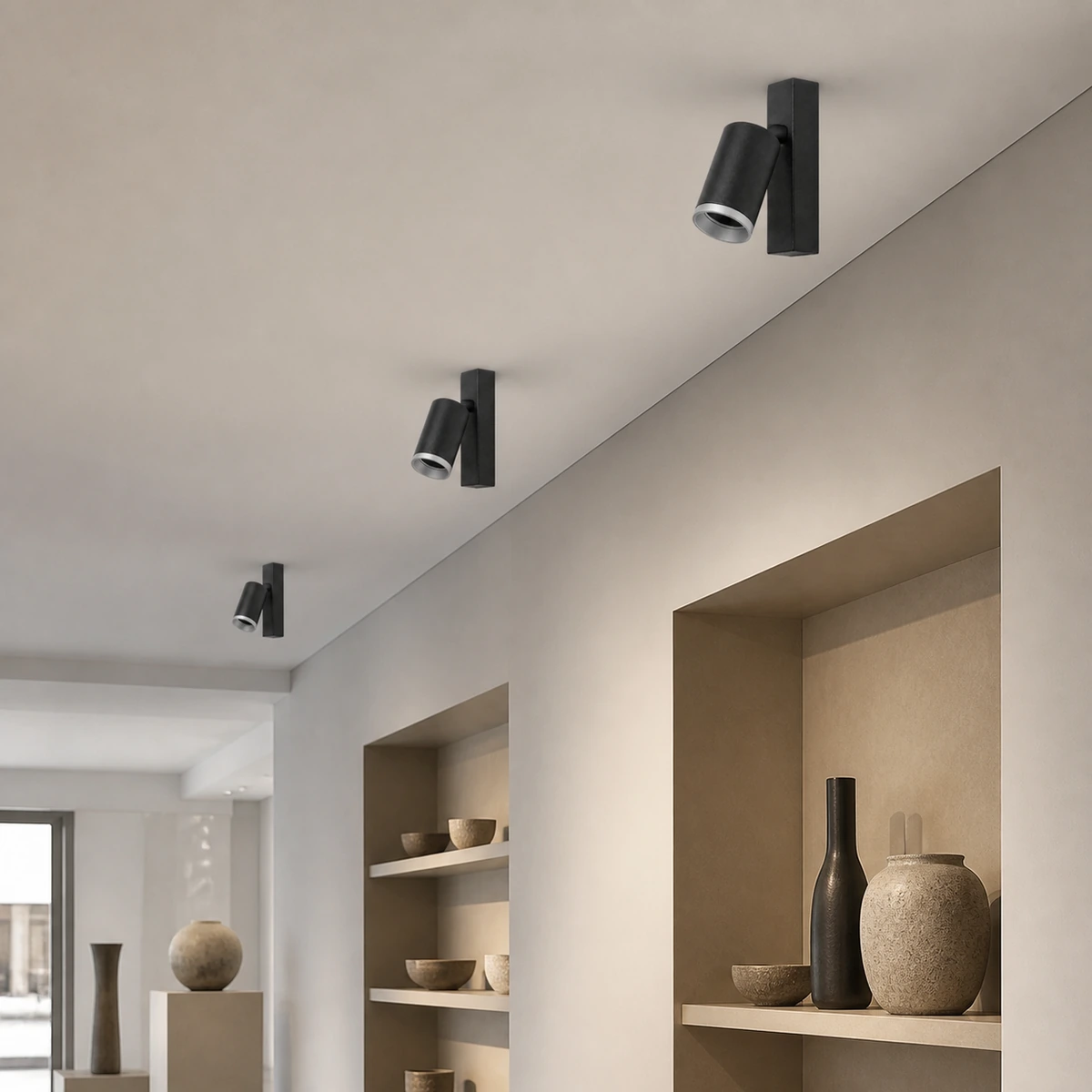

- Retail Displays: Position individual light points above merchandise walls, shelving or display islands.
- Gallery Interiors: Aim the selected lamp package toward artwork or display objects in dry indoor spaces.
- Hospitality Feature Areas: Coordinate the chosen housing form with reception, lounge or feature-wall ceilings.
- Residential Accent Zones: Use separate ceiling positions above artwork, shelving or interior focal points.
