Surface-Mounted GU10/MR16 Spotlight Housings

GU10/MR16 surface-mounted spotlight housings use steel round or linear ceiling bases with one to four adjustable heads. Black and white CK001-family options support indoor accent lighting; lamps are not included, and the required holder/socket package is specified with the order.

Adjustable Direction: Pivot joints support post-installation aiming.
Individual Maintenance: A compatible source can be serviced without replacing the body.
Grouped Targets: Multi-unit variants address separate focal points from one assembly.
Architectural Coordination: Dark and light finishes suit contrasting interior palettes.

Installation	Surface-mounted ceiling housing
Head Options	1 / 2 / 3 / 4
Base Layouts	Round / linear

Lamp Formats	GU10 / MR16 compatible housing
Material & Colors	Steel / black or white
Supply Boundary	Housing only; lamp not included; holder/socket set confirmed per order

XGYCSL-JLK-CK001R-1R black single-head surface-mounted spotlight housing, 134 x 80 x 110 mm

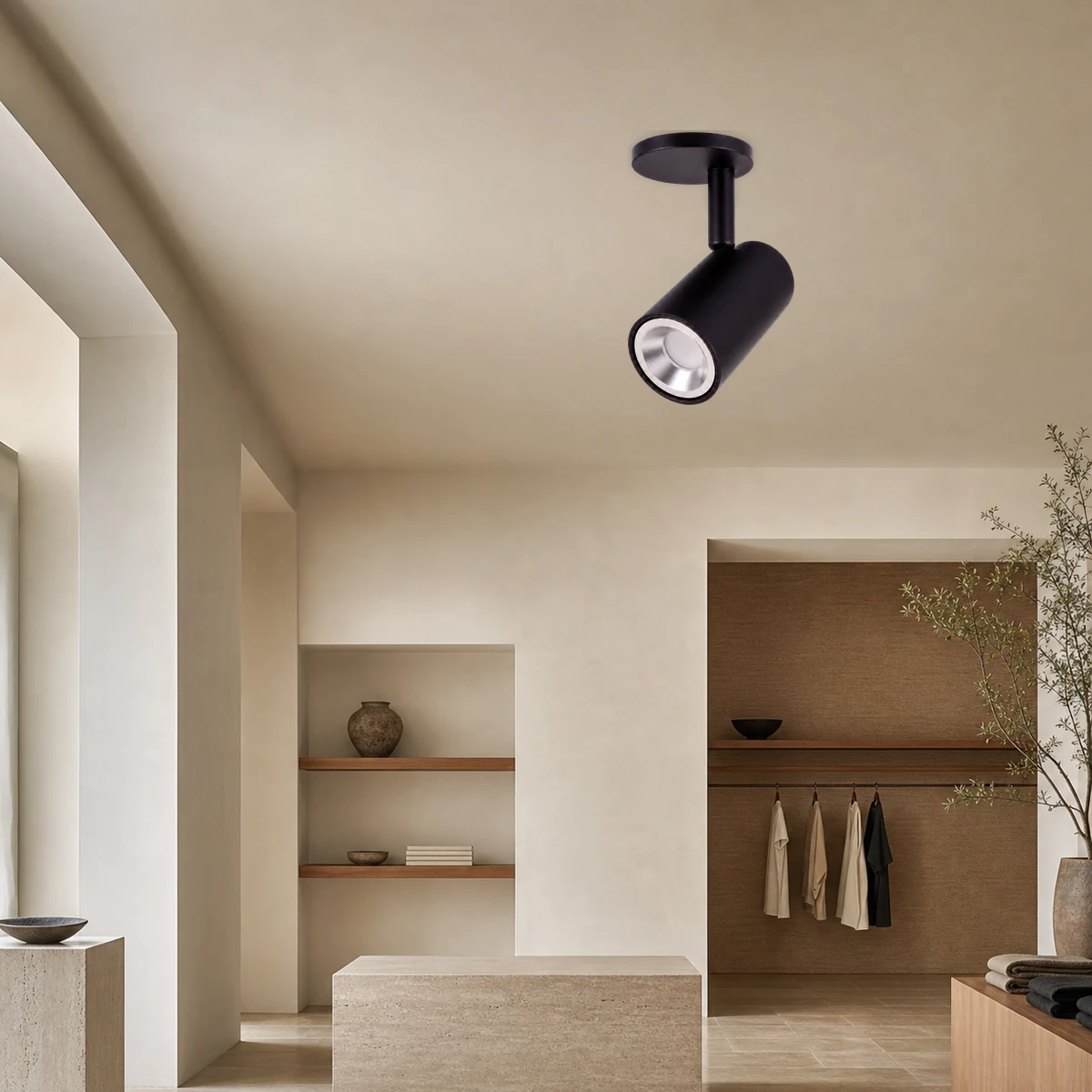

Black CK001 surface-mounted spotlight housing installed unlit on a dry indoor ceiling

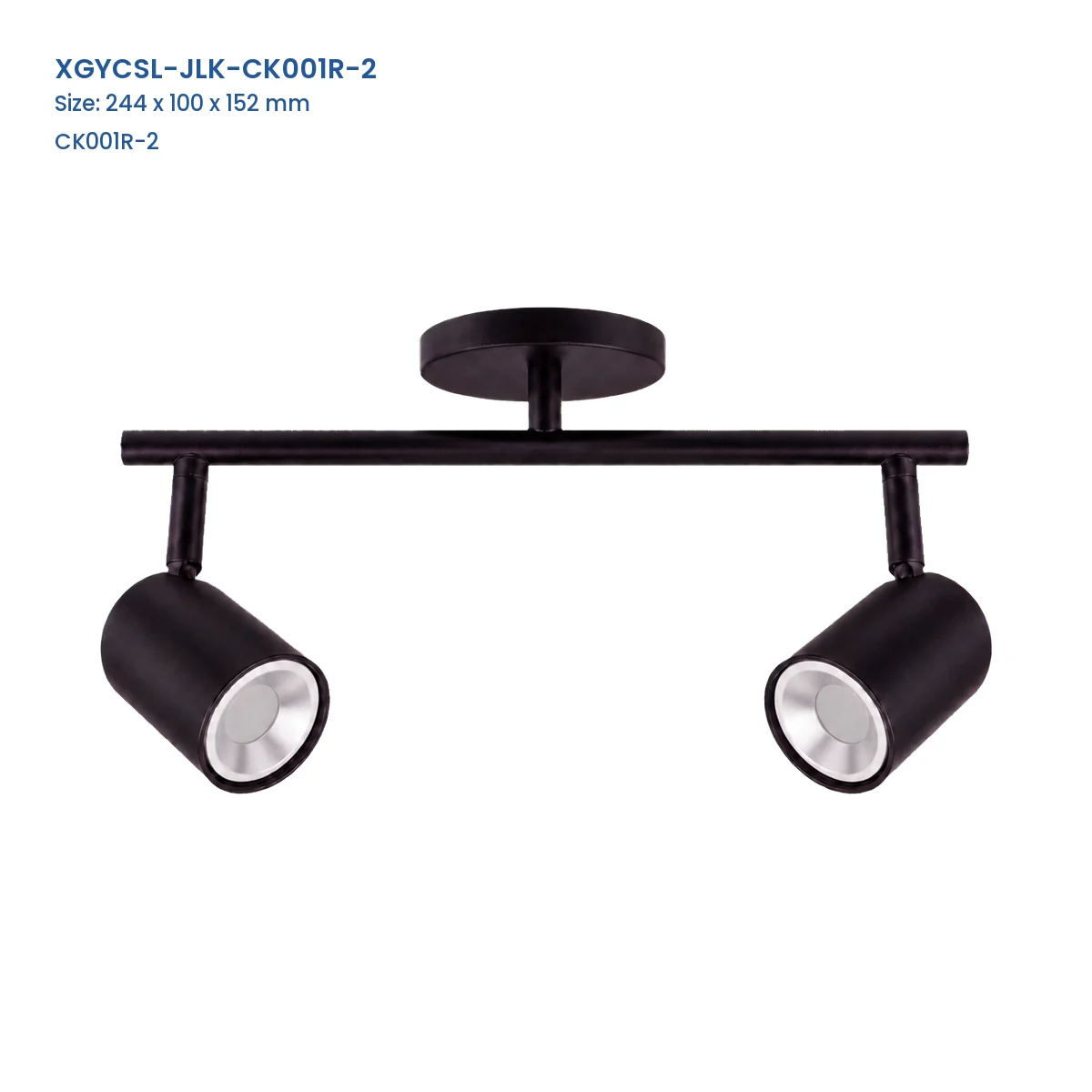

XGYCSL-JLK-CK001R-2 black 2-head surface-mounted spotlight housing, 244 x 100 x 152 mm

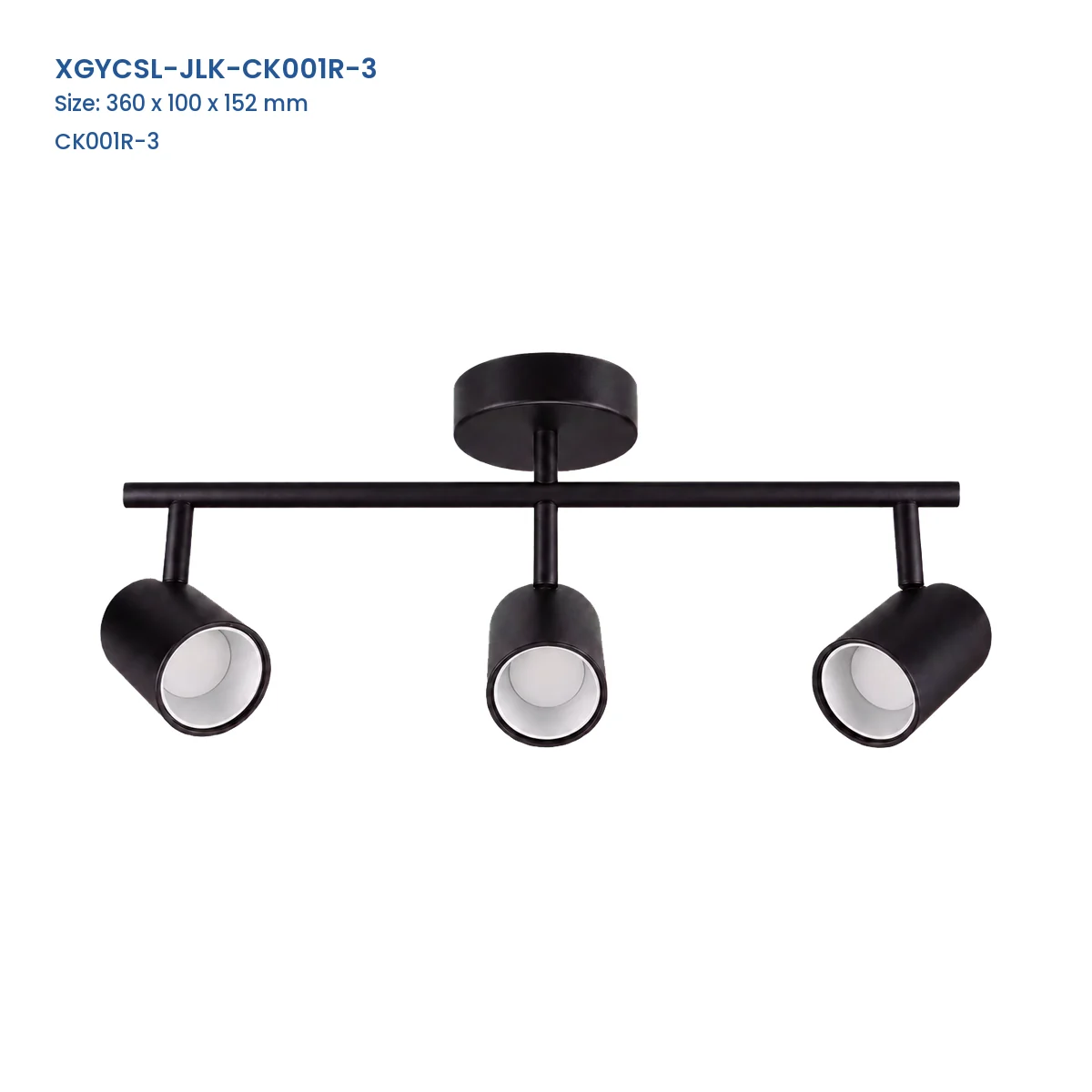

XGYCSL-JLK-CK001R-3 black 3-head surface-mounted spotlight housing, 360 x 100 x 152 mm

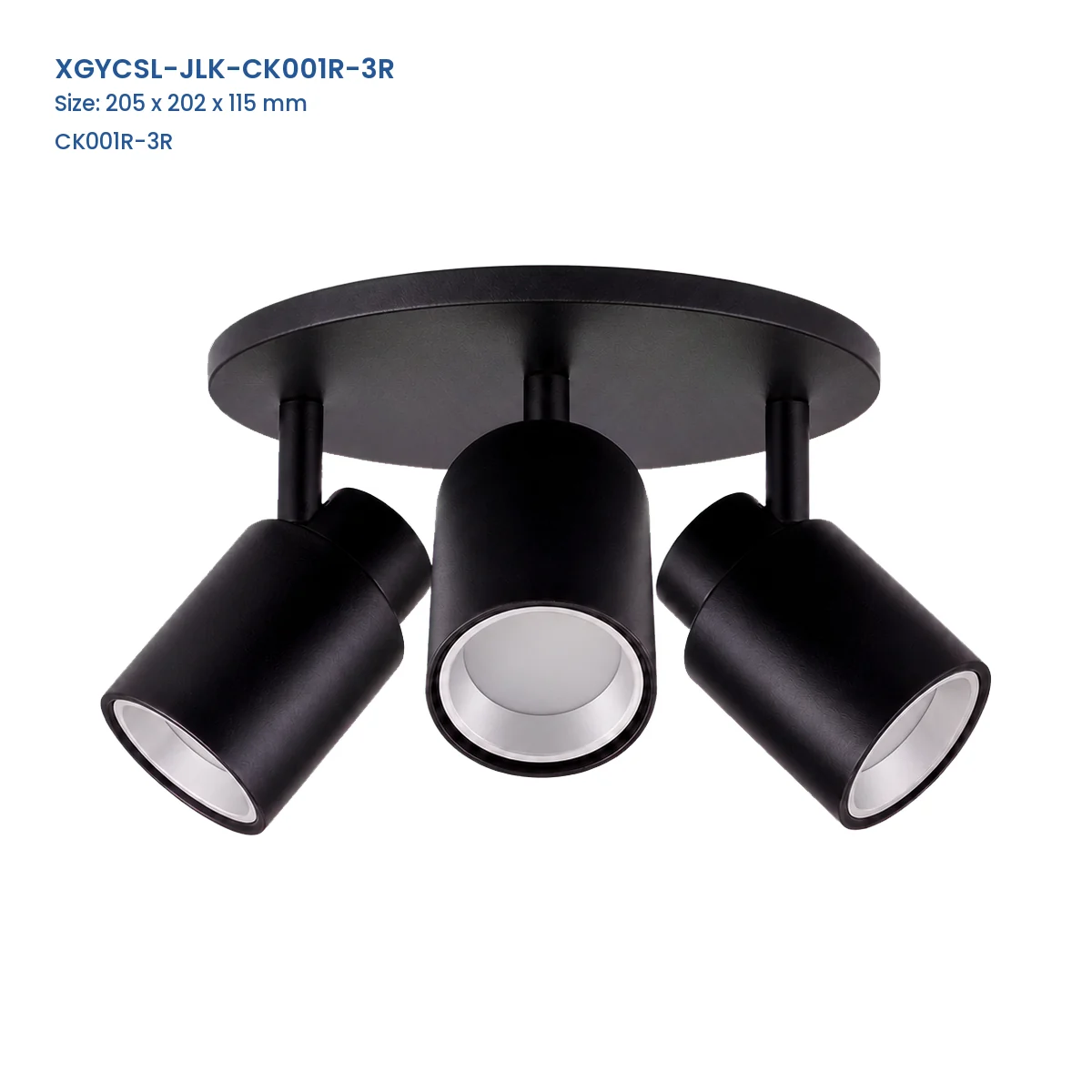

XGYCSL-JLK-CK001R-3R black 3-head surface-mounted spotlight housing, 205 x 202 x 115 mm

XGYCSL-JLK-CK001R-4 black 4-head surface-mounted spotlight housing, 580 x 100 x 138 mm

Technical Specifications

Model Specifications

Model No.	Base Layout	Heads	Dimensions (Axis Order to Confirm, mm)	Material	Colors
XGYCSL-JLK-CK001R-1R	Round	1	134 x 80 x 110	Steel	Black / White
XGYCSL-JLK-CK001R-2	Linear	2	244 x 100 x 152	Steel	Black / White
XGYCSL-JLK-CK001R-3	Linear	3	360 x 100 x 152	Steel	Black / White
XGYCSL-JLK-CK001R-3R	Round	3	205 x 202 x 115	Steel	Black / White
XGYCSL-JLK-CK001R-4	Linear	4	580 x 100 x 138	Steel	Black / White

Product Description

Product Details

Product Construction

A shallow ceiling plate carries the pivot joints and cylindrical lamp chambers. The fastening interface sits behind the plate while the front openings remain accessible for lamp service.

Selection & Installation Notes

Verify ceiling support, fixing-hole clearance and the final holder/socket package before installation. Check lamp dimensions against the chamber and leave enough space for the intended aiming movement; the lamp is not supplied. Compare related options in our GU10, MR16 and E27 housing range.

Recommended Application

Applications

Retail Stores: Aim one or more heads toward shelves, merchandise and window displays.
Galleries & Showrooms: Direct separate heads toward artwork, exhibits or product displays from one ceiling point.
Hotels & Restaurants: Use black or white surface-mounted housings for focused accent lighting in guest and dining areas.
Residential Interiors: Add adjustable ceiling accents where a recessed opening is unavailable or undesirable.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

How should I choose the CK001 head configuration?

Choose the number and spacing of target surfaces first, then select the one-, two-, three- or four-head reference whose base dimensions fit the ceiling point.

What is the difference between the CK001 round and linear bases?

Round bases concentrate heads around one ceiling point, while linear bases spread them along a straight run. Match the base footprint to the junction location and aiming plan.

Is the GU10 or MR16 holder included with every CK001 model?

The exact GU10 or GU5.3/MR16 holder/socket package is selected with the order and is not fixed across every CK001 reference. The lamp is not included.

What aiming clearance should be allowed around each head?

Leave enough clearance for the intended head movement and lamp removal. Check the final aiming positions against nearby ceiling features on the project sample.

Can CK001 housings be supplied in black or white?

Yes. Black and white are family finish options. Specify the exact color and surface finish with the complete reference.

What should be checked on a CK001 project sample?

Check the complete reference, base geometry, external dimensions, head movement, holder/socket package, mounting hardware, finish, label and packing before production.
