Linear Multi-Head GU10/MR16 Spotlight Housings

Linear multi-head GU10/MR16 spotlight housings arrange separate head bodies along an elongated fixture base for coordinated interior layouts. Select the complete order reference and project drawing before defining the lamp-holder interface, electrical package, site fixing and service clearances.

Linear Architectural Form: A single elongated silhouette brings several spotlight positions into one ceiling element.
Point-by-Point Placement: Separate light positions support a repeated accent sequence across an interior zone.
Housing Platform: The body is prepared around the lamp-holder and electrical package selected for the project.

Page Scope	Fixture housing family
Order Basis	Complete reference and approved drawing
Source Interface	Record separately for the chosen reference

Electrical Record	Supply, driver and control requirements
Installation Record	Fixing points and cable entry
Access Record	Clearance for assembly and service

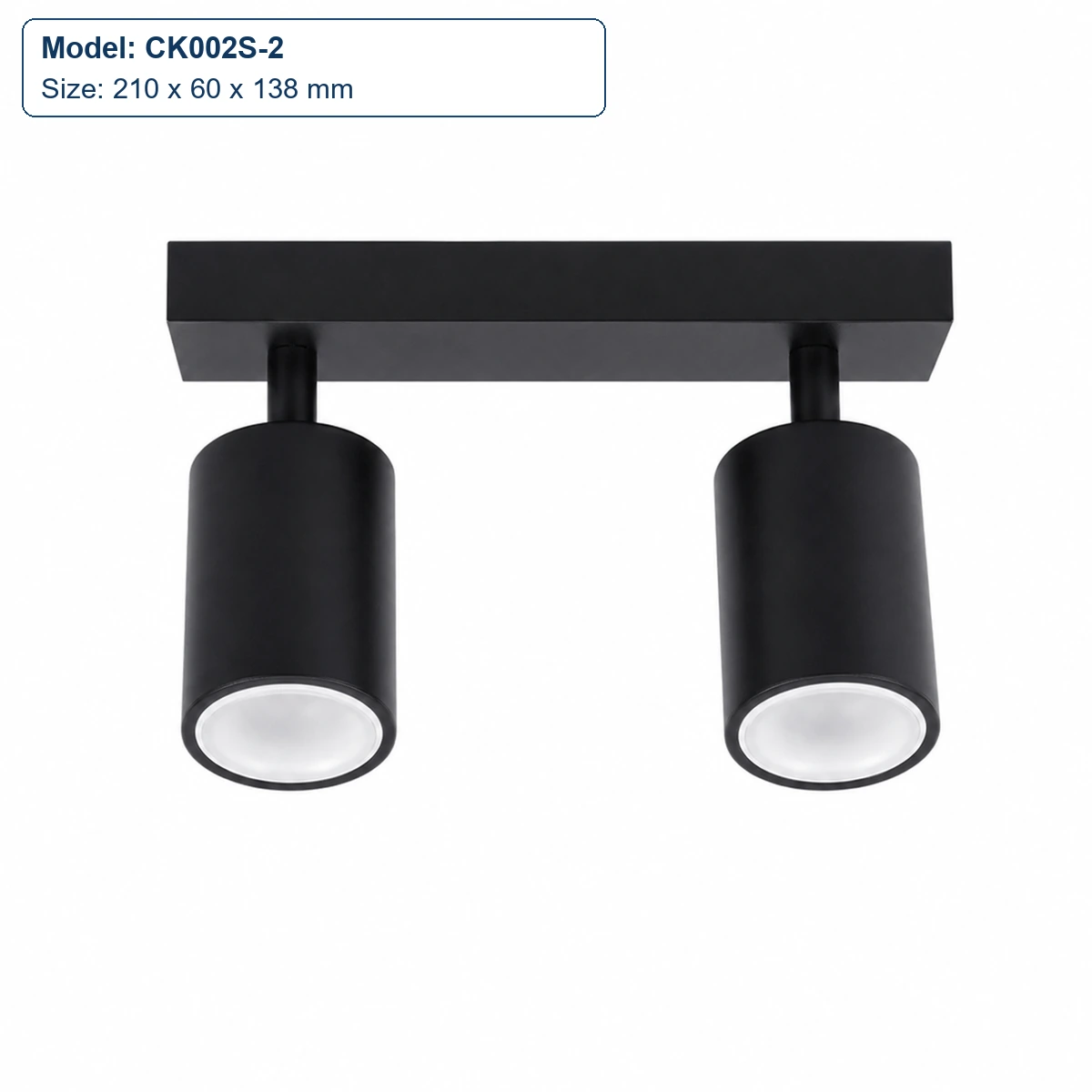

CK002S-2 2-head cylindrical linear housing, 210 x 60 x 138 mm

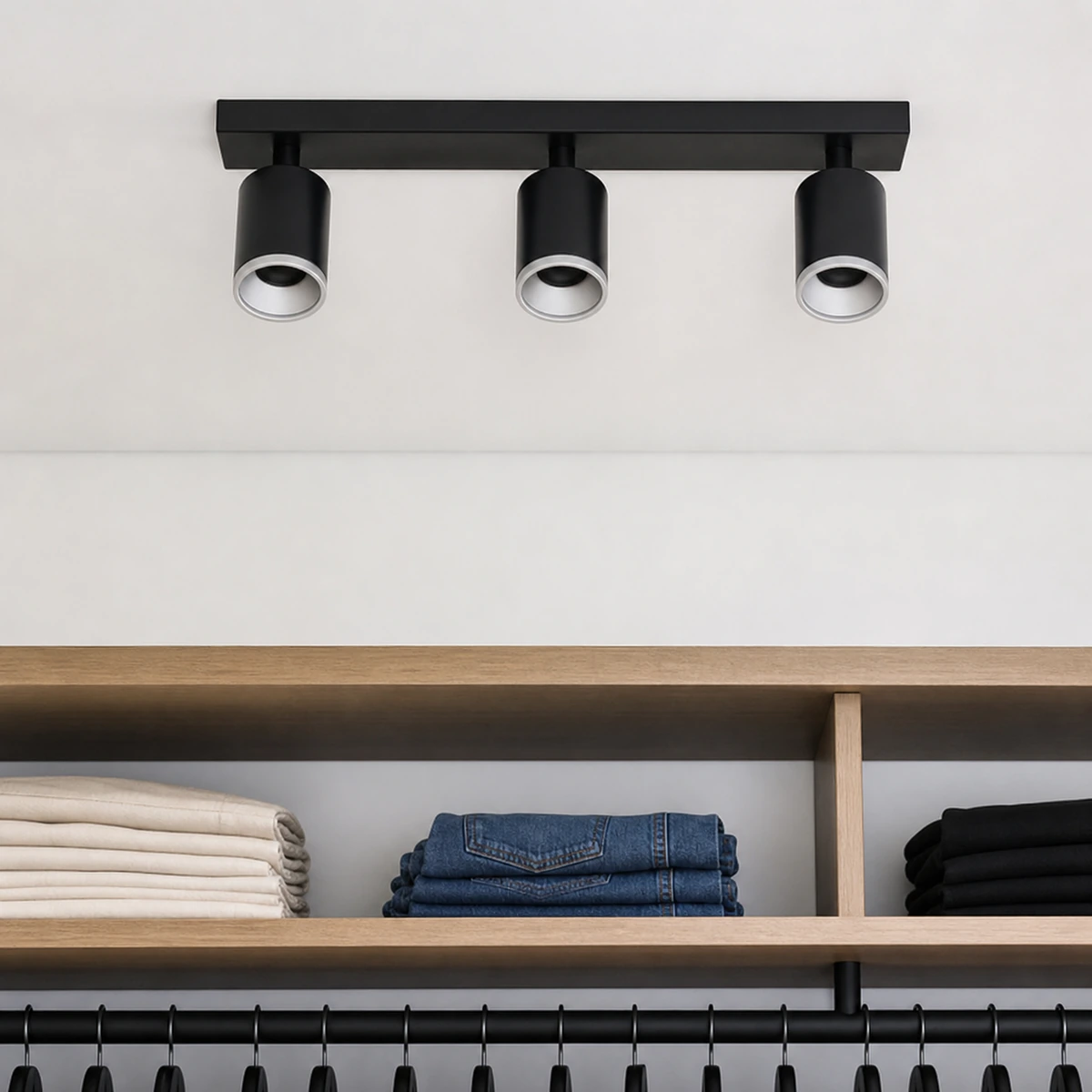

linear multi-head gu10/mr16 spotlight housings installed in a dry indoor display area

CK002S-3 3-head cylindrical linear housing, 366 x 60 x 138 mm

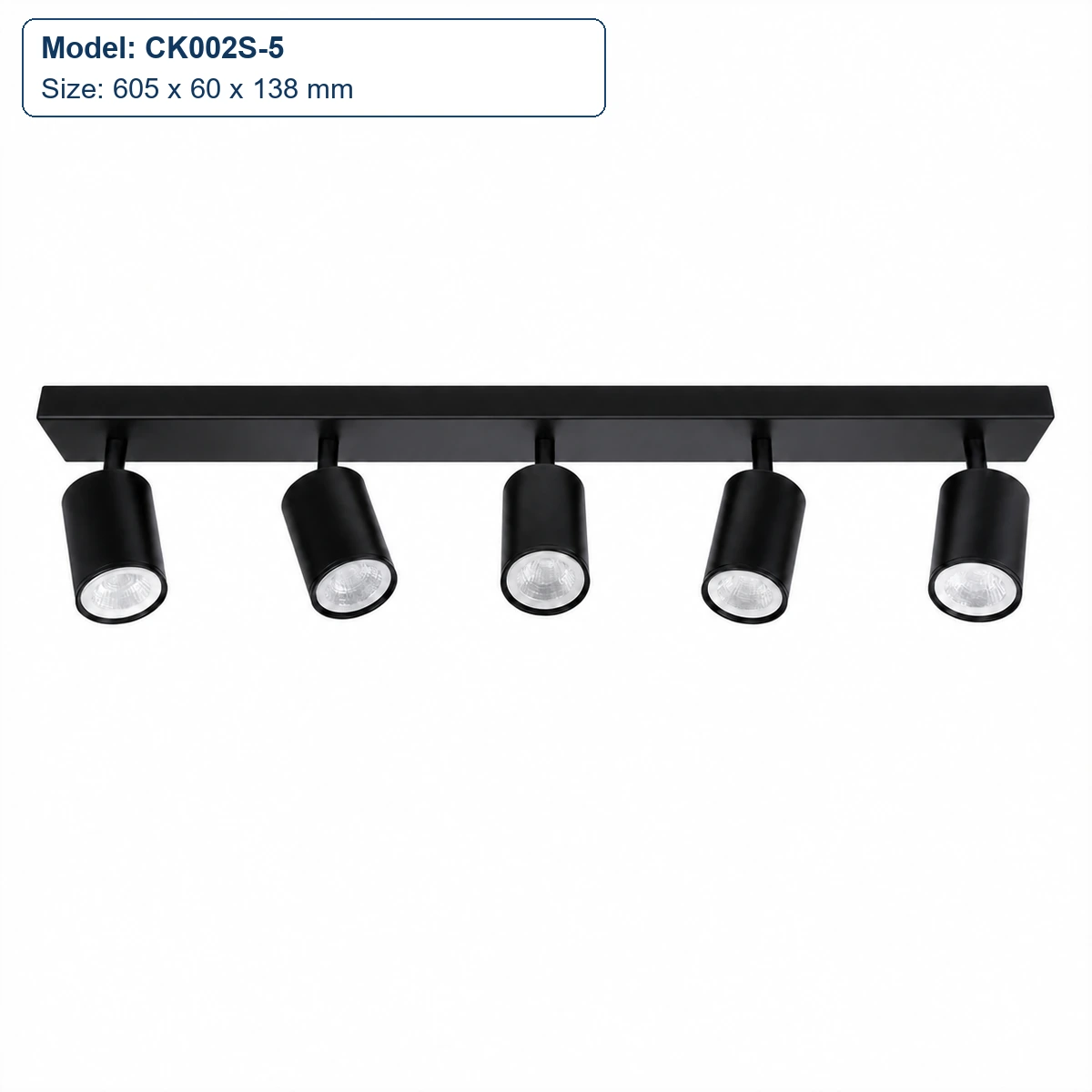

CK002S-5 5-head cylindrical linear housing, 605 x 60 x 138 mm

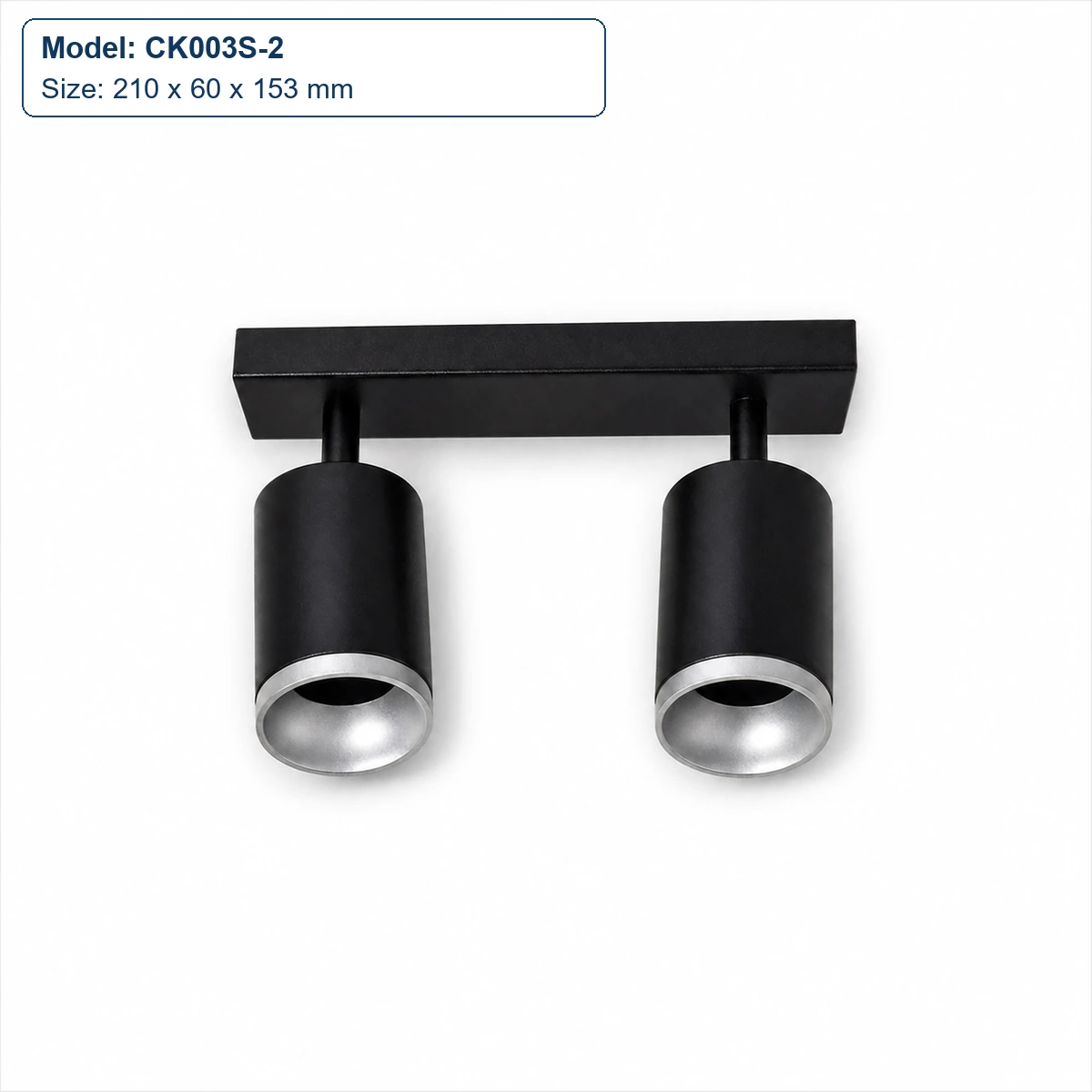

CK003S-2 2-head cylindrical linear housing, 210 x 60 x 153 mm

CK003S-3 3-head cylindrical linear housing, 366 x 60 x 153 mm

CK003S-4 4-head cylindrical linear housing, 485 x 60 x 153 mm

CK003S-6 6-head cylindrical linear housing, 900 x 60 x 152 mm

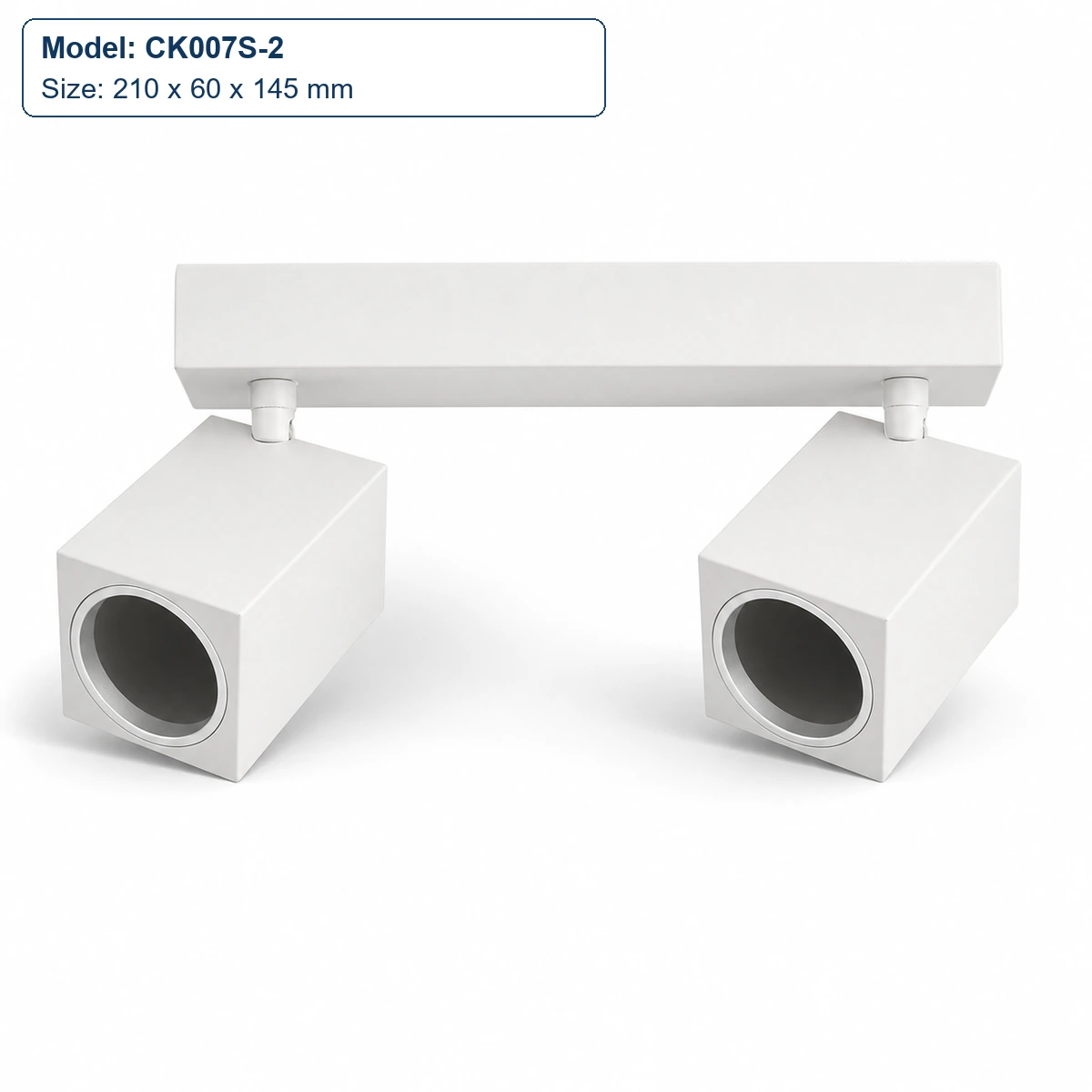

CK007S-2 2-head angular linear housing, 210 x 60 x 145 mm

CK007S-3 3-head angular linear housing, 366 x 60 x 145 mm

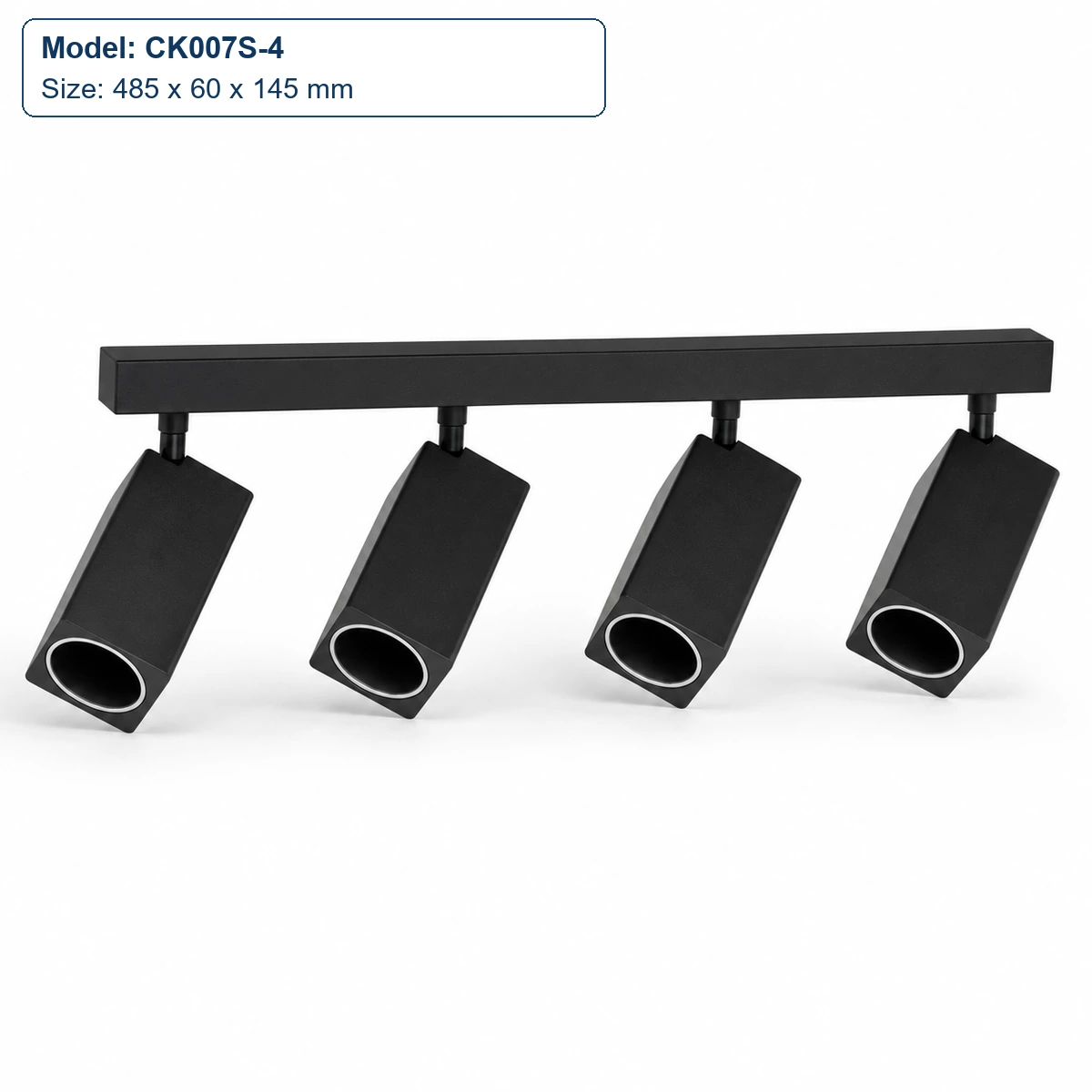

CK007S-4 4-head angular linear housing, 485 x 60 x 145 mm

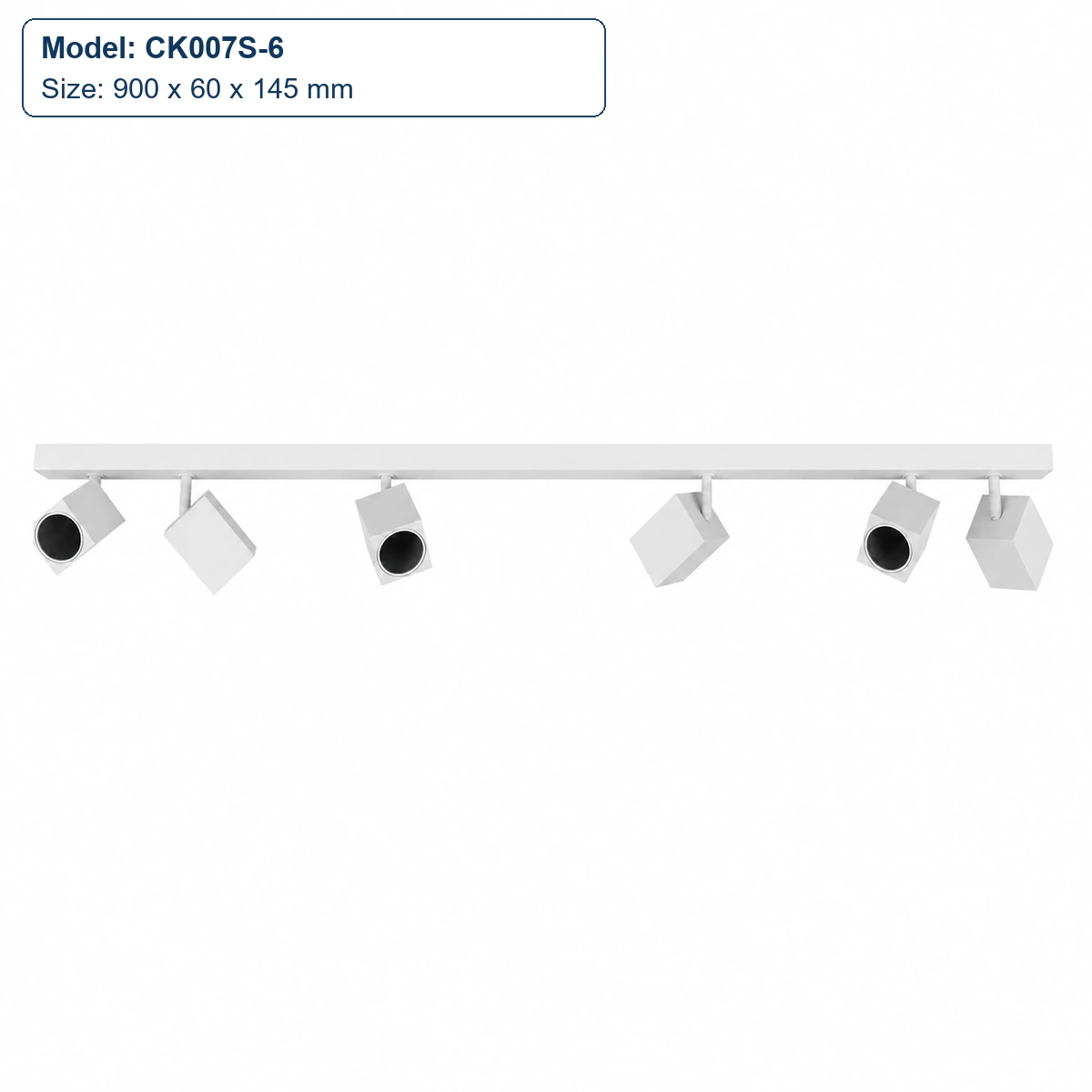

CK007S-6 6-head angular linear housing, 900 x 60 x 145 mm

Technical Specifications

Model Specifications

Model	Structure	Dimensions (Source Order)	Body Materials	Finish
CK002S-2	2-head cylindrical linear housing	210 x 60 x 138 mm	Aluminum + steel	Black / white
CK002S-3	3-head cylindrical linear housing	366 x 60 x 138 mm	Aluminum + steel	Black / white
CK002S-5	5-head cylindrical linear housing	605 x 60 x 138 mm	Aluminum + steel	Black / white
CK003S-2	2-head cylindrical linear housing	210 x 60 x 153 mm	Aluminum + steel + PC	Black / white
CK003S-3	3-head cylindrical linear housing	366 x 60 x 153 mm	Aluminum + steel + PC	Black / white
CK003S-4	4-head cylindrical linear housing	485 x 60 x 153 mm	Aluminum + steel + PC	Black / white
CK003S-6	6-head cylindrical linear housing	900 x 60 x 152 mm	Aluminum + steel + PC	Black / white
CK007S-2	2-head angular linear housing	210 x 60 x 145 mm	Aluminum + steel	Black / white
CK007S-3	3-head angular linear housing	366 x 60 x 145 mm	Aluminum + steel	Black / white
CK007S-4	4-head angular linear housing	485 x 60 x 145 mm	Aluminum + steel	Black / white
CK007S-6	6-head angular linear housing	900 x 60 x 145 mm	Aluminum + steel	Black / white

Product Description

Product Details

Product Construction

The assembly consists of a common overhead body, individual head enclosures, front lamp openings and the internal interfaces that connect each enclosure to the shared body.

Selection & Installation Notes

Select the complete order reference from the project schedule, then check the approved drawing for the overall envelope, supporting surface, fixing layout, cable entry and service access. Record the source interface, supply, driver and control requirements for the ordered reference rather than assigning them from the family name. Compare related formats in our GU10, MR16 and E27 housing range.

Recommended Application

Applications

Retail Display Runs: Places repeated spotlight positions above counters, shelving and merchandise zones.
Gallery Feature Walls: Arranges separate spotlight positions along a ceiling line serving artworks and displays.
Hospitality Accent Areas: Coordinates a linear fixture form above reception desks, lounge features and decorative walls.
Residential Feature Zones: Organizes several spotlight positions above dining tables, artwork and shelving.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What defines this linear multi-head spotlight housing family?

The defining form is an elongated fixture base carrying several separate head housings. Use the complete order reference for the exact configuration.

Does the family name confirm the GU10 or MR16 holder for every reference?

No. Confirm the lamp-holder interface for the exact ordered reference instead of assigning it from the family name.

Are all head positions adjustable?

An adjustment range is not established for the complete family. Use the approved drawing and sample to confirm the required head movement for the ordered reference.

How should the housing length and head arrangement be selected?

Match the complete order reference to the project drawing and available installation area. Do not derive dimensions or head quantity from a product image.

What should be checked at the installation point?

Check the supporting surface, fixing locations, cable entry, housing clearance and future service access against the approved drawing.

What should an OEM/ODM order record?

Record the complete order reference, housing drawing, lamp-holder interface, electrical package, finish, mounting interface, markings and packaging before production.
