Rounded-Head Suspended Spotlight Housings
- Rounded Head Profile: The compact lower housing creates a clean visual endpoint beneath the suspended line.
- Vertical Accent Form: The pendant-style presentation introduces a slender architectural line above the spotlight position.
- Housing Platform: The body is prepared around the lamp-holder and electrical package selected for the project.
| Page Scope | Suspended spotlight housing family |
|---|---|
| Order Basis | Complete reference and approved drawing |
| Source Interface | Record separately for the chosen reference |
| Electrical Record | Supply, driver and control requirements |
|---|---|
| Ceiling Record | Connection location and finished position |
| Access Record | Surrounding clearance and service access |
Technical Specifications
Model Specifications
| Model | Catalog Spec | Drop Layout | Dimensions (Source Order, mm) |
|---|---|---|---|

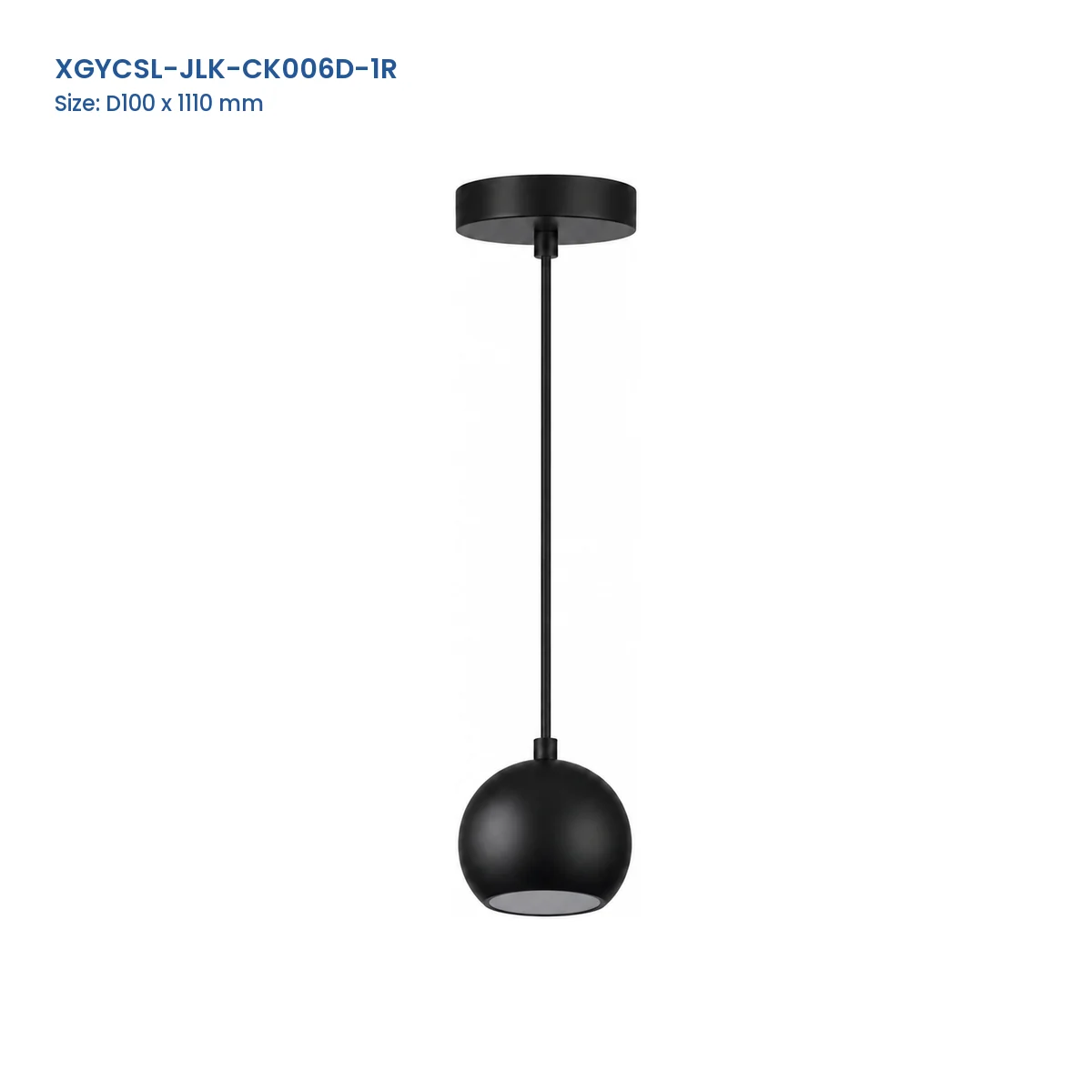

| XGYCSL-JLK-CK006D-1R | CK006D-1R | Single drop, round canopy | D100 x 1110 |

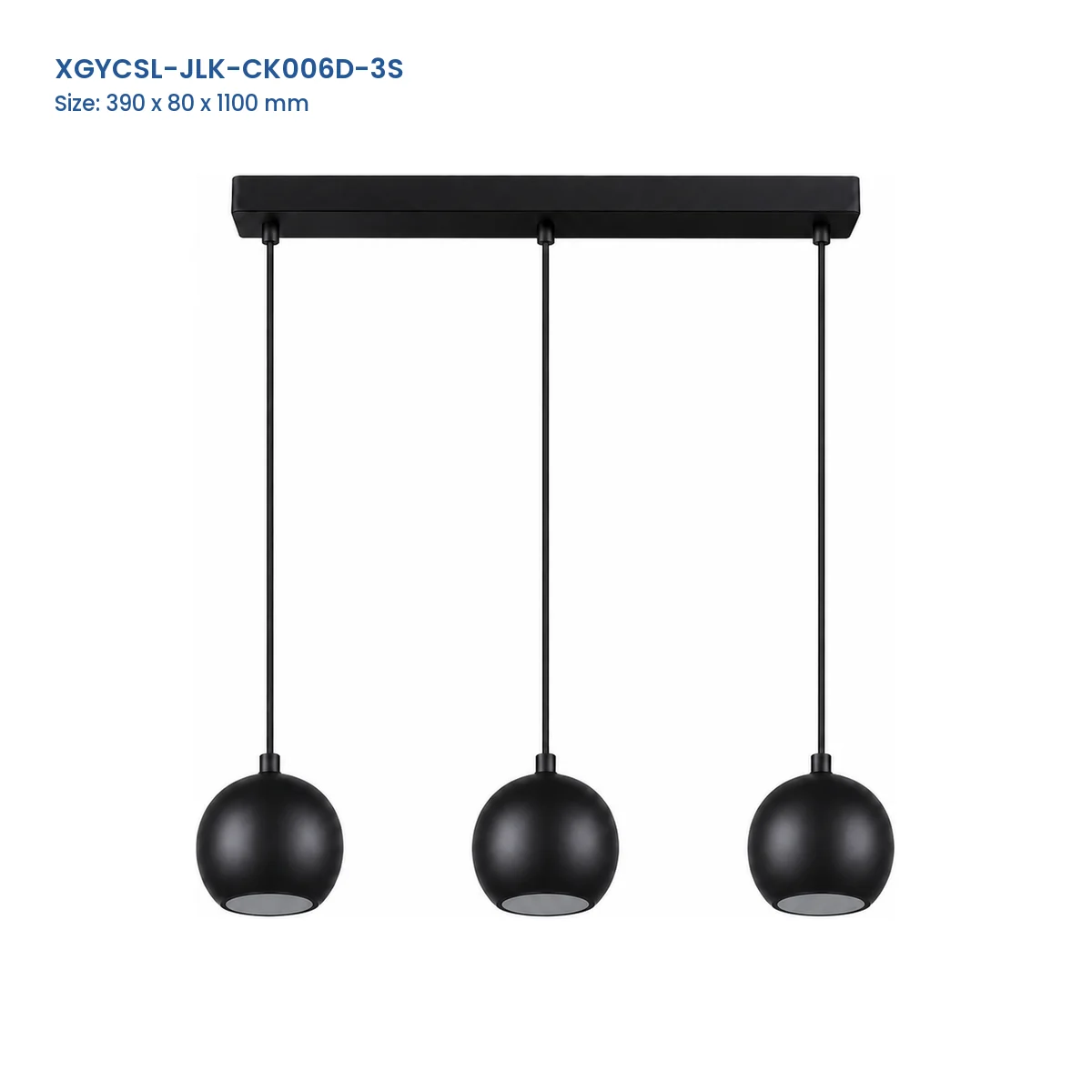

| XGYCSL-JLK-CK006D-3S | CK006D-3S | Three drops, linear bar | 390 x 80 x 1100 |
Product Description
Product Details
Product Construction
The visible assembly uses a lower enclosure with a front lamp opening. Internal source, electrical and mechanical interfaces are recorded in the approved production specification.
Selection & Installation Notes
Select the complete order reference from the project schedule, then check the approved drawing for the finished vertical position, ceiling connection, surrounding clearance, cable entry and service access. Record the source interface, supply, driver and control requirements for the ordered reference rather than assigning them from the family name. Compare related formats in our GU10, MR16 and E27 housing range.
Recommended Application
Applications

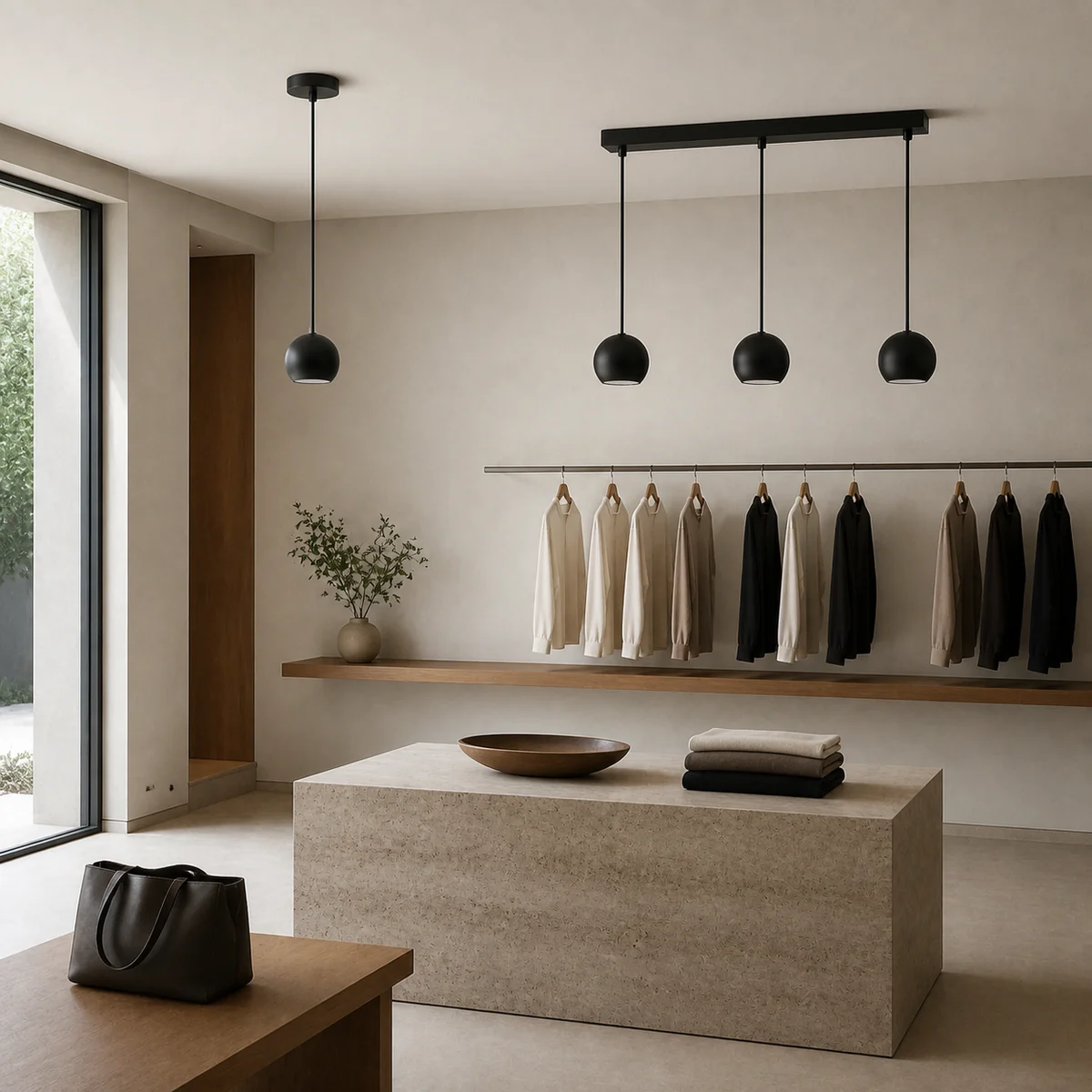

- Retail Display Counters: Places a suspended accent form above merchandise tables, counters and feature zones.
- Hospitality Reception Desks: Adds a rounded hanging fixture profile above reception and service areas.
- Residential Dining Areas: Positions a compact suspended housing above dining tables and interior focal points.
- Gallery Display Zones: Introduces a lowered spotlight position near artworks and curated displays.
