Track-Mounted GU10/MR16 Spotlight Housings

These track-mounted spotlight housings offer cylindrical and angular body profiles with a jointed connection below the rail fitting. Each housing is supplied without a light source, leaving the lamp and holder package as a separate project selection.

Visual Shape Choice: Rounded barrel and four-sided forms support contrasting interior styles.
Repositionable Focal Point: A visible joint allows the aiming direction to be set for the planned layout.
Clean Overhead Rhythm: Compact top connections support consistent spacing across repeated ceiling runs.

Ceiling connection	Rail connection for dry interiors
Size data	See the detailed matrix below
Product role	Enclosure for a separately sourced light source

Emitter positions	Single position per connector
Material sets	Aluminum and steel; selected construction also incorporates PC
Supply boundary	Light source and socket kit ordered separately

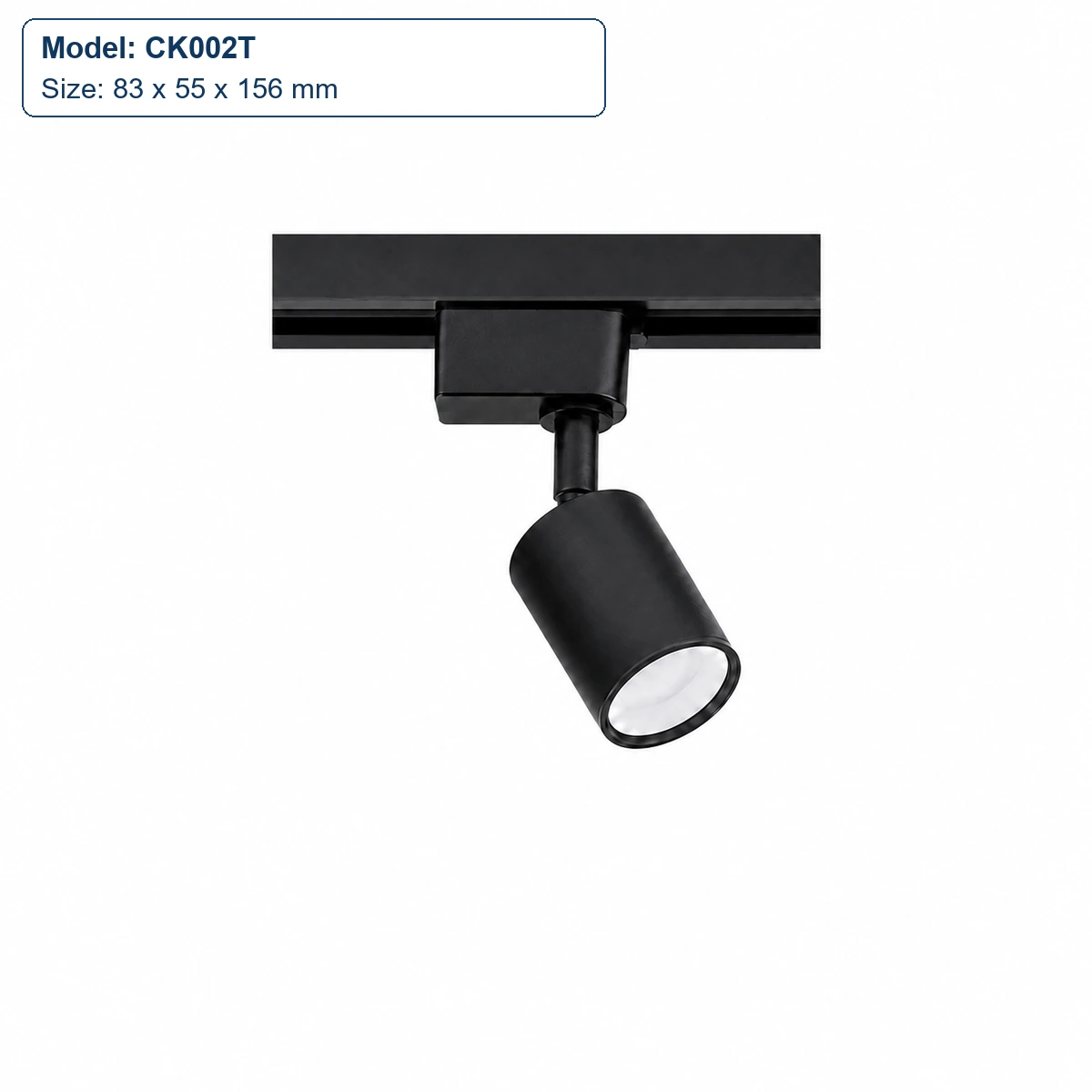

CK002T cylindrical track housing, 83 x 55 x 156 mm

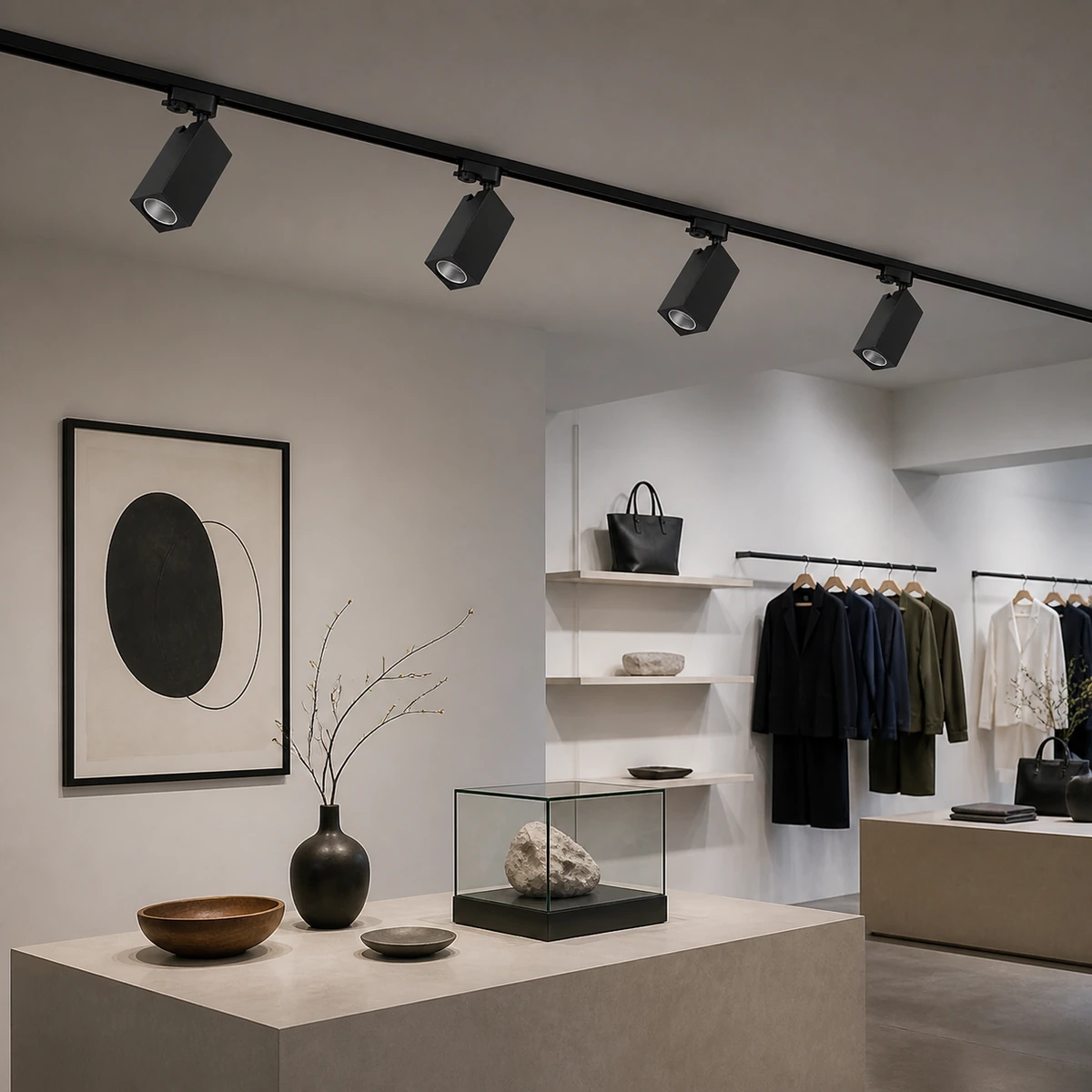

track-mounted gu10/mr16 spotlight housings installed in a dry indoor display area

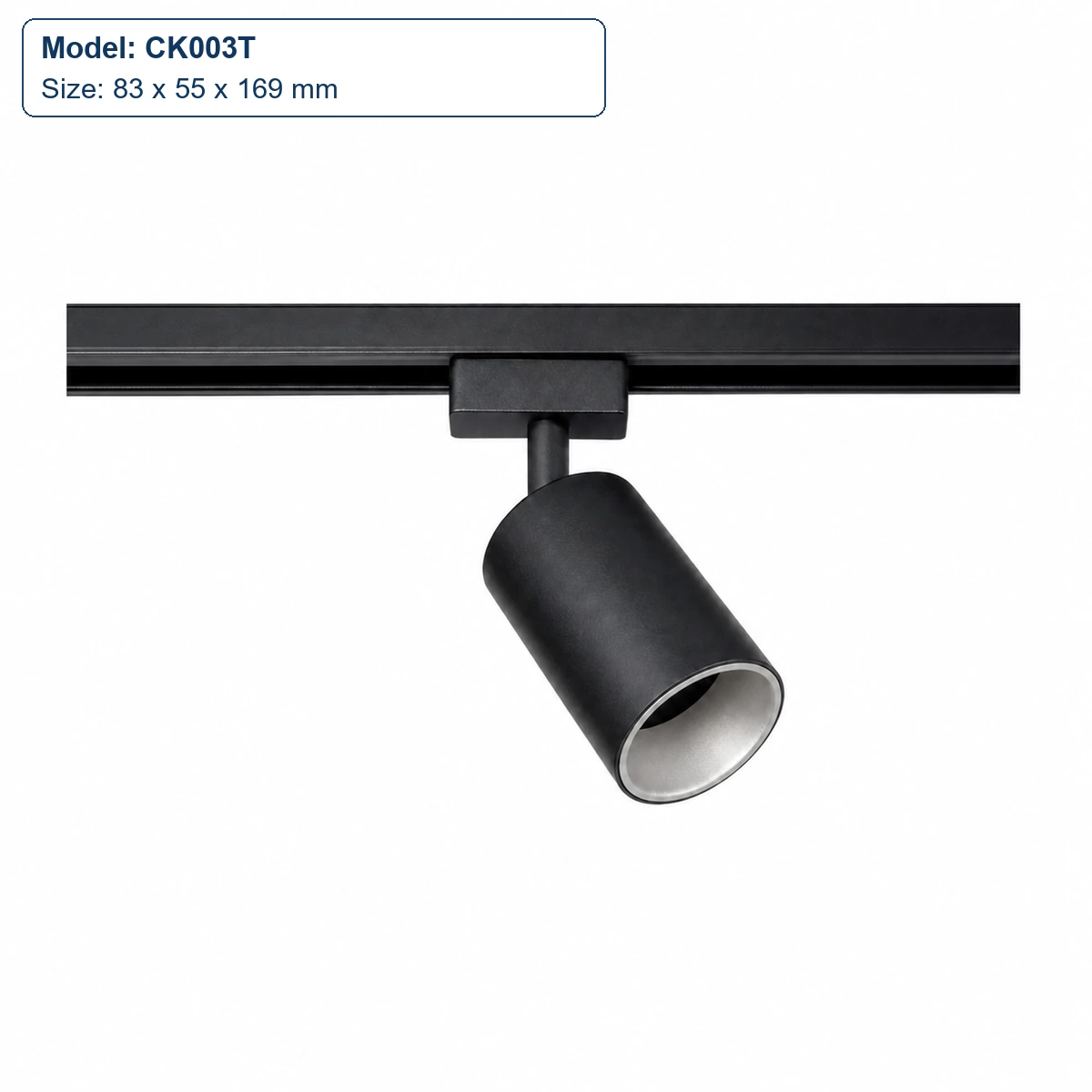

CK003T cylindrical track housing, 83 x 55 x 169 mm

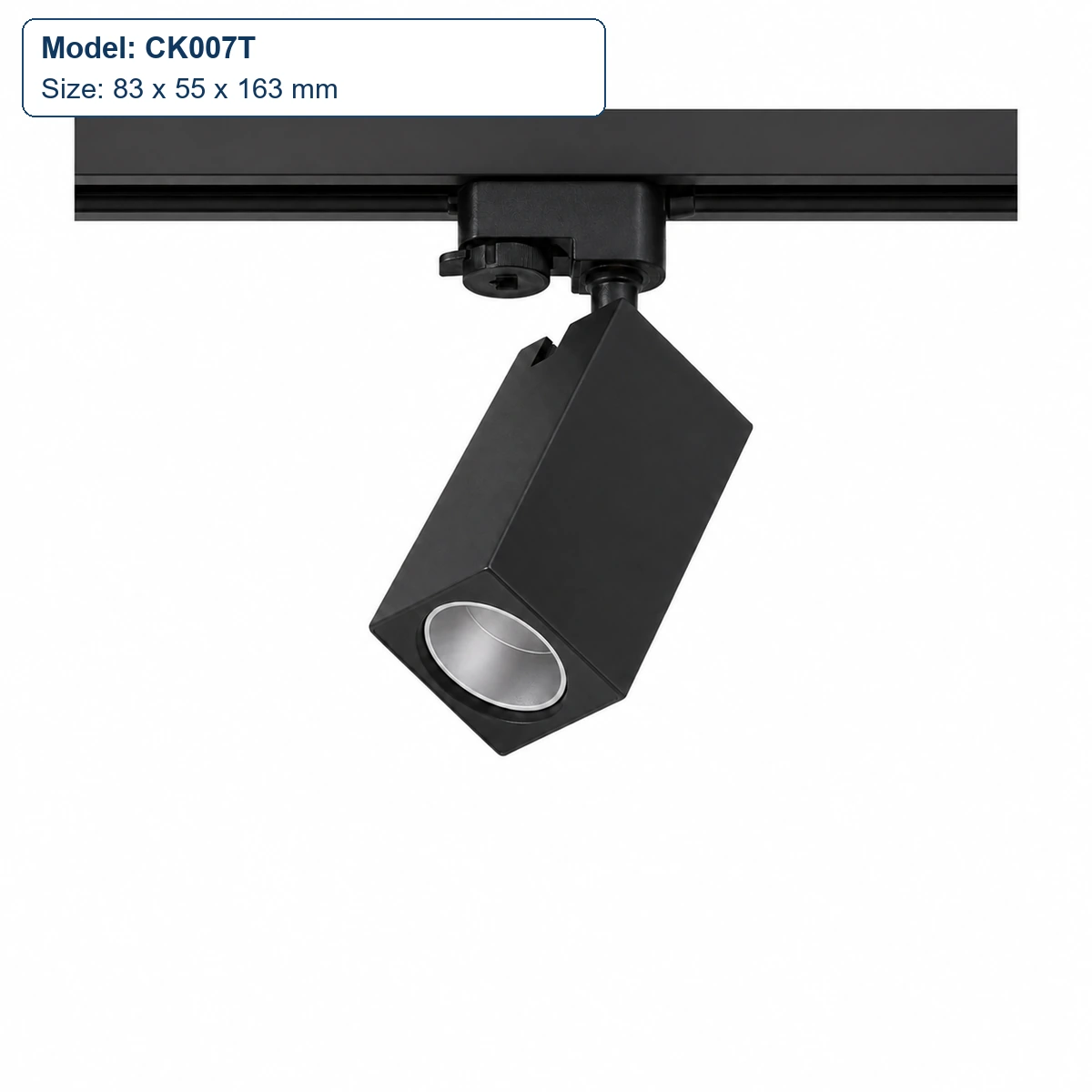

CK007T angular-head track housing, 83 x 55 x 163 mm

Technical Specifications

Model Specifications

Model	Structure	Dimensions (Source Order)	Body Materials	Finish
CK002T	Cylindrical track housing	83 x 55 x 156 mm	Aluminum + steel	Black / white
CK003T	Cylindrical track housing	83 x 55 x 169 mm	Aluminum + steel + PC	Black / white
CK007T	Angular-head track housing	83 x 55 x 163 mm	Aluminum + steel	Black / white

Product Description

Product Details

Product Construction

Each visible assembly combines an upper rectangular fitting, a short hinge and a forward-facing housing aperture. Cylindrical and angular formats create distinct architectural silhouettes.

Selection & Installation Notes

Select the body format first, then confirm the complete reference and project rail profile. Track-mounted naming does not establish compatibility with every rail standard. Specify the lamp and holder package separately, and verify dimensions on the project drawing. Compare related formats in our GU10/MR16 housing range.

Recommended Application

Applications

Retail Display Tracks: Arrange individual directional positions above merchandise walls, shelves and display islands.
Gallery Feature Areas: Coordinate spotlight housing positions around artworks and interior displays.
Hospitality Interiors: Use cylindrical or angular visual forms near reception desks, lounges and feature walls.
Residential Feature Spaces: Position individual housings above artwork, shelving and interior focal points.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

How do the housing profiles differ?

The range includes cylindrical and angular body formats. Choose the visible shape first, then confirm the complete reference and dimensions.

Is a light source included with the housing?

No. The housing is supplied without a light source; specify the lamp and holder package separately.

Will the adapter fit every track standard?

No universal rail compatibility is established. Confirm the project rail profile and adapter interface before ordering.

Can the housing direction be adjusted?

Yes. The visible joint supports directional positioning, but no adjustment-angle value is assigned.

Does the GU10/MR16 name confirm the holder interface?

No. Confirm the exact holder package and lamp dimensions for the complete housing reference.

What should be confirmed before sampling or production?

Confirm the complete reference, body profile, visible finish, rail standard and adapter interface, lamp and holder package, dimensions and intended aiming direction.
