Slim-Cylinder Round-Base Surface-Mounted Spotlight Housing
- Slim Cylinder Profile: The narrow head body creates a concise vertical silhouette within the ceiling composition.
- Round-Base Identity: A circular overhead form keeps the visible fixture footprint visually compact.
- Housing Platform: The body is prepared around the lamp-holder and electrical package selected for the project.
| Page Scope | Slim-cylinder spotlight housing |
|---|---|
| Order Basis | Complete reference and approved drawing |
| Source Interface | Record separately for the chosen reference |
| Electrical Record | Supply, driver and control requirements |
|---|---|
| Ceiling Record | Connection location and available envelope |
| Access Record | Surrounding clearance and service access |
Technical Specifications
Model Specifications
| Model No. | Spec Name | Base Format | Heads | Dimensions (Source Order, mm) | Body Material |
|---|---|---|---|---|---|

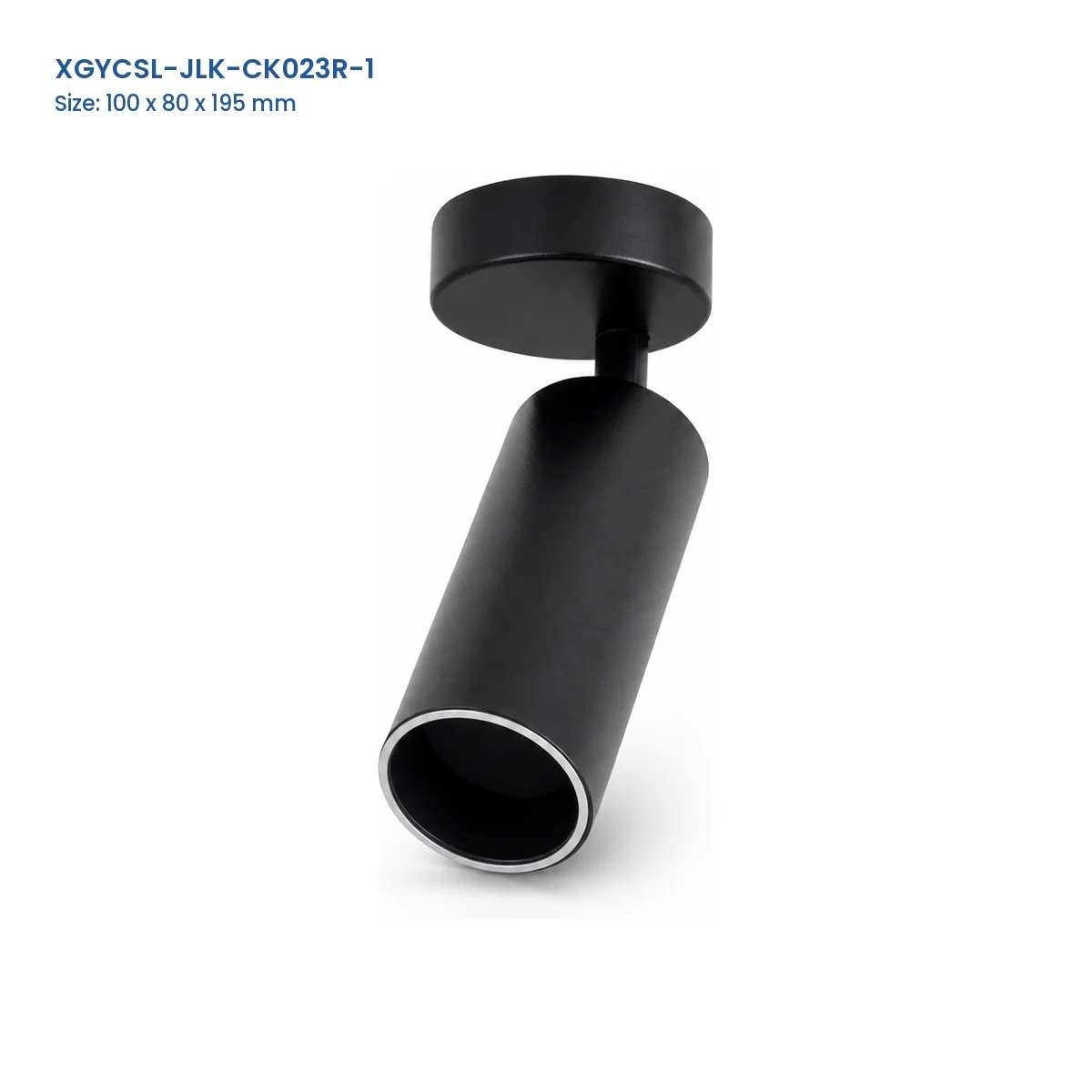

| XGYCSL-JLK-CK023R-1 | CK023R-1 | Round surface base | 1 | 100 x 80 x 195 | Black/white aluminium |
Product Description
Product Details
Product Construction
The visible assembly uses a cylindrical enclosure with a front lamp opening. Internal source, electrical and mechanical interfaces are recorded in the approved production specification.
Selection & Installation Notes
Select the complete order reference from the project schedule, then check the approved drawing for the overall envelope, ceiling connection, surrounding clearance, cable entry and service access. Record the source interface, supply, driver and control requirements for the ordered reference rather than assigning them from the family name. Compare related formats in our GU10, MR16 and E27 housing range.
Recommended Application
Applications

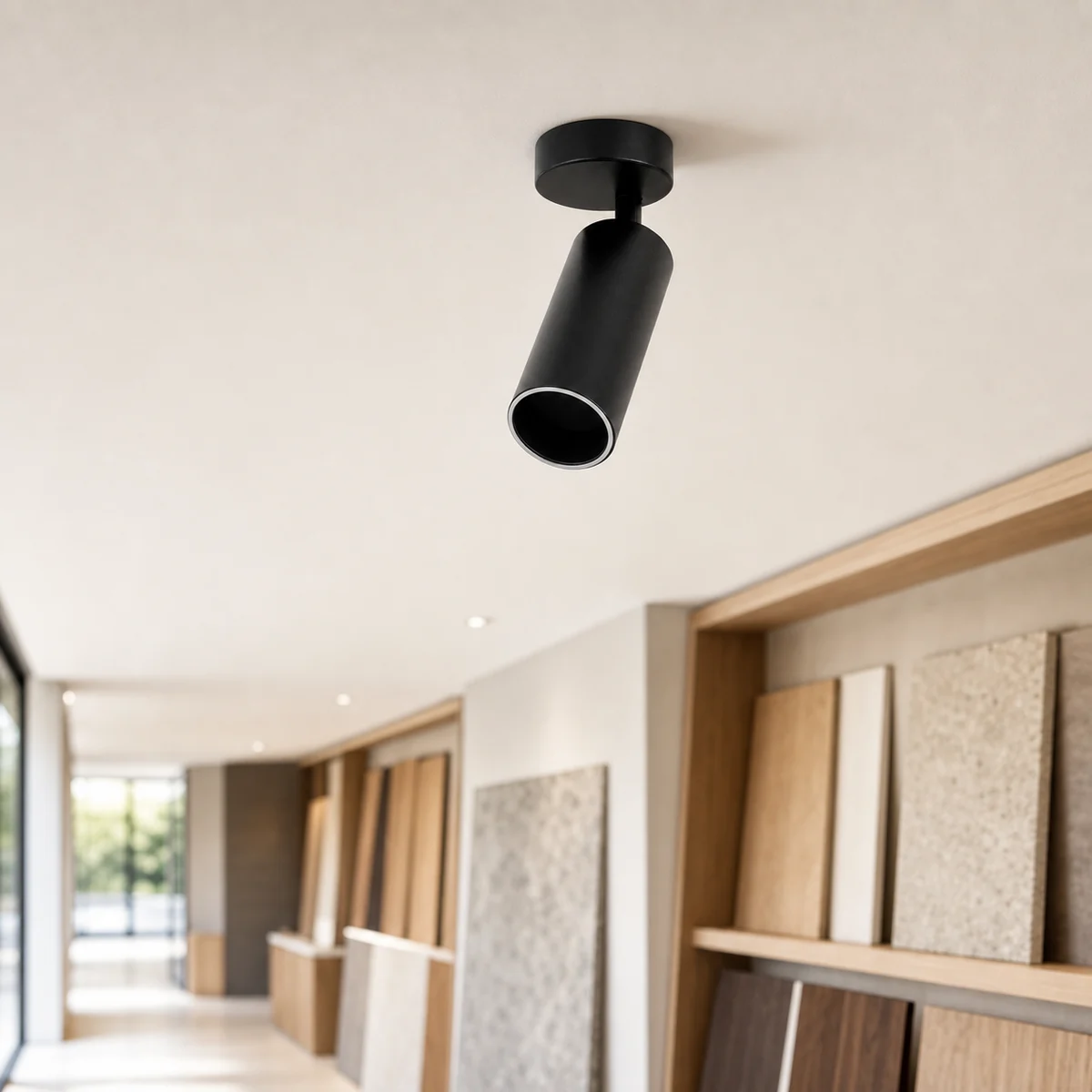

- Retail Display Bays: Places a slim spotlight housing above merchandise walls, counters and feature zones.
- Hospitality Reception Areas: Adds a compact round-base fixture profile above reception and service spaces.
- Residential Feature Zones: Coordinates a narrow cylinder form with dining, artwork and shelving layouts.
- Gallery Display Points: Introduces a concise overhead housing near artworks and curated displays.
