Wide-Plate Multi-Head Surface-Mounted GU10/MR16 Spotlight Housings

These wide-plate spotlight housings organize several adjustable cylindrical bodies across continuous square or rectangular backplates. Each housing assembly is supplied without a light source, leaving the lamp and holder package as a separate project selection.

Unified Ceiling Composition: Continuous geometric backing presents several focal positions as one architectural feature.
Ordered Visual Rhythm: Evenly arranged bodies create a calm sequence across longer layouts.
Defined Front Detail: A pale inset edge distinguishes each aperture from the outer silhouette.

Installation	Ceiling surface-mounted
Configuration range	1, 2, 3 or 4 heads
Ceiling plate	Square single-head or rectangular grouped format

Size range	120 x 120 x 136 to 690 x 120 x 136 mm
Body material / finishes	Aluminium / black or white
Supply boundary	Housing only; light source not included

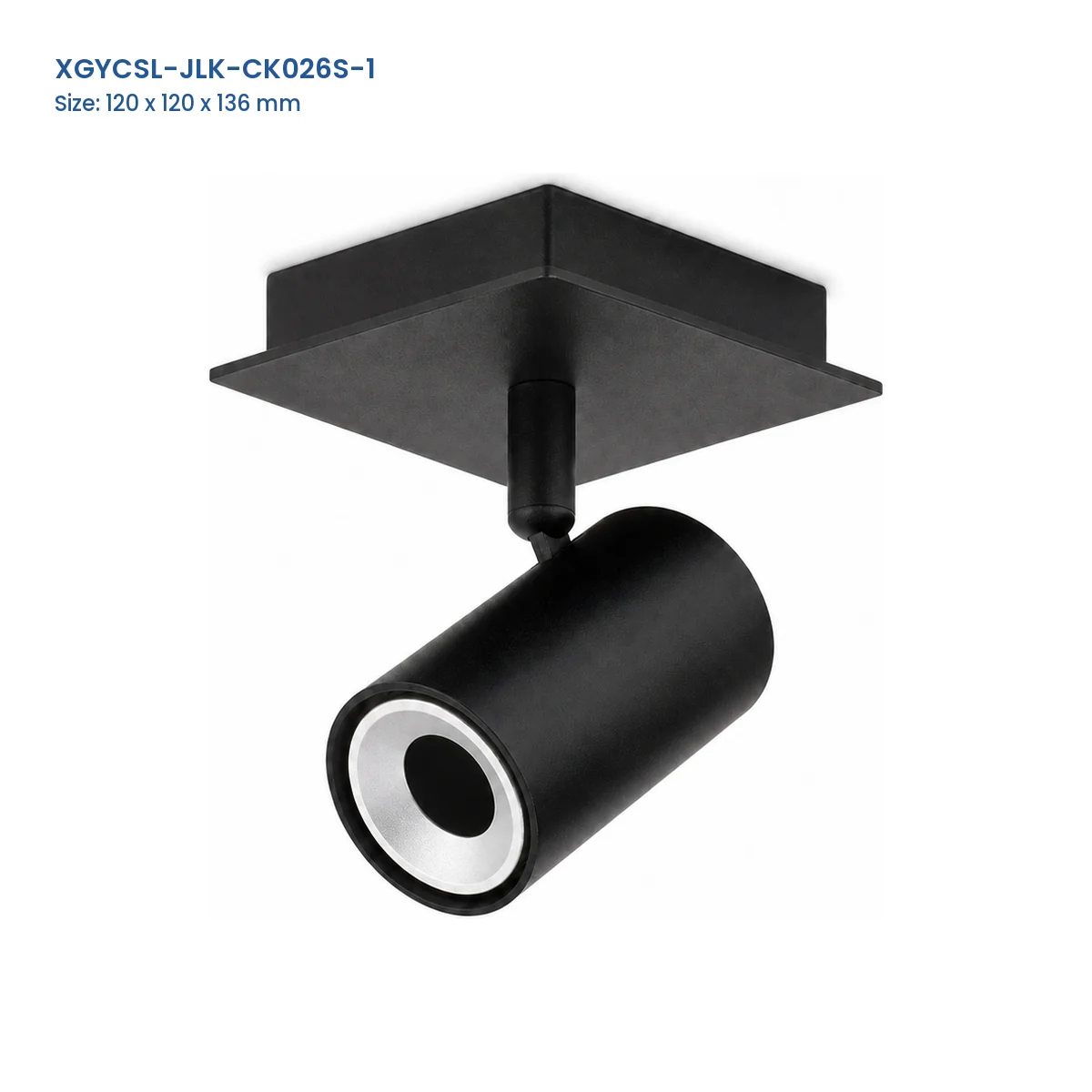

XGYCSL-JLK-CK026S-1 single-head spotlight housing with Model and Size labels

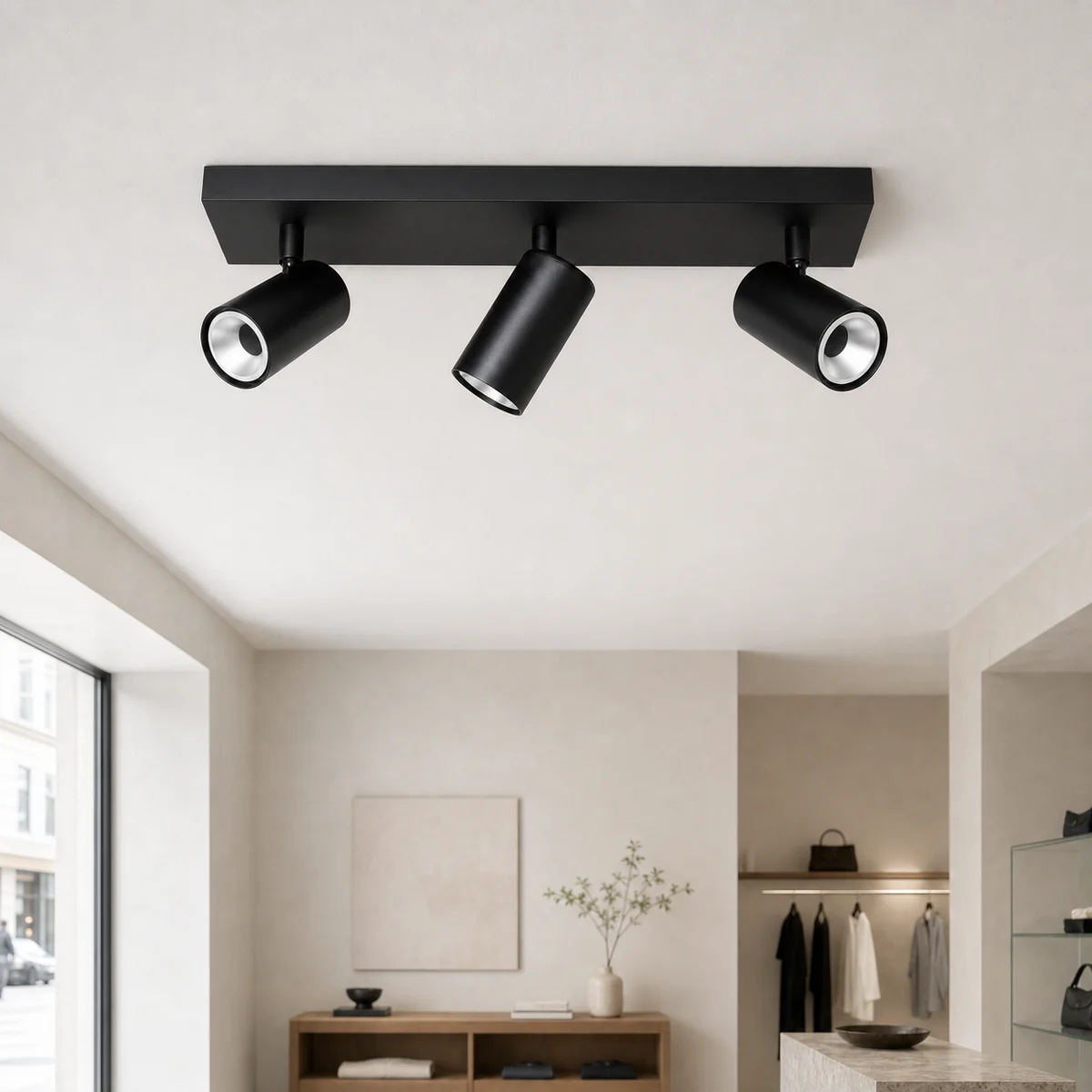

CK026S-4 wide-plate surface-mounted spotlight housing in a dry indoor boutique

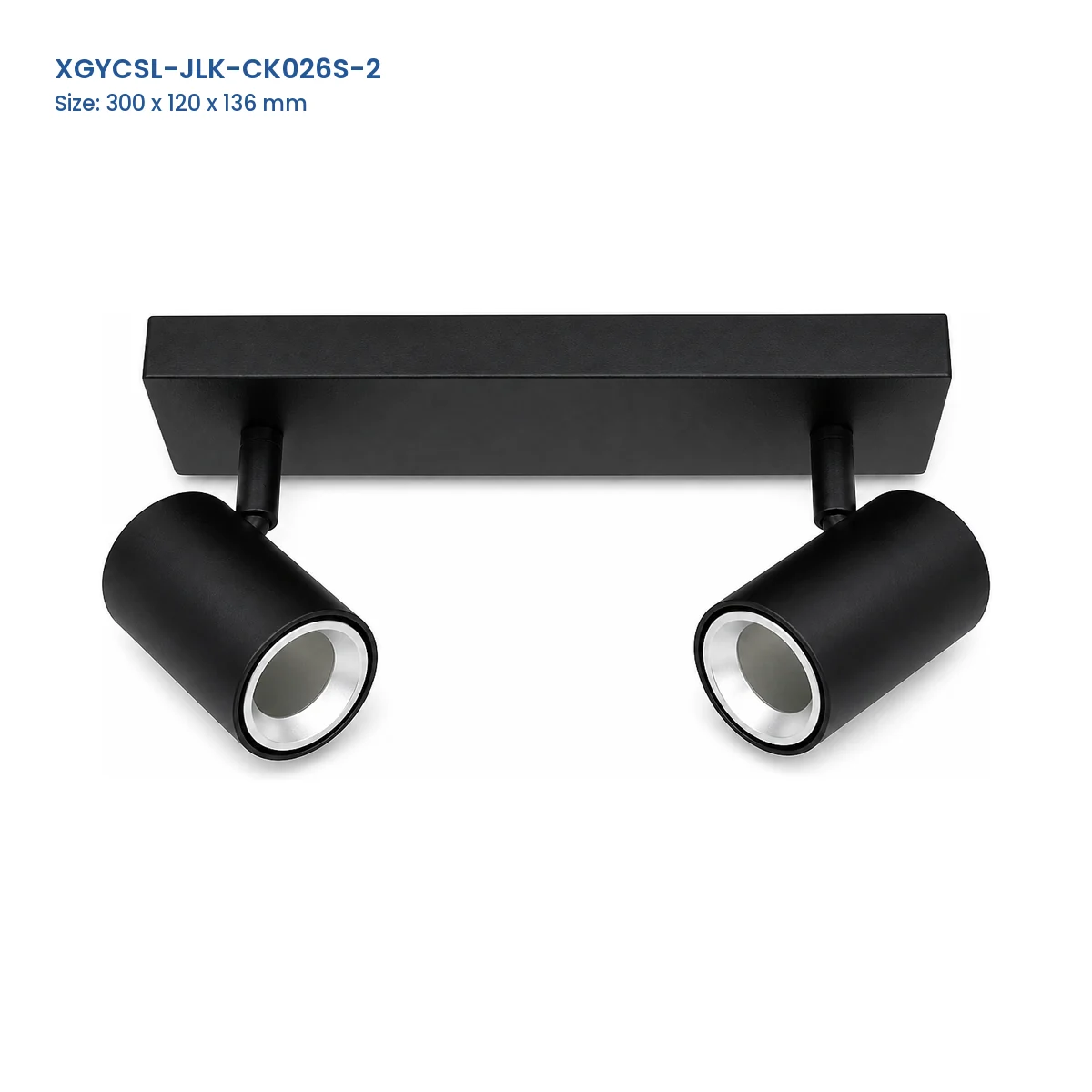

XGYCSL-JLK-CK026S-2 two-head spotlight housing with Model and Size labels

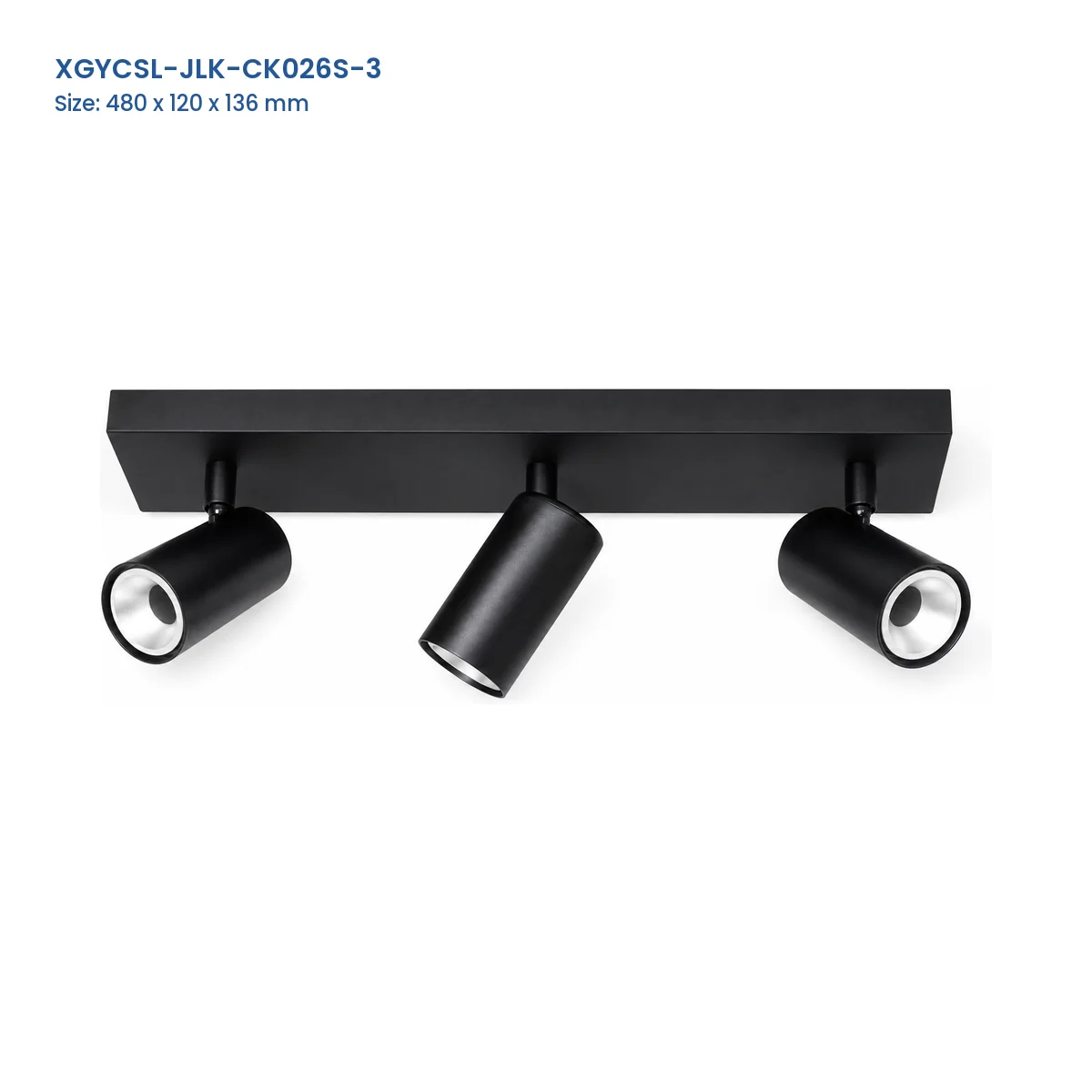

XGYCSL-JLK-CK026S-3 three-head spotlight housing with Model and Size labels

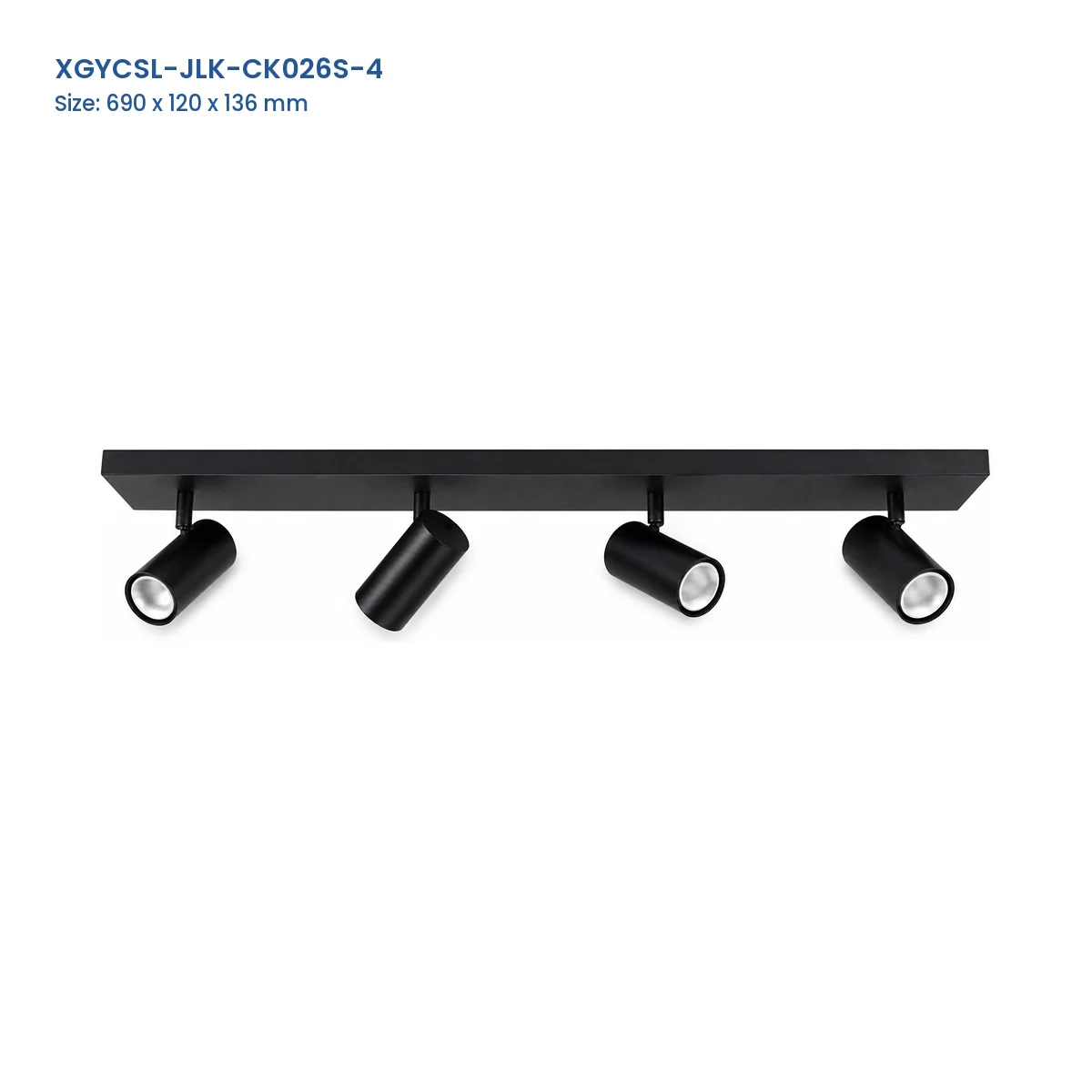

XGYCSL-JLK-CK026S-4 four-head spotlight housing with Model and Size labels

Technical Specifications

Model Specifications

Model	Spec Name	Plate Format	Heads	Dimensions (Source Order, mm)
XGYCSL-JLK-CK026S-1	CK026S-1	Square surface plate	1	120 x 120 x 136
XGYCSL-JLK-CK026S-2	CK026S-2	Rectangular surface plate	2	300 x 120 x 136
XGYCSL-JLK-CK026S-3	CK026S-3	Rectangular surface plate	3	480 x 120 x 136
XGYCSL-JLK-CK026S-4	CK026S-4	Rectangular surface plate	4	690 x 120 x 136

Product Description

Product Details

Product Construction

The visible assembly places short cylindrical shells beneath one broad geometric plate. Short pivot stems separate each forward opening from the backing surface.

Selection & Installation Notes

Choose the square or rectangular layout first, then use the complete reference and project drawing to verify dimensions and the ceiling interface. Specify the lamp and holder package separately because no universal holder assignment is established. Compare related formats in our GU10/MR16 housing range.

Recommended Application

Applications

Retail Display Rows: Arrange grouped directional positions above merchandise bays and feature walls.
Showroom Product Zones: Coordinate wide housing layouts above vehicles, furnishings and equipment displays.
Hospitality Counters: Use a continuous ceiling composition above reception desks, bars and service counters.
Residential Feature Areas: Position square or rectangular housings above living spaces, corridors and display niches.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

How do the plate formats differ visually?

The family includes a compact square plate and longer rectangular plates. Choose the required layout, then confirm the complete reference and dimensions.

Is a light source included with the housing?

No. The assembly is supplied as housing only; specify the lamp or module separately.

Does the multi-head name confirm an exact head count?

No. Use the complete reference and technical table to confirm the required configuration rather than selecting from the family name alone.

Does the GU10/MR16 name confirm holder compatibility?

No. Confirm the exact holder interface and lamp dimensions for the complete housing reference.

Can the cylindrical bodies be aimed separately?

Yes. Visible pivot stems support separate directional positioning, but no adjustment-angle value is assigned.

What should be confirmed before sampling or production?

Confirm the complete reference, plate format, dimensions, visible finish, lamp and holder package, ceiling interface and intended aiming directions.
