North American LED Side-Emission Panel
- Five Regional Footprints: Square, half-width and full-length formats address common North American ceiling-module proportions.
- Side-Emission Optical Body: Edge-fed light distribution supports a slim panel construction distinct from backlit products.
- Model-Specific Output: Each footprint uses its specified wattage options for accurate project selection.
- White Ceiling Finish: A consistent white frame keeps all five proportions visually aligned in ceiling layouts.
| Panel formats | 303 x 303 to 603 x 1213 mm |
|---|---|
| Rated power | 12-72 W by footprint |
| Luminous efficacy | 110-150 lm/W; customizable |
| Color temperature | 3000-5000 K |
|---|---|
| Input voltage | 100-277 V |
| Beam angle | 112 degrees |
Technical Specifications
Model Specifications
| Model | Dimensions | Rated Power | Efficacy | CCT Range | CRI Options | Voltage | PF |
|---|---|---|---|---|---|---|---|

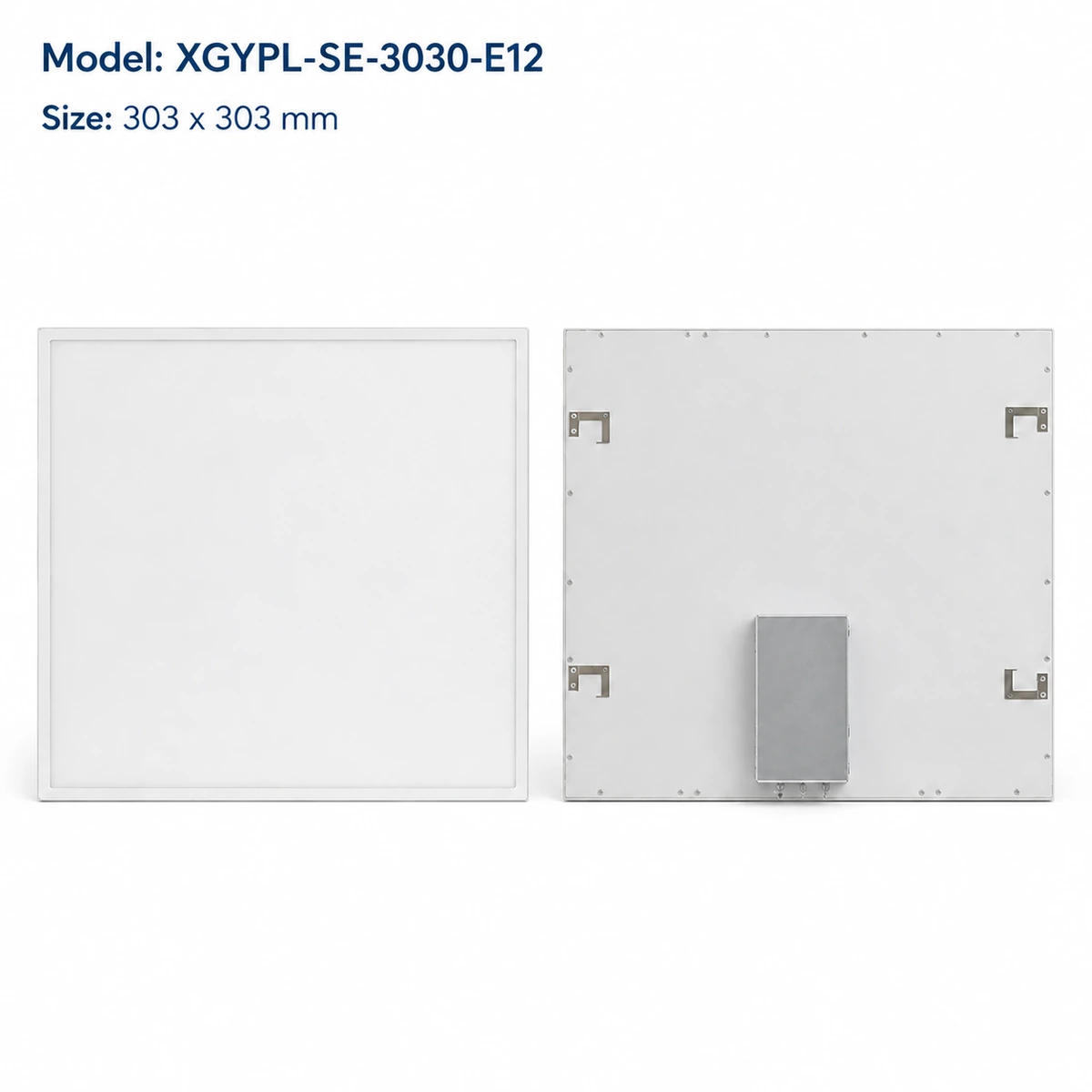

| XGYPL-SE-3030-E12 | 303 x 303 mm | 12 W | 110-150 lm/W | 3000-5000 K | Ra80/90 | 100-277 V | 0.9 |

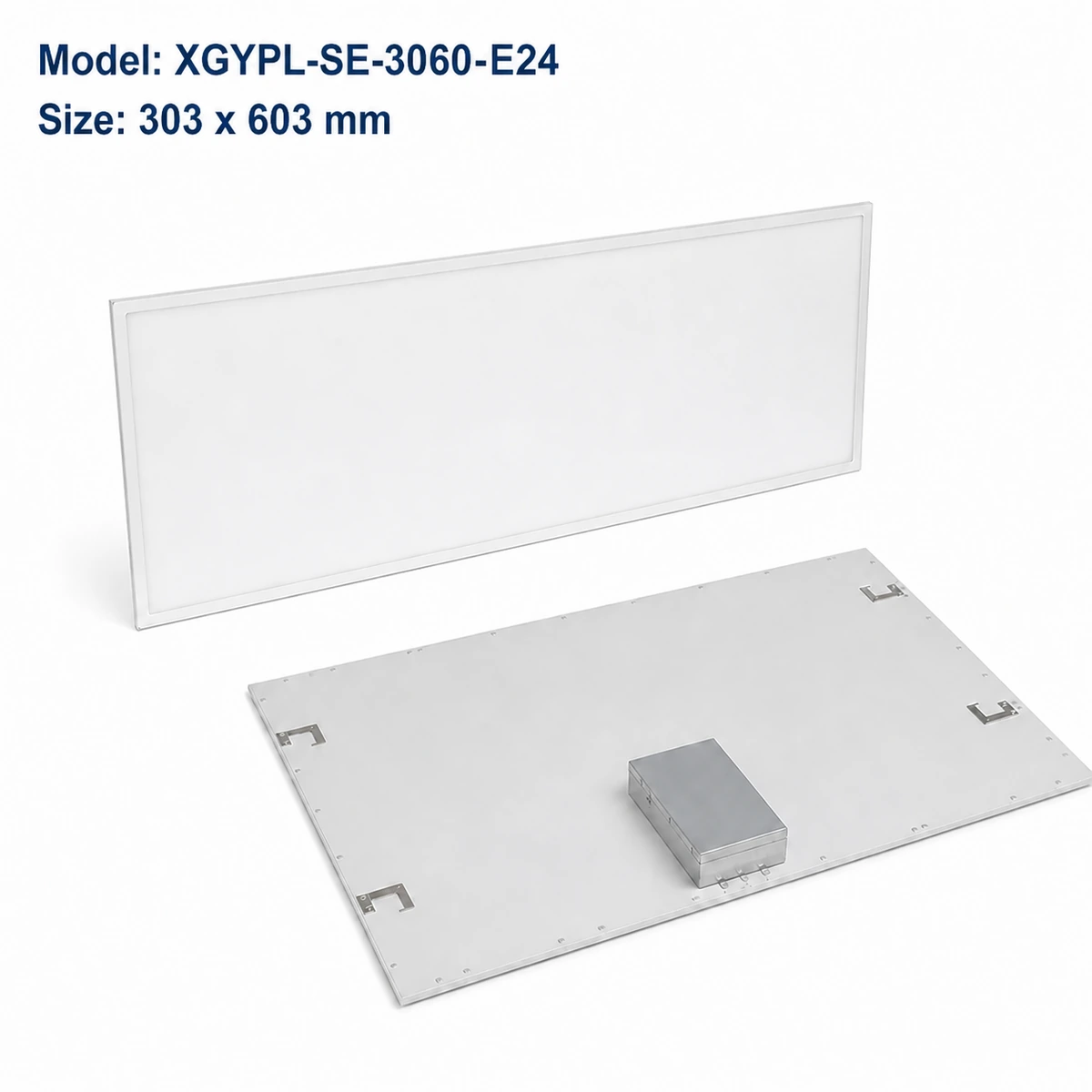

| XGYPL-SE-3060-E24 | 303 x 603 mm | 24 W | 110-150 lm/W | 3000-5000 K | Ra80/90 | 100-277 V | 0.9 |

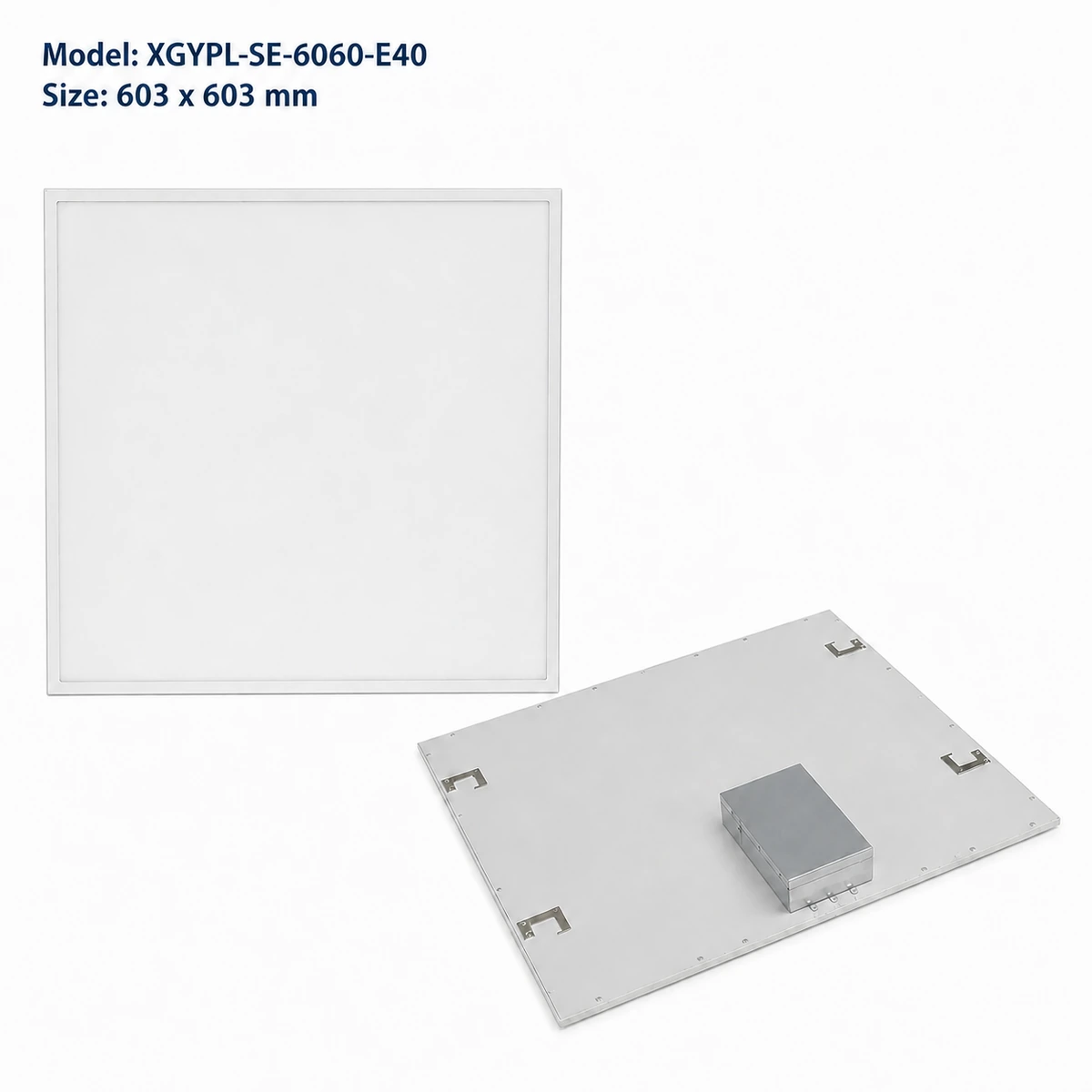

| XGYPL-SE-6060-E40 | 603 x 603 mm | 40 W | 110-150 lm/W | 3000-5000 K | Ra80/90 | 100-277 V | 0.9 |
| XGYPL-SE-6060-E40 | 603 x 603 mm | 48 W | 110-150 lm/W | 3000-5000 K | Ra80/90 | 100-277 V | 0.9 |
| XGYPL-SE-6060-E40 | 603 x 603 mm | 60 W | 110-150 lm/W | 3000-5000 K | Ra80/90 | 100-277 V | 0.9 |

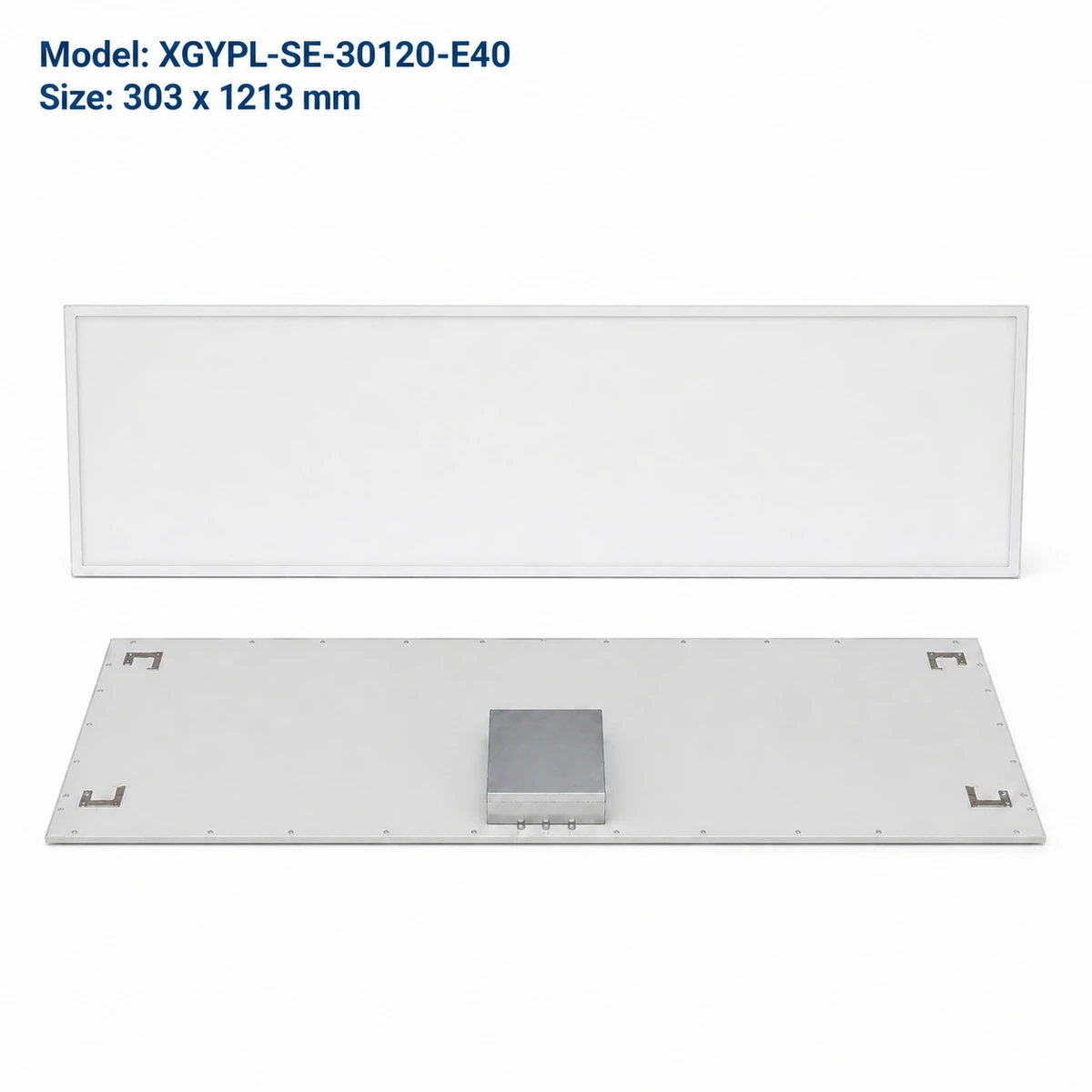

| XGYPL-SE-30120-E40 | 303 x 1213 mm | 40 W | 110-150 lm/W | 3000-5000 K | Ra80/90 | 100-277 V | 0.9 |
| XGYPL-SE-30120-E40 | 303 x 1213 mm | 48 W | 110-150 lm/W | 3000-5000 K | Ra80/90 | 100-277 V | 0.9 |
| XGYPL-SE-30120-E40 | 303 x 1213 mm | 60 W | 110-150 lm/W | 3000-5000 K | Ra80/90 | 100-277 V | 0.9 |

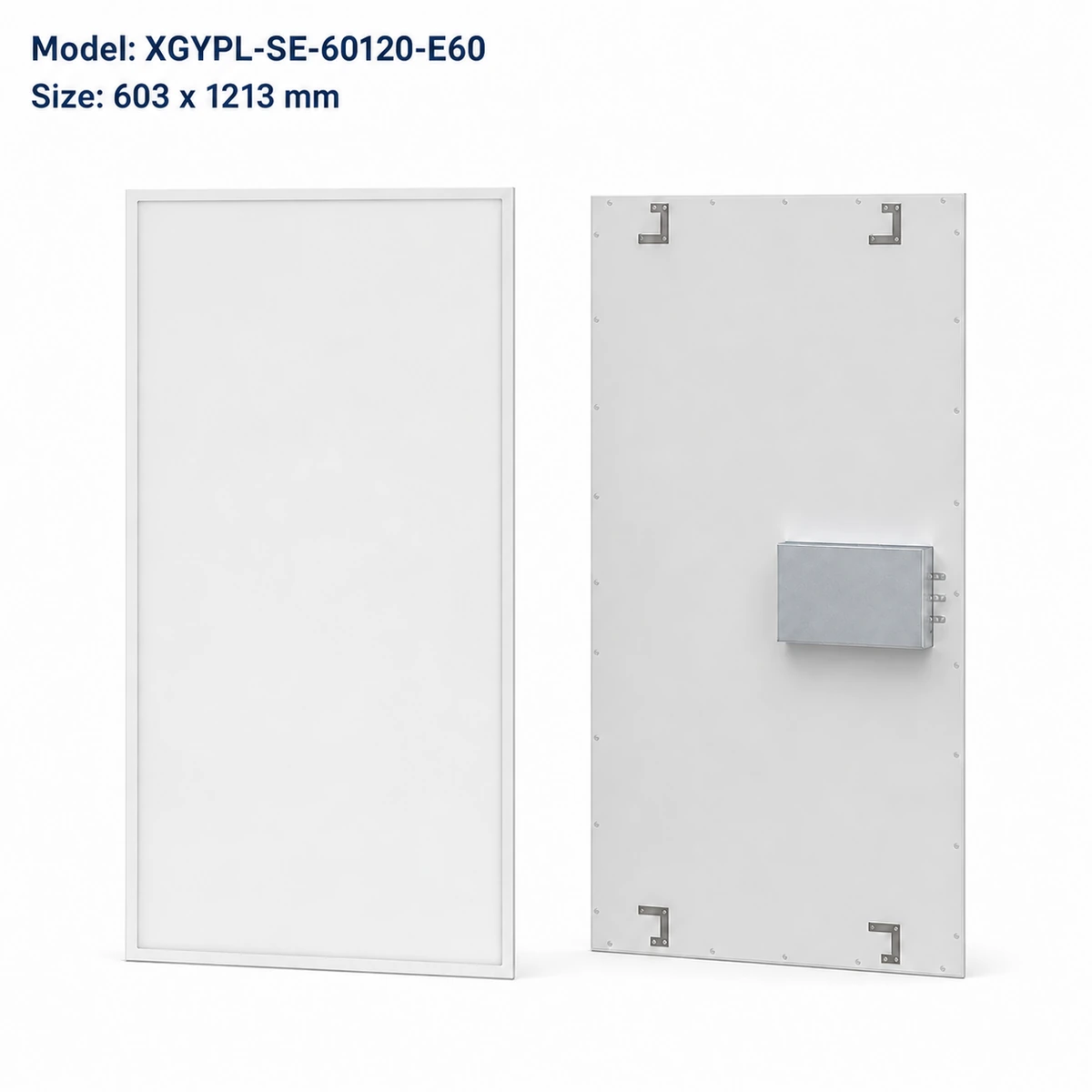

| XGYPL-SE-60120-E60 | 603 x 1213 mm | 60 W | 110-150 lm/W | 3000-5000 K | Ra80/90 | 100-277 V | 0.9 |
| XGYPL-SE-60120-E60 | 603 x 1213 mm | 72 W | 110-150 lm/W | 3000-5000 K | Ra80/90 | 100-277 V | 0.9 |
No Flicker; dimmable option; 50000 h; indoor use; white finish; 112-degree beam; PF 0.9. Luminous efficacy is customizable.
Product Description
Product Details
Product Construction
A perimeter-mounted optical system works with a separate rear driver housing. The family is specified with No Flicker, a dimmable option, Ra80/90 options, 50000 h lifetime and indoor use.
Selection & Installation Notes
Measure the actual ceiling grid and choose the exact 303, 603 or 1213 mm size before ordering. Confirm the selected rating, CCT, driver and dimming configuration before approval. Multiple power values in one row are order options unless a field-selectable driver is specifically approved. For metric and oversized ceiling formats, compare our large-format LED panels.
Recommended Application
Applications

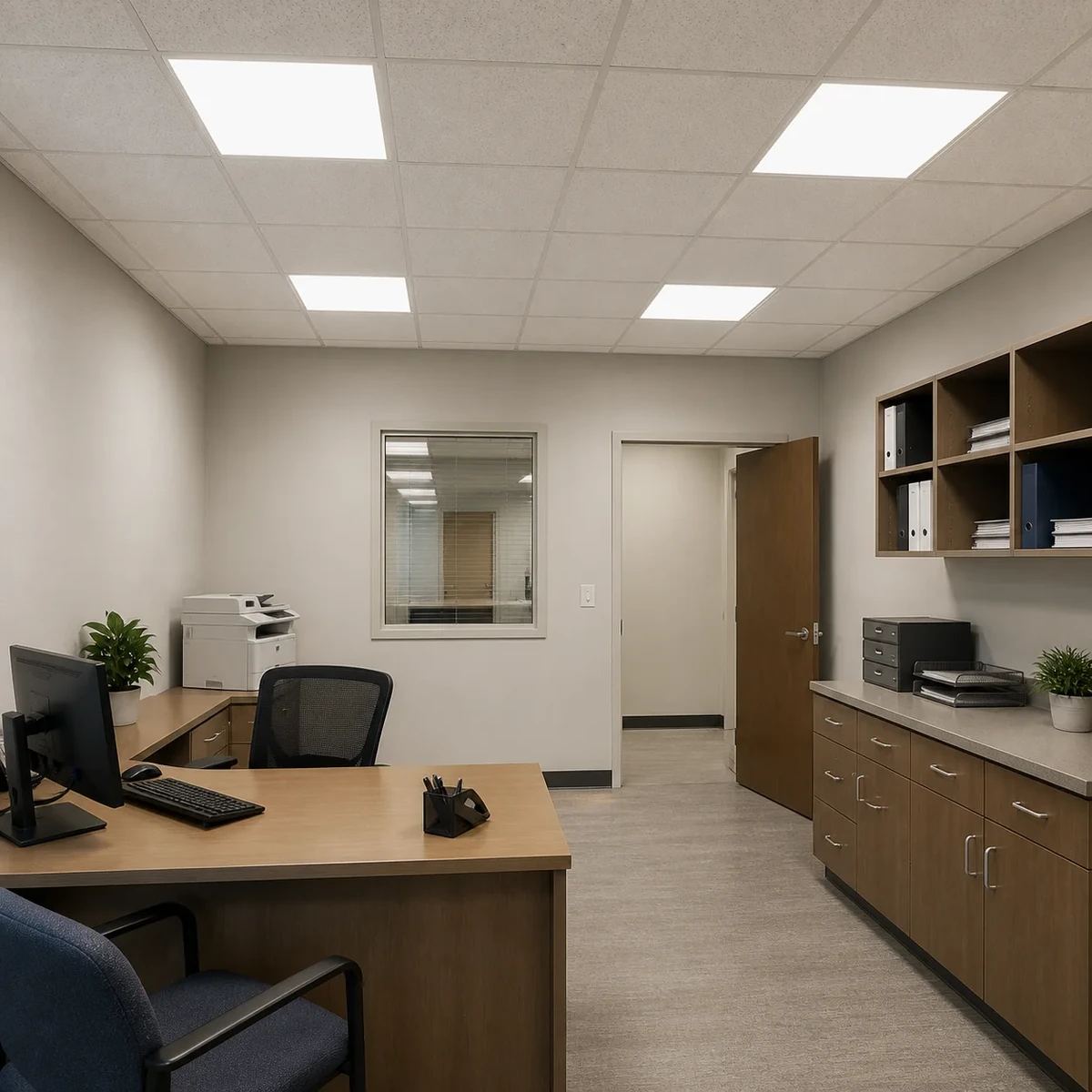

- North American Offices: Match the selected footprint to the measured recessed ceiling grid.
- Meeting Rooms: Coordinate the selected output and color temperature with the room lighting plan.
- Education Interiors: Use the compatible square or linear format in indoor classroom and administration ceilings.
- Retail Fit-Outs: Select the panel proportion from the tenant ceiling module and layout.
