Korean-Format LED Backlit Panel
- Ceiling-Format Range: The family covers compact squares, broad rectangles and long linear openings used in Korean interiors.
- Clean Ceiling Appearance: A neutral perimeter keeps a consistent visual boundary across square and elongated installations.
- Exact-Fit Selection: Discrete footprints keep replacement choice tied to measured site geometry rather than a generic nominal size.
- Format-Specific Profiles: Compact and extended housings retain low-profile construction suited to their dimensions.
- Ordered CCT Choices: Three neutral-to-cool options support regional project specifications.
| Available formats | 8 Korean-format housing sizes |
|---|---|
| Rated power | 20 W / 25 W / 40 or 50 W ordered ratings |
| Luminous efficacy | 90-140 lm/W; customizable |
| CCT choices | 4000 K / 5700 K / 6500 K |
|---|---|
| Body depth | 30 mm or 32 mm |
| Environment and finish | Indoor; White |
Technical Specifications
Model Specifications
| Model | Dimensions | Rated Power | Efficacy | CCT | CRI Options | Voltage Marking | PF |
|---|---|---|---|---|---|---|---|

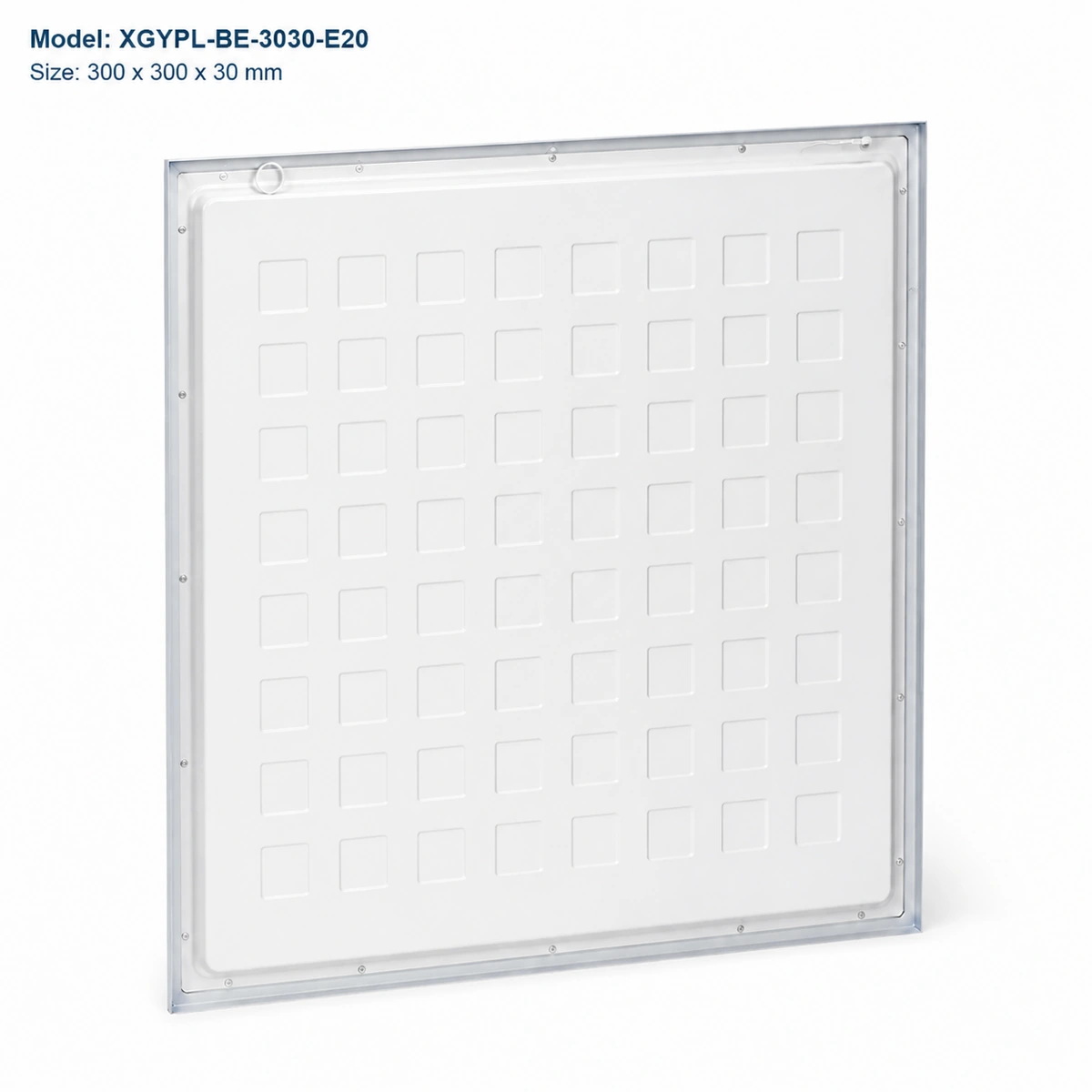

| XGYPL-BE-3030-E20 | 300 x 300 x 30 mm | 20 W | 90-140 lm/W | 4000/5700/6500 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |

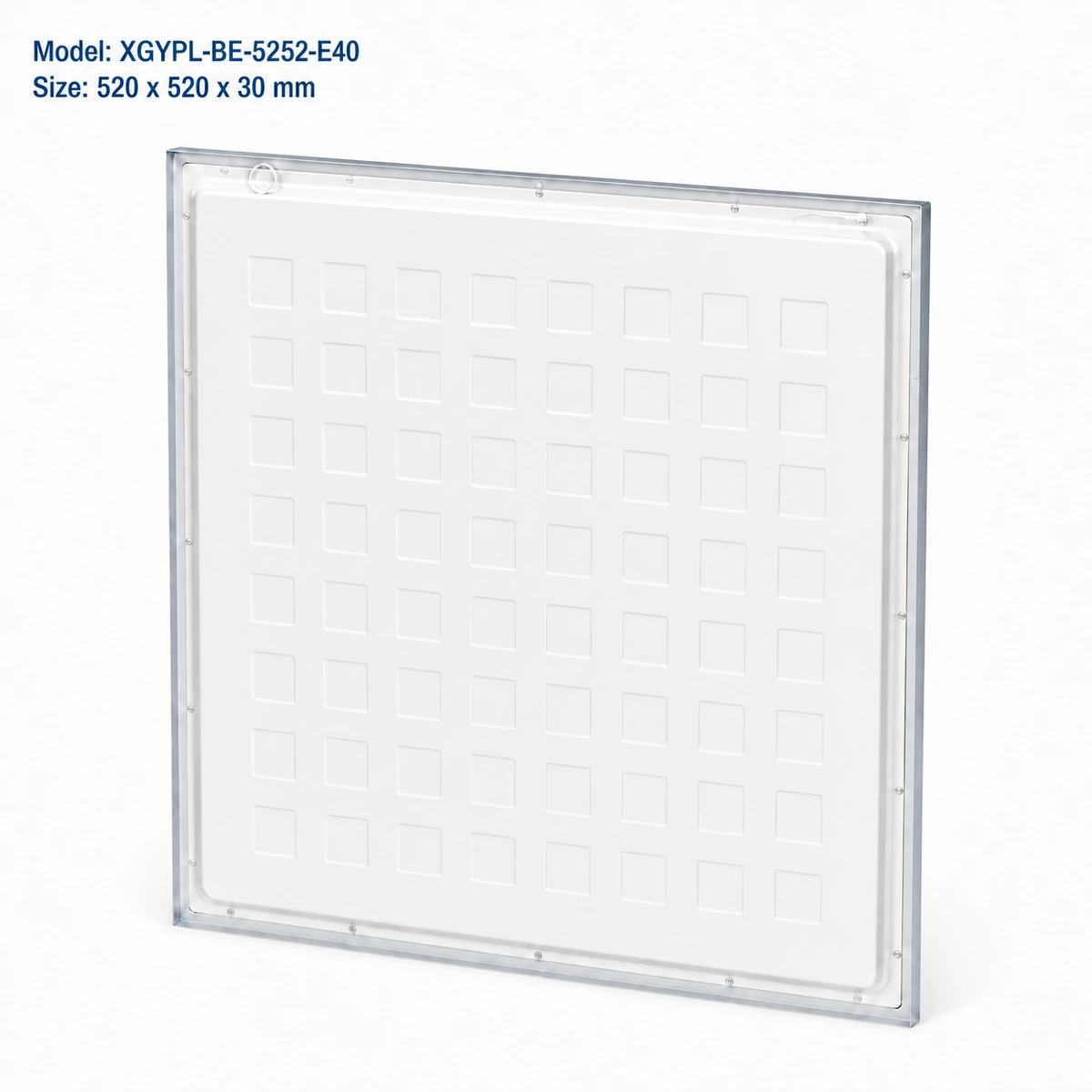

| XGYPL-BE-5252-E40 | 520 x 520 x 30 mm | 40/50 W | 90-140 lm/W | 4000/5700/6500 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |

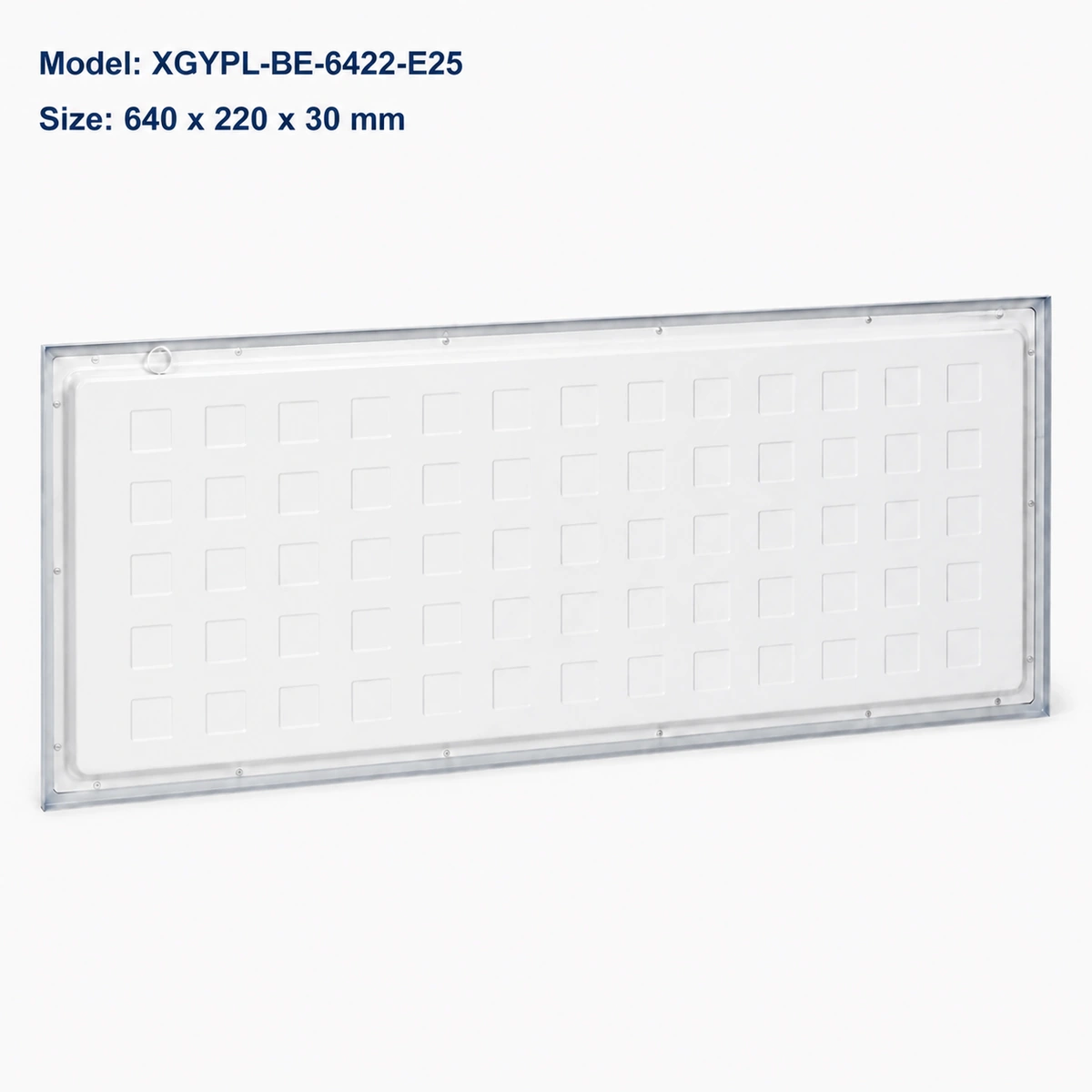

| XGYPL-BE-6422-E25 | 640 x 220 x 30 mm | 25 W | 90-140 lm/W | 4000/5700/6500 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |

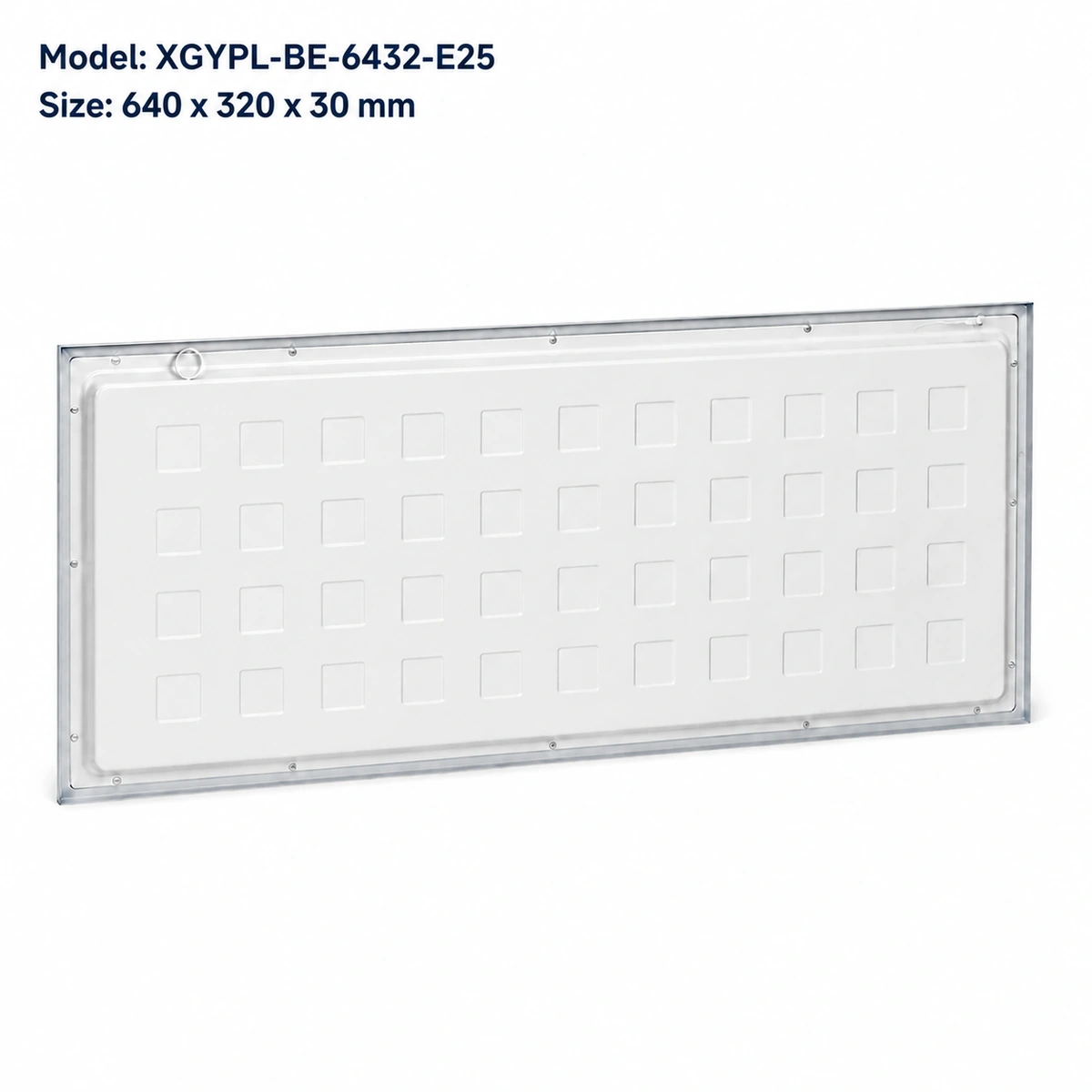

| XGYPL-BE-6432-E25 | 640 x 320 x 30 mm | 25 W | 90-140 lm/W | 4000/5700/6500 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |

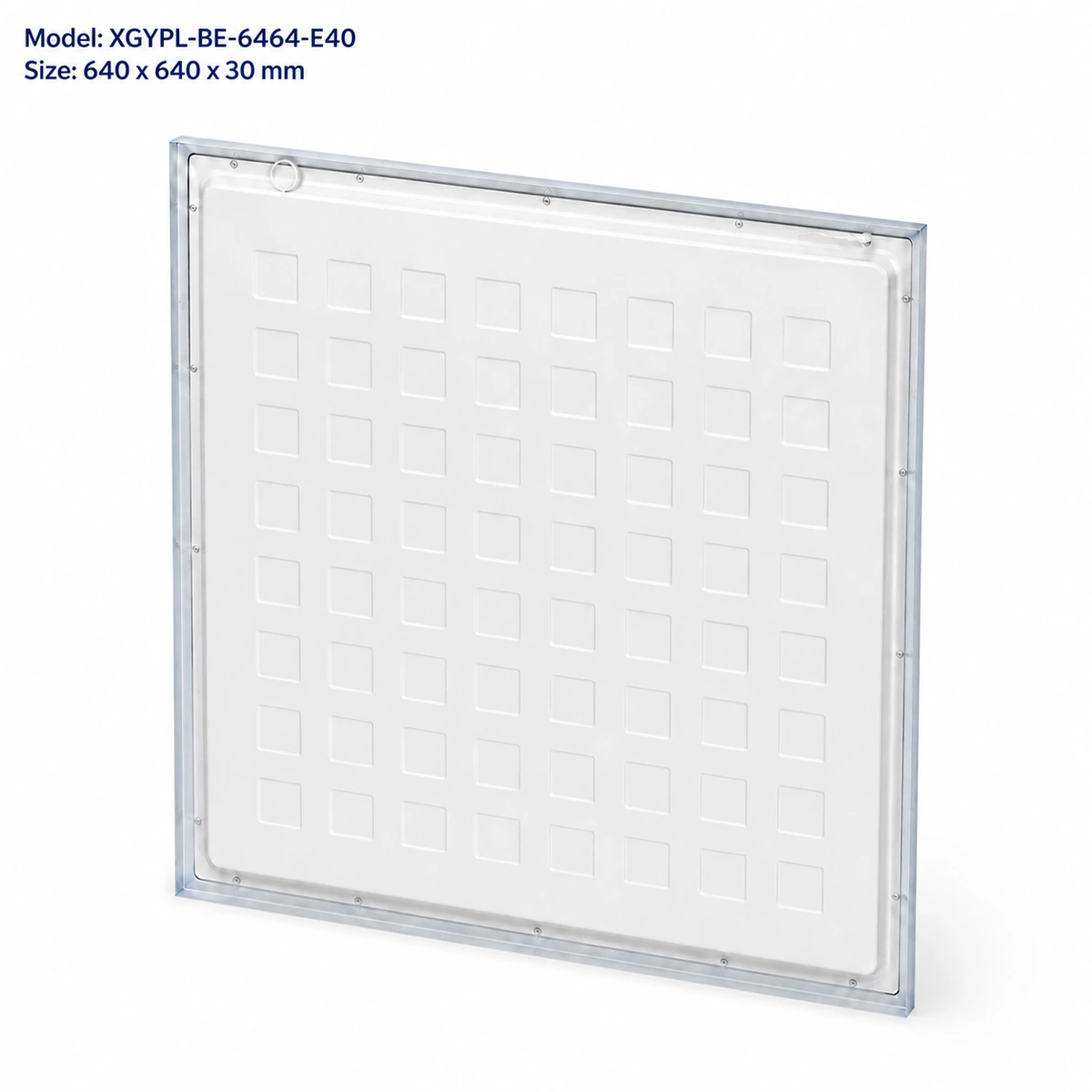

| XGYPL-BE-6464-E40 | 640 x 640 x 30 mm | 40/50 W | 90-140 lm/W | 4000/5700/6500 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |

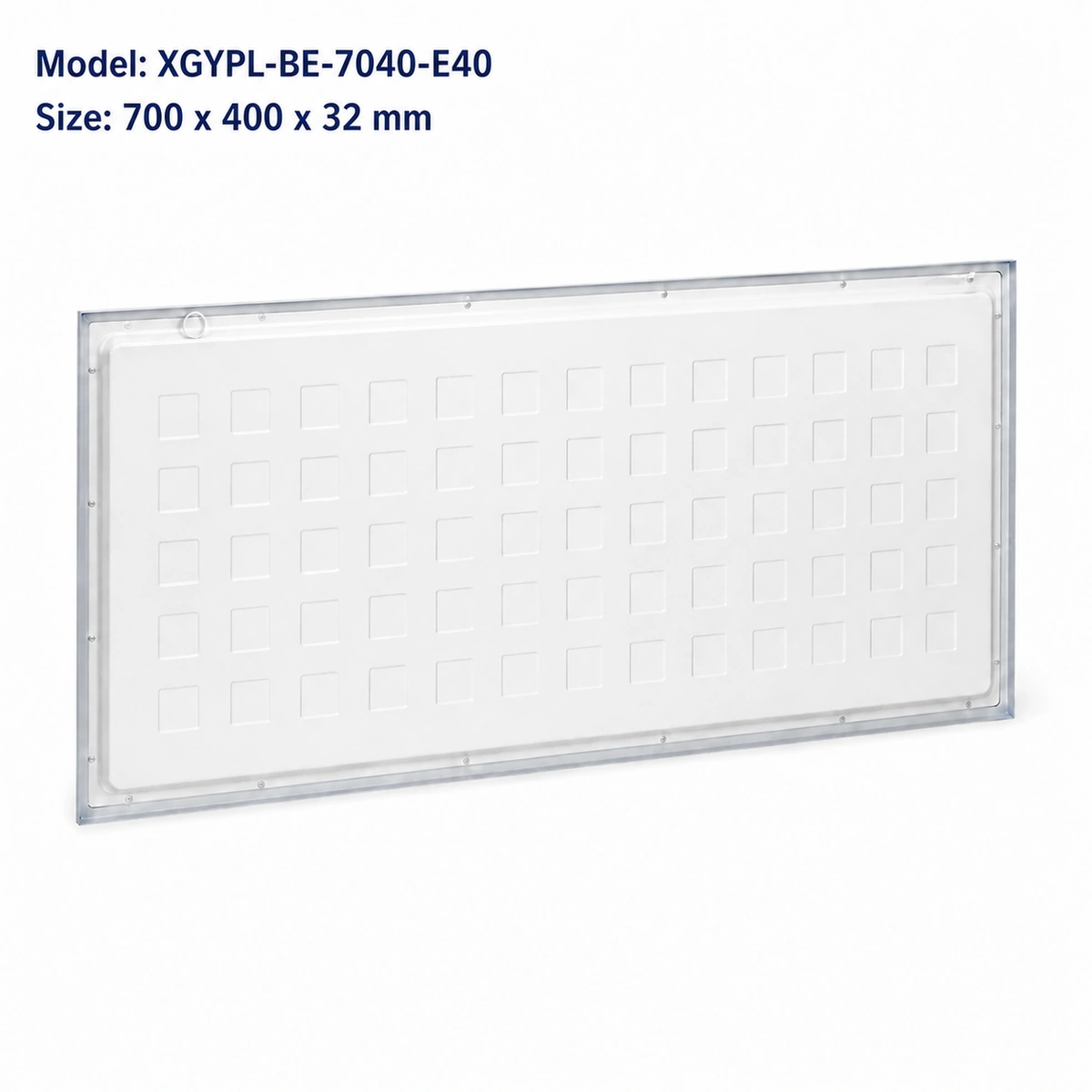

| XGYPL-BE-7040-E40 | 700 x 400 x 32 mm | 40/50 W | 90-140 lm/W | 4000/5700/6500 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |

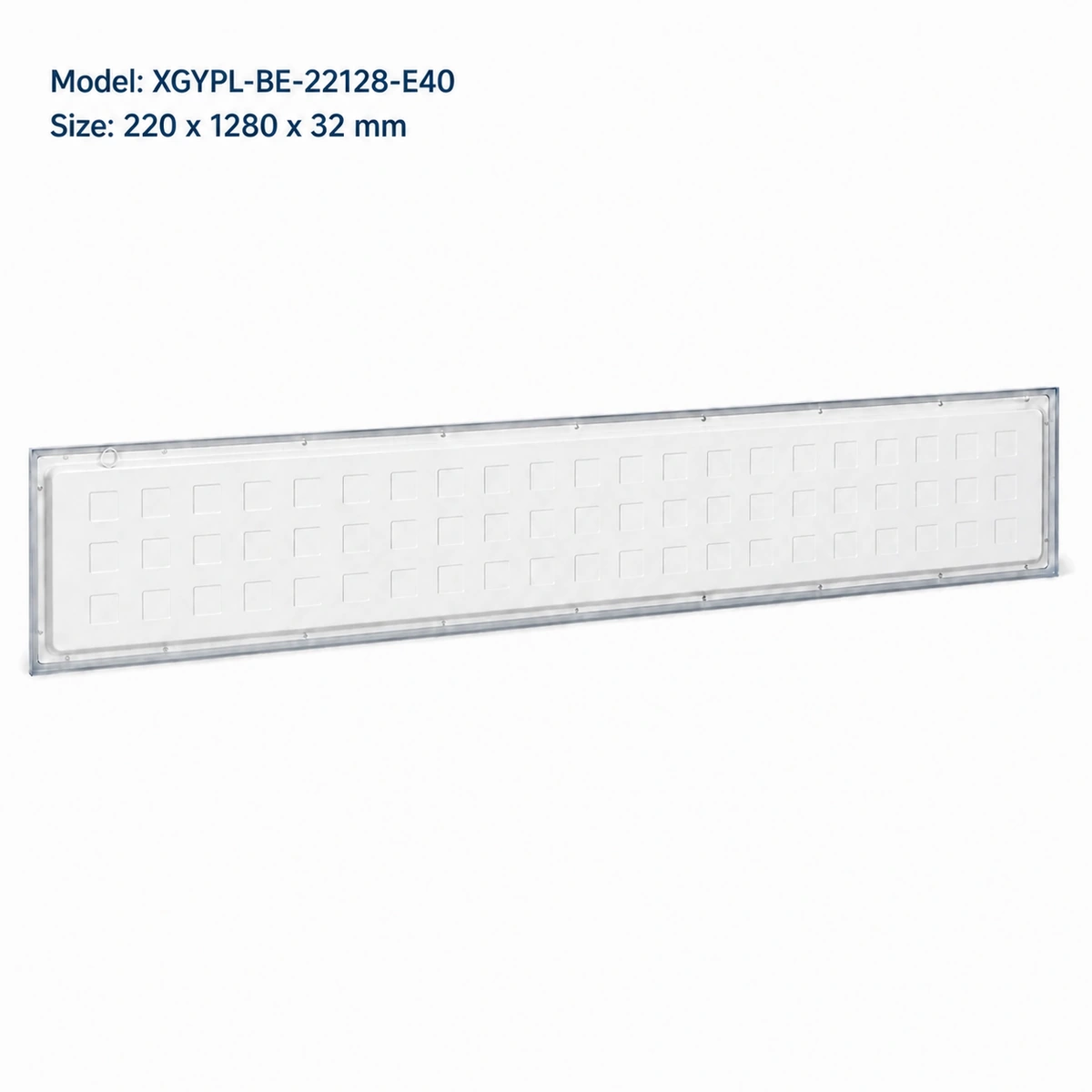

| XGYPL-BE-22128-E40 | 220 x 1280 x 32 mm | 40/50 W | 90-140 lm/W | 4000/5700/6500 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |

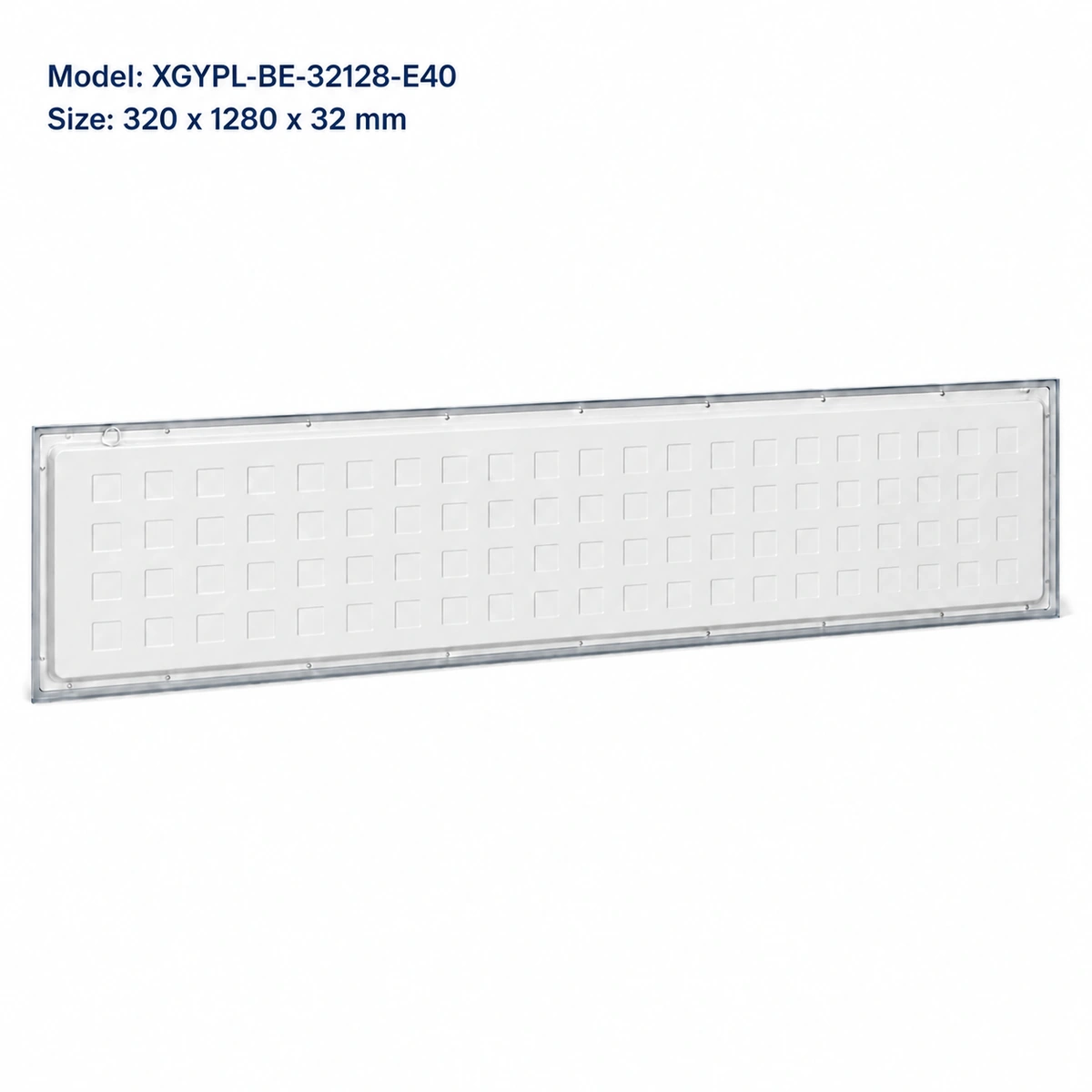

| XGYPL-BE-32128-E40 | 320 x 1280 x 32 mm | 40/50 W | 90-140 lm/W | 4000/5700/6500 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |
50000 h lifetime; indoor use; white finish; 112-degree beam. Luminous efficacy is customizable.
Product Description
Product Details
Product Construction
The XGYPL-BE assembly combines a white backlit luminous face with a thin perimeter frame and a stamped rear panel. Shared series data includes Ra80/90 options, 50000 h, indoor use, a 112-degree beam and PF 0.5/0.9.
Selection & Installation Notes
Measure the ceiling opening, support arrangement and available depth before selecting the exact model. Then fix the ordered power and CCT. Confirm the required S- or U-coded driver and destination-market configuration before ordering. A 40/50 W entry is an ordered-rating choice, not proof of field-switchable power. For other oversized ceiling footprints, compare our large-format LED panels.
Recommended Application
Applications
- Korean Ceiling Replacements: Match an established ceiling opening to the corresponding footprint.

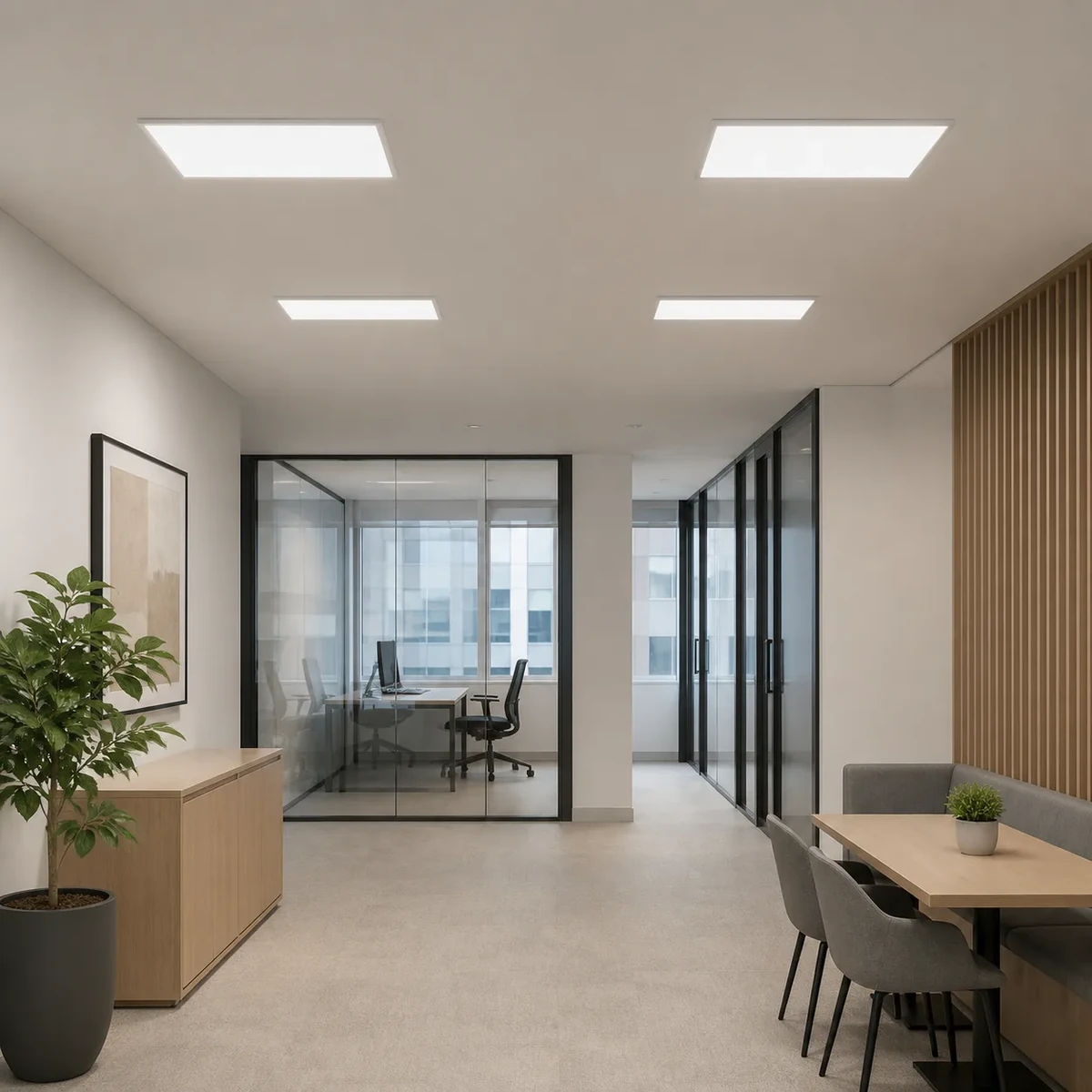

- Office Circulation Areas: Use square or rectangular formats in compatible indoor office ceilings.
- Classroom Lighting: Select the footprint, ordered power and CCT for teaching-room ceiling layouts.
- Public Interior Renovations: Replace non-standard ceiling panels after measuring the existing support geometry.
