Standard & Ultra-Slim LED Backlit Panel
- Two Housing Depths: Choose the 30 mm standard version or the 27 mm ultra-slim version for the available ceiling clearance.
- Square and Rectangular Formats: Three ceiling-grid formats are available in both housing depths.
- Project Output Options: Power, efficacy, CCT and CRI are specified for the selected housing and driver package.
- Low-Glare Option: A UGR<19 configuration can be specified for projects that require glare control.
| Housing depth | 30 mm standard / 27 mm ultra-slim |
|---|---|
| Panel formats | 595×595 / 295×1195 / 595×1195 mm |
| Rated power | 24–60 W, isolated driver |
| Luminous efficacy | 80–180 lm/W |
| CCT | 3000–6500 K |
|---|---|
| Beam angle | 112° |
| Rated life | 50,000 h |
Technical Specifications
Model Specifications
| Model No. | Housing | Dimensions (mm) | Rated Power | Efficacy | CCT |
|---|---|---|---|---|---|
| XGYPL-BE-6060-E40 | Standard | 595×595×30 | 24–60 W | 80–180 lm/W | 3000–6500 K |
| XGYPL-BEUS-6060-E40 | Ultra-slim | 595×595×27 | 24–60 W | 80–180 lm/W | 3000–6500 K |
| XGYPL-BE-30120-E40 | Standard | 295×1195×30 | 24–60 W | 80–180 lm/W | 3000–6500 K |
| XGYPL-BEUS-30120-E40 | Ultra-slim | 295×1195×27 | 24–60 W | 80–180 lm/W | 3000–6500 K |
| XGYPL-BE-60120-E60 | Standard | 595×1195×30 | 24–60 W | 80–180 lm/W | 3000–6500 K |
| XGYPL-BEUS-60120-E60 | Ultra-slim | 595×1195×27 | 24–60 W | 80–180 lm/W | 3000–6500 K |
Product Description
Product Details
Product Construction

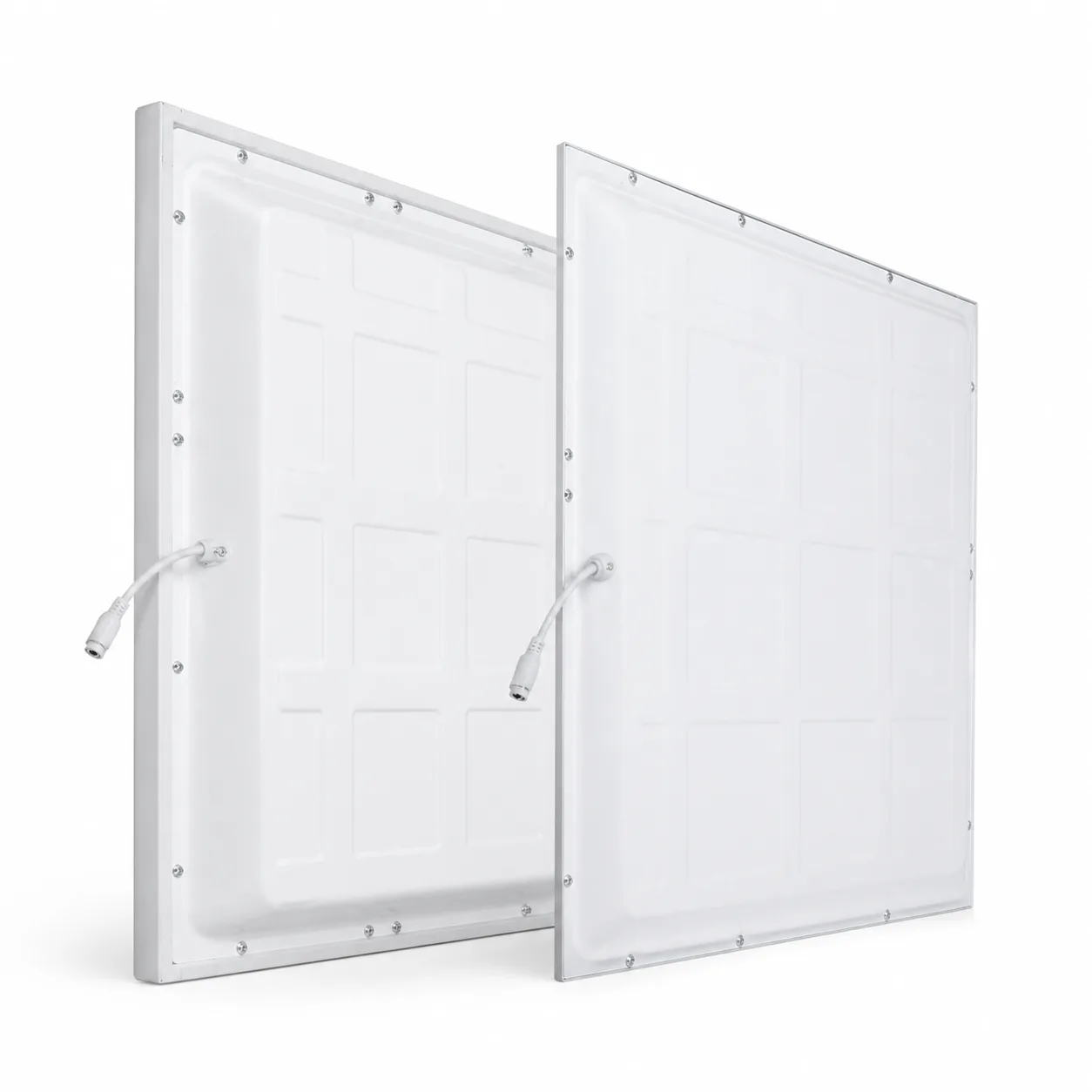

The series uses backlit panel housings in two depths: a 30 mm standard version and a 27 mm ultra-slim version. Both versions cover square and rectangular ceiling formats, with the LED array positioned behind the front diffuser.
Selection & Installation Notes
Choose the housing depth for the available ceiling void, then match the panel dimensions to the grid or prepared opening. Confirm the power package, driver input and location, control method, support arrangement and maintenance access before installation. For other oversized ceiling formats, compare our large-format LED panels.
Recommended Application
Applications
- Offices and Meeting Rooms: Match the panel format to the ceiling grid and specify glare control for screen-based work.

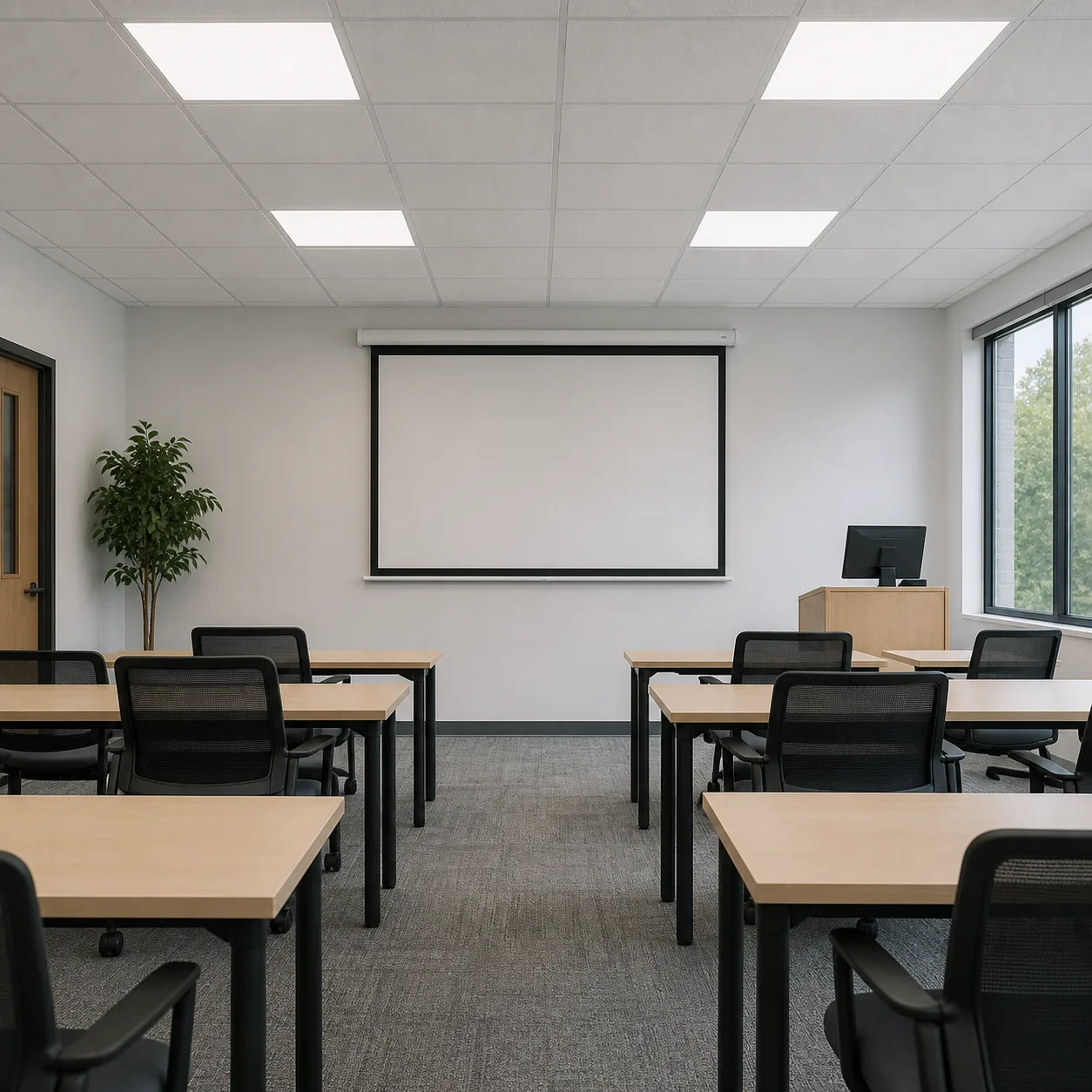

- Classroom Lighting: Select the lumen package, CCT and driver for the room layout and control system.
- Retail and Circulation Areas: Choose the standard or ultra-slim housing for the available ceiling clearance.
- Replacement Projects: Verify the existing grid module, ceiling depth and driver access before ordering.
