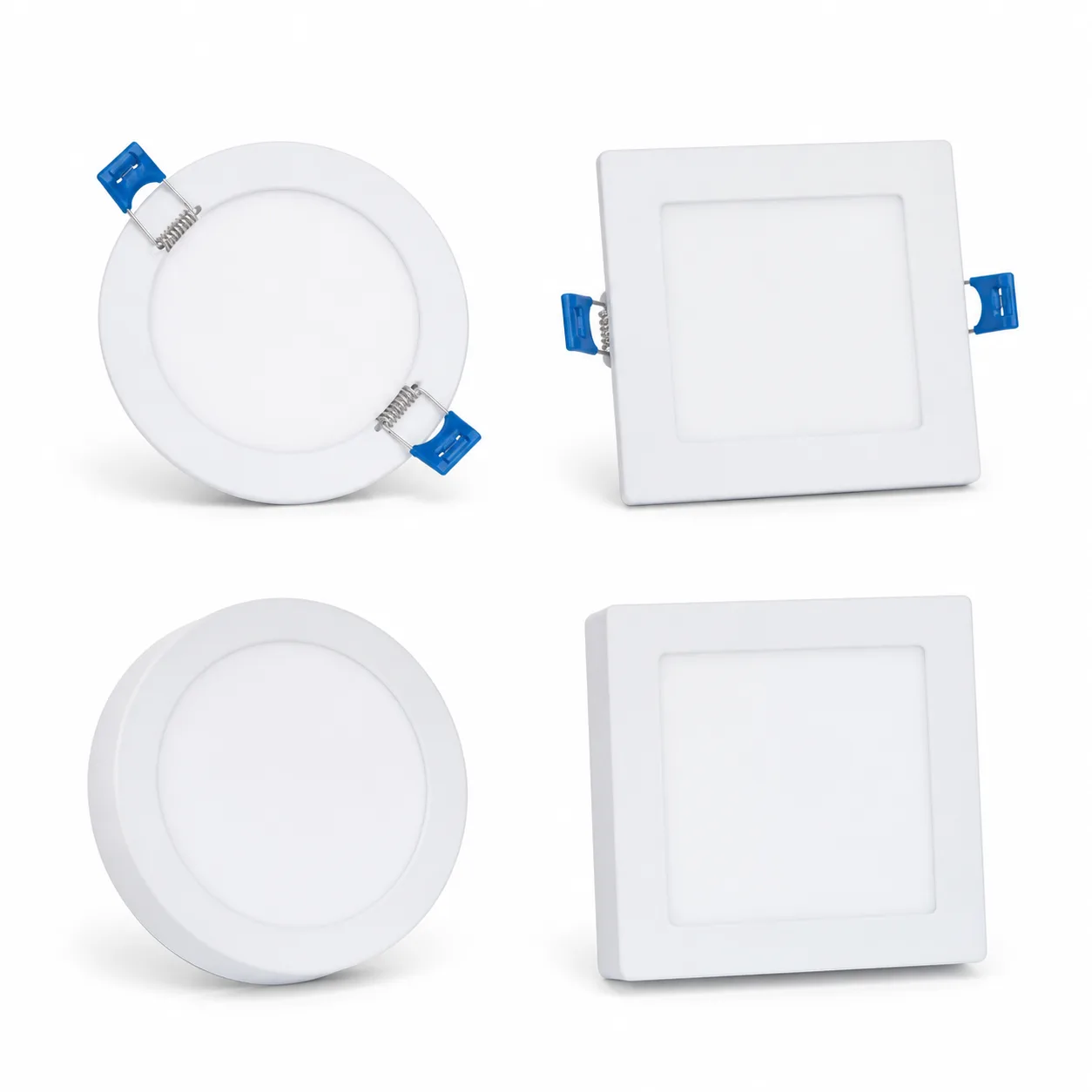

DOB Round & Square LED Backlit Panel
- Round and Square Trims: Two visible shapes cover different recessed ceiling layouts.
- 26.5 mm Recessed Housing: The light engine and power stage fit within the same low-depth body.
- Fixture and Cutout Dimensions: Separate measurements help match each housing to the prepared ceiling opening.
- Selectable CCT Options: Fixed-CCT and 3000/4000/6400 K configurations support different stocking plans.
| Rated power | 3/6 / 9/12 / 15 / 18 / 24 W |
|---|---|
| Housing depth | 26.5 mm |
| Efficacy | 80 lm/W; 105 lm/W module |
| CCT | 3000–6500 K / DCCT |
|---|---|
| Construction | PP housing / PS diffuser / aluminium board |
| Protection | IP20, indoor dry locations |
Technical Specifications
Model Specifications
| Model No. | Shape | Fixture Size (mm) | Ceiling Cutout (mm) | Rated Power | CCT Option |
|---|---|---|---|---|---|
| XGYSPLRR-PPDOB-E3/6 (DCCT) | Round | Ø93×26.5 | Ø70–75 | 3/6 W | 3000/4000/6400 K |
| XGYSPLRR-PPDOB-E9/12 (DCCT) | Round | Ø121×26.5 | Ø95–100 | 9/12 W | 3000/4000/6400 K |
| XGYSPLRR-PPDOB-E15 (DCCT) | Round | Ø154×26.5 | Ø125–135 | 15 W | 3000/4000/6400 K |
| XGYSPLRR-PPDOB-E18 (DCCT) | Round | Ø177×26.5 | Ø145–150 | 18 W | 3000/4000/6400 K |
| XGYSPLRR-PPDOB-E24 (DCCT) | Round | Ø225×26.5 | Ø190–195 | 24 W | 3000/4000/6400 K |
| XGYSPLRS-PPDOB-E3/6 (DCCT) | Square | 93×93×26.5 | 75×75 | 3/6 W | 3000/4000/6400 K |
| XGYSPLRS-PPDOB-E9/12 (DCCT) | Square | 122×122×26.5 | 100×100 | 9/12 W | 3000/4000/6400 K |
| XGYSPLRS-PPDOB-E15 (DCCT) | Square | 155×155×26.5 | 125×125 | 15 W | 3000/4000/6400 K |
| XGYSPLRS-PPDOB-E18 (DCCT) | Square | 170×170×26.5 | 140×140 | 18 W | 3000/4000/6400 K |
| XGYSPLRS-PPDOB-E24 (DCCT) | Square | 220×220×26.5 | 190×190 | 24 W | 3000/4000/6400 K |
Product Description
Product Details
Product Construction
The family combines a round or square PP housing, PS diffuser and aluminium board in a 26.5 mm recessed body. Each model separates the visible fixture size from the required ceiling cutout.
Selection & Installation Notes
Choose the trim shape first, then match the exact ceiling cutout, housing depth and spring-clip clearance. Confirm the ordered power, CCT option, input wiring space and control compatibility before installation. For other ceiling footprints and panel constructions, compare our large-format LED panels.
Recommended Application
Applications

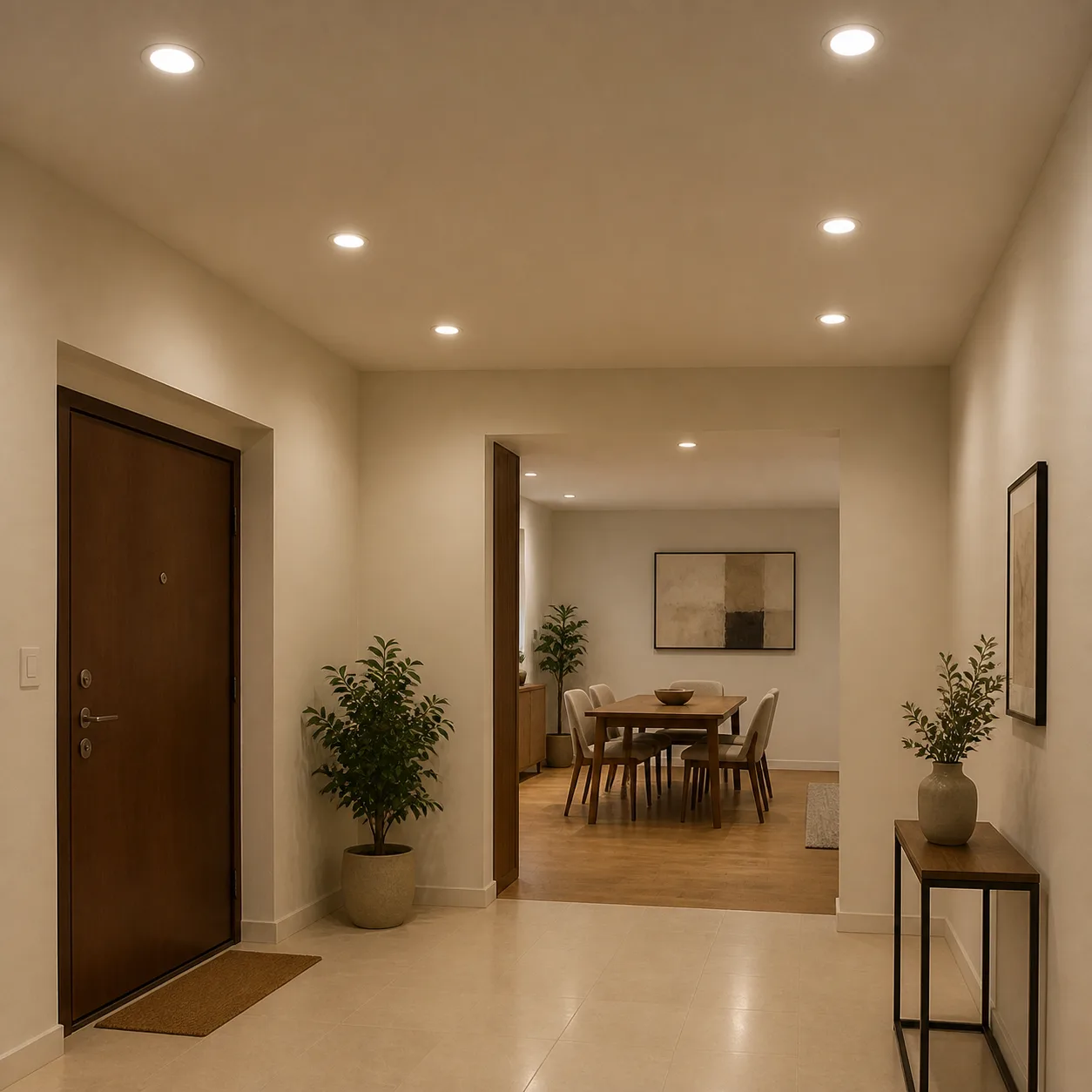

- Apartments and Homes: Use compact recessed lighting in kitchens, hallways, bedrooms and utility areas.
- Small Offices and Reception Areas: Select the power and cutout for the room scale and existing ceiling opening.
- Retail Fitting Rooms and Corridors: Keep a consistent trim shape and CCT across repeated small spaces.
- Replacement Projects: Measure both the visible trim and ceiling cutout before selecting a model.
