LED Frame Panel Light
- Open-Center Ceiling Form: The luminous perimeter preserves an unobstructed central opening.
- Perimeter Light Identity: A narrow illuminated frame creates a different ceiling expression from a full luminous panel.
- Housing-Specific Fit: Three dedicated outer dimensions support measured ceiling and mounting conditions.
- White Architectural Finish: The white frame keeps a restrained boundary around the open center.
| Housing sizes | 591 / 601 / 614 mm square |
|---|---|
| Rated power | 40-60 W (Isolated) |
| Luminous efficacy | 80-160 lm/W; customizable |
| Color-temperature range | 3000-6500 K |
|---|---|
| Frame depth | 11 mm |
| Beam angle | 85 degrees |
Technical Specifications
Model Specifications
| Model | Housing Variant | Dimensions | Rated Power | Efficacy | CCT Range | CRI Options | Voltage Marking |
|---|---|---|---|---|---|---|---|

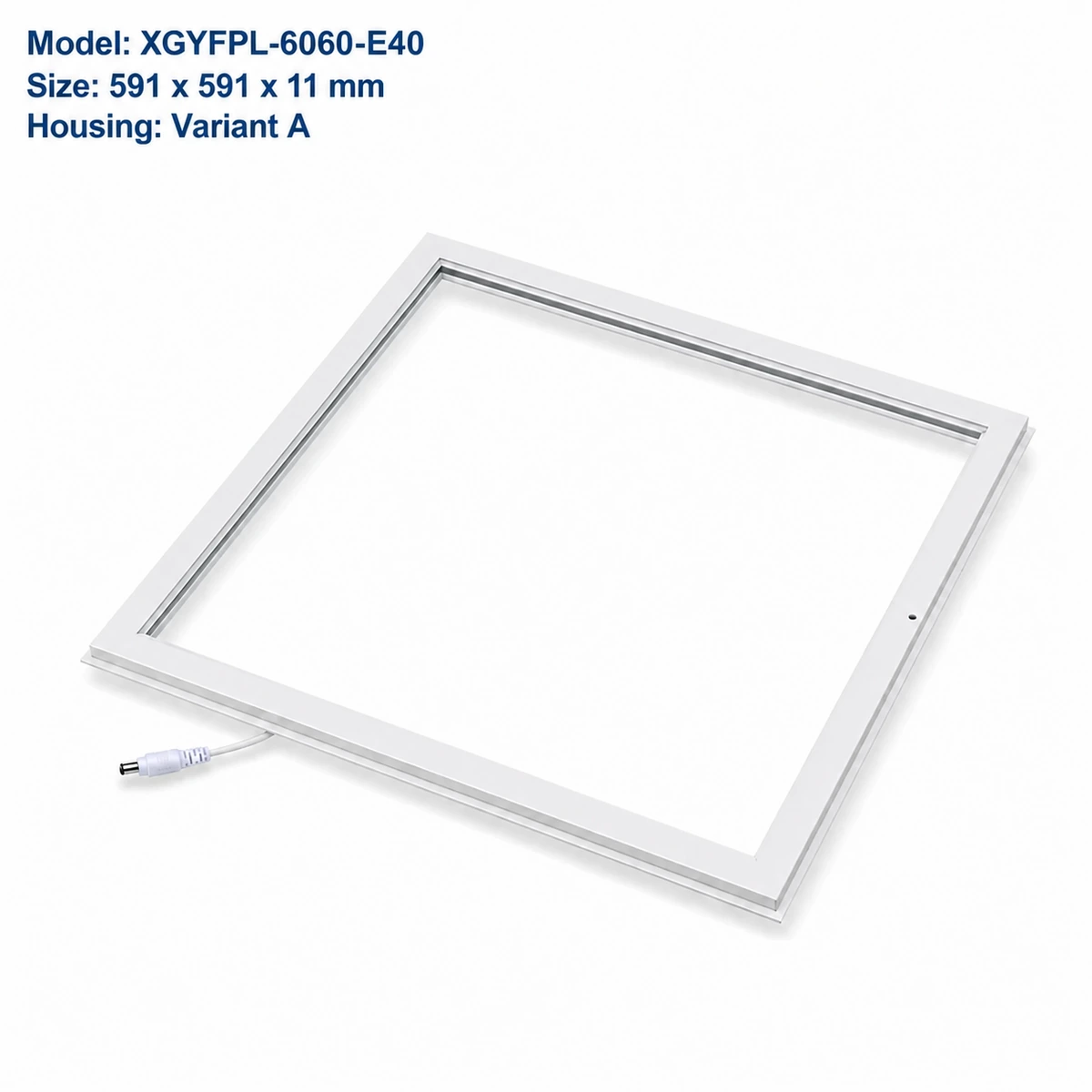

| XGYFPL-6060-E40 | Variant A | 591 x 591 x 11 mm | 40-60 W (Isolated) | 80-160 lm/W | 3000-6500 K | Ra80/90 | S:220-240 V / U:100-240 V |

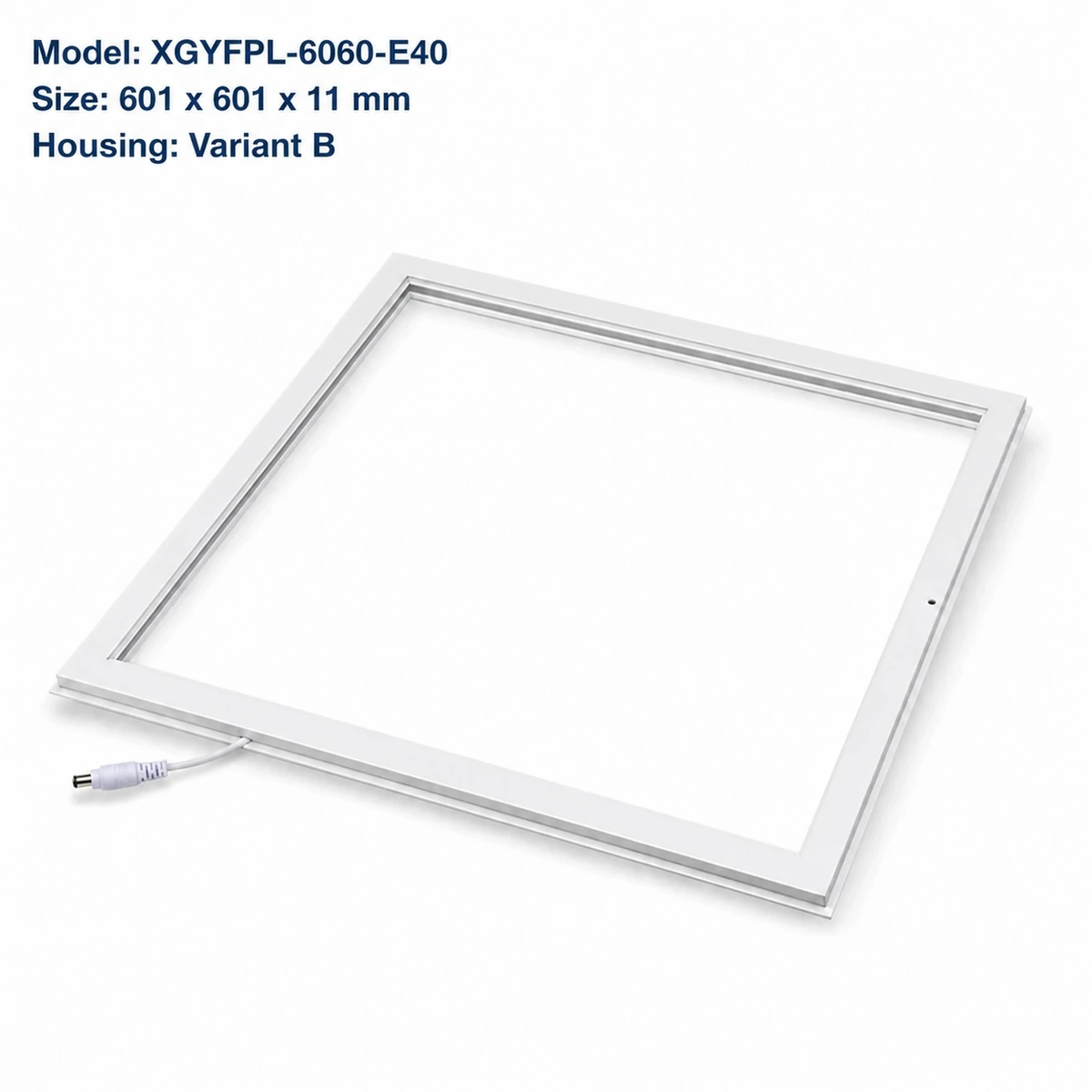

| XGYFPL-6060-E40 | Variant B | 601 x 601 x 11 mm | 40-60 W (Isolated) | 80-160 lm/W | 3000-6500 K | Ra80/90 | S:220-240 V / U:100-240 V |

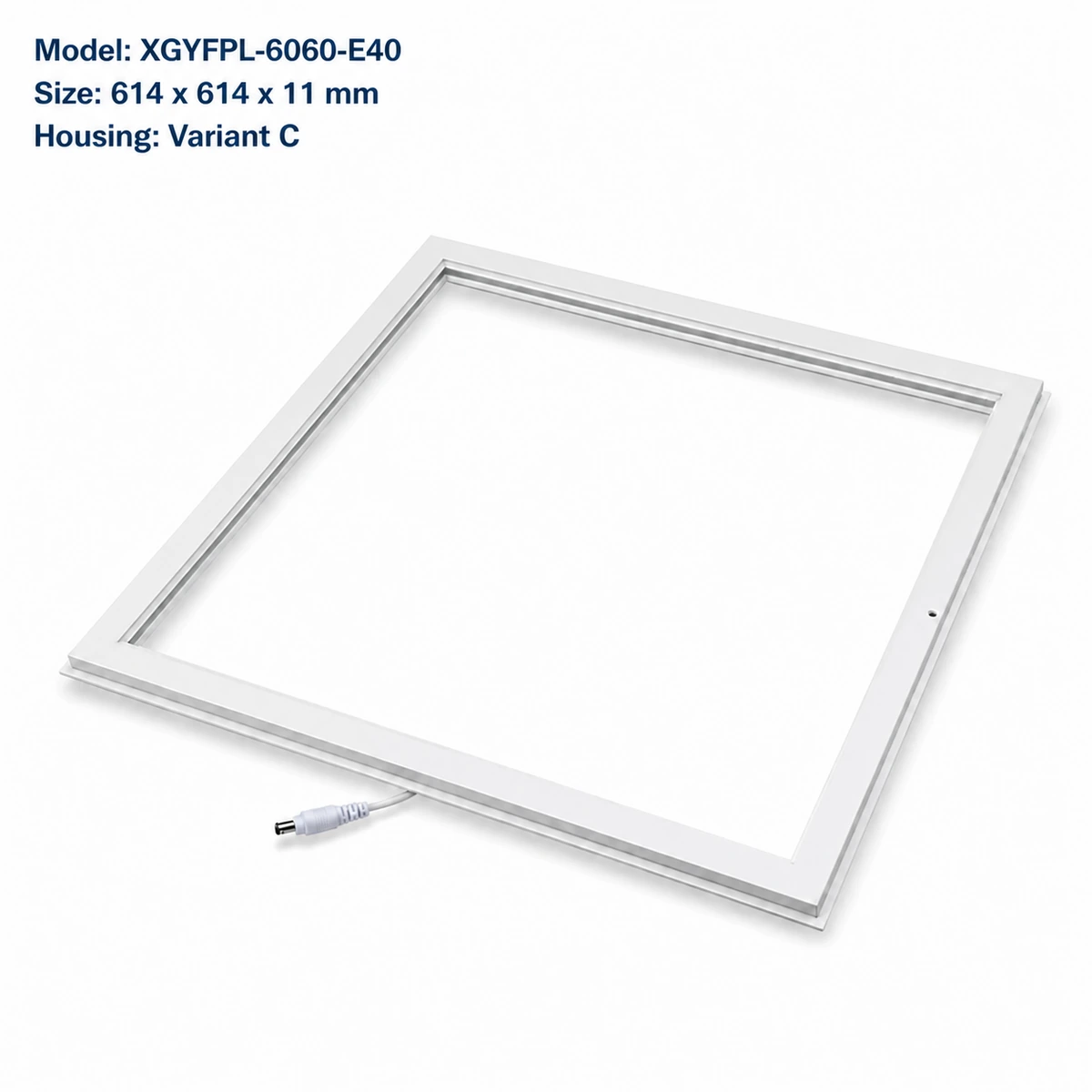

| XGYFPL-6060-E40 | Variant C | 614 x 614 x 11 mm | 40-60 W (Isolated) | 80-160 lm/W | 3000-6500 K | Ra80/90 | S:220-240 V / U:100-240 V |
No Flicker, Dimmable Option, 50000 h, Indoor use, White finish, 85-degree beam and PF 0.5/0.9. Lumen efficacy is customizable.
Product Description
Product Details
Product Construction
The XGYFPL-6060-E40 assembly uses a shallow perimeter housing around integrated light-producing sections. The family is specified with No Flicker, a dimmable option, Ra80/90 options, 50000 h lifetime and indoor use.
Selection & Installation Notes
Measure the required outer dimension and verify the support arrangement before choosing Variant A, B or C. Confirm the ordered wattage, CCT, driver, dimming configuration and S- or U-coded version before approval. Treat 40-60 W as a configurable range, not proof of a field wattage switch. For other oversized ceiling formats, compare our large-format LED panels.
Recommended Application
Applications
- Conference Room Ceilings: Use the selected square frame size as an architectural perimeter element in compatible indoor ceilings.
- Reception Areas: Coordinate the open-center frame with the ceiling module and surrounding interior details.
- Retail Interiors: Match the frame dimension and selected color temperature to the store ceiling plan.
- Office Collaboration Areas: Use measured ceiling conditions to select the compatible housing variant.
