Surface-Mounted T8 Tube and Fixture Sets

Surface-mounted T8 tube and fixture sets combine a replaceable G13 lamp with a wired painted-steel batten in protective shrink packaging. Configurations cover direct-AC, magnetic-ballast and electronic-ballast circuits with single-tube, double-tube, reflector and interconnectable bodies.

Local Switching Option: Selected variants place a switch beside the lampholder for local operation.
Link-Through Connection: Dedicated end hardware supports continuous-row connection on compatible variants.
Series-Specific Steel Gauges: Chassis families use 0.20, 0.25 or 0.30 mm steel according to the selected series.
Relampable Assembly: The light source remains separately replaceable after the chassis is mounted.

Lamp / Base	Replaceable T8 tube / G13
Set Contents	T8 tube + wired painted-steel fixture in shrink packaging
Mounting / Lengths	Surface mounted / 600, 900, 1200 or 1500 mm

Tube Layouts	Single or double tube / plain or reflector body
Electrical Formats	Direct AC / magnetic ballast / electronic ballast
Direct-AC Input	Single-ended or double-ended, matched to the supplied tube

Surface-mounted T8 tube and fixture shrink-pack set on white background

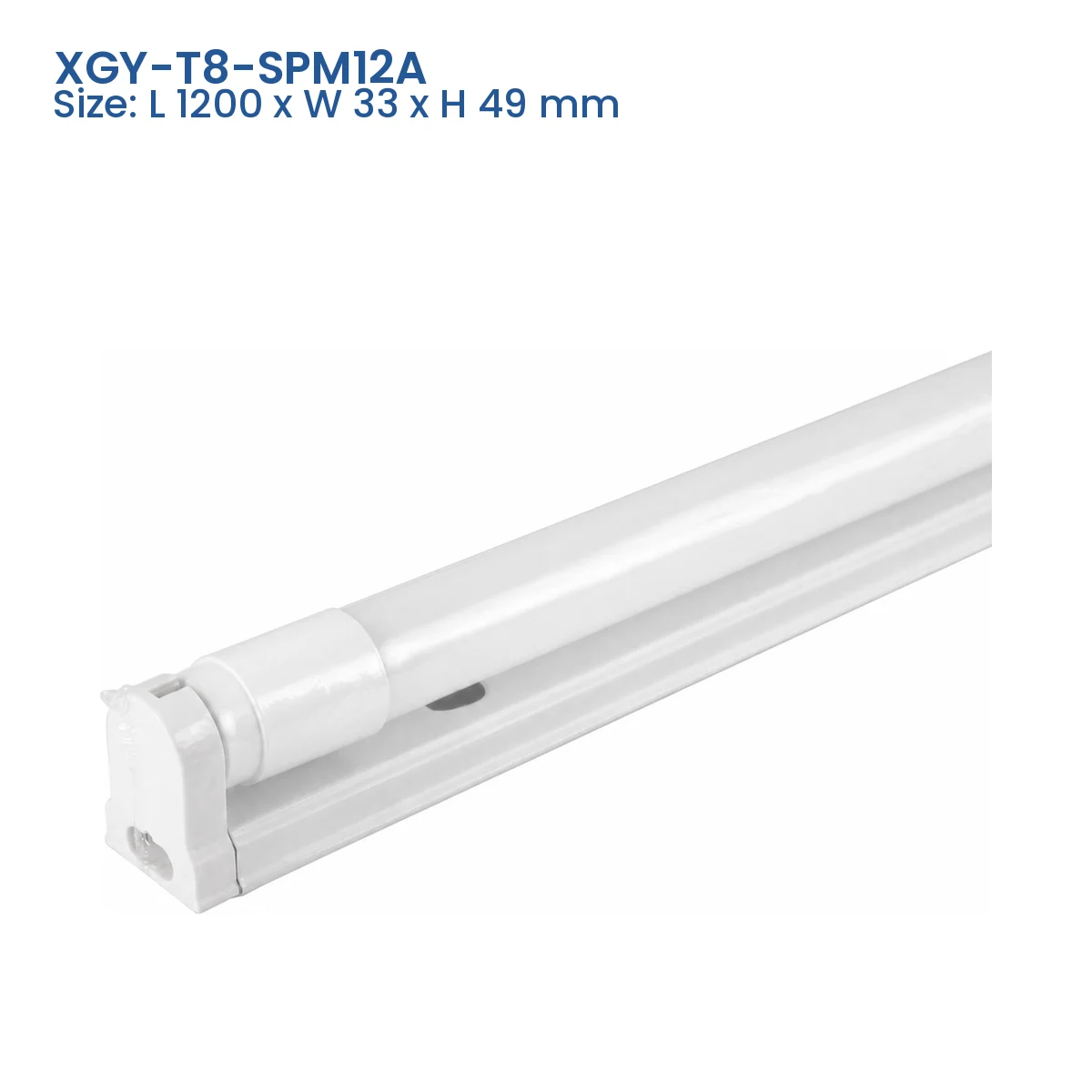

XGY-T8-SPM12A T8 tube fixture model, Size L 1200 x W 33 x H 49 mm

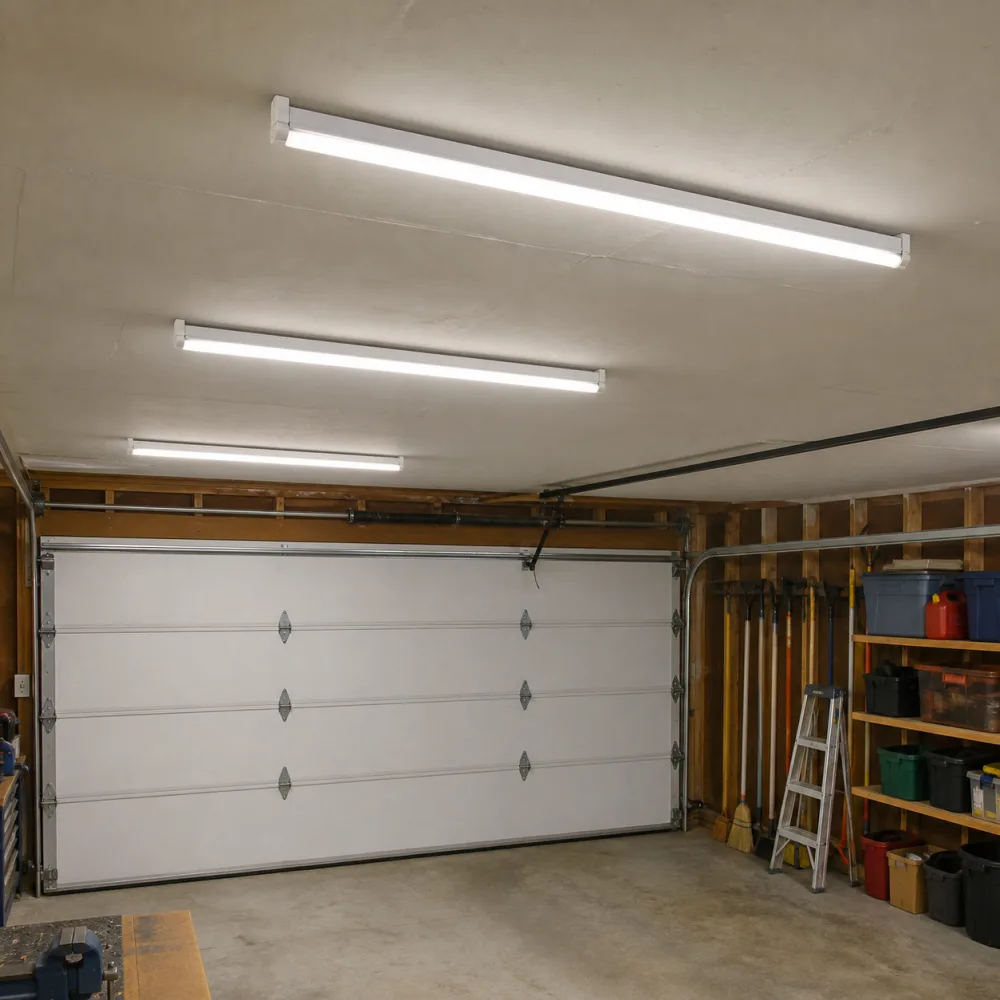

Surface-mounted single-tube T8 fixtures providing general lighting in a dry residential garage

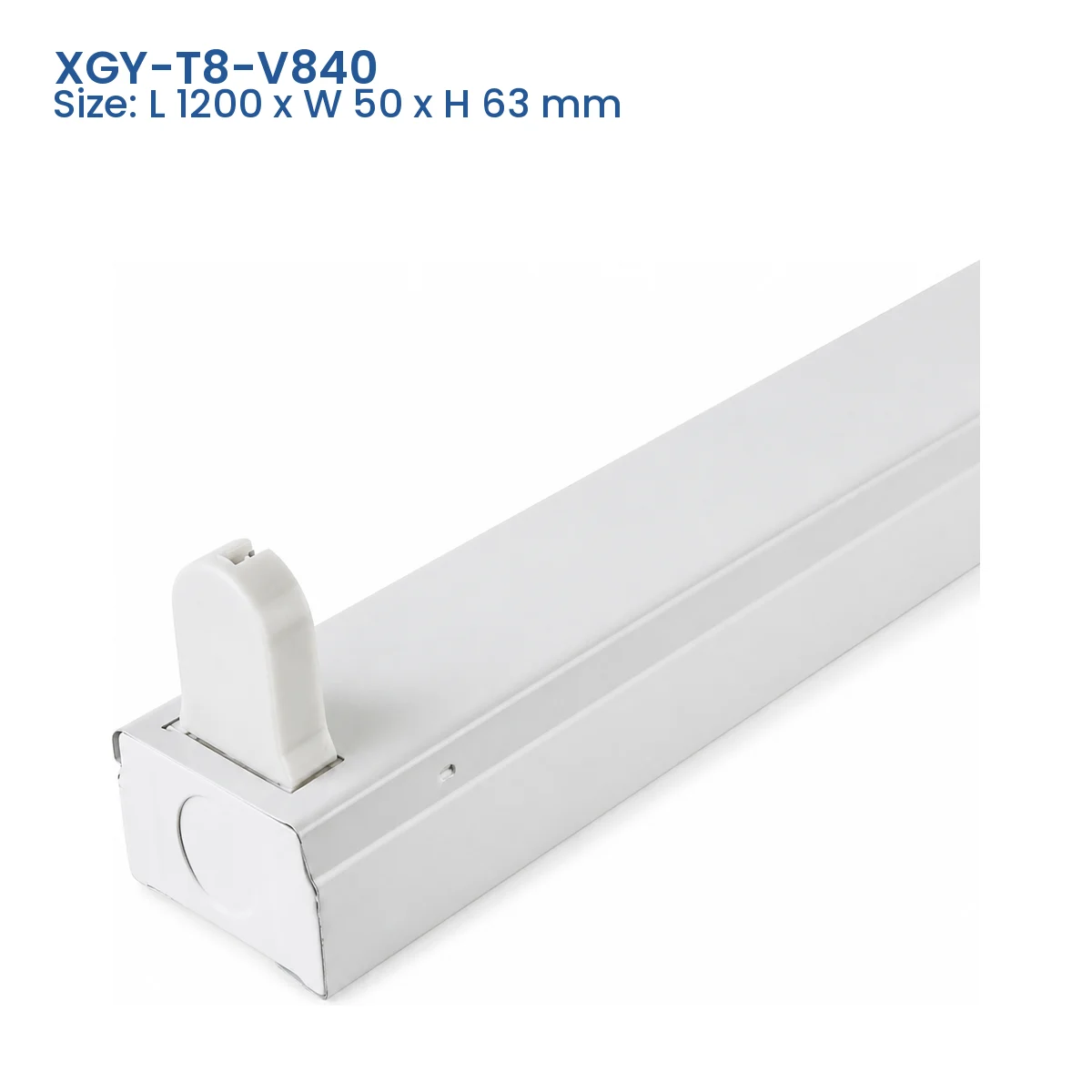

XGY-T8-V840 T8 tube fixture model, Size L 1200 x W 50 x H 63 mm

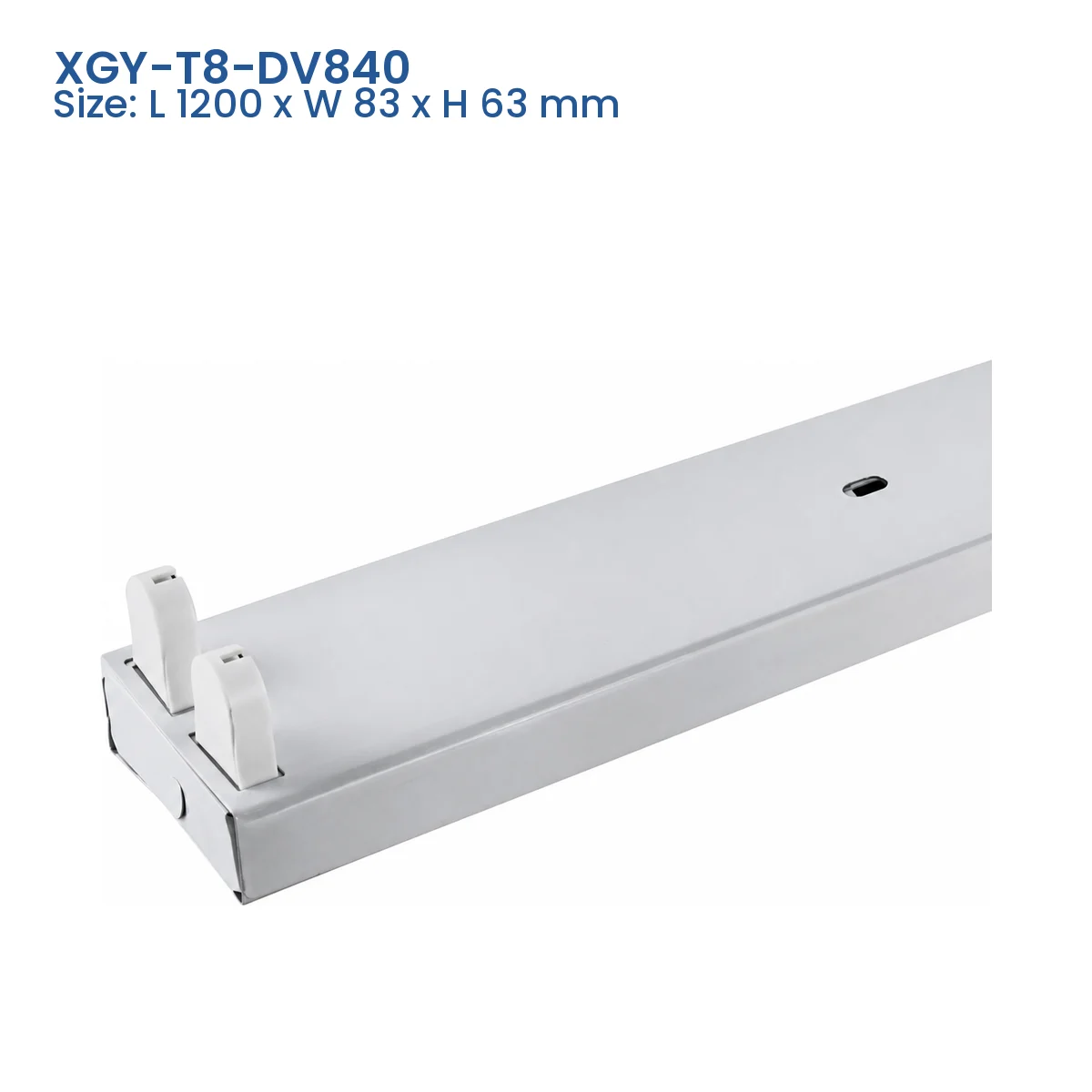

XGY-T8-DV840 T8 tube fixture model, Size L 1200 x W 83 x H 63 mm

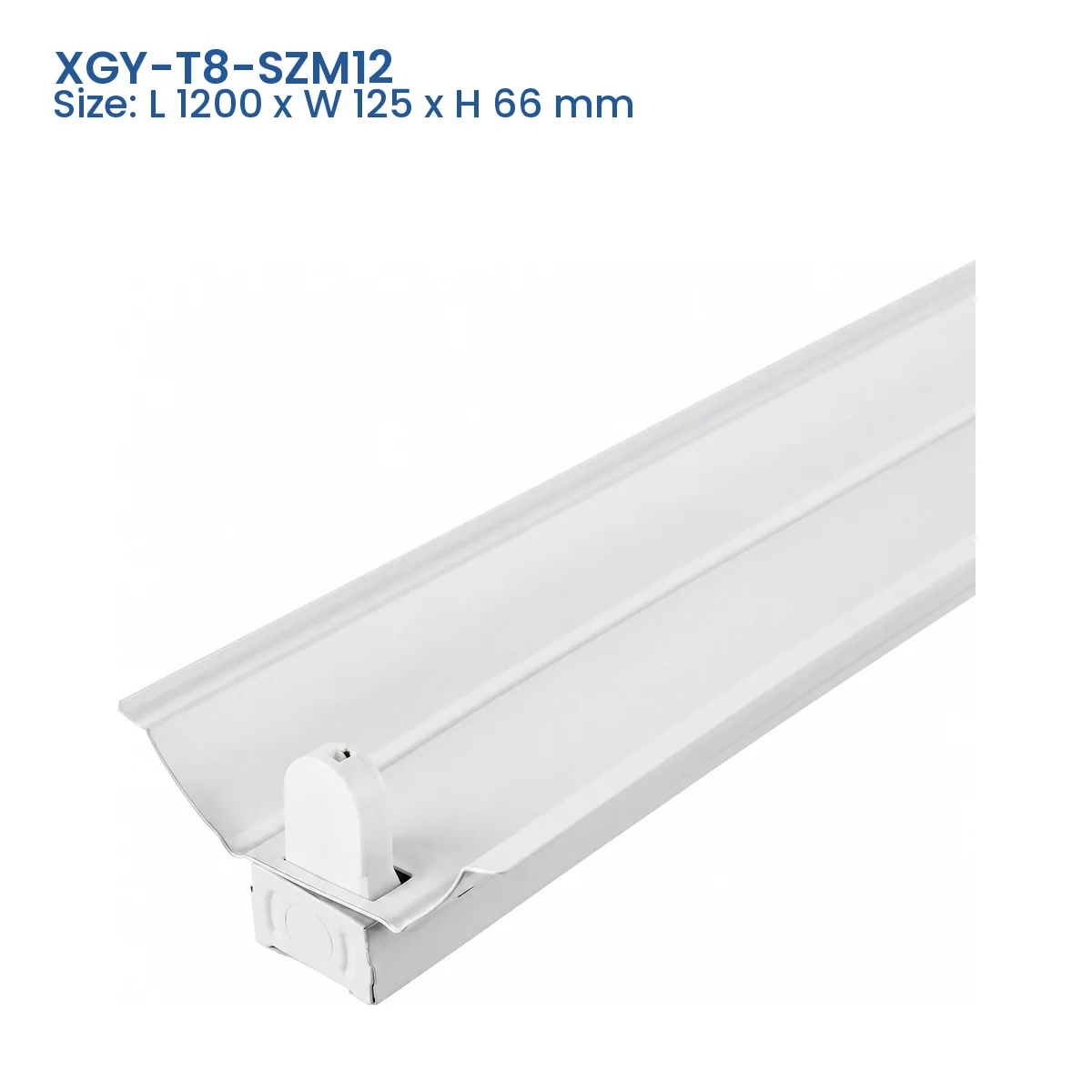

XGY-T8-SZM12 T8 tube fixture model, Size L 1200 x W 125 x H 66 mm

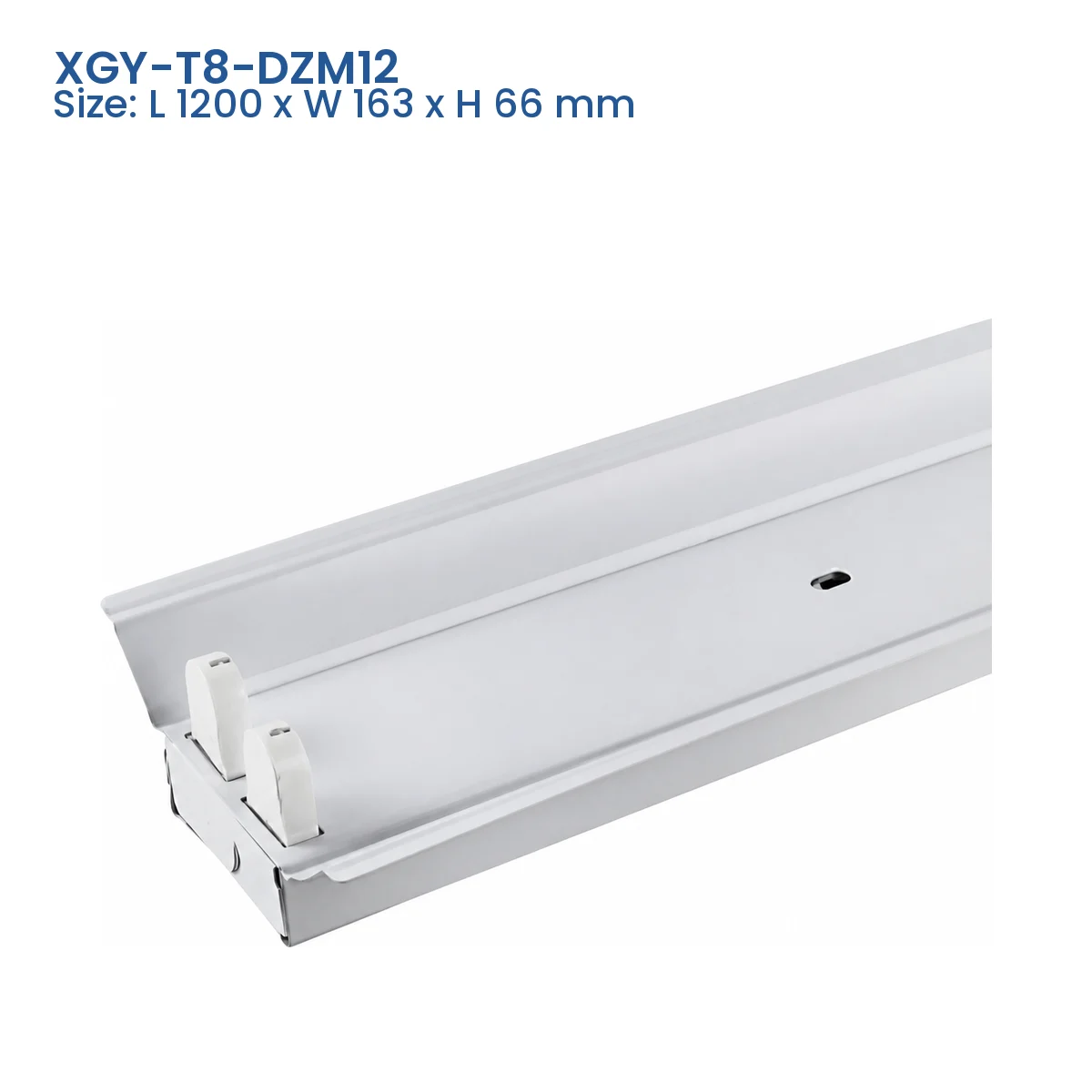

XGY-T8-DZM12 T8 tube fixture model, Size L 1200 x W 163 x H 66 mm

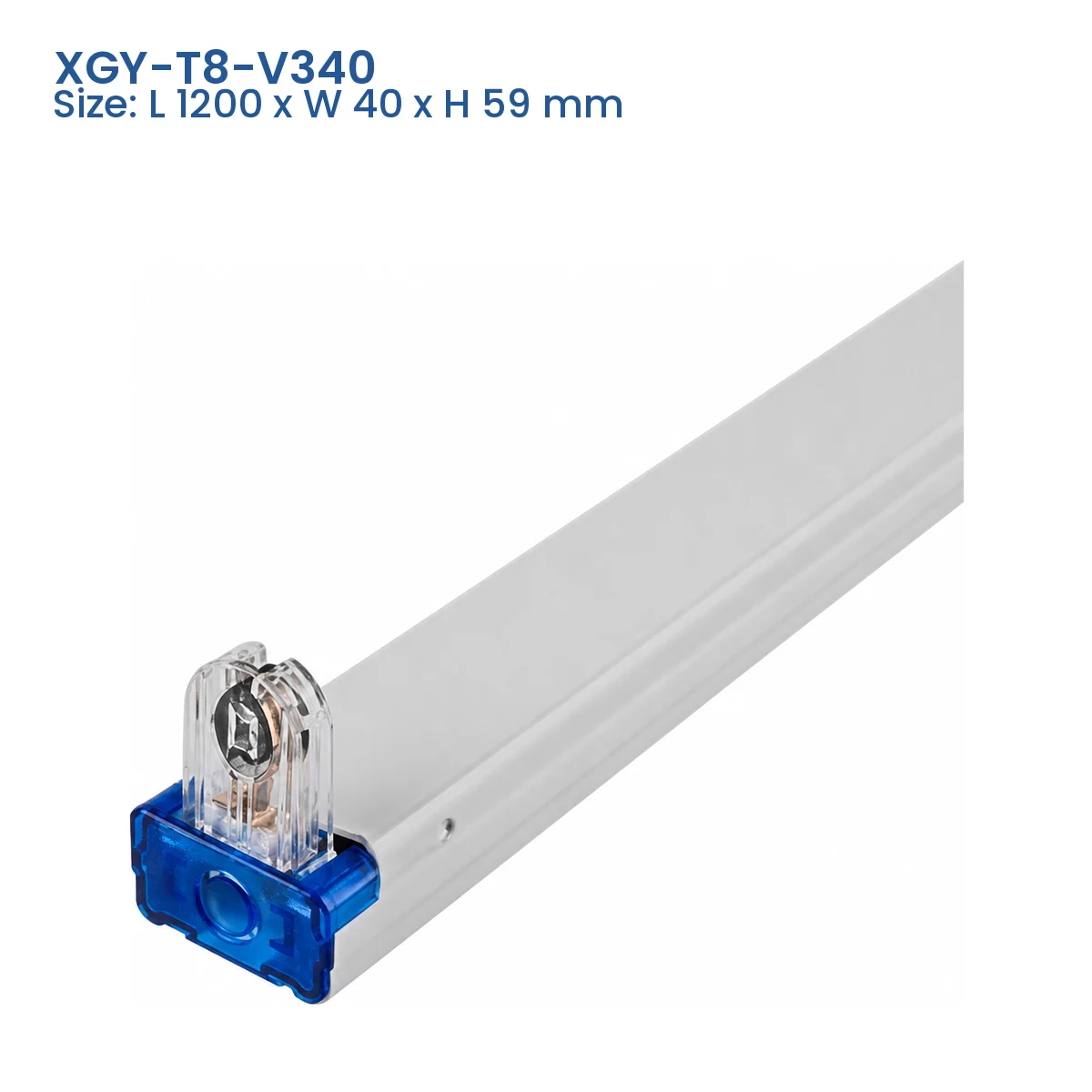

XGY-T8-V340 T8 tube fixture model, Size L 1200 x W 40 x H 59 mm

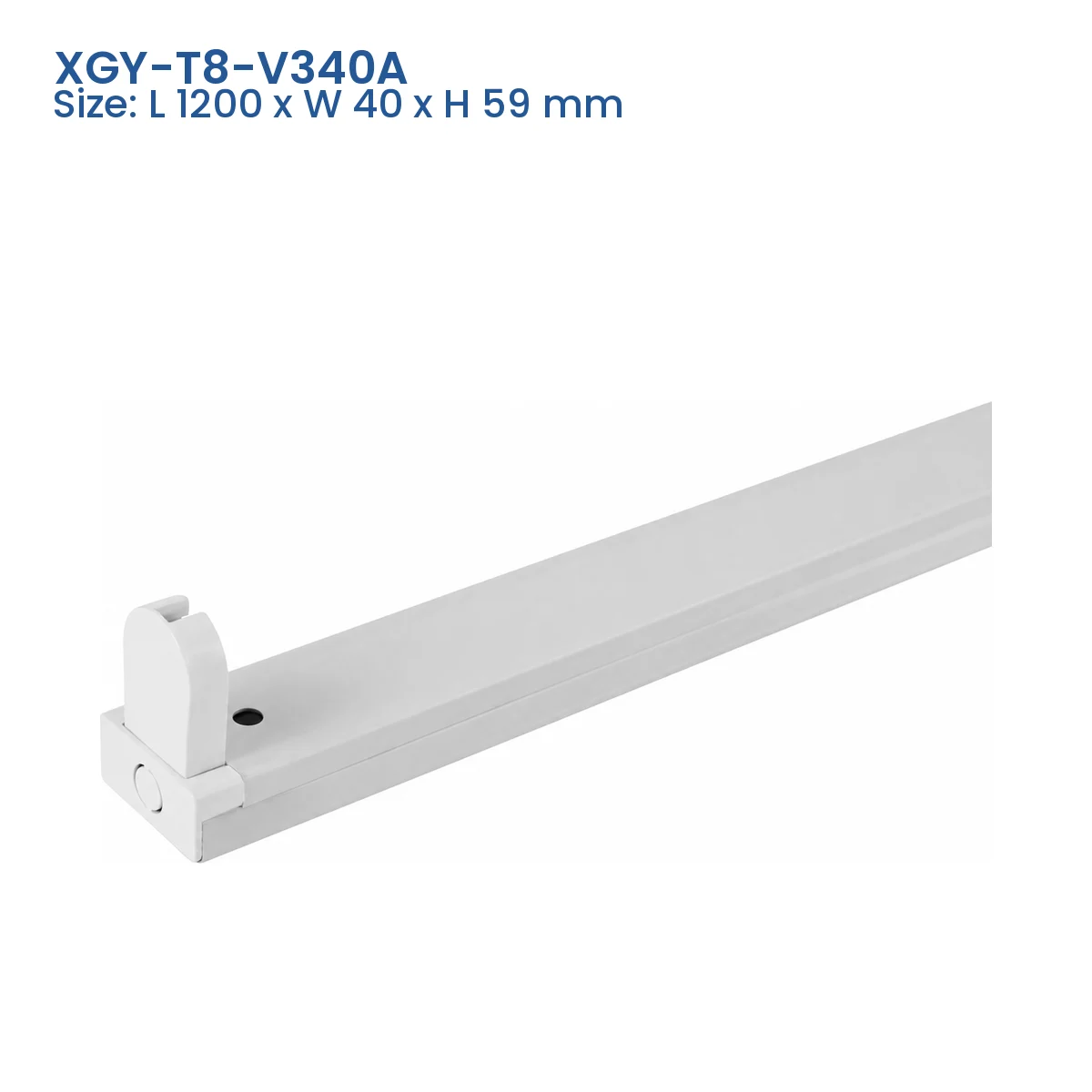

XGY-T8-V340A T8 tube fixture model, Size L 1200 x W 40 x H 59 mm

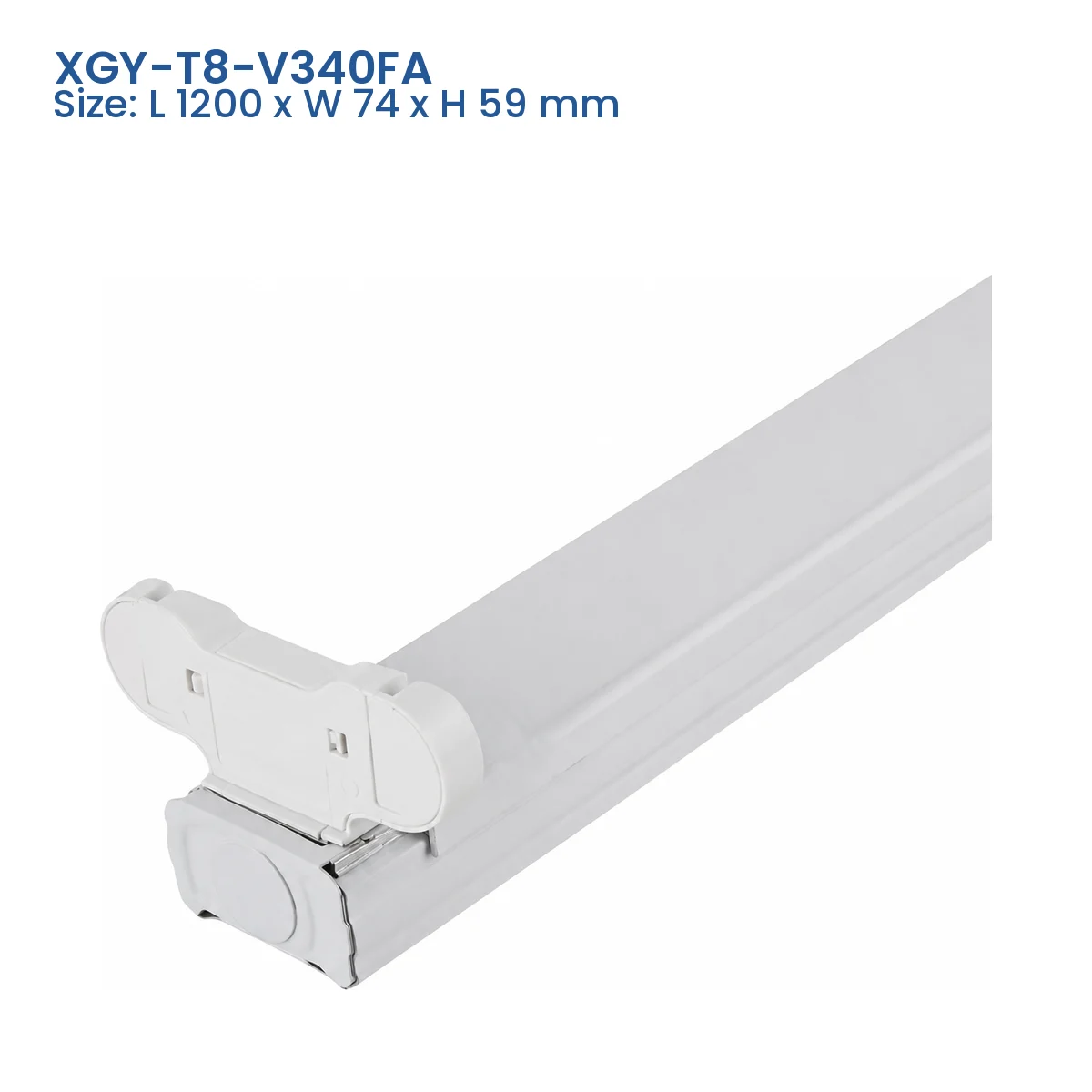

XGY-T8-V340FA T8 tube fixture model, Size L 1200 x W 74 x H 59 mm

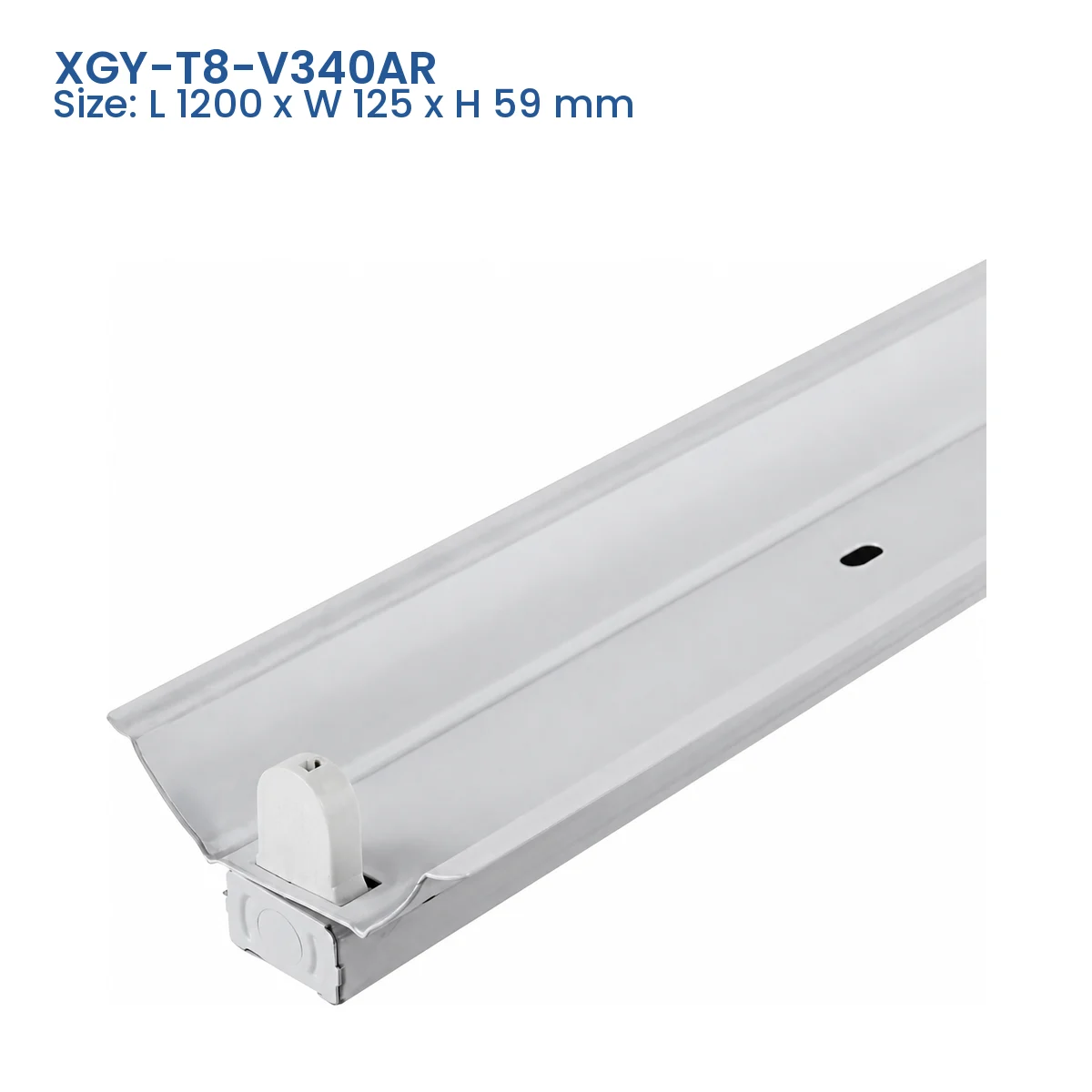

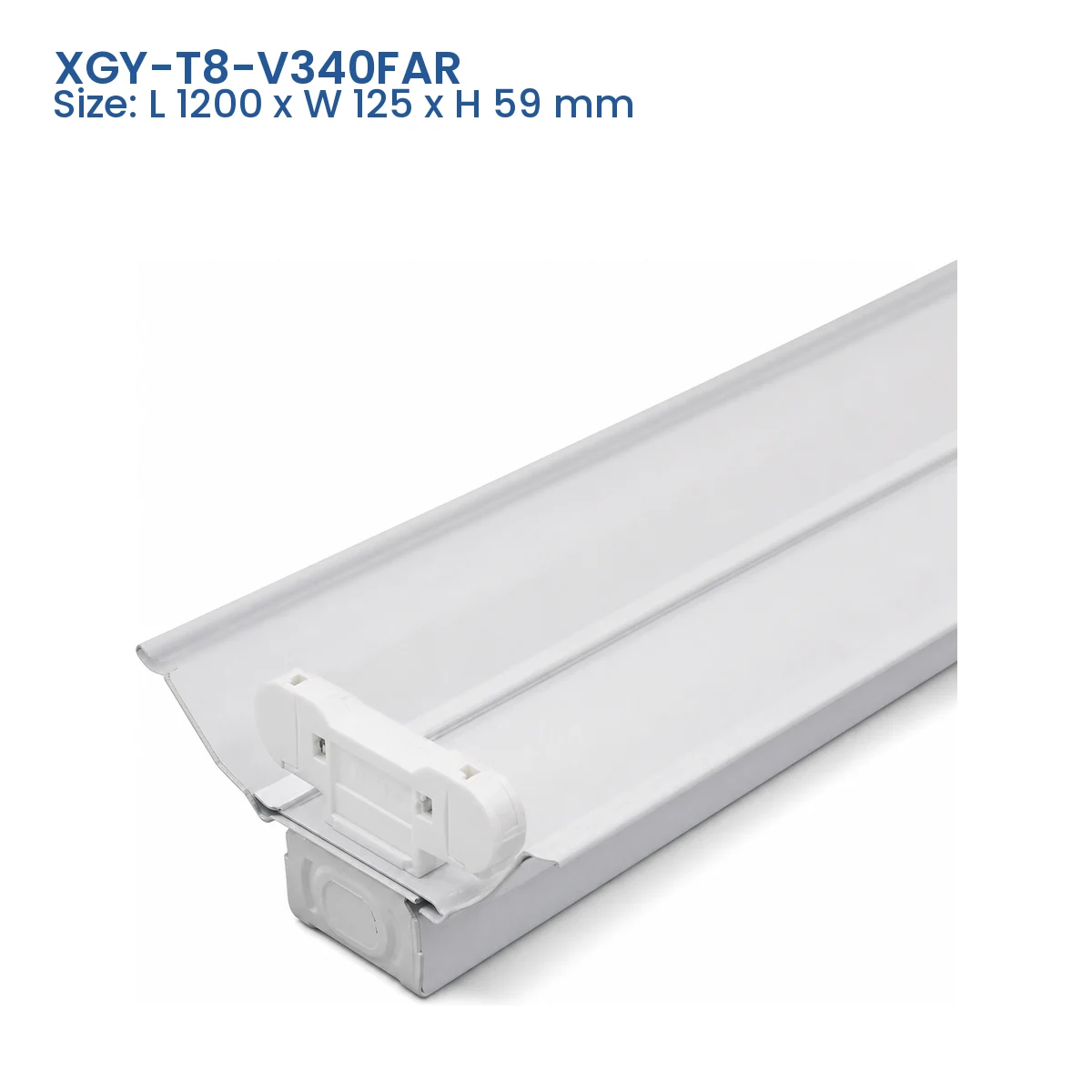

XGY-T8-V340AR T8 tube fixture model, Size L 1200 x W 125 x H 59 mm

XGY-T8-V340FAR T8 tube fixture model, Size L 1200 x W 125 x H 59 mm

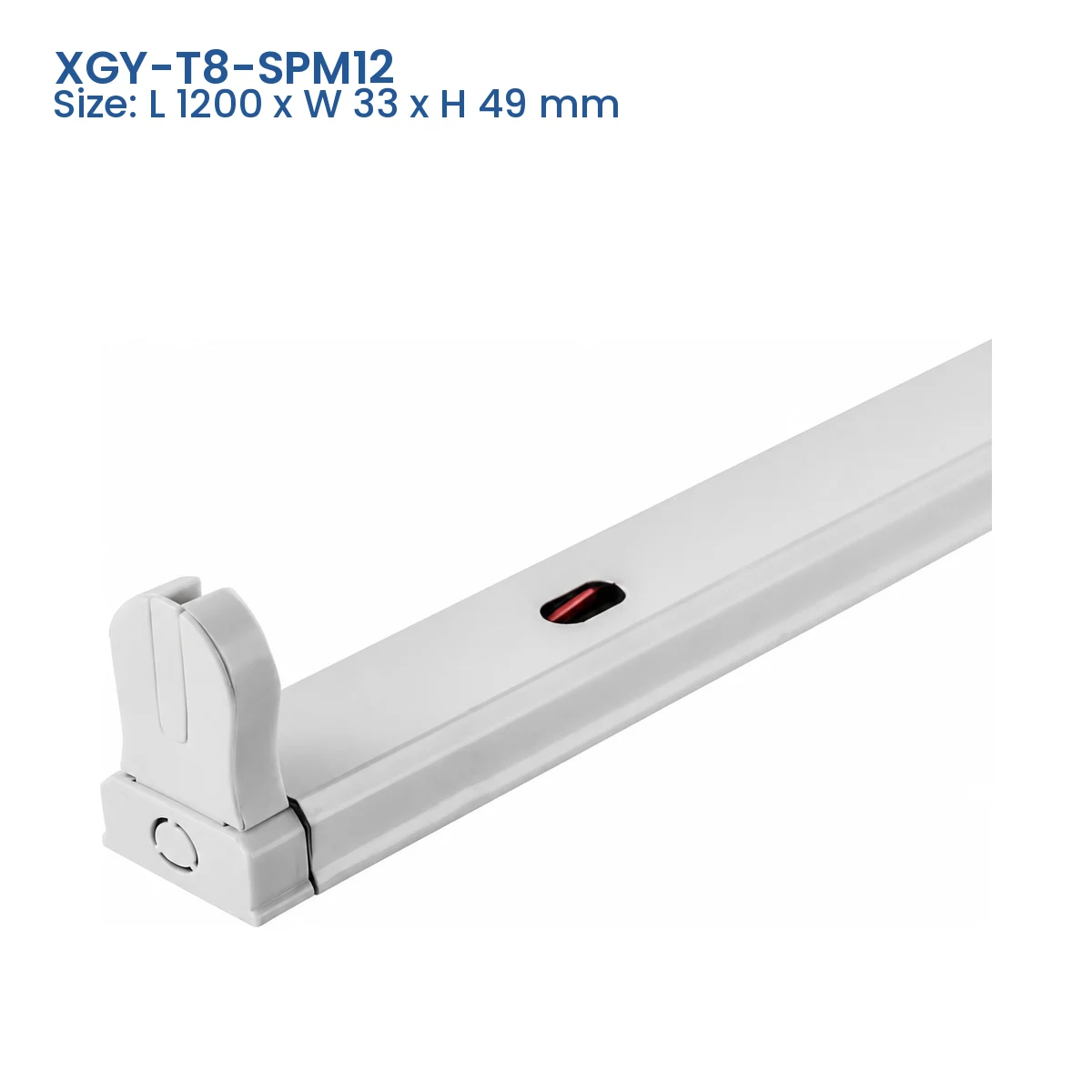

XGY-T8-SPM12 T8 tube fixture model, Size L 1200 x W 33 x H 49 mm

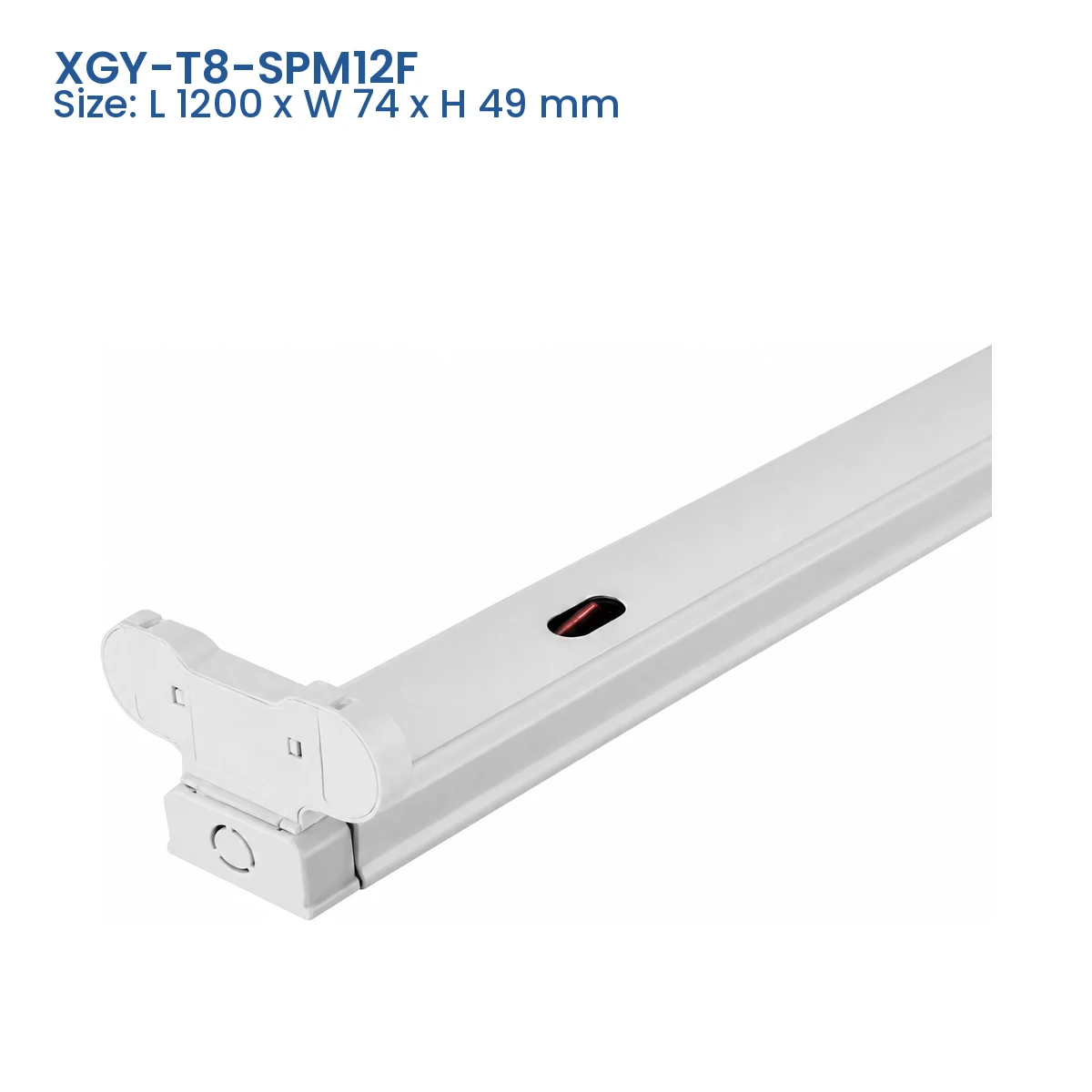

XGY-T8-SPM12F T8 tube fixture model, Size L 1200 x W 74 x H 49 mm

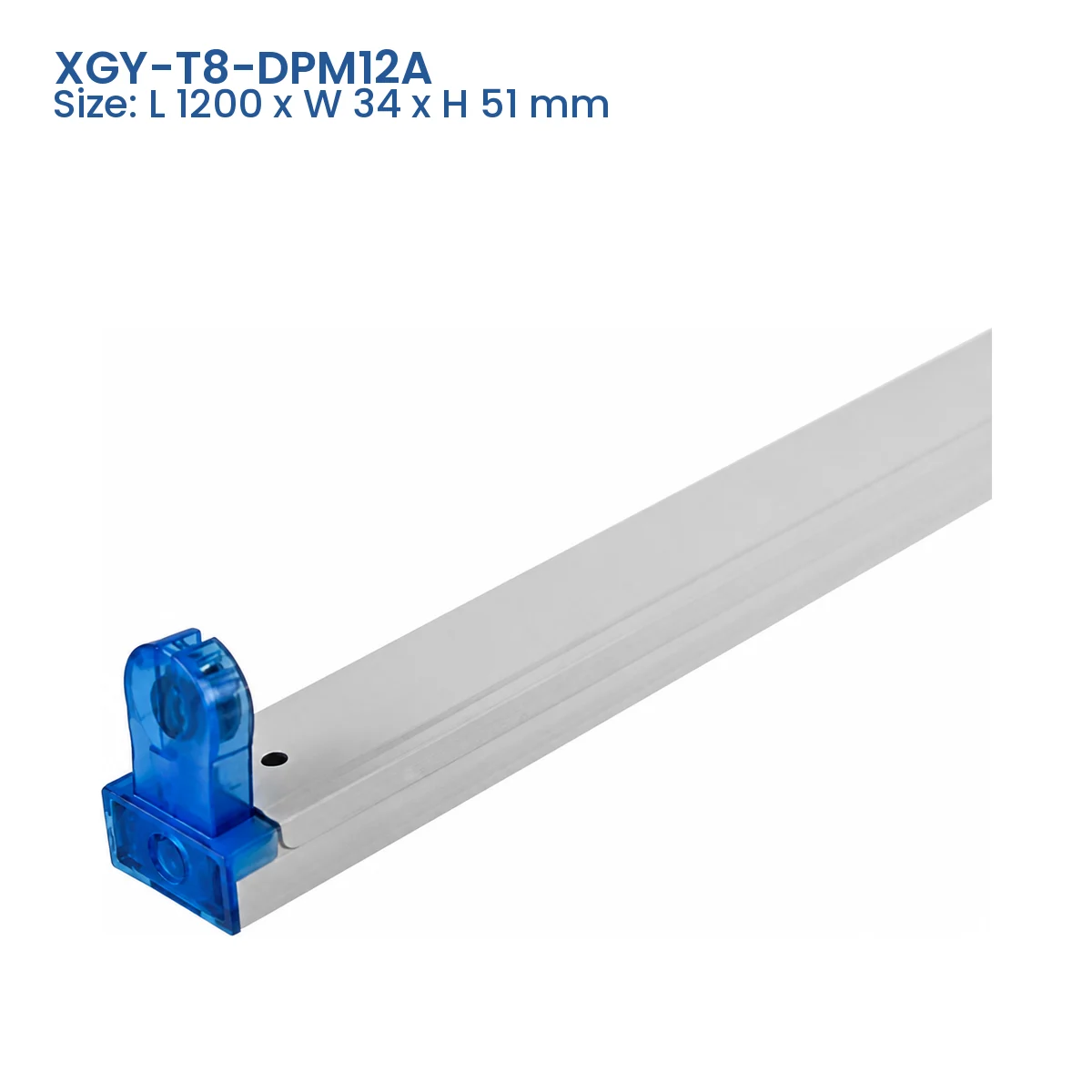

XGY-T8-DPM12A T8 tube fixture model, Size L 1200 x W 34 x H 51 mm

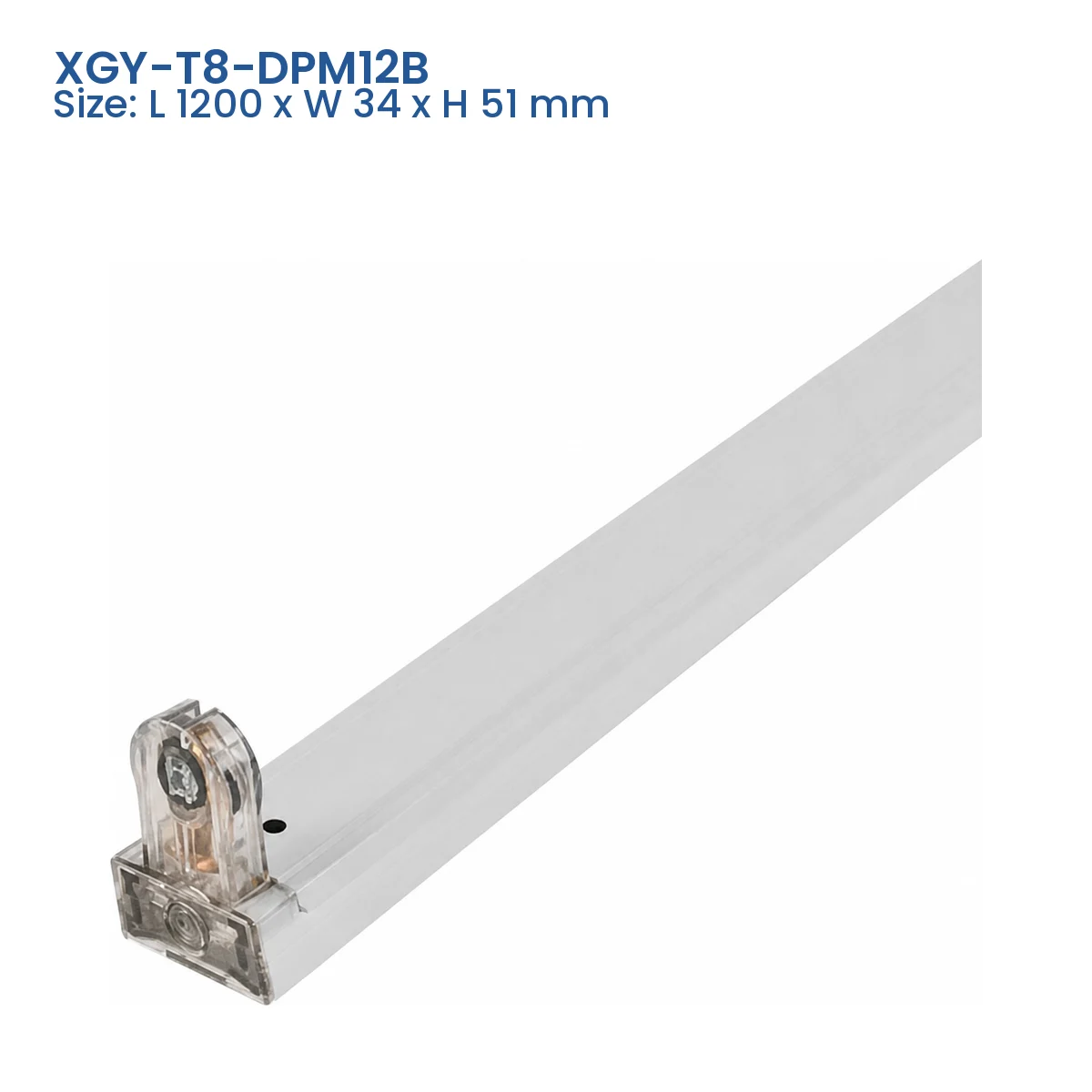

XGY-T8-DPM12B T8 tube fixture model, Size L 1200 x W 34 x H 51 mm

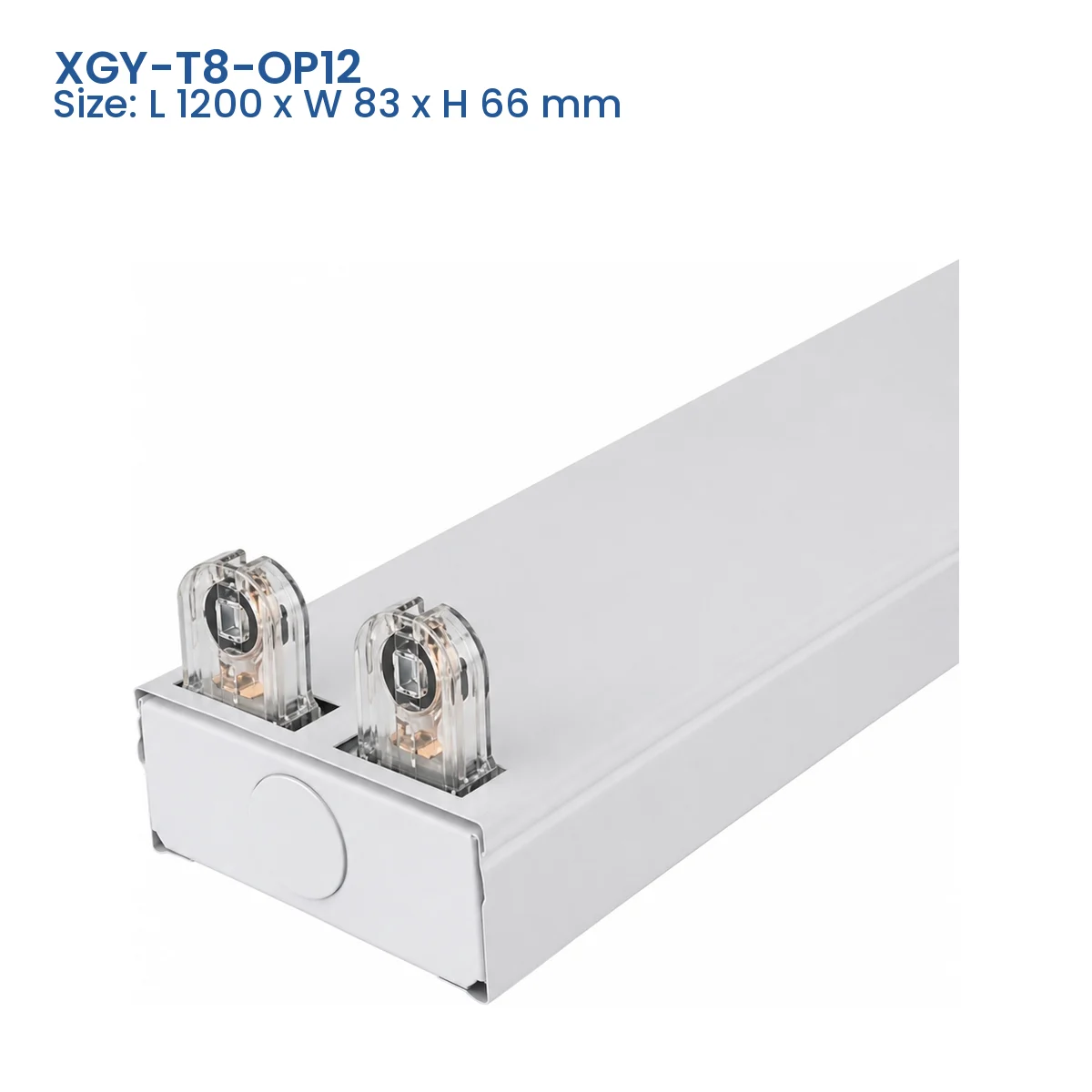

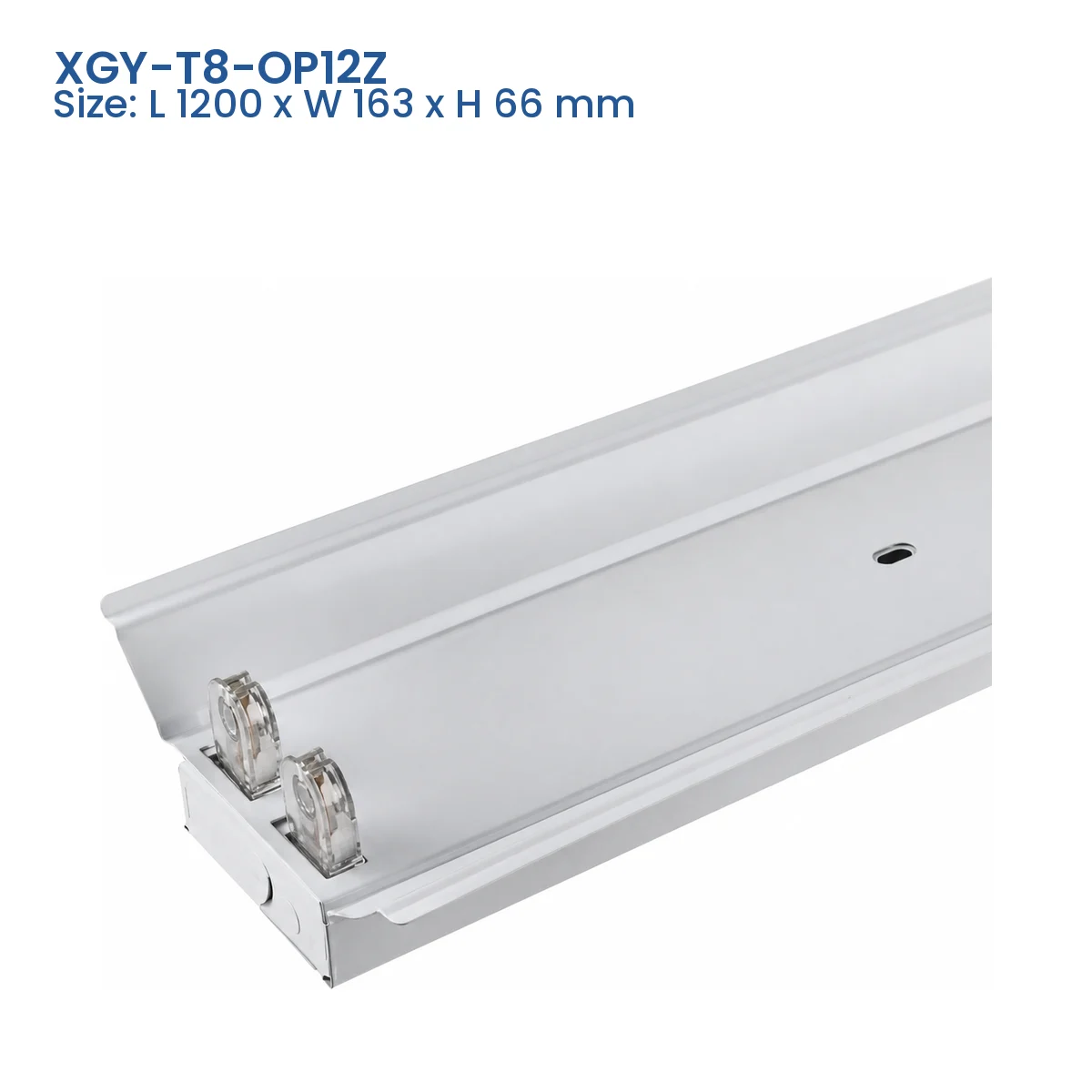

XGY-T8-OP12 T8 tube fixture model, Size L 1200 x W 83 x H 66 mm

XGY-T8-OP12Z T8 tube fixture model, Size L 1200 x W 163 x H 66 mm

Technical Specifications

Model Specifications

V8 Tube Fixture — Magnetic Ballast

Model No.	Dimensions	Tube / Lamp Power	Steel Thickness
XGY-T8-V820	600 × 50 × 63 (28) mm	1 × 18 W	0.25 mm
XGY-T8-V830	900 × 50 × 63 (28) mm	1 × 30 W	0.25 mm
XGY-T8-V840	1200 × 50 × 63 (28) mm	1 × 36 W	0.25 mm
XGY-T8-DV820	600 × 83 × 63 (28) mm	2 × 18 W	0.25 mm
XGY-T8-DV830	900 × 83 × 63 (28) mm	2 × 30 W	0.25 mm
XGY-T8-DV840	1200 × 83 × 63 (28) mm	2 × 36 W	0.25 mm

V8 Tube Fixture + Reflector — Magnetic Ballast

Model No.	Dimensions	Tube / Lamp Power	Steel Thickness
XGY-T8-SZM6	600 × 125 (50) × 66 (31) mm	1 × 18 W	0.25 mm
XGY-T8-SZM9	900 × 125 (50) × 66 (31) mm	1 × 30 W	0.25 mm
XGY-T8-SZM12	1200 × 125 (50) × 66 (31) mm	1 × 36 W	0.25 mm
XGY-T8-DZM6	600 × 163 (83) × 66 (31) mm	2 × 18 W	0.25 mm
XGY-T8-DZM9	900 × 163 (83) × 66 (31) mm	2 × 30 W	0.25 mm
XGY-T8-DZM12	1200 × 163 (83) × 66 (31) mm	2 × 36 W	0.25 mm

V3 Tube Fixture — Electronic Ballast

Model No.	Dimensions	Tube / Lamp Power	Steel Thickness
XGY-T8-V320	600 × 40 × 59 (24) mm	1 × 18 W	0.30 mm
XGY-T8-V330	900 × 40 × 59 (24) mm	1 × 30 W	0.30 mm
XGY-T8-V340	1200 × 40 × 59 (24) mm	1 × 36 W	0.30 mm
XGY-T8-V320A	600 × 40 × 59 (24) mm	1 × 18 W	0.25 mm
XGY-T8-V330A	900 × 40 × 59 (24) mm	1 × 30 W	0.25 mm
XGY-T8-V340A	1200 × 40 × 59 (24) mm	1 × 36 W	0.25 mm
XGY-T8-V320FA	600 × 74 (40) × 59 (24) mm	2 × 18 W	0.25 mm
XGY-T8-V330FA	900 × 74 (40) × 59 (24) mm	2 × 30 W	0.25 mm
XGY-T8-V340FA	1200 × 74 (40) × 59 (24) mm	2 × 36 W	0.25 mm

V3 Tube Fixture + Reflector — Electronic Ballast

Model No.	Dimensions	Tube / Lamp Power	Steel Thickness
XGY-T8-V320AR	600 × 125 (40) × 59 (24) mm	1 × 18 W	0.25 mm
XGY-T8-V330AR	900 × 125 (40) × 59 (24) mm	1 × 30 W	0.25 mm
XGY-T8-V340AR	1200 × 125 (40) × 59 (24) mm	1 × 36 W	0.25 mm
XGY-T8-V320FAR	600 × 125 (40) × 59 (24) mm	2 × 18 W	0.25 mm
XGY-T8-V330FAR	900 × 125 (40) × 59 (24) mm	2 × 30 W	0.25 mm
XGY-T8-V340FAR	1200 × 125 (40) × 59 (24) mm	2 × 36 W	0.25 mm

Inter-connectable Single Tube Fixture — Direct AC

Model No.	Dimensions	Tube / Lamp Power	Steel Thickness
XGY-T8-SPM6A	600 × 33 × 49 (14) mm	1 × 18 W	0.20 mm
XGY-T8-SPM9A	900 × 33 × 49 (14) mm	1 × 30 W	0.20 mm
XGY-T8-SPM12A	1200 × 33 × 49 (14) mm	1 × 36 W	0.20 mm

Single / Double Tube Fixture — Direct AC

Model No.	Dimensions	Tube / Lamp Power	Steel Thickness
XGY-T8-SPM6	600 × 33 × 49 (14) mm	1 × 18 W	0.20 mm
XGY-T8-SPM9	900 × 33 × 49 (14) mm	1 × 30 W	0.20 mm
XGY-T8-SPM12	1200 × 33 × 49 (14) mm	1 × 36 W	0.20 mm
XGY-T8-SPM15	1500 × 33 × 49 (14) mm	1 × 58 W	0.20 mm
XGY-T8-SPM6F	600 × 74 (33) × 49 (14) mm	2 × 18 W	0.20 mm
XGY-T8-SPM9F	900 × 74 (33) × 49 (14) mm	2 × 30 W	0.20 mm
XGY-T8-SPM12F	1200 × 74 (33) × 49 (14) mm	2 × 36 W	0.20 mm

Cap-Folding Single Tube Fixture — Direct AC

Model No.	Dimensions	Tube / Lamp Power	Steel Thickness
XGY-T8-DPM6A	600 × 34 × 51 (16) mm	1 × 18 W	0.20 mm
XGY-T8-DPM9A	900 × 34 × 51 (16) mm	1 × 30 W	0.20 mm
XGY-T8-DPM12A	1200 × 34 × 51 (16) mm	1 × 36 W	0.20 mm
XGY-T8-DPM6B	600 × 34 × 51 (16) mm	1 × 18 W	0.30 mm
XGY-T8-DPM9B	900 × 34 × 51 (16) mm	1 × 30 W	0.30 mm
XGY-T8-DPM12B	1200 × 34 × 51 (16) mm	1 × 36 W	0.30 mm

Broad-Base Double Tube Fixture — Direct AC

Model No.	Dimensions	Tube / Lamp Power	Steel Thickness
XGY-T8-OP6	600 × 83 × 66 (31) mm	2 × 18 W	0.30 mm
XGY-T8-OP9	900 × 83 × 66 (31) mm	2 × 30 W	0.30 mm
XGY-T8-OP12	1200 × 83 × 66 (31) mm	2 × 36 W	0.30 mm
XGY-T8-OP6Z	600 × 163 (31) × 66 (31) mm	2 × 18 W	0.30 mm
XGY-T8-OP9Z	900 × 163 (31) × 66 (31) mm	2 × 30 W	0.30 mm
XGY-T8-OP12Z	1200 × 163 (31) × 66 (31) mm	2 × 36 W	0.30 mm

Bracketed profile values remain part of each model dimension. Select the fixture structure and electrical format first, then pair it with the matching G13 T8 lamp and wiring diagram.

Product Description

Product Details

Product Construction

Each set combines a G13 T8 tube with a painted-steel surface-mounted fixture. Depending on the model family, the body uses a narrow single-lamp channel, a wider two-lamp channel, a formed reflector, a folding-end-cap profile or a broad base. The matched tube and wired fixture are enclosed together in protective shrink packaging.

Selection & Installation Notes

Identify whether the building circuit uses direct AC, a magnetic ballast or an electronic ballast, then choose the corresponding fixture family. Next match the required length, lamp count, body width and reflector format. For direct-AC versions, match the tube input method to the lampholder wiring. Use these sets on dry indoor surfaces. Browse other linear batten options.

Recommended Application

Applications

Garages and Utility Rooms: Provide replaceable-lamp general lighting across dry indoor parking bays, workbenches and storage zones.
Workshops and Warehouses: Arrange single- or double-tube fixtures in repeated surface-mounted rows above production and storage aisles.
Retail Backrooms: Install shrink-packed tube-and-fixture sets in stockrooms, service corridors and other dry support spaces.
Indoor Retrofit Projects: Match direct-AC or ballast-based fixture structures to the selected T8 lamp and existing electrical plan.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

Is the T8 tube included with the fixture?

Yes. Each set combines a T8 tube with a wired painted-steel fixture in protective shrink packaging. Specify the required lamp power, CCT, tube construction and electrical input method when ordering.

How do I choose between direct AC and ballast-based fixtures?

Match the fixture family to the selected lamp and building circuit. V8 models use magnetic-ballast formats, V3 models use electronic-ballast formats, and SPM, DPM, OP and interconnectable models use direct AC.

Can direct-AC models use single-ended and double-ended T8 tubes?

Yes, both input arrangements are available. The ordered tube, lampholders and internal wiring must use the same arrangement, so follow the wiring diagram for the selected set.

What is the difference between single-tube, double-tube and reflector bodies?

Single-tube models use a narrow one-lamp body, double-tube models provide two lamp positions, and reflector versions use a wider formed body around the lampholders. Select by lamp count and available mounting width.

Can these fixtures be installed outdoors or in wet areas?

These sets are intended for dry indoor surfaces. Use a separately rated waterproof or tri-proof product for damp, wet or wash-down locations.

Can the T8 tube be replaced after installation?

Yes. Isolate the circuit, confirm the replacement tube matches the fixture circuit and input arrangement, then install it according to the applicable wiring diagram.
