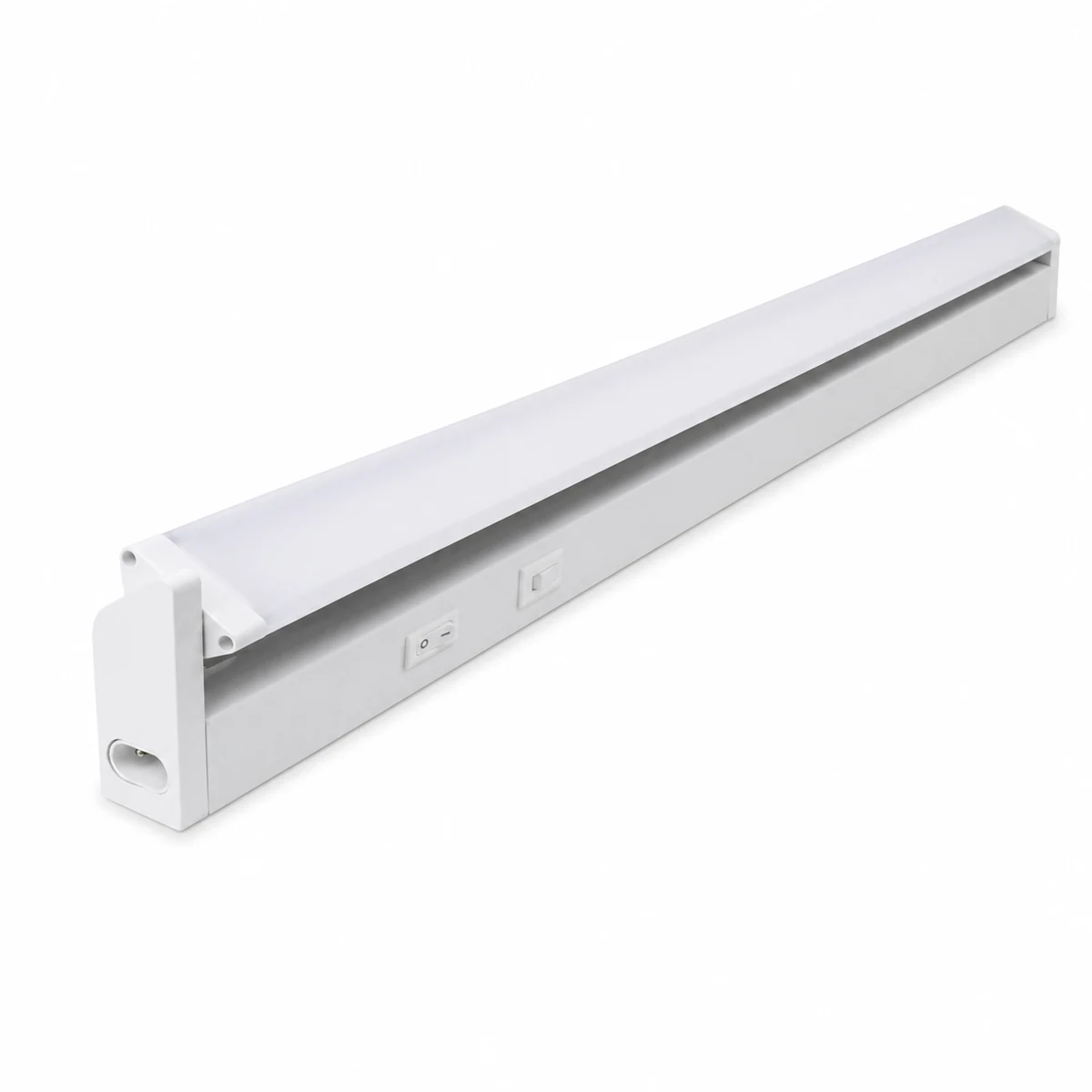

Surface-Mounted Rotatable LED Linear Fixture
- 170-Degree Mechanical Aiming: The light bar rotates after installation to direct light toward the required work or display surface.
- Linkable End Connections: Plug-and-socket or male/female connector options join compatible fixtures into straight lighting runs.
- Surface-Mounted Format: The fixed base secures the fixture to compatible cabinet, shelf, wall or ceiling surfaces.
- Optional Light Controls: Three-CCT and dimmer-switch versions provide project-specific control choices.
| Lengths | 297 / 536 / 836 / 1134 / 1434 mm |
|---|---|
| Rated Power | 4 / 8 / 12 / 16 / 20 W |
| Luminous Efficacy | 80-160 lm/W, configurable |
| CCT / CRI | 3000-8000 K / Ra80 |
| Input Voltage | S: AC 180-265 V / U: AC 85-265 V |
|---|---|
| Adjustment | Up to 170 degrees |
| Body / Controls | Full plastic / optional 3-CCT or dimmer switch |
Technical Specifications
Model Specifications
| Model | Dimensions (W x H x L) | Rated Power | Efficacy | CCT | CRI | Input | Adjustment |
|---|---|---|---|---|---|---|---|

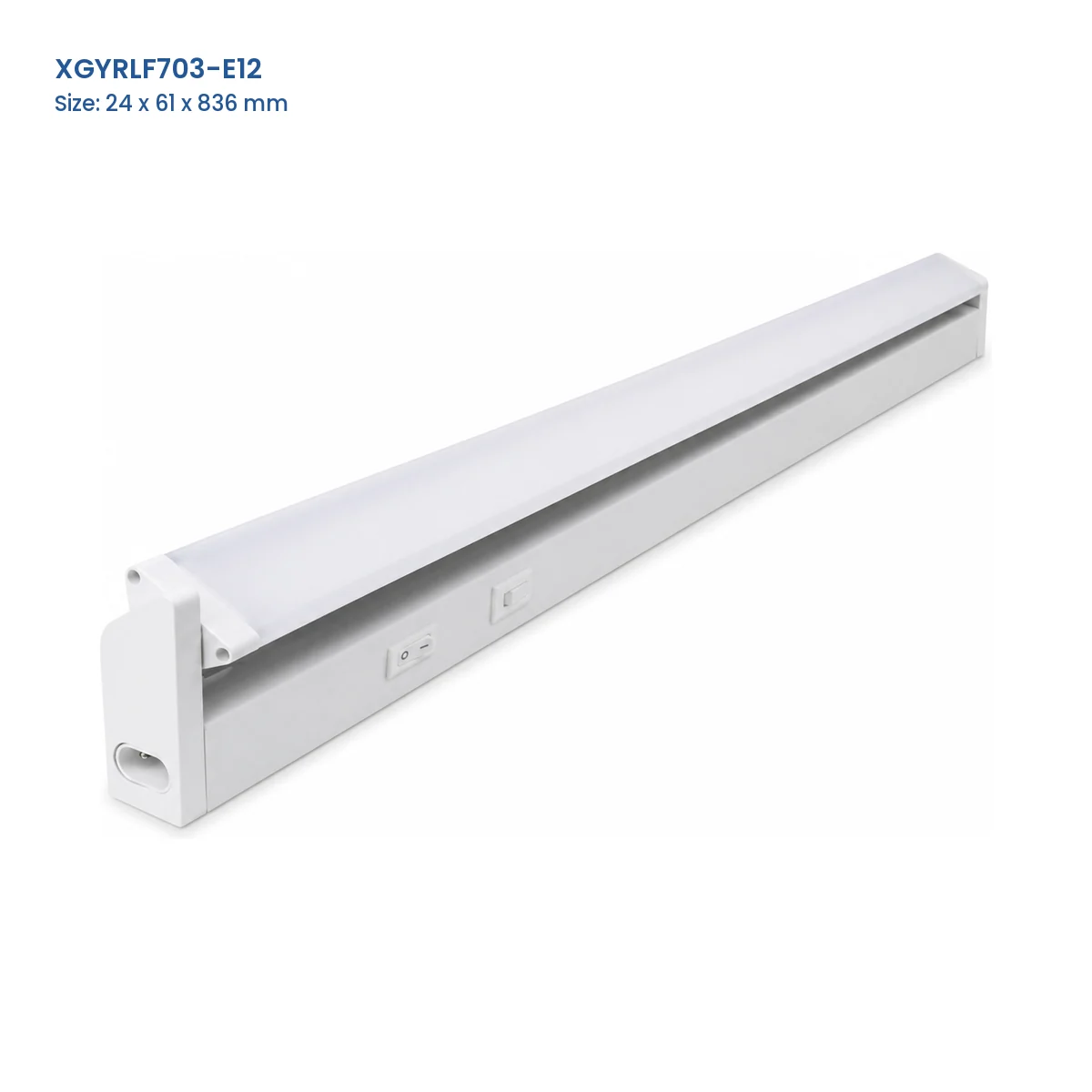

| XGYRLF701-E4 | 24 x 61 x 297 mm | 4 W | 80-160 lm/W | 3000-8000 K | Ra80 | S: AC180-265V; U: AC85-265V | 170 degrees |
| XGYRLF702-E8 | 24 x 61 x 536 mm | 8 W | 80-160 lm/W | 3000-8000 K | Ra80 | S: AC180-265V; U: AC85-265V | 170 degrees |
| XGYRLF703-E12 | 24 x 61 x 836 mm | 12 W | 80-160 lm/W | 3000-8000 K | Ra80 | S: AC180-265V; U: AC85-265V | 170 degrees |
| XGYRLF704-E16 | 24 x 61 x 1134 mm | 16 W | 80-160 lm/W | 3000-8000 K | Ra80 | S: AC180-265V; U: AC85-265V | 170 degrees |
| XGYRLF705-E20 | 24 x 61 x 1434 mm | 20 W | 80-160 lm/W | 3000-8000 K | Ra80 | S: AC180-265V; U: AC85-265V | 170 degrees |
The 170-degree value is the mechanical aiming range of the light bar, not the optical beam angle. Specify the required connector and optional control version with the selected model.
Product Description
Product Details
Product Construction
The full-plastic assembly encloses SMD 2835 LEDs behind a linear diffuser. A mounting rail holds the housing against the supporting plane.
Selection & Installation Notes
Start with the usable run length and the table’s length-and-power pairing. Then document the required S or U input and end orientation. Set the rail and cable path before fitting the unit, and allow enough room for repositioning. Compare related products in our linear battens range.
Recommended Application
Applications

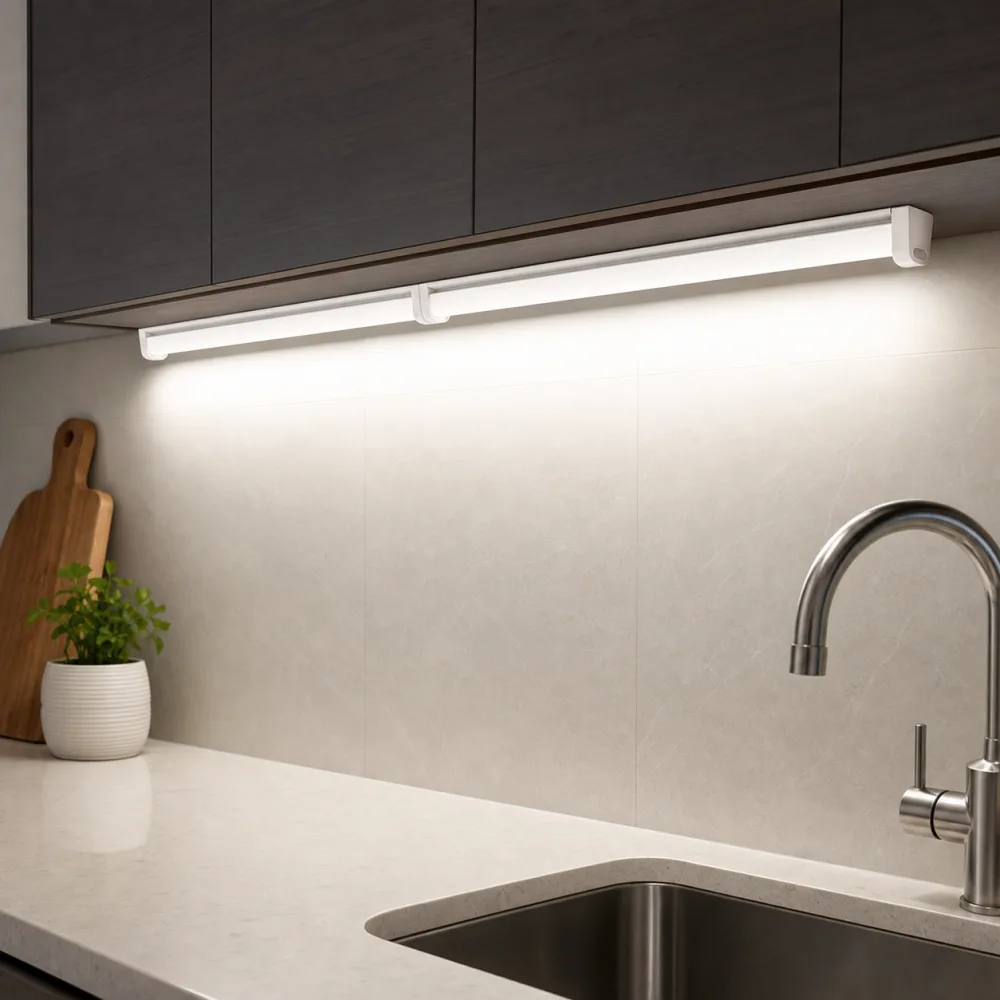

- Under-Cabinet Worktops: Surface mounting places directional linear light above kitchen counters and preparation areas.
- Retail Shelf Lighting: Linked fixtures follow merchandise runs while the rotatable bar aims light toward displayed products.
- Display Cabinet Lighting: Compact linear fixtures direct light across objects inside protected interior showcases.
- Wall-Mounted Accents: The adjustable bar directs linear light toward signs, panels and interior feature surfaces.
