Connectable Suspended LED Shop Light
- Wide 120-Degree Beam: The broad distribution spreads light across long benches, counters and shared work surfaces.
- Flicker-Free Operation: The listed no-flicker design supports steadier visual conditions during detailed indoor tasks.
- Dimmable Capability: A dimmable electrical option allows the light level to be matched to the intended work area when specified for the order.
- 25,000-Hour Service Reference: The documented lifetime provides a clear maintenance-planning reference for the L5 series.
| Mounting | Suspended indoor runs |
|---|---|
| Connection | End-to-end linkable fixtures |
| Construction | Aluminium body + PC diffuser |
| Rated Power | 18 / 26 / 34 / 40 W |
| Luminous Efficacy | 80-160 lm/W |
|---|---|
| CCT | 3000-8000 K |
| Protection | IP40; dry indoor use |
Technical Specifications
Model Specifications
| Model | Dimensions (W x H x L) | Rated Power | Luminous Efficacy | CCT | IP |
|---|---|---|---|---|---|

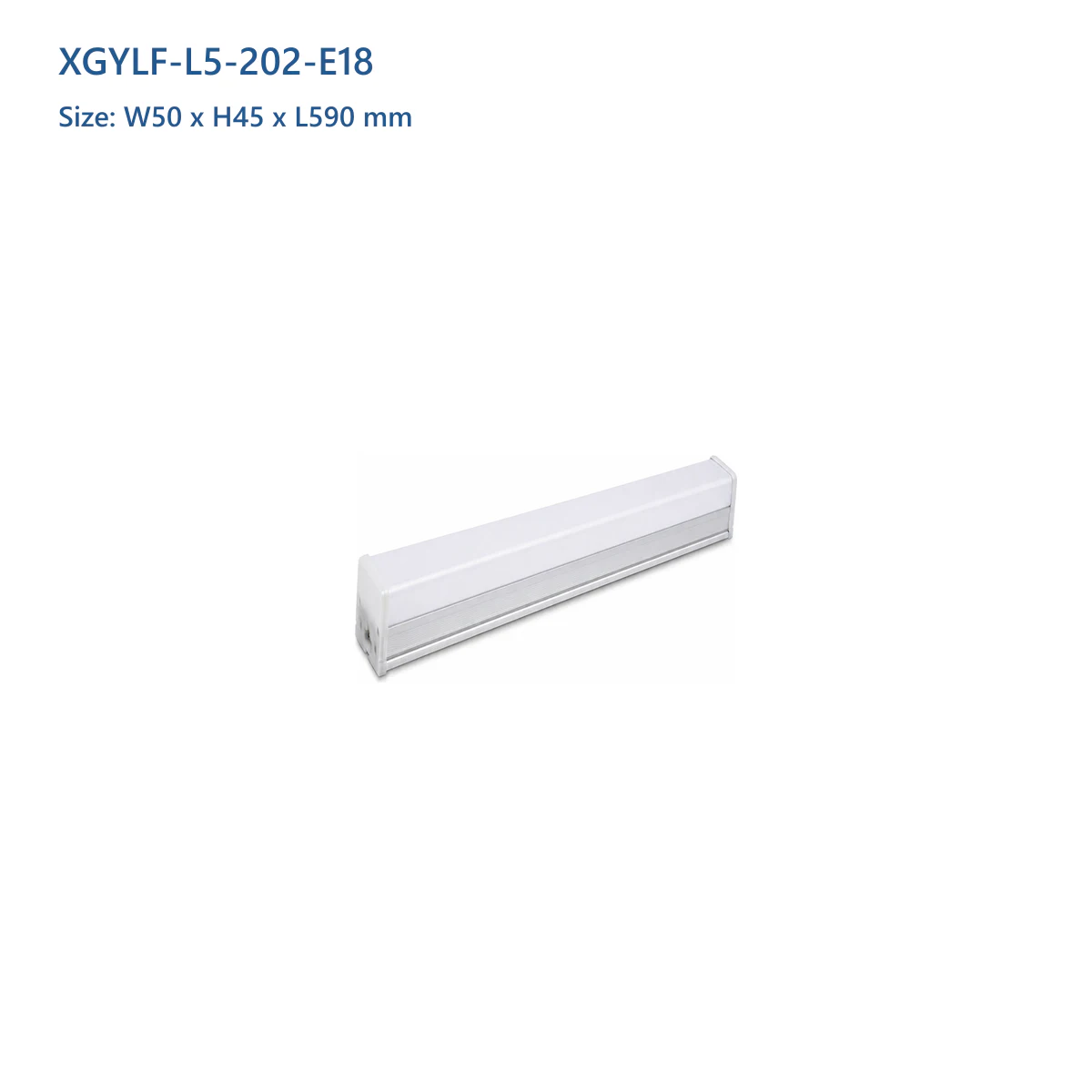

| XGYLF-L5-202-E18 | 50 x 45 x 590 mm | 18 W | 80-160 lm/W | 3000-8000 K | IP40 |

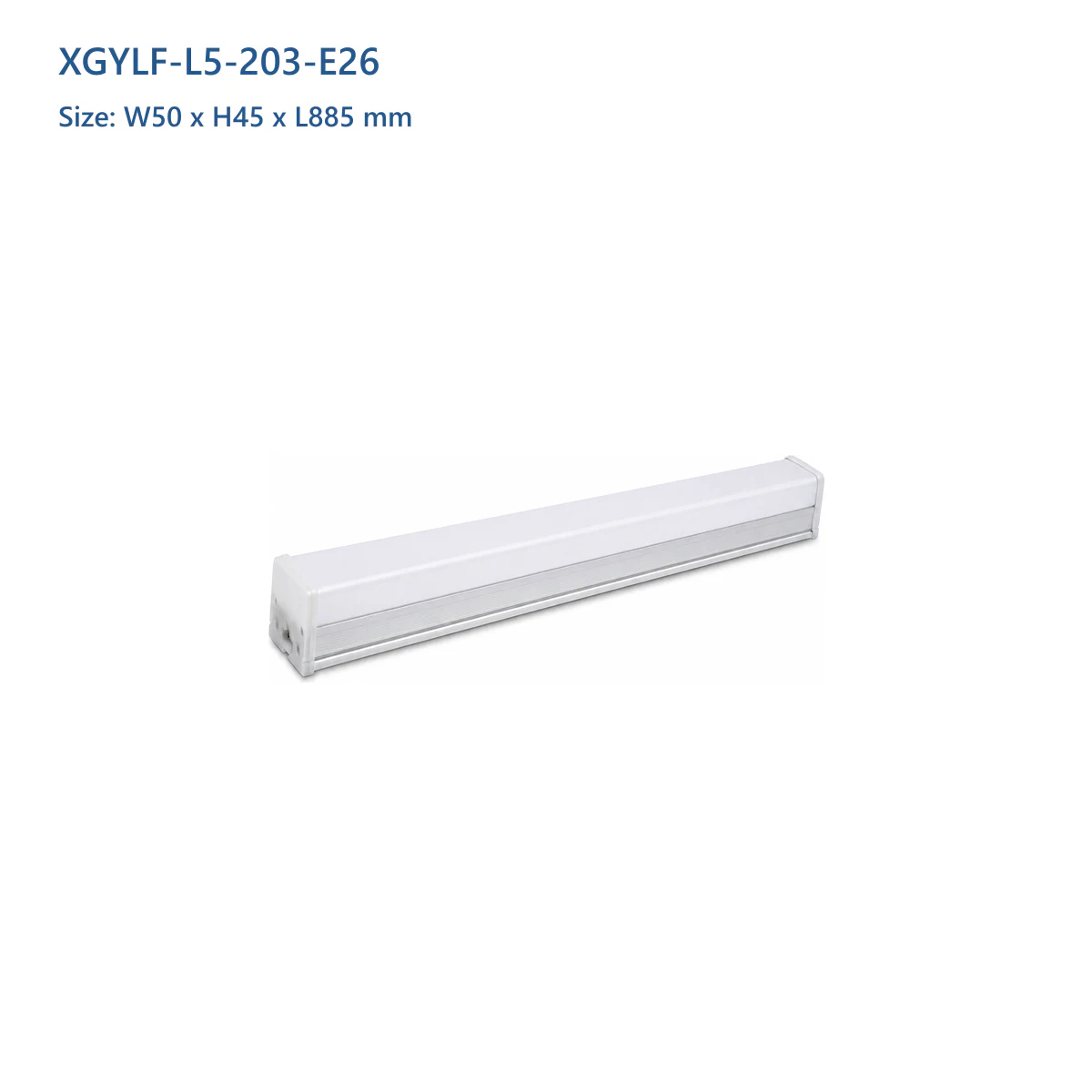

| XGYLF-L5-203-E26 | 50 x 45 x 885 mm | 26 W | 80-160 lm/W | 3000-8000 K | IP40 |

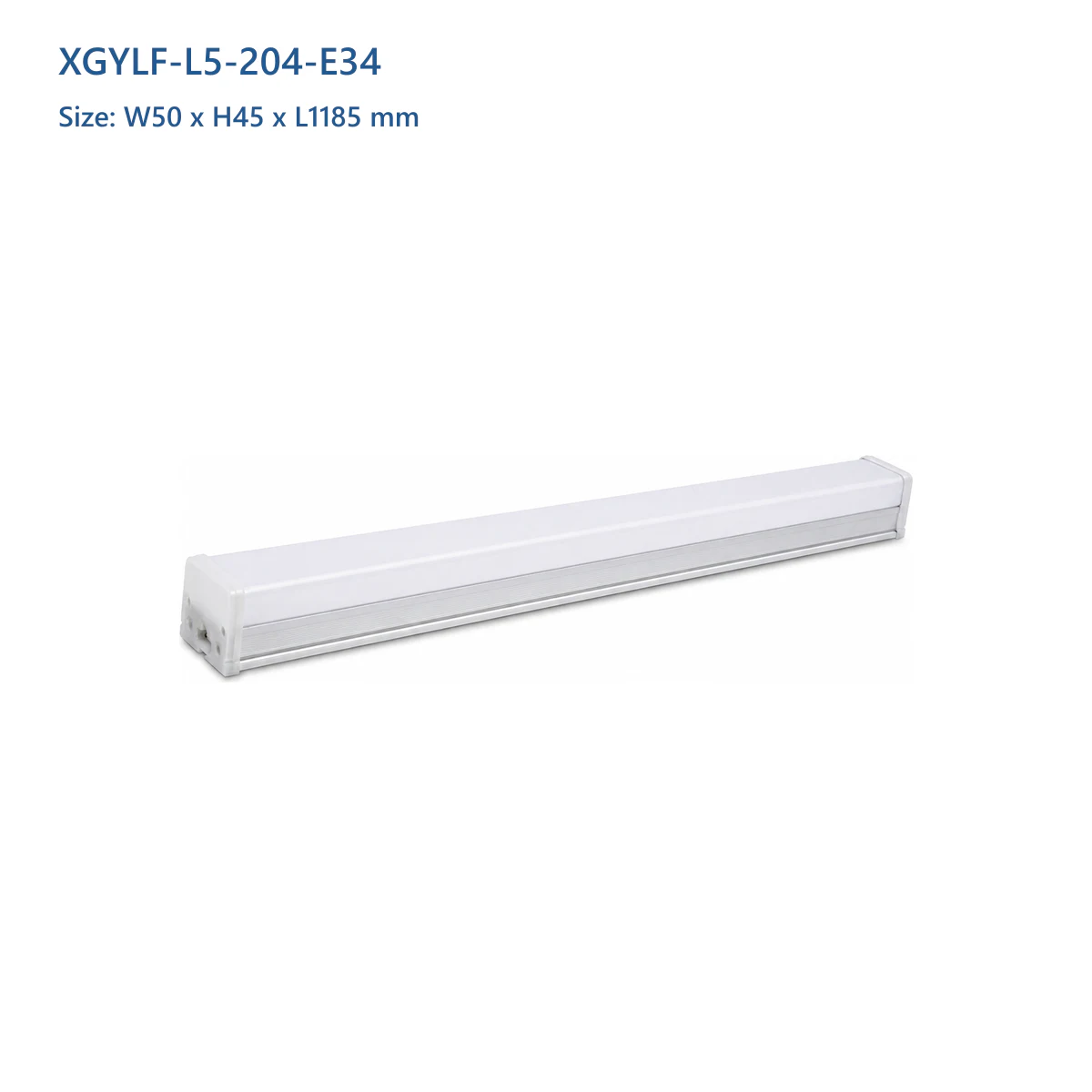

| XGYLF-L5-204-E34 | 50 x 45 x 1185 mm | 34 W | 80-160 lm/W | 3000-8000 K | IP40 |

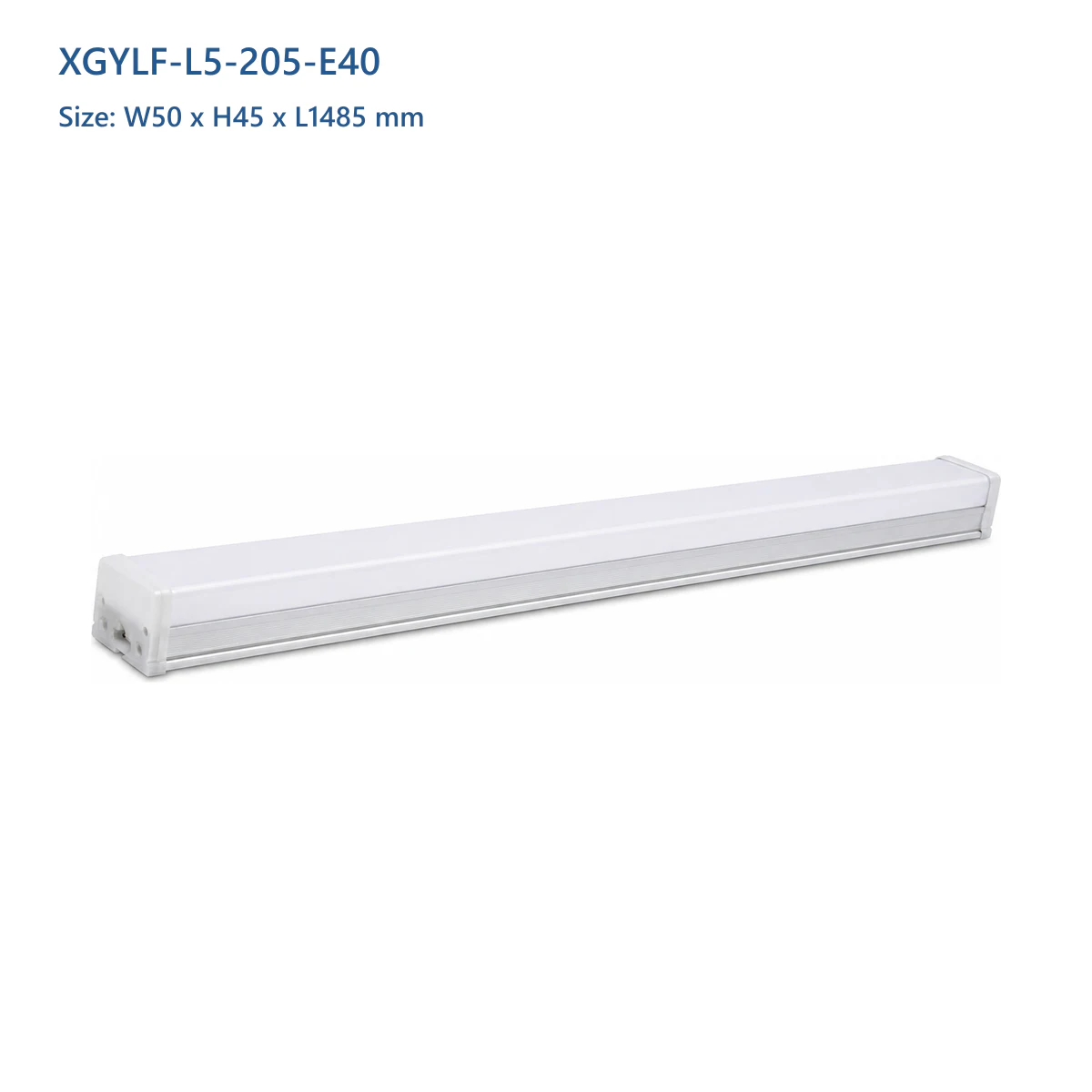

| XGYLF-L5-205-E40 | 50 x 45 x 1485 mm | 40 W | 80-160 lm/W | 3000-8000 K | IP40 |
Dimensions are shown as W x H x L. Keep each listed length with its documented rated power; confirm the connector load, input and suspension accessory set before building a linked run.
Product Description
Product Details
Product Construction

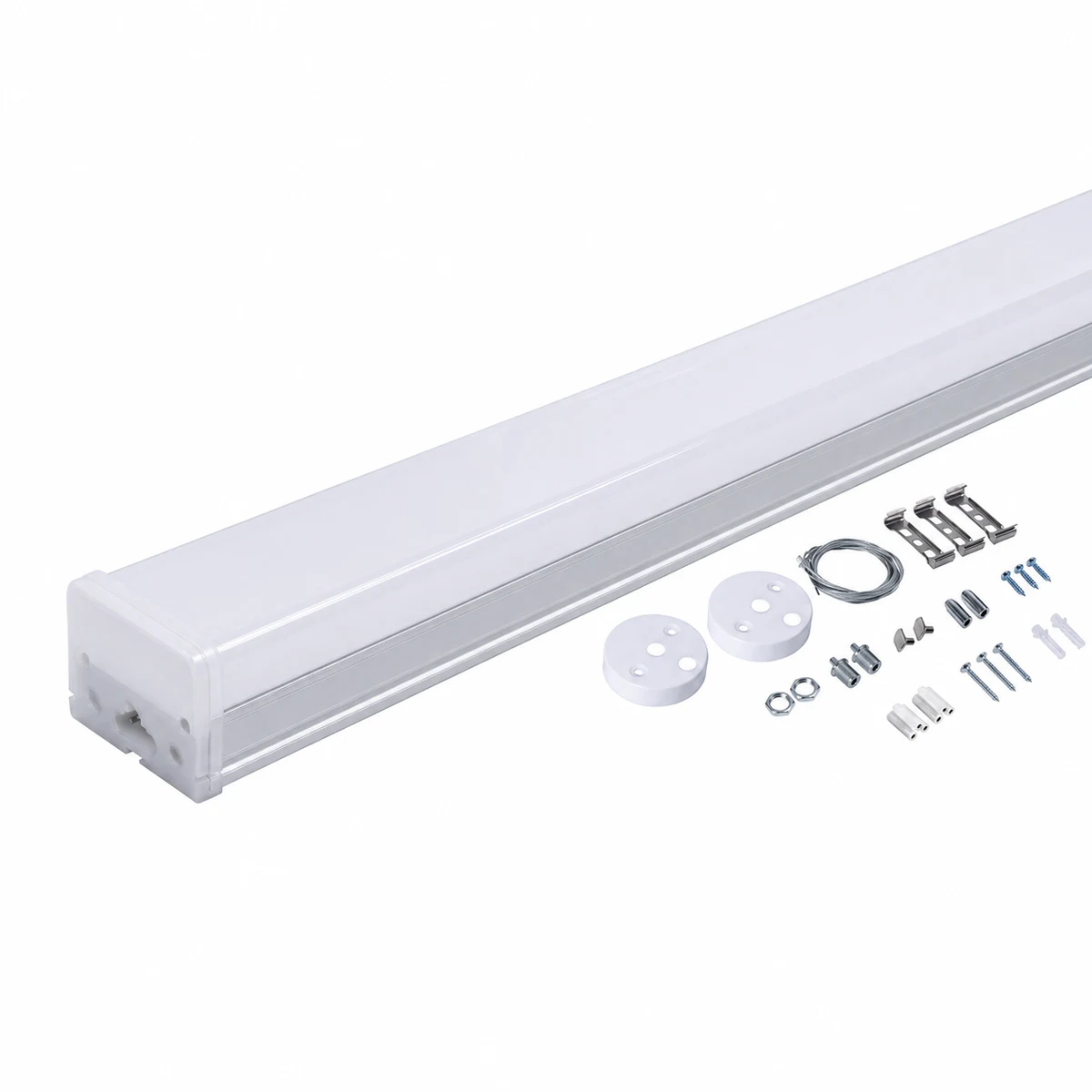

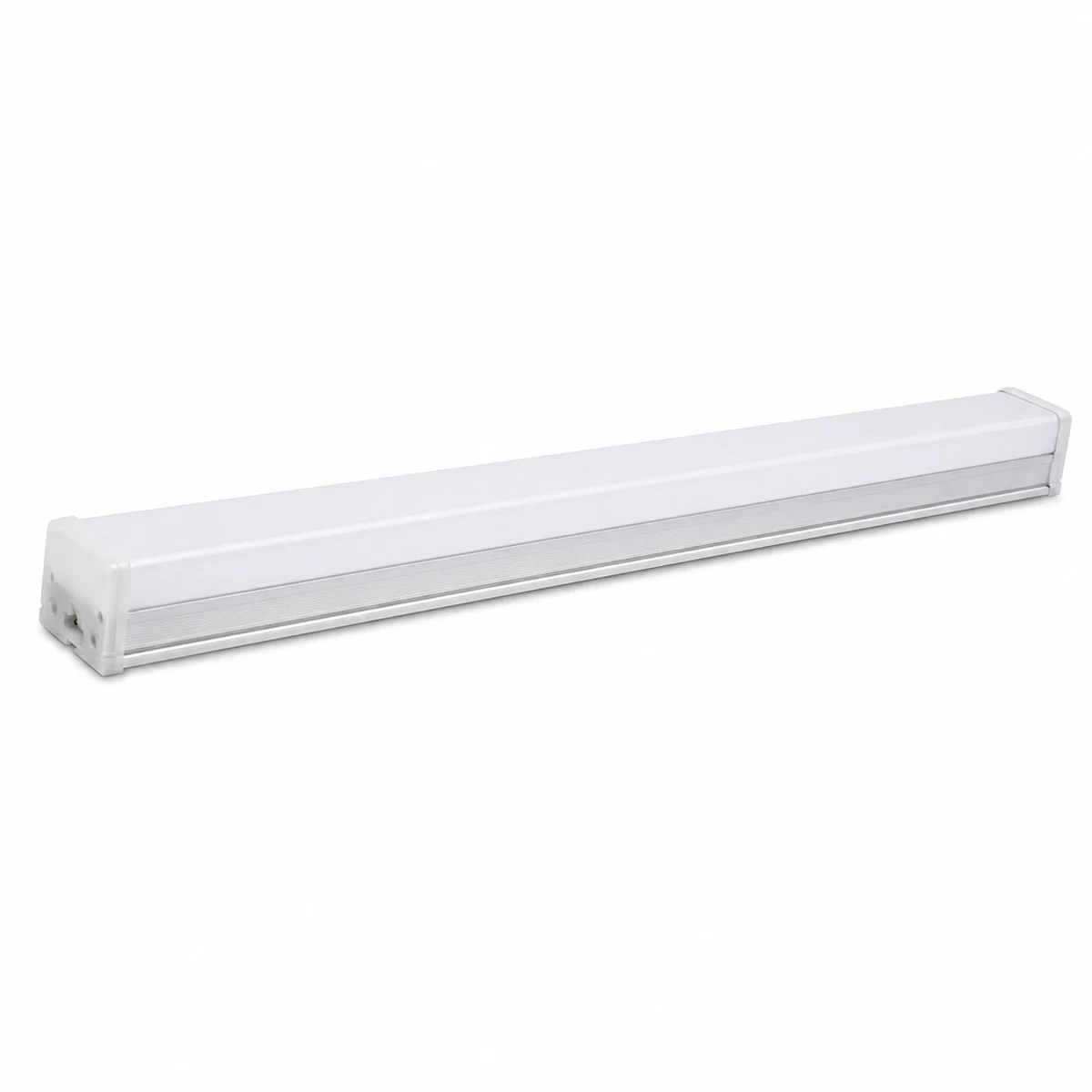

The L5 series combines a white aluminium linear body with a PC optical diffuser, end caps and connection points for joining compatible fixtures. Suspension and connection accessories support continuous indoor runs.
Selection & Installation Notes
Select one available model-to-length and power pairing, then confirm the input range, connector rating, maximum linked load, suspension drop and exact accessory set for the order. IP40 limits the standard series to dry indoor locations; it is not intended for wet or wash-down areas.
Recommended Application
Applications

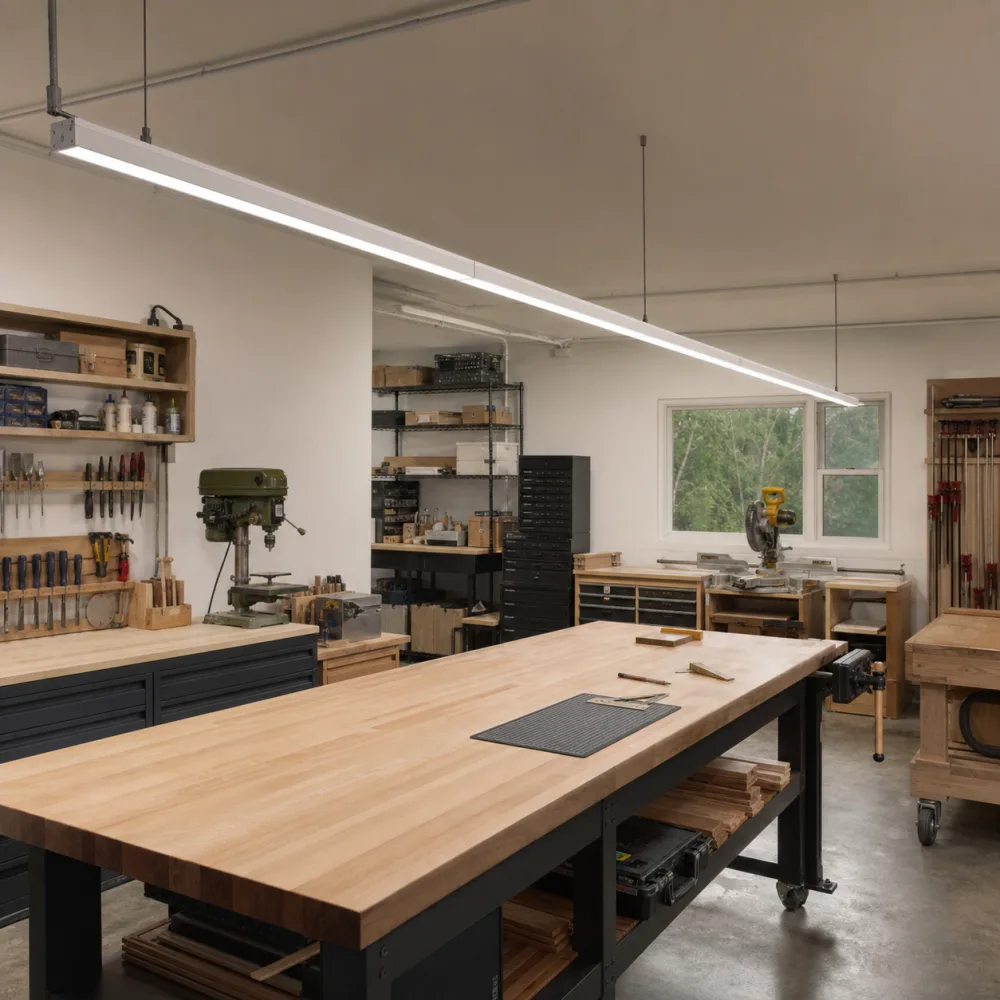

- Workshop Benches: Suspended linked runs provide continuous linear lighting above assembly, repair and maker-space work surfaces.
- Retail Counters: Connected fixtures follow long sales counters, display preparation areas and back-of-house service lines.
- Studio Worktables: The slim suspended format distributes light along drafting tables, craft benches and shared creative work areas.
- Packing Stations: Long linked rows illuminate sorting, inspection and packing benches in dry indoor warehouse zones.
