Surface-Mounted Prism Lens LED Linear Batten
- Defined Prism Texture: The dense geometric lens pattern gives the illuminated face a clearly structured optical surface.
- Smooth Opal Appearance: The alternative white cover provides a softer, visually continuous diffuser finish.
- Shallow Linear Profile: The 25-30 mm body height keeps the fixture close to the mounting surface across all four formats.
- Flicker-Free Driver: The driver design avoids visible flicker during normal operation.
| Installation | Surface-mounted |
|---|---|
| Length | 1200 mm |
| Rated Power | 36-120 W |
| Cover | Prism / opal |
| CCT / CRI | 3000-8000 K / Ra80 |
|---|---|
| Electrical | AC 100-265 V / AC 85-265 V; dimmable option |
| Protection | IP40, dry indoor use |
Technical Specifications
Model Specifications
| Model | Dimensions (W x H x L) | Rated Power | Luminous Efficacy | CCT | IP |
|---|---|---|---|---|---|
| XGYLF-A76-104-E36/48 | 60 x 25 x 1200 mm | 36 W | 80-100 lm/W | 3000-8000 K | IP40 |
| XGYLF-A775-104-E72 | 75 x 25 x 1200 mm | 72 W | 80-100 lm/W | 3000-8000 K | IP40 |
| XGYLF-A790-104-E100 | 90 x 25 x 1200 mm | 100 W | 80-100 lm/W | 3000-8000 K | IP40 |
| XGYLF-A7135-104-E120 | 135 x 30 x 1200 mm | 120 W | 80-100 lm/W | 3000-8000 K | IP40 |
Choose each housing width with its listed rated power. XGYLF-A76-104-E36/48 is rated at 36 W in this series; the suffix is part of the model code, not two selectable power ratings.
Product Description
Product Details
Product Construction

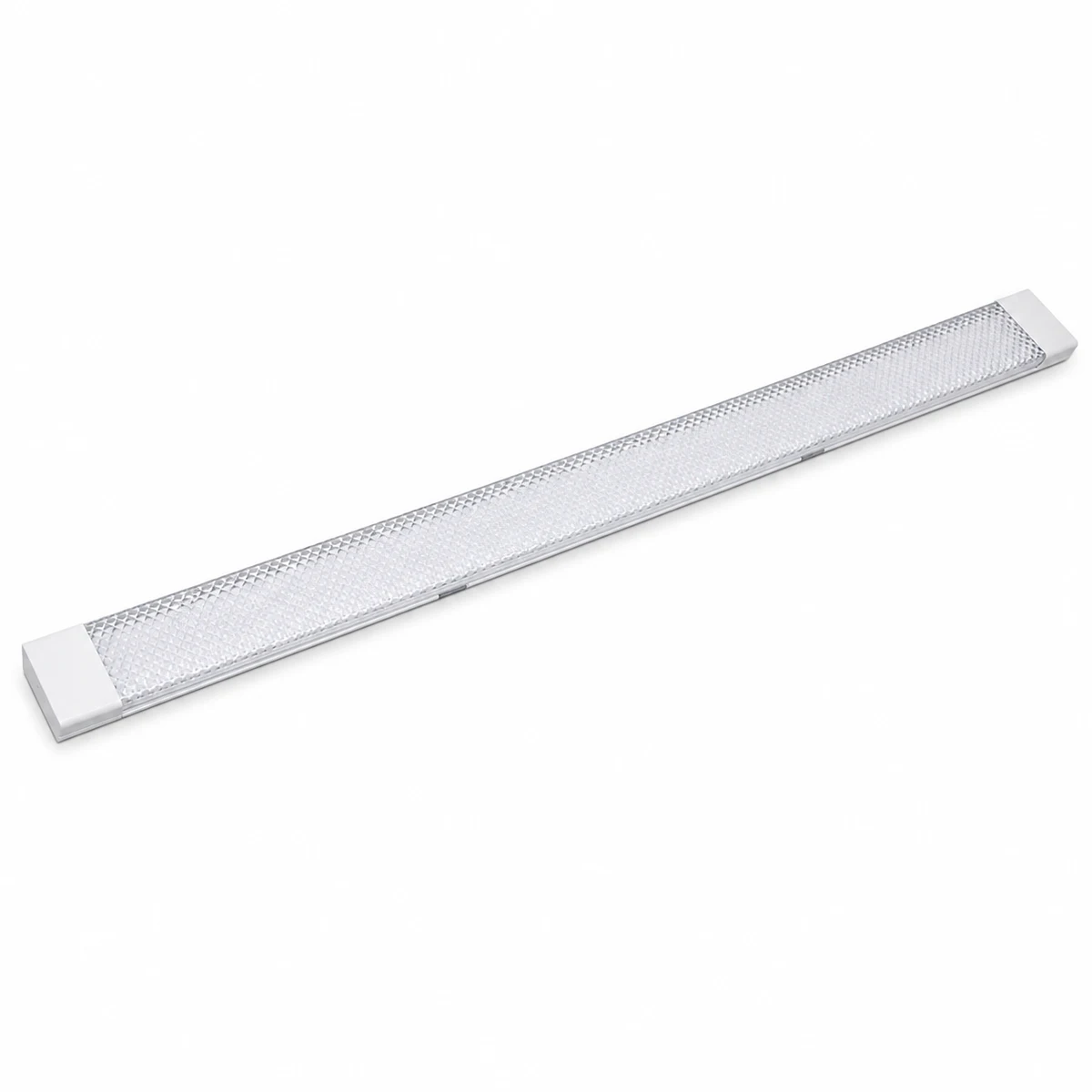

The 1200 mm fixture combines a formed metal housing, a front optical-panel channel and PC end caps in one enclosed linear assembly. Four body widths retain the same length while providing different mounting envelopes.
Selection & Installation Notes
Select the model by its listed width and rated-power pairing: 60 mm / 36 W, 75 mm / 72 W, 90 mm / 100 W or 135 mm / 120 W. XGYLF-A76-104-E36/48 is rated at 36 W in this series; do not interpret the suffix as two selectable power ratings. Specify the input range and dimming configuration, and use the IP40 fixture only in dry indoor locations.
Recommended Application
Applications

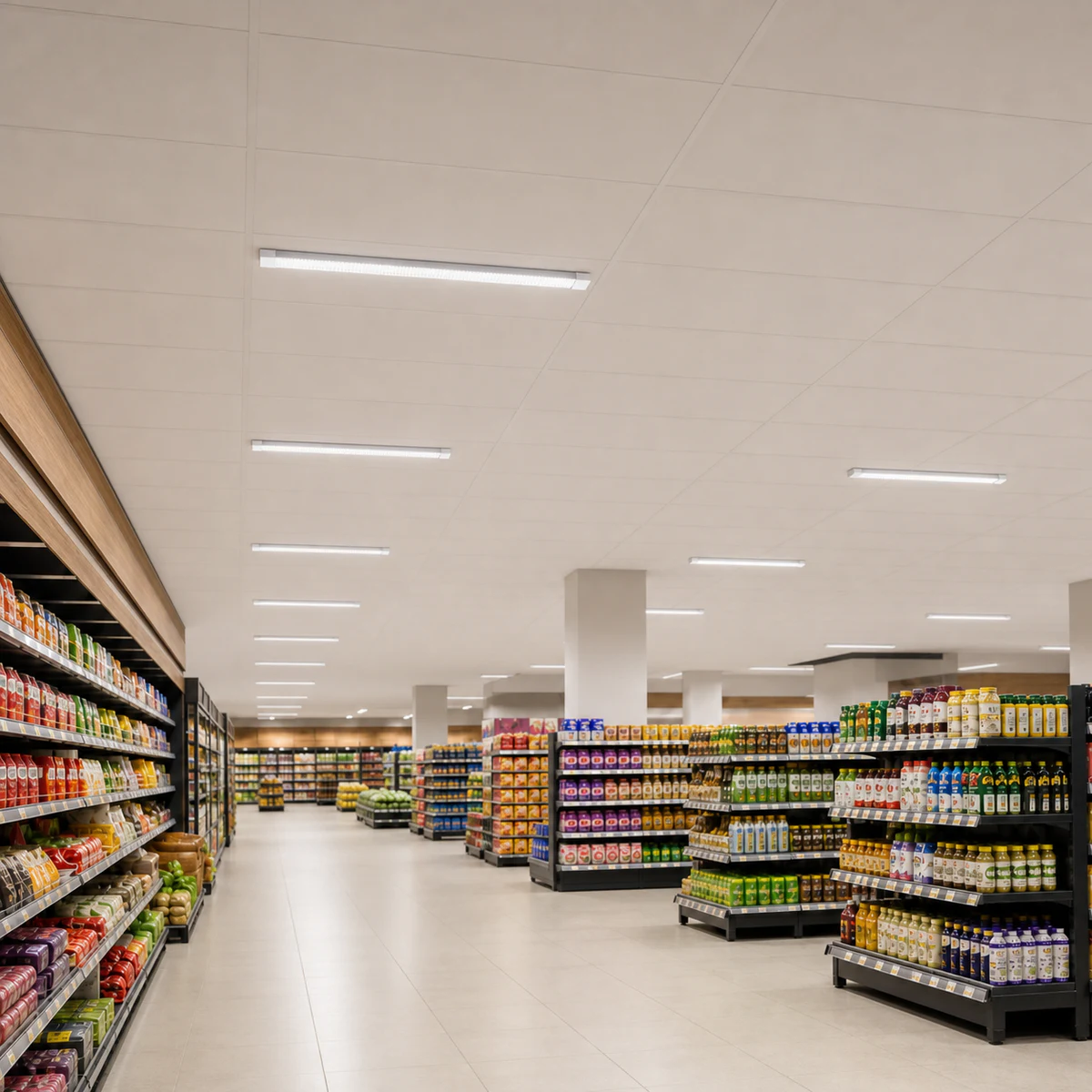

- Retail Aisles: The 1200 mm surface-mounted format provides high-output general lighting above merchandise aisles and open sales floors.
- Offices & Classrooms: Prism or opal covers provide two visible lens options for general ceiling lighting across desks and teaching spaces.
- Healthcare Corridors: The slim metal-body fixture supports continuous dry-indoor lighting along corridors and circulation areas.
- Hospitality Interiors: The 1200 mm linear profile suits hotel corridors, dining areas and other dry indoor public spaces.
