Surface-Mounted T8 Integrated LED Fixture

Surface-mounted T8 integrated LED fixtures provide a self-contained linear lighting format for indoor projects. Select the required model and installation details from the approved project specification.
  • Integrated Fixture Format: The selected product is supplied as one complete fixture rather than as a loose replacement tube.
  • Surface-Mounted Product Type: The fixture is specified for installation against a compatible mounting surface.
  • T8 Linear Form: The straight fixture profile provides a narrow linear format for planned indoor layouts.
Lengths300 / 572 / 880 / 1178 / 1478 mm
Rated Power5/10 / 9/18 / 12/24 / 18/36 / 22/44 W
Luminous Efficacy80-150 lm/W, configurable
CCT / CRI3000-8000 K / Ra80
Input VoltageS: AC 180-265 V / U: AC 85-265 V
Body OptionsALU+PC / full PC
Beam Angle120 degrees
Request a Quote
Surface-mounted T8 integrated LED fixture on white background
XGYT8F201-E5/10 30 x 36 x 300 mm T8 integrated LED fixture

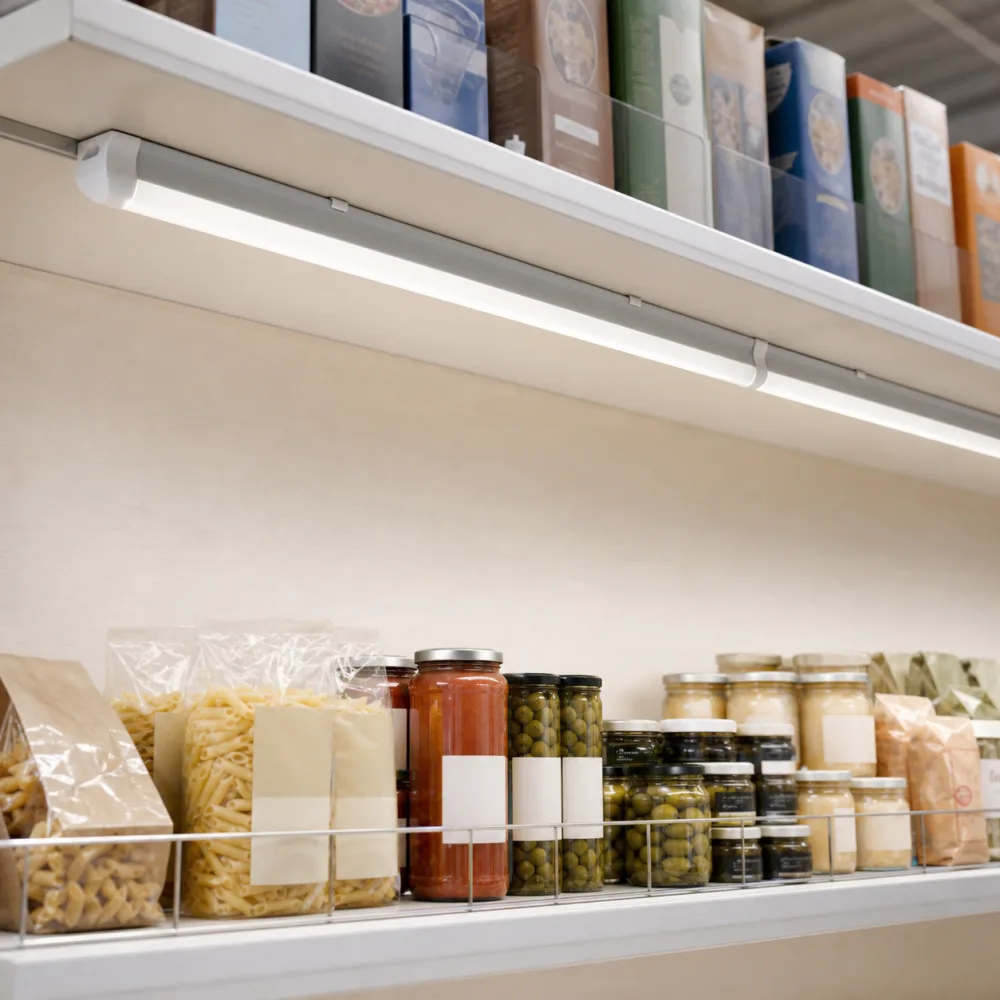

T8 integrated LED fixtures linked beneath retail shelves
XGYT8F202-E9/18 30 x 36 x 572 mm T8 integrated LED fixture

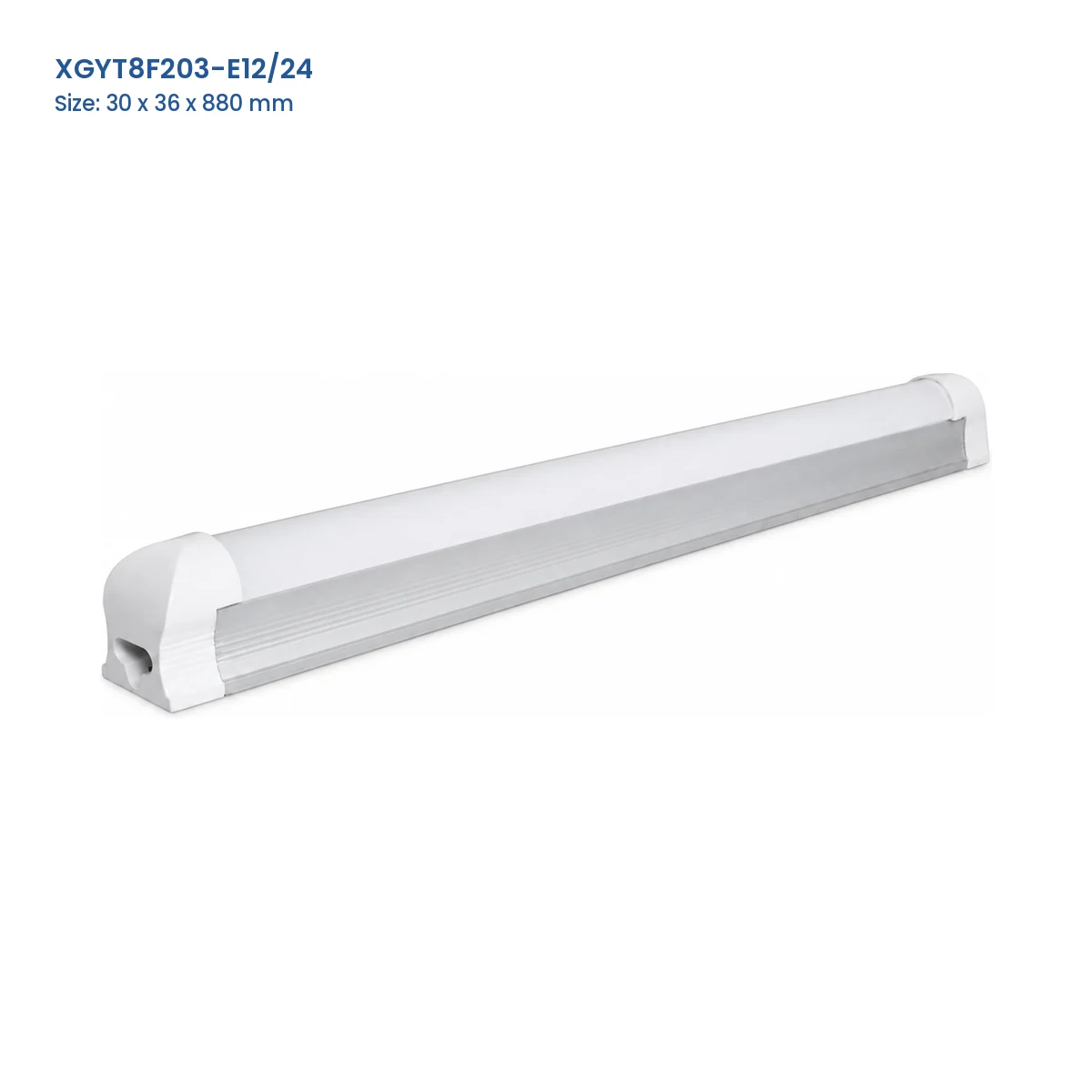

XGYT8F203-E12/24 30 x 36 x 880 mm T8 integrated LED fixture
XGYT8F204-E18/36 30 x 36 x 1178 mm T8 integrated LED fixture

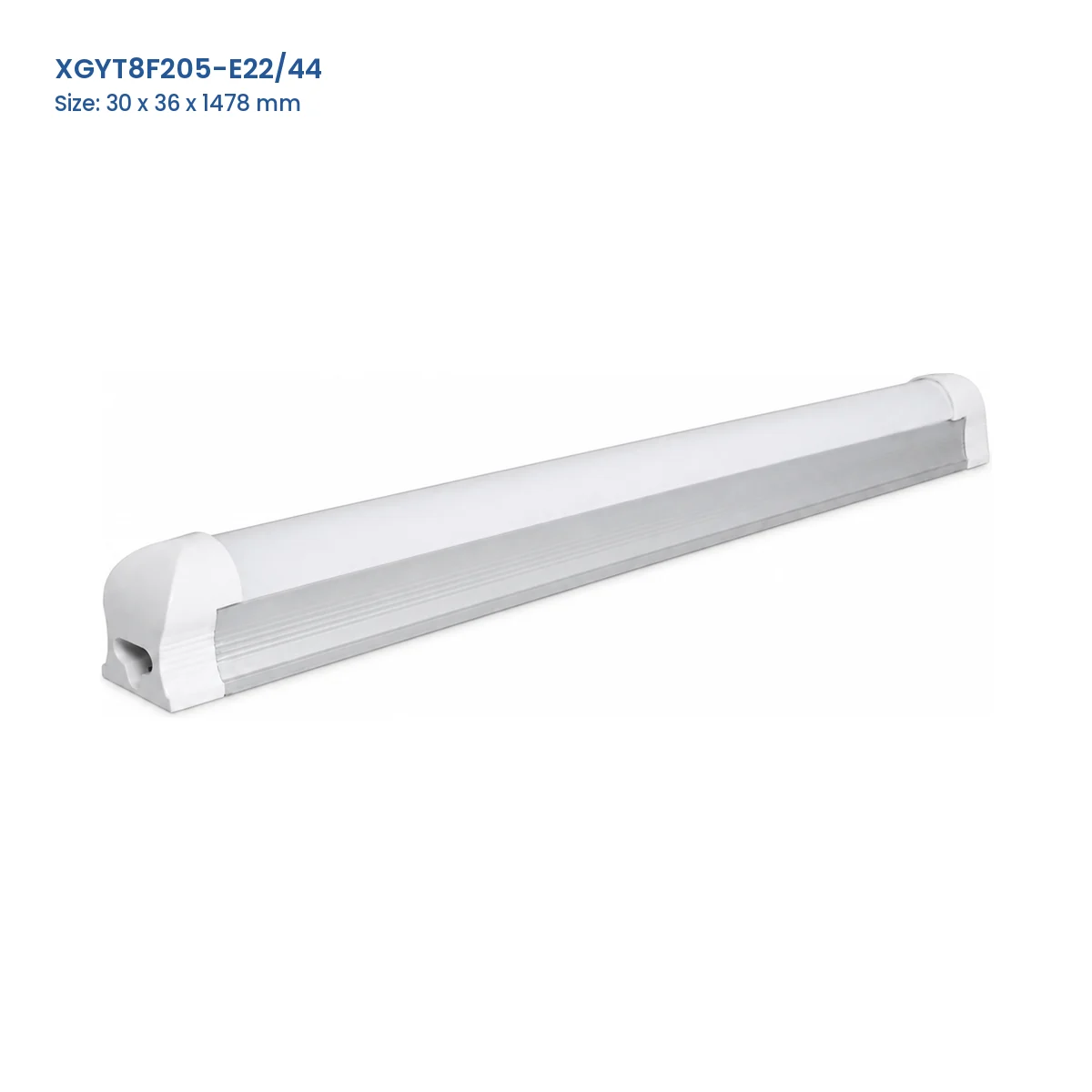

XGYT8F205-E22/44 30 x 36 x 1478 mm T8 integrated LED fixture

Technical Specifications

Model Specifications

ModelDimensions (W x H x L)Rated PowerEfficacyCCTCRIInputBeam
XGYT8F201-E5/1030 x 36 x 300 mm5/10 W80-150 lm/W3000-8000 KRa80S: AC180-265V; U: AC85-265V120 degrees
XGYT8F202-E9/1830 x 36 x 572 mm9/18 W80-150 lm/W3000-8000 KRa80S: AC180-265V; U: AC85-265V120 degrees
XGYT8F203-E12/2430 x 36 x 880 mm12/24 W80-150 lm/W3000-8000 KRa80S: AC180-265V; U: AC85-265V120 degrees
XGYT8F204-E18/3630 x 36 x 1178 mm18/36 W80-150 lm/W3000-8000 KRa80S: AC180-265V; U: AC85-265V120 degrees
XGYT8F205-E22/4430 x 36 x 1478 mm22/44 W80-150 lm/W3000-8000 KRa80S: AC180-265V; U: AC85-265V120 degrees

Slash-separated power values are product-catalog options for the same listed length; specify the required rated-power version with the selected input and body construction.

Product Description

Product Details

Product Construction

The product is delivered as the ordered assembly, with its visible appearance defined by the approved project specification.

Selection & Installation Notes

Match the order record to the intended site conditions. Confirm available clearance, electrical requirements, service access and all installer-supplied items before ordering. See our linear batten category for related surface-mounted formats.

Recommended Application

Applications

  • Retail Shelf Lighting: Place compact linear fixtures along merchandise shelving and product displays.
  • Display Case Lighting: Add an integrated light line inside compatible protected cabinets and showcases.
  • Work Area Lighting: Mount linear fixtures above compatible benches, counters and task surfaces.
  • Interior Circulation Lines: Arrange surface-mounted fixtures along indoor corridors and service areas.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

Is this a replaceable T8 tube?

No. It is supplied as an integrated fixture rather than as a separate replaceable tube.

What should be selected first for a project?

Start with the required mounting location and product model, then use the corresponding details in the approved project record.

How is the fixture mounted?

Follow the installation drawing and hardware schedule approved for the selected model, mounting surface and site condition.

How should the feed position be planned?

Use the electrical details approved for the selected model and coordinate the cable route and isolation point with the project plan.

How are linked fixture runs specified?

Do not assume that every version uses the same linking method. Follow the connection arrangement approved for the selected model and project.

What should be approved before production?

Approve the fixture configuration, housing finish, electrical arrangement, connection layout, labels and packaging on the project record.
