Aluminium-and-PC T8 LED Tube
- Even Visual Line: The diffusing cover softens individual LED points into a continuous illuminated surface.
- Steady General Lighting: Wide distribution and no-flicker operation support continuous indoor illumination rather than narrow accent lighting.
- Familiar Retrofit Geometry: Two-pin ends retain the established tubular lamp format used by compatible linear fittings.
- Consistent Family Appearance: A shared exterior form keeps mixed-length installations visually coordinated.
| Length & Diameter | 590-2473 mm; Dia. 26 mm |
|---|---|
| Rated Power | 9-40 W; configuration-dependent |
| Luminous Efficacy | 80-160 lm/W; customizable |
| CCT & CRI | 3000-8000 K; Ra80 |
| Electrical | AC 180-265 V or AC 85-265 V; PF 0.5 / 0.9 |
|---|---|
| Construction & Base | Aluminium + PC; G13 |
| Optics & Use | 320-degree beam; no flicker; 25,000 hours; dry indoor |
Technical Specifications
Model Specifications
| Model No. | Dimension Dia. x L | Rated Power | Power EqV. | Lumen Efficacy | CCT | Input | CRI |
|---|---|---|---|---|---|---|---|
| XGYT8B202 | 26 x 590 mm | 9 W | 18 W | 80-160 lm/W | 3000-8000 K | AC 180-265 / 85-265 V | Ra80 |
| XGYT8B202 | 26 x 590 mm | 10 W | 18 W | 80-160 lm/W | 3000-8000 K | AC 180-265 / 85-265 V | Ra80 |

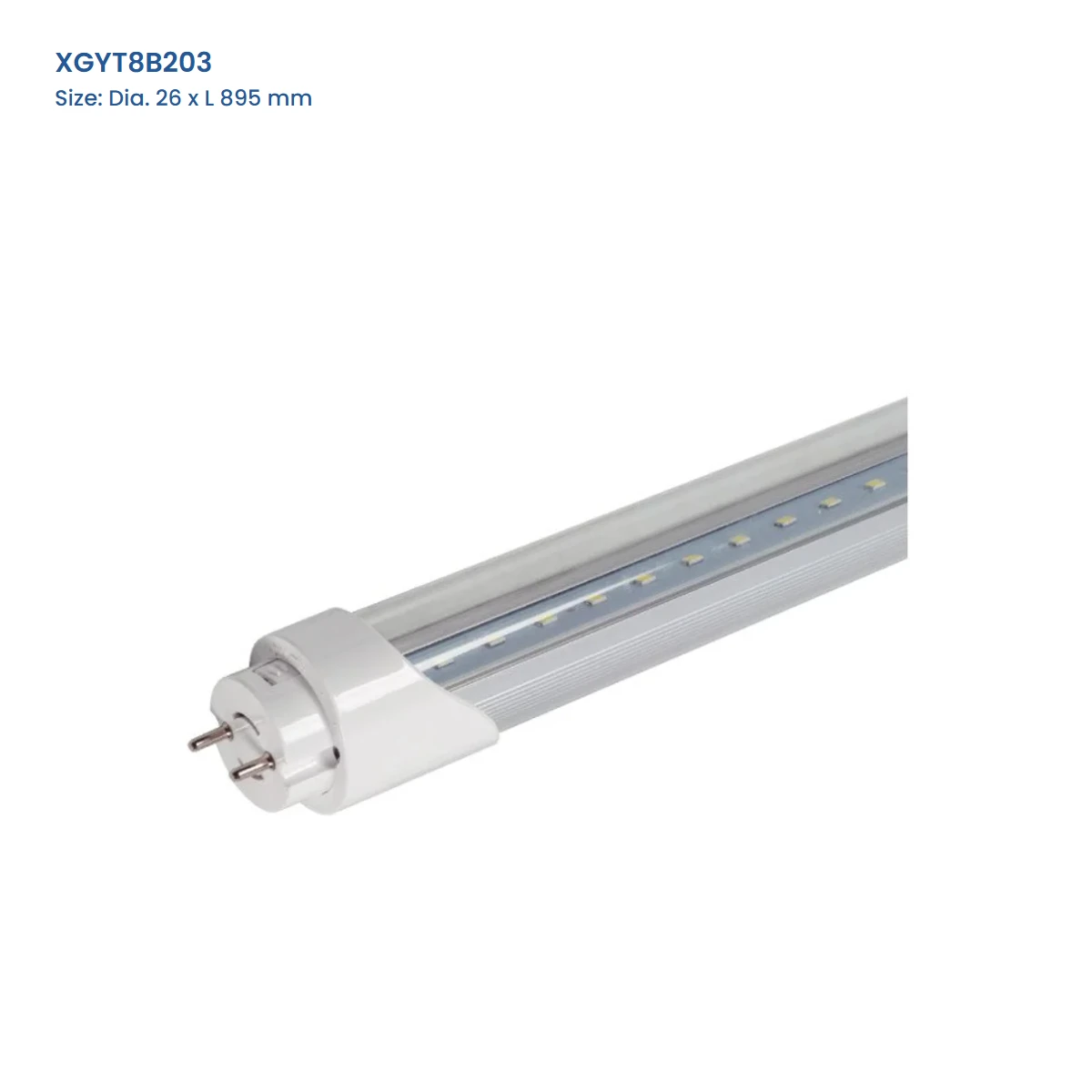

| XGYT8B203 | 26 x 895 mm | 12 W | 30 W | 80-160 lm/W | 3000-8000 K | AC 180-265 / 85-265 V | Ra80 |
| XGYT8B204 | 26 x 1199 mm | 18 W | 36 W | 80-160 lm/W | 3000-8000 K | AC 180-265 / 85-265 V | Ra80 |
| XGYT8B204 | 26 x 1199 mm | 20 W | 36 W | 80-160 lm/W | 3000-8000 K | AC 180-265 / 85-265 V | Ra80 |

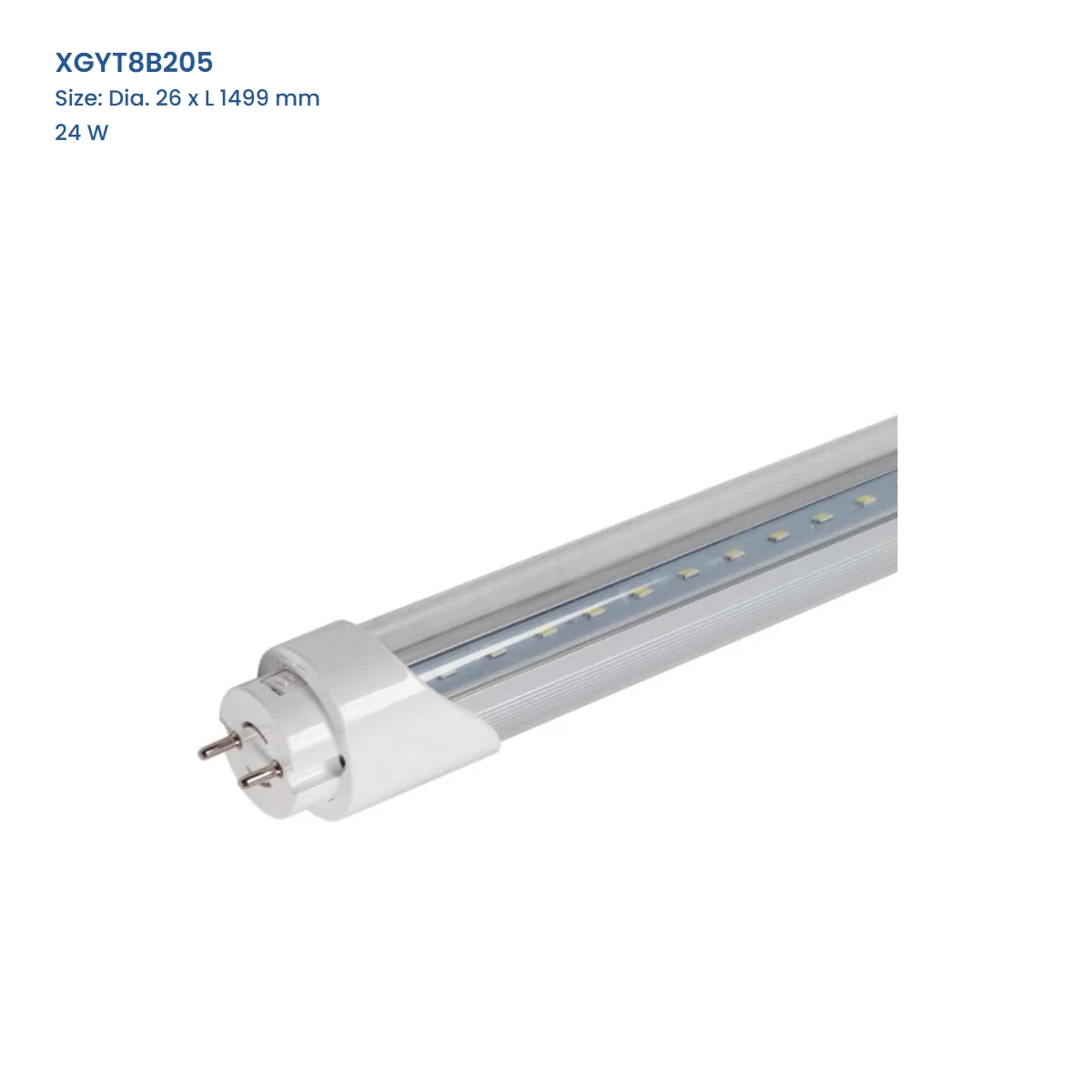

| XGYT8B205 | 26 x 1499 mm | 22 W | 58 W | 80-160 lm/W | 3000-8000 K | AC 180-265 / 85-265 V | Ra80 |
| XGYT8B205 | 26 x 1499 mm | 24 W | 58 W | 80-160 lm/W | 3000-8000 K | AC 180-265 / 85-265 V | Ra80 |
| XGYT8B206 | 26 x 1764 mm | 32 W | 75 W | 80-160 lm/W | 3000-8000 K | AC 180-265 / 85-265 V | Ra80 |
| XGYT8B208 | 26 x 2473 mm | 36-40 W | 100 W | 80-160 lm/W | 3000-8000 K | AC 180-265 / 85-265 V | Ra80 |
Shared series specifications: aluminium + PC body, G13 base, 320-degree beam, PF 0.5 / 0.9, no-flicker operation, 25,000-hour rated life and dry-indoor use. Lumen efficacy is customizable within the listed range.
Product Description
Product Details
Product Construction
The 26 mm tubular housing joins a metal heat-dissipation section, a translucent polymer light cover and two-pin end caps. The selected electrical version determines whether the supply enters at one end or across both ends.
Selection & Installation Notes
Choose the exact length and rated-power combination, including the separate 9 W and 10 W, 18 W and 20 W, and 22 W and 24 W alternatives. Confirm lampholder condition, supply voltage and the required wiring route before installation; do not connect a direct-AC version to an unconfirmed ballast circuit.
Recommended Application
Applications
- Office Lighting: Replace linear general lighting in workspaces and meeting areas with the matching tube length.
- Retail Aisles: Distribute broad tubular illumination along shelves, displays and checkout zones.
- School Interiors: Use the no-flicker configurations in classrooms, libraries and corridors.
- Warehouses And Garages: Fit the longer models into compatible protected indoor linear fixtures.
