360-Degree Double-Sided T8 LED Tubes

These double-sided T8 LED tubes use LED arrays around an internal aluminium heat sink to provide 360-degree tubular light distribution. The series covers 590, 1199 and 1499 mm lengths at 18-48 W for double-sided lightboxes, display cases and other installations that use light around the tube profile.
  • Light Around the Tube Profile: Opposed LED surfaces illuminate toward both faces of a lightbox and reduce the unlit side associated with a forward-only tube.
  • Reinforced Thermal Core: The internal aluminium member provides a direct heat path and additional mechanical support for the higher-output construction.
  • Diffusion Choices: Clear and frosted cover options allow the visible source and diffusion level to suit the surrounding enclosure.
  • Optional Sealed Terminals: Waterproof end caps convert the standard tube into a specified sealed assembly for damp installation areas.
Light Distribution360-degree double-sided output
DimensionsDia. 26 x L 590 / 1199 / 1499 mm
Rated Power18 / 36 / 44-48 W
Luminous Efficacy80-160 lm/W
CCT3000-8000 K
Tube BodyClear or frosted PC / nano PC
Electrical OptionsAC 180-265 V or AC 85-265 V; G13 end caps
Request a Quote

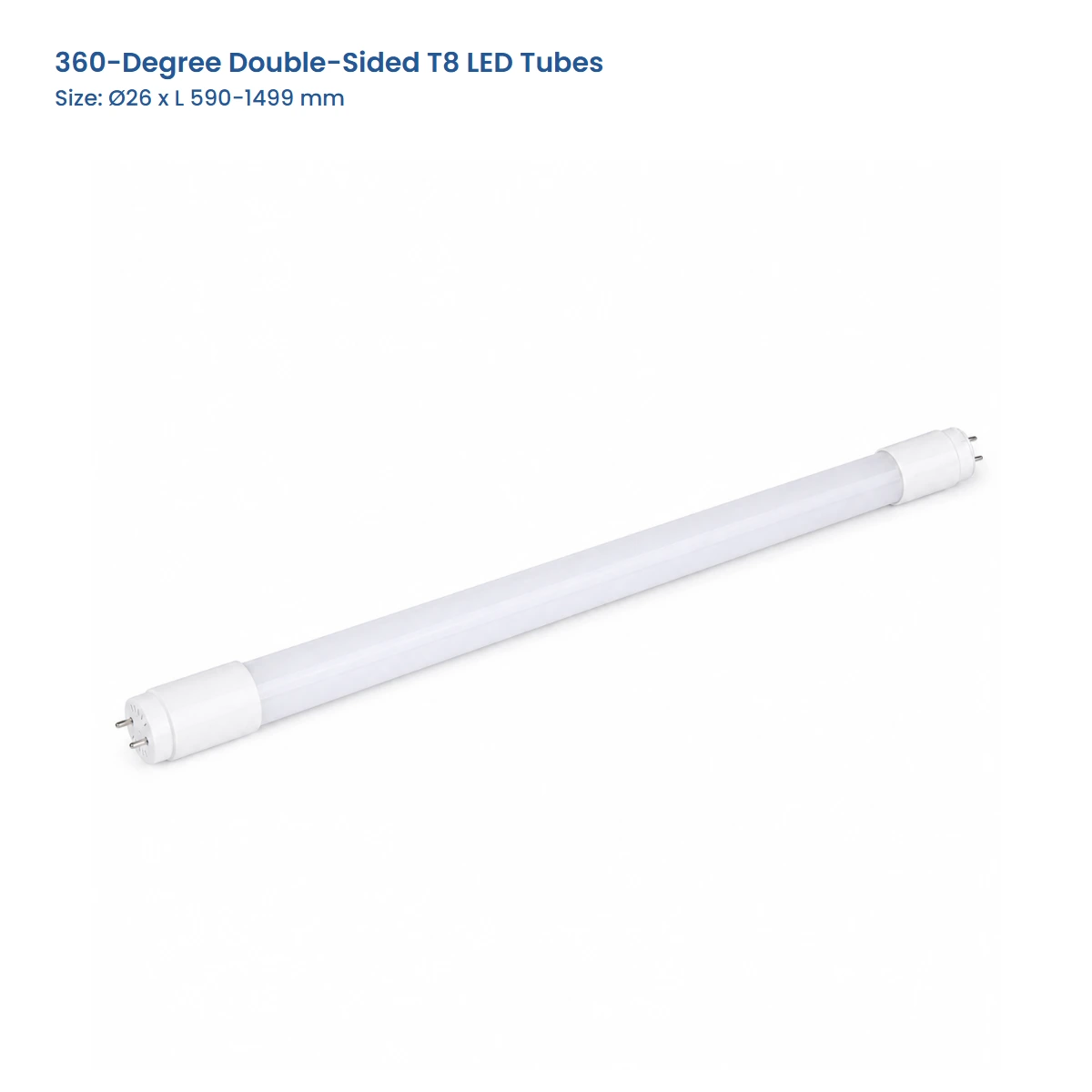

360-Degree Double-Sided T8 LED Tube Series, Dia. 26 x L 590-1499 mm, complete T8 tube view

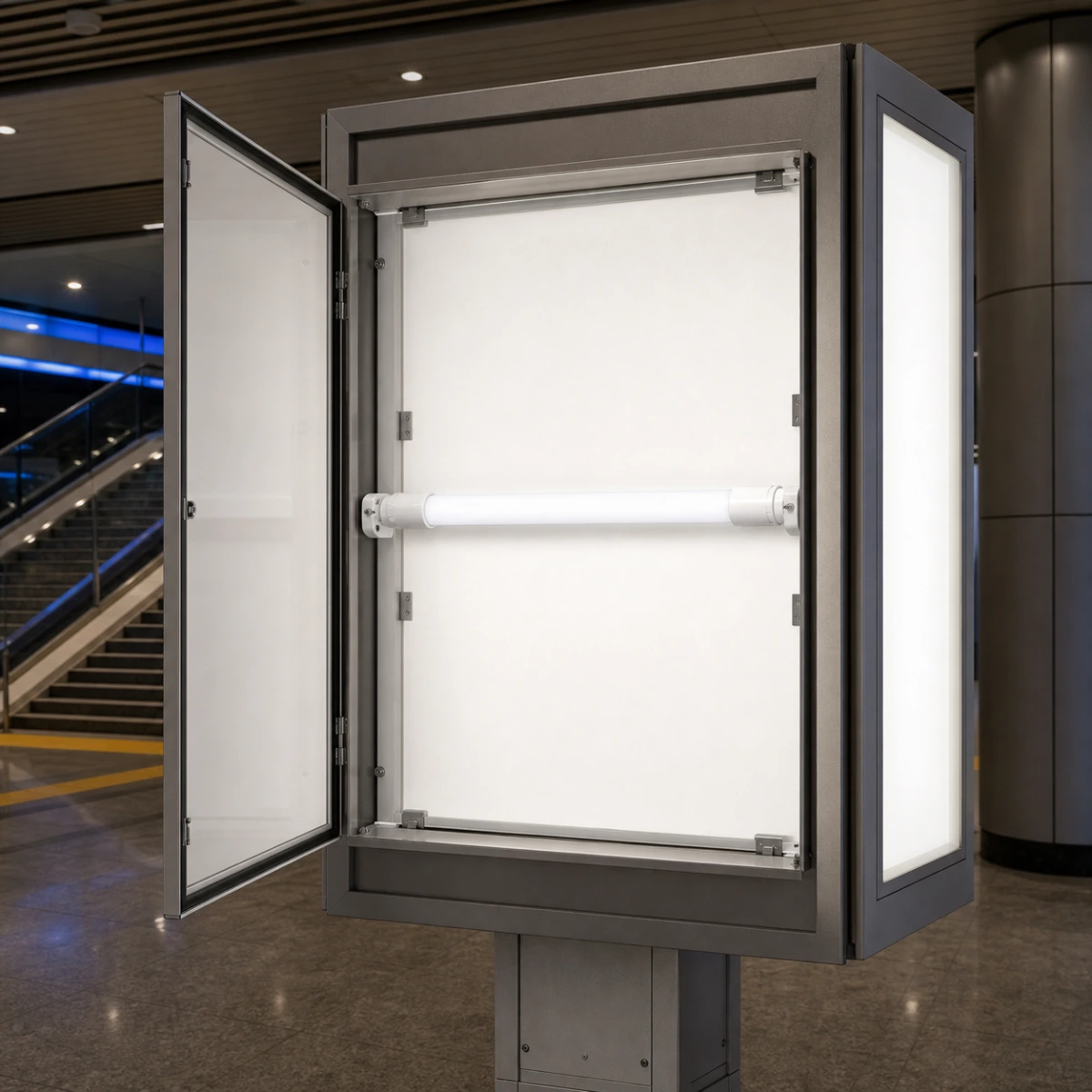

360-degree double-sided T8 LED tube secured between two G13 holders inside a double-sided lightbox

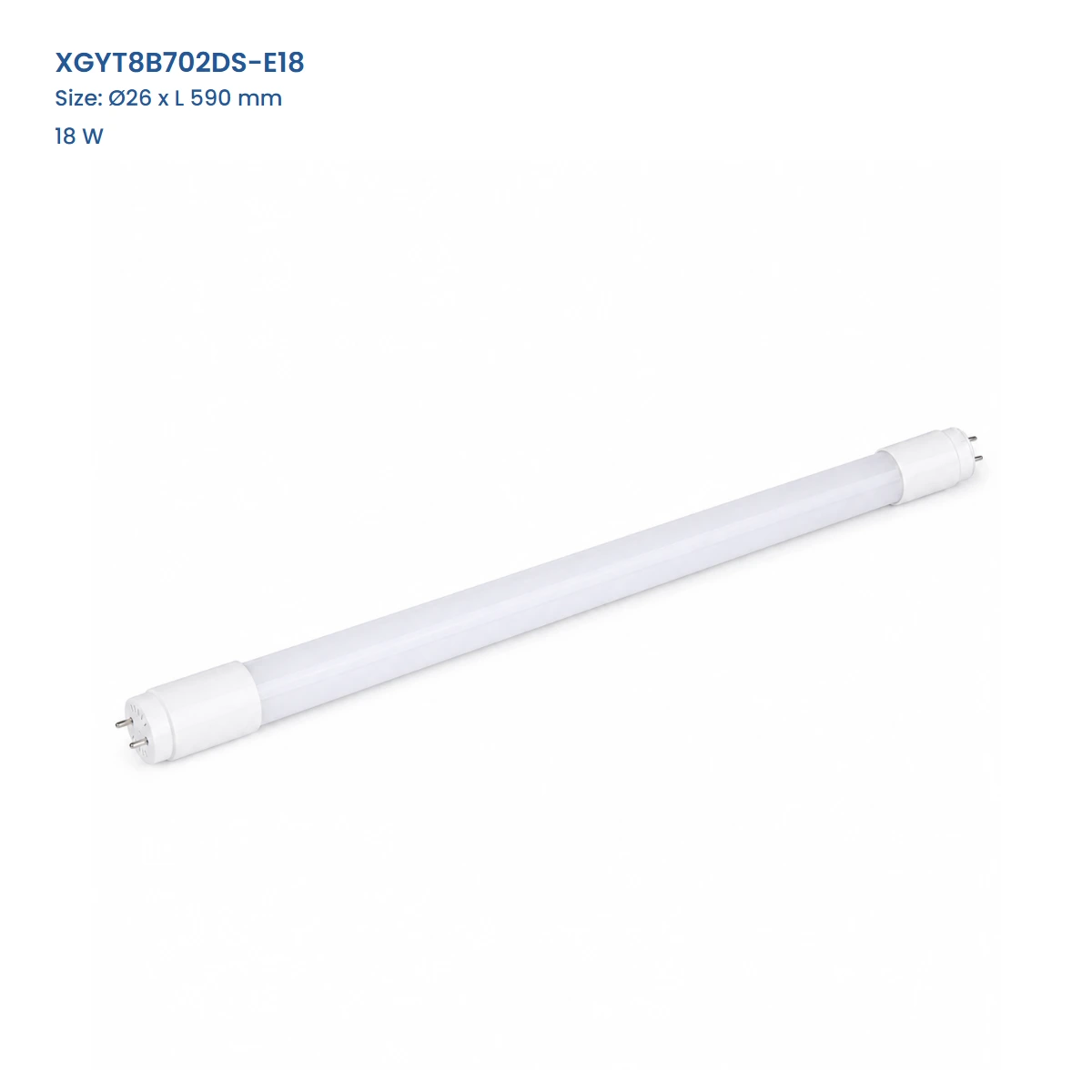

XGYT8B702DS-E18, Dia. 26 x L 590 mm, 18 W, complete T8 tube view

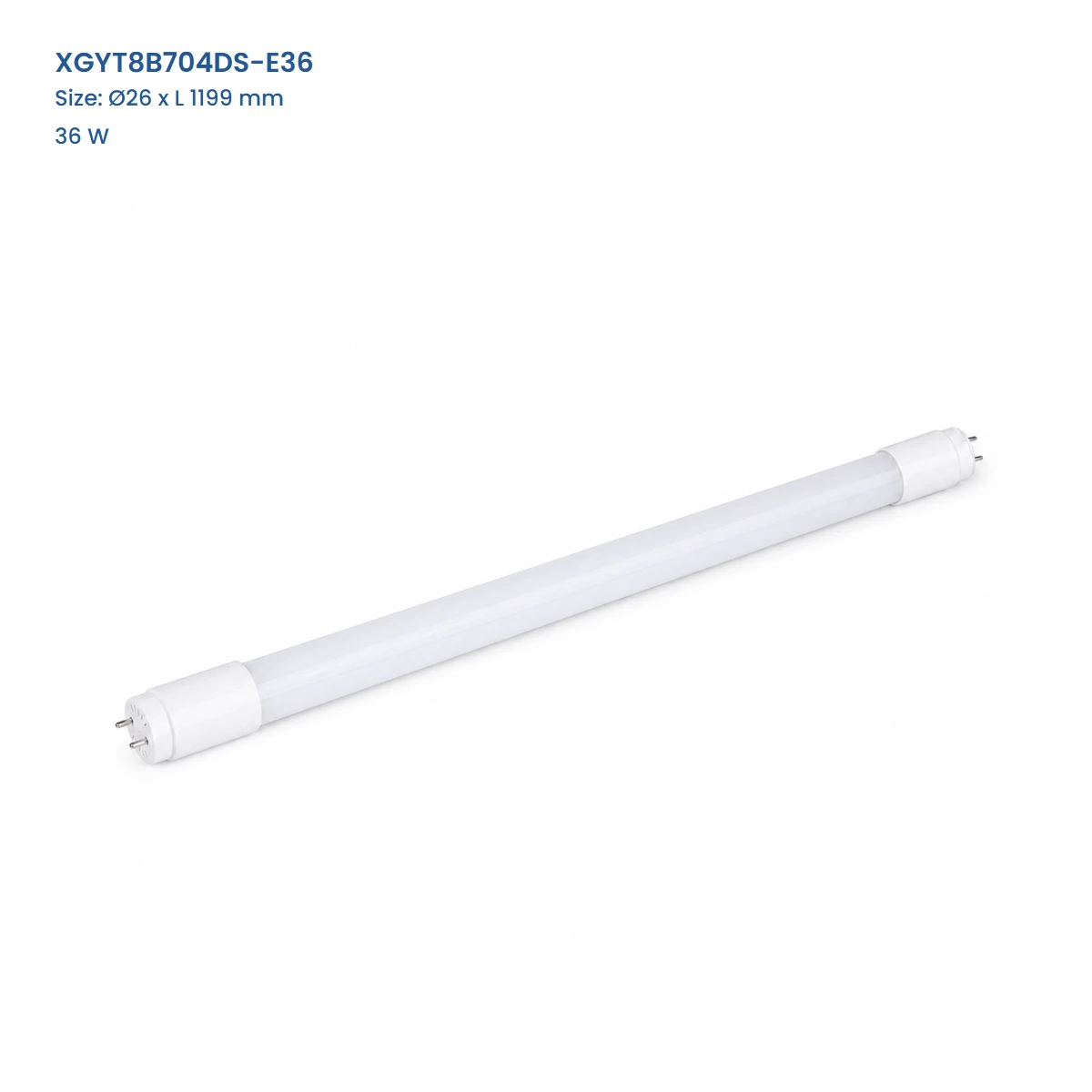

XGYT8B704DS-E36, Dia. 26 x L 1199 mm, 36 W, complete T8 tube view
XGYT8B705DS-E44, Dia. 26 x L 1499 mm, 44-48 W, complete T8 tube view

Technical Specifications

Model Specifications

Model No.Dimensions D x L (mm)Rated PowerPower EqV.EfficacyCCT
XGYT8B702DS-E1826 x 59018 W18 W80-160 lm/W3000-8000 K
XGYT8B704DS-E3626 x 119936 W36 W80-160 lm/W3000-8000 K
XGYT8B705DS-E4426 x 149944-48 W58 W80-160 lm/W3000-8000 K

Confirm the ordered input wiring before installation. Optional IP65 protection requires the waterproof end-cap assembly.

Product Description

Product Details

Product Construction

The lamp combines two LED-bearing surfaces, a central aluminium member, a cylindrical PC or nano cover and G13 terminals in one straight 26 mm body. Anti-UV material and a waterproof terminal set are optional configurations.

Selection & Installation Notes

Select the exact row by installed span and electrical load, then confirm the ordered wiring before installation because the source descriptions include both dual-end and single-end wording. An ingress rating applies only to the version supplied with the complete waterproof terminal and connection set.

Recommended Application

Applications

  • Double-Sided Lightboxes: Illuminate both translucent faces of advertising boxes from a central tubular light source.
  • Display Cases: Spread light toward products and surrounding reflective surfaces inside transparent showcases.
  • Refrigerated Displays: Light merchandise from a compact central position inside enclosed refrigerated display cases.
  • Cabinets and Coves: Reduce dark sides in cabinets and architectural coves that benefit from light around the tube profile.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What makes this T8 tube double-sided?

LED arrays are arranged on two sides of the internal heat sink, allowing light to emit around the tube profile instead of mainly from one face.

Which lengths and power ratings are available?

The listed models are 590 mm at 18 W, 1199 mm at 36 W and 1499 mm at 44-48 W.

Does the tube provide a 360-degree beam?

The series is designed for 360-degree tubular distribution. Final light distribution also depends on the selected cover and the surrounding fixture or lightbox.

Which tube-body materials can be selected?

Clear or frosted PC and nano PC options are listed. An anti-UV PC option is also available for the specified configuration.

Is an IP65 version available?

Yes. Waterproof end caps are optional, and IP65 applies only to the specified complete sealed assembly.

How should the electrical input be confirmed?

Confirm the ordered wiring diagram before installation. The source descriptions include both dual-end and single-end input wording, so the supplied configuration must control the connection method.
