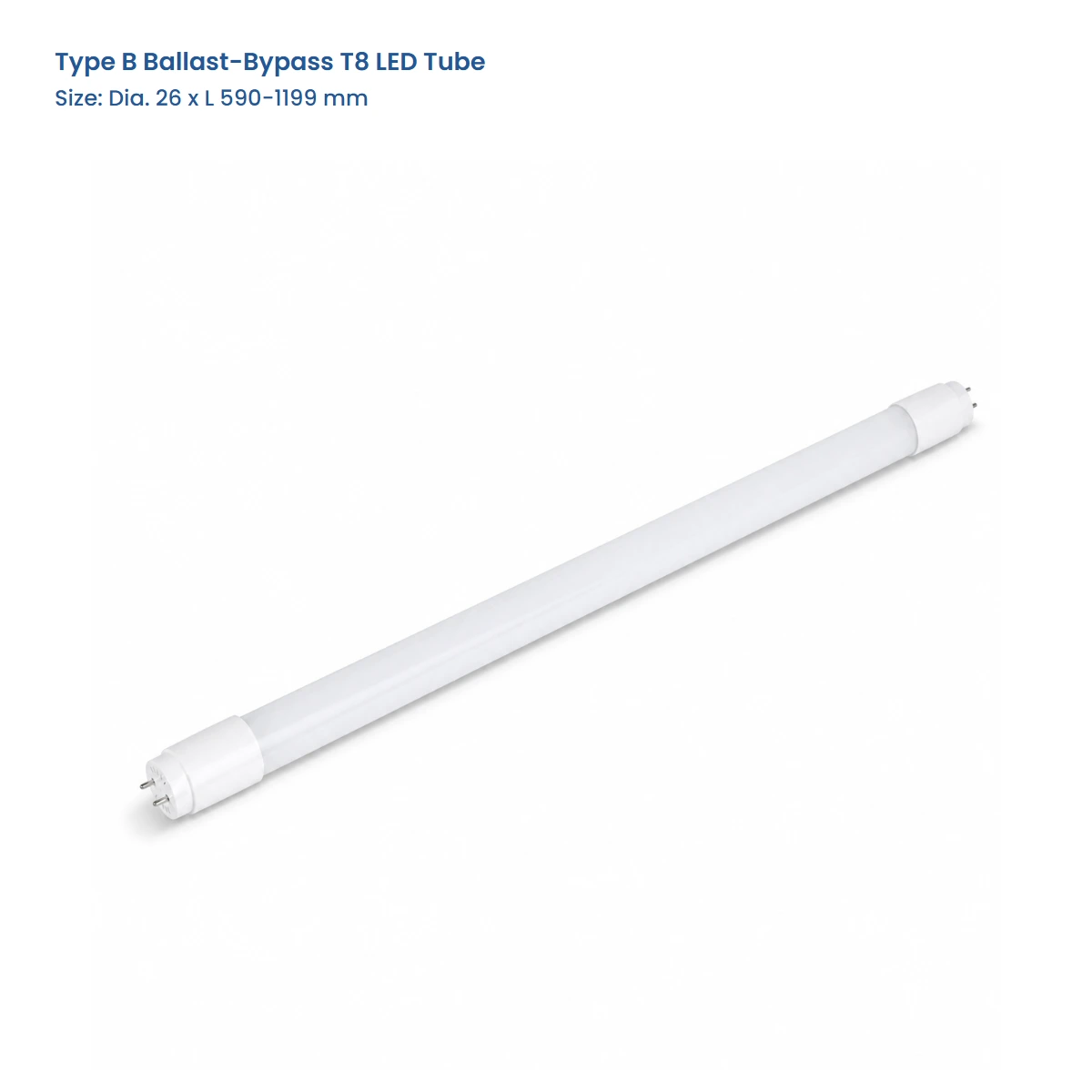

Type B Ballast-Bypass T8 LED Tube
- Wide Tubular Distribution: A 320-degree beam spreads light around the tube instead of concentrating output in a narrow forward strip.
- Compact LED Package: SMD2835 LEDs form a continuous linear source inside the familiar T8 profile.
- Shatter-Control Option: PET-coated glass helps retain fragments when breakage control is required in occupied interiors.
- Extended Rated Life: A 50,000-hour rated lifetime supports longer relamping intervals in regularly used interiors.
| Operating Type | Type B direct AC after ballast removal or bypass |
|---|---|
| Input Method | Single-ended / double-ended / universal configurations |
| Dimensions | Dia. 26 x L 590 / 895 / 1199 mm |
| Power / Output | 8.5-18 W / 1050-2150 lm |
| Input / Power Factor | AC 120-277 V / PF >0.9 |
|---|---|
| CCT / CRI | 3000-6500 K / CRI 80 listed rows |
| Tube Body | Clear, milky or PET-coated glass; aluminium + PC options |
Technical Specifications
Model Specifications
| Model No. | Dimensions D x L (mm) | Rated Power | Power EqV. | Luminous Flux | CCT | Body / End Cap | Input Method |
|---|---|---|---|---|---|---|---|
| NLT8B102PX-E9-B | 26 x 590 | 9 W | 18 W | 1200 lm | 3000-6500 K | Glass, PC cap | Single / double universal |
| NLT8B502PX-E9-B | 26 x 590 | 9 W | 18 W | 1200 lm | 3000-6500 K | Glass, PC cap | Single / double universal |

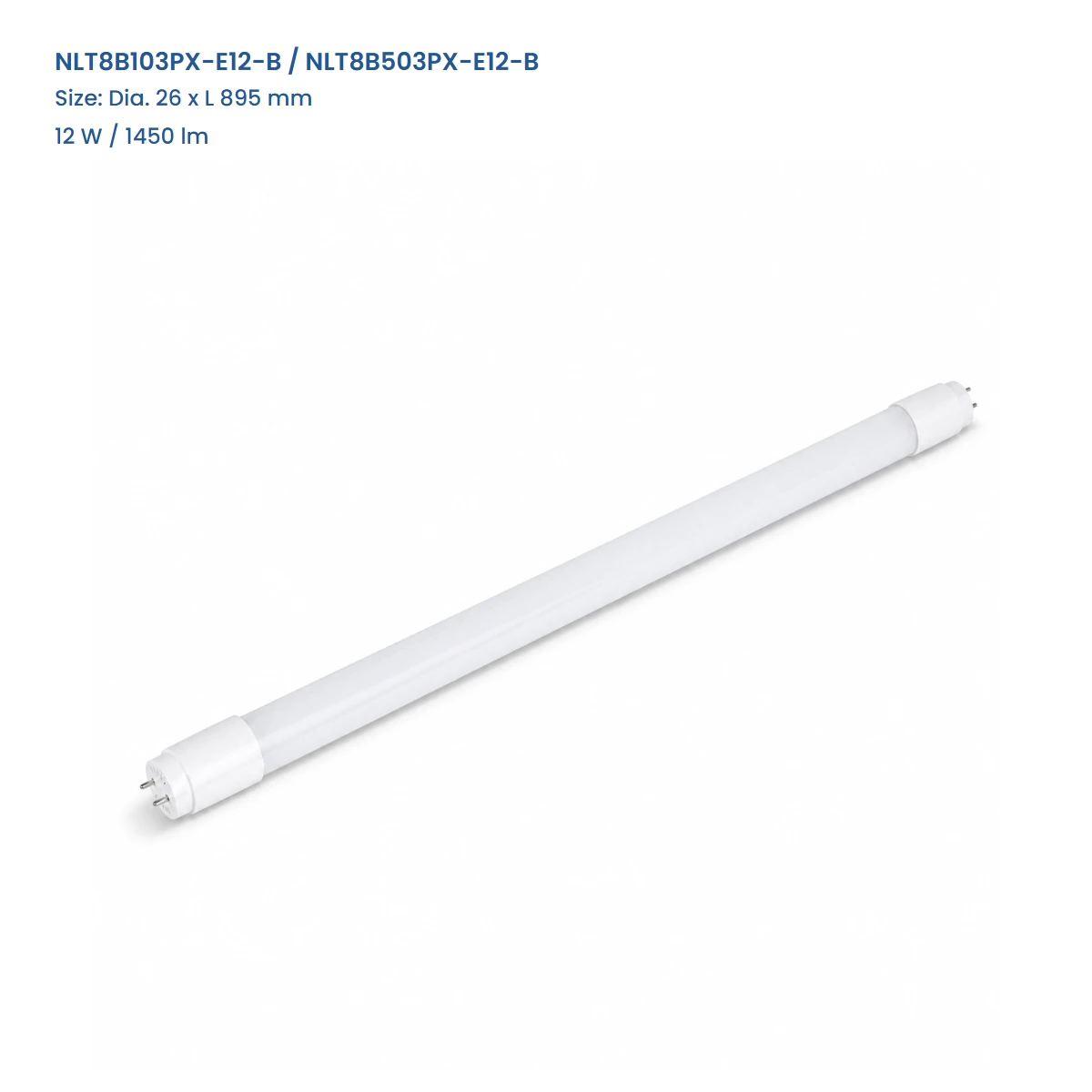

| NLT8B103PX-E12-B | 26 x 895 | 12 W | 30 W | 1450 lm | 3000-6500 K | Glass, PC cap | Single / double universal |
| NLT8B503PX-E12-B | 26 x 895 | 12 W | 30 W | 1450 lm | 3000-6500 K | Glass, PC cap | Single / double universal |
| NLT8B104PX-E11-B | 26 x 1199 | 11 W | 32 W | 1450 lm | 3000-6500 K | Glass, PC cap | Single / double universal |
| NLT8B504PX-E11-B | 26 x 1199 | 11 W | 32 W | 1450 lm | 3000-6500 K | Glass, PC cap | Single / double universal |
| NLT8B104PX-E15-B | 26 x 1199 | 15 W | 32 W | 1800 lm | 3000-6500 K | Glass, PC cap | Single / double universal |
| NLT8B504PX-E15-B | 26 x 1199 | 15 W | 32 W | 1800 lm | 3000-6500 K | Glass, PC cap | Single / double universal |

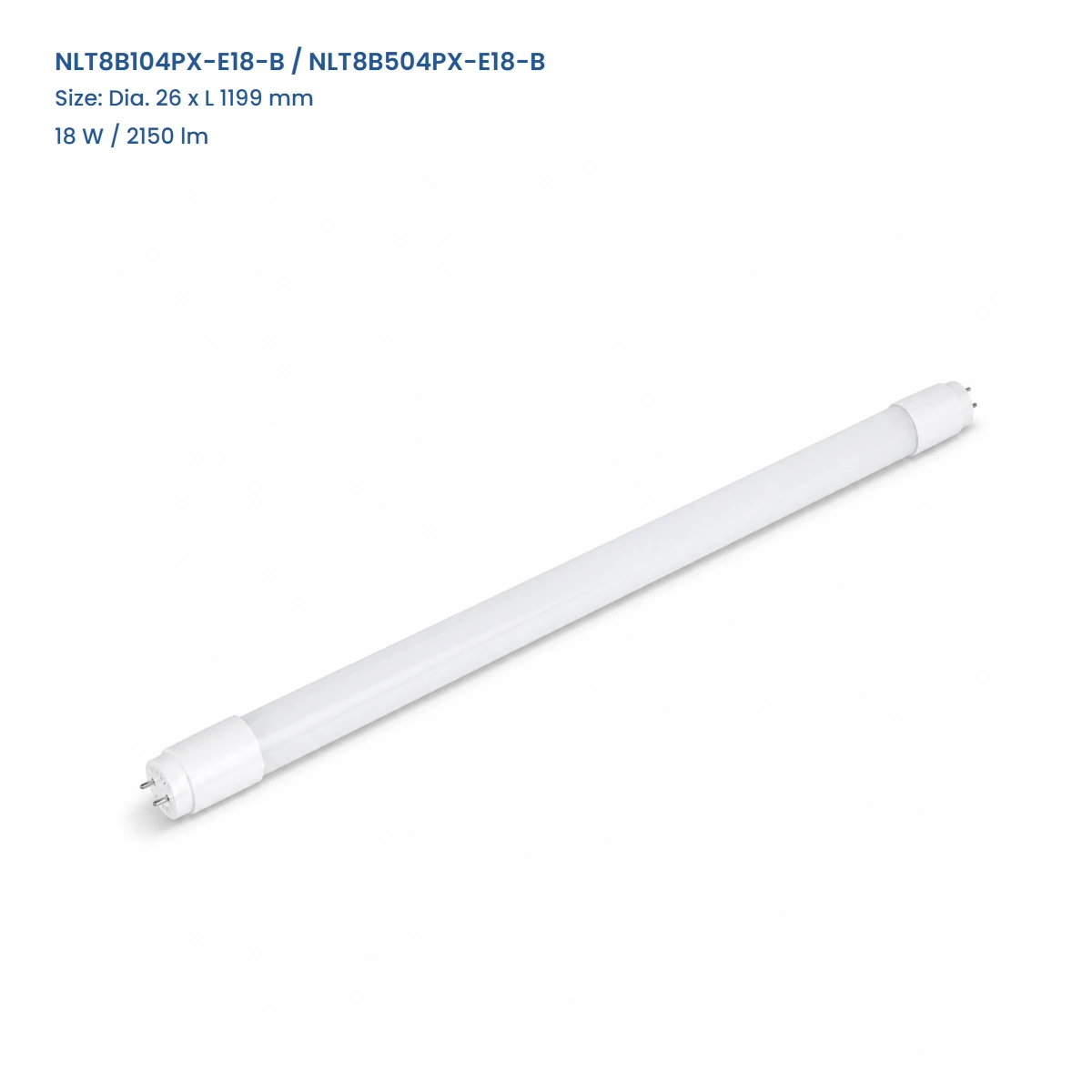

| NLT8B104PX-E18-B | 26 x 1199 | 18 W | 32 W | 2150 lm | 3000-6500 K | Glass, PC cap | Single / double universal |
| NLT8B504PX-E18-B | 26 x 1199 | 18 W | 32 W | 2150 lm | 3000-6500 K | Glass, PC cap | Single / double universal |

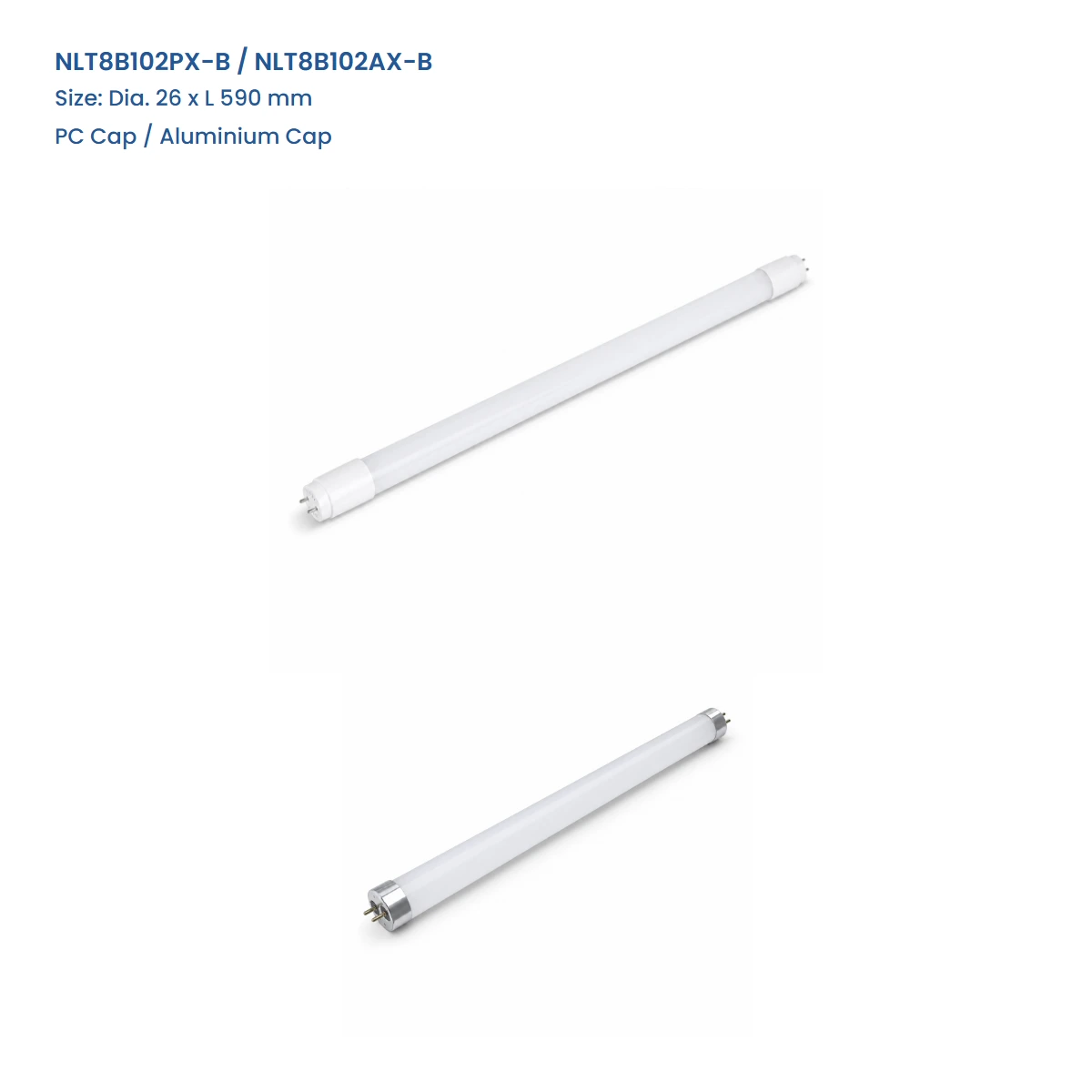

| NLT8B102PX-B (PC Cap) | 26 x 590 | 8.5 W | 17 W | 1050 lm | 3000-6500 K | Glass, PC cap | Single-ended |
| NLT8B102AX-B (ALU Cap) | 26 x 590 | 8.5 W | 17 W | 1050 lm | 3000-6500 K | Glass, ALU cap | Single-ended |
| NLT8B104PX-B (PC Cap) | 26 x 1199 | 17.5 W | 32 W | 2100 lm | 3000-6500 K | Glass, PC cap | Single-ended |
| NLT8B104AX-B (ALU Cap) | 26 x 1199 | 17.5 W | 32 W | 2100 lm | 3000-6500 K | Glass, ALU cap | Single-ended |
| NLT8B202-B | 26 x 590 | 8.5 W | 17 W | 1050 lm | 3000-6500 K | Aluminium + PC | Single-ended |

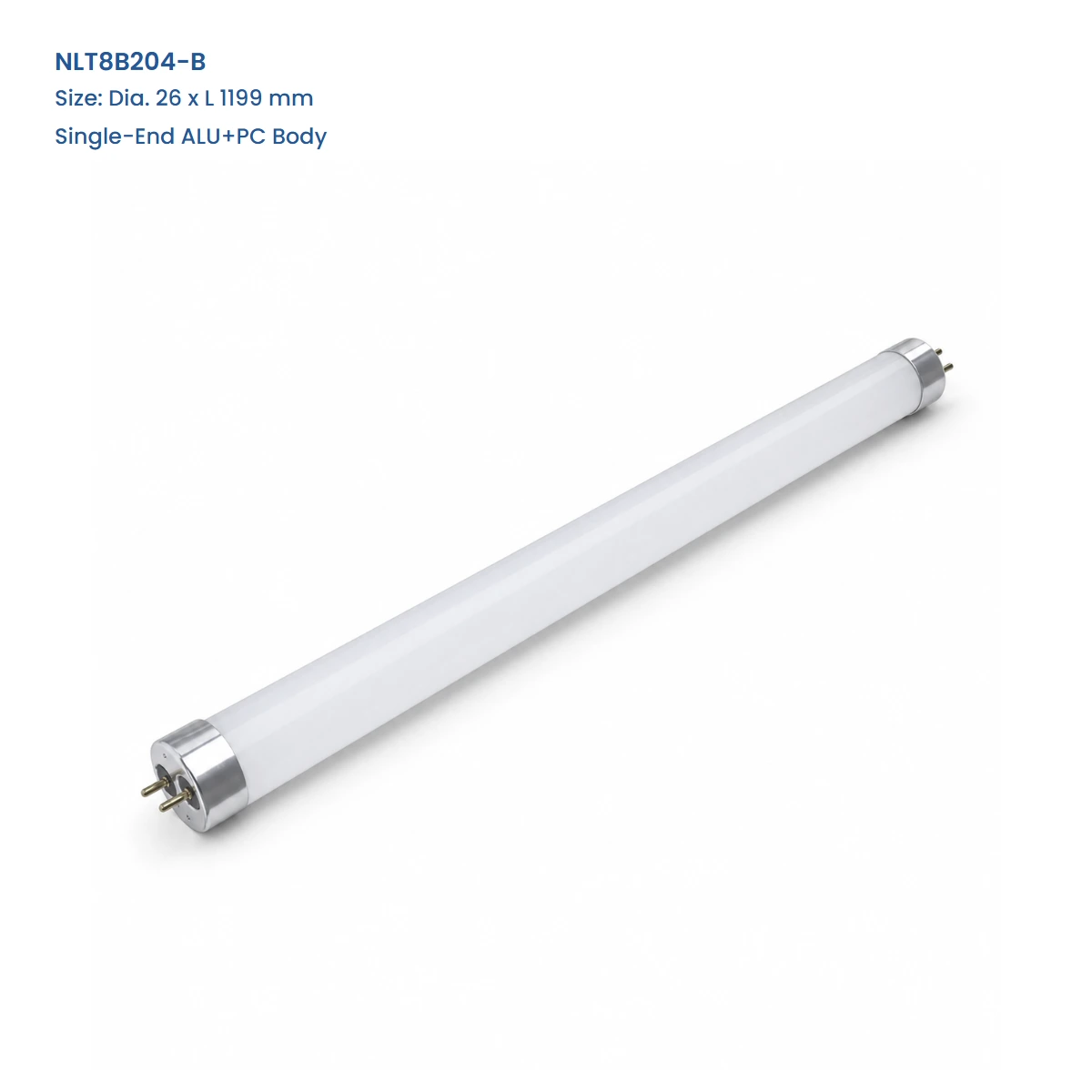

| NLT8B204-B | 26 x 1199 | 17.5 W | 32 W | 2100 lm | 3000-6500 K | Aluminium + PC | Single-ended |
All listed rows use AC 120-277 V, PF >0.9, CRI 80. Glass rows are available in clear, milky or PET-coated shatter-resistant versions; confirm the exact body, end-cap and input configuration against the ordered model.
Product Description
Product Details
Product Construction
The 26 mm T8 family combines a linear LED assembly with G13 end caps. Glass and aluminium-plus-PC body constructions are available, while PC and aluminium end-cap versions are identified separately.
Selection & Installation Notes
Select the required length, lumen package, body construction and input method from the exact model specification. Remove or bypass the fluorescent ballast before energizing the lamp, then wire line and neutral to the lampholders according to the ordered single-ended or double-ended diagram; the two input routes are not interchangeable.
Recommended Application
Applications
- Office Troffers: Provide direct-wired linear general lighting in office ceilings and enclosed work areas.
- Retail Aisles: Illuminate supermarket aisles, shelves and general merchandise areas from T8 fixtures.
- Hotels and Restaurants: Use linear ambient lighting in service corridors, kitchens and back-of-house areas.
- Parking Garages: Provide broad linear lighting in enclosed parking and building service areas.
