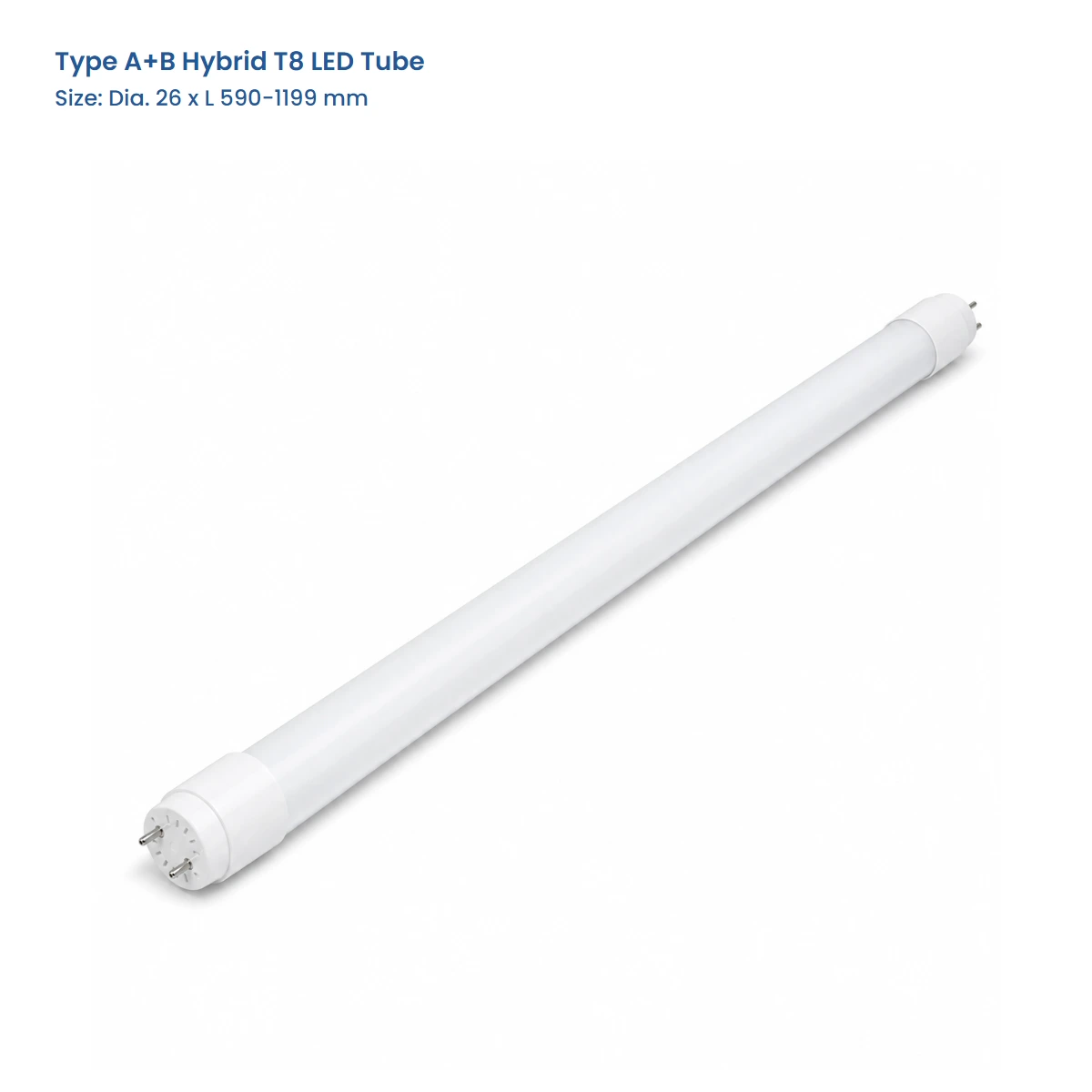

Type A+B Hybrid T8 LED Tube
- Hybrid Retrofit Flexibility: One lamp supports compatible electronic ballast operation and direct AC operation after ballast removal, serving two fixture conversion states.
- Wide Tubular Distribution: A 320-degree beam spreads light around the tube instead of concentrating output in a narrow forward strip.
- Compact LED Package: SMD2835 LEDs form a continuous linear source inside the familiar T8 profile.
- Extended Rated Life: A 50,000-hour rated lifetime supports longer relamping intervals in regularly used interiors.
| Operating Type | Type A+B hybrid: compatible ballast or direct AC |
|---|---|
| Dimensions | Dia. 26 x L 590 / 895 / 1199 mm |
| Power / Output | 9-18 W / 1350-2000 lm |
| Input / Power Factor | AC 120-277 V / PF >0.9 |
|---|---|
| CCT / CRI | 3000-6500 K / CRI 80 listed rows |
| Lamp Base | G13 |
Technical Specifications
Model Specifications
| Model No. | Dimensions D x L (mm) | Rated Power | Power EqV. | Luminous Flux | CCT | Body / End Cap | Operating Route |
|---|---|---|---|---|---|---|---|
| NLT8B102PX-E9-AB | 26 x 590 | 9 W | 17 W | 1350 lm | 3000-6500 K | Glass, PC cap | Ballast / direct AC |
| NLT8B502PX-E9-AB | 26 x 590 | 9 W | 17 W | 1350 lm | 3000-6500 K | Glass, PC cap | Ballast / direct AC |
| NLT8B103PX-E12-AB | 26 x 895 | 12 W | 30 W | 1450 lm | 3000-6500 K | Glass, PC cap | Ballast / direct AC |
| NLT8B503PX-E12-AB | 26 x 895 | 12 W | 30 W | 1450 lm | 3000-6500 K | Glass, PC cap | Ballast / direct AC |
| NLT8B104PX-E15-AB | 26 x 1199 | 15 W | 32 W | 1800 lm | 3000-6500 K | Glass, PC cap | Ballast / direct AC |
| NLT8B504PX-E15-AB | 26 x 1199 | 15 W | 32 W | 1800 lm | 3000-6500 K | Glass, PC cap | Ballast / direct AC |

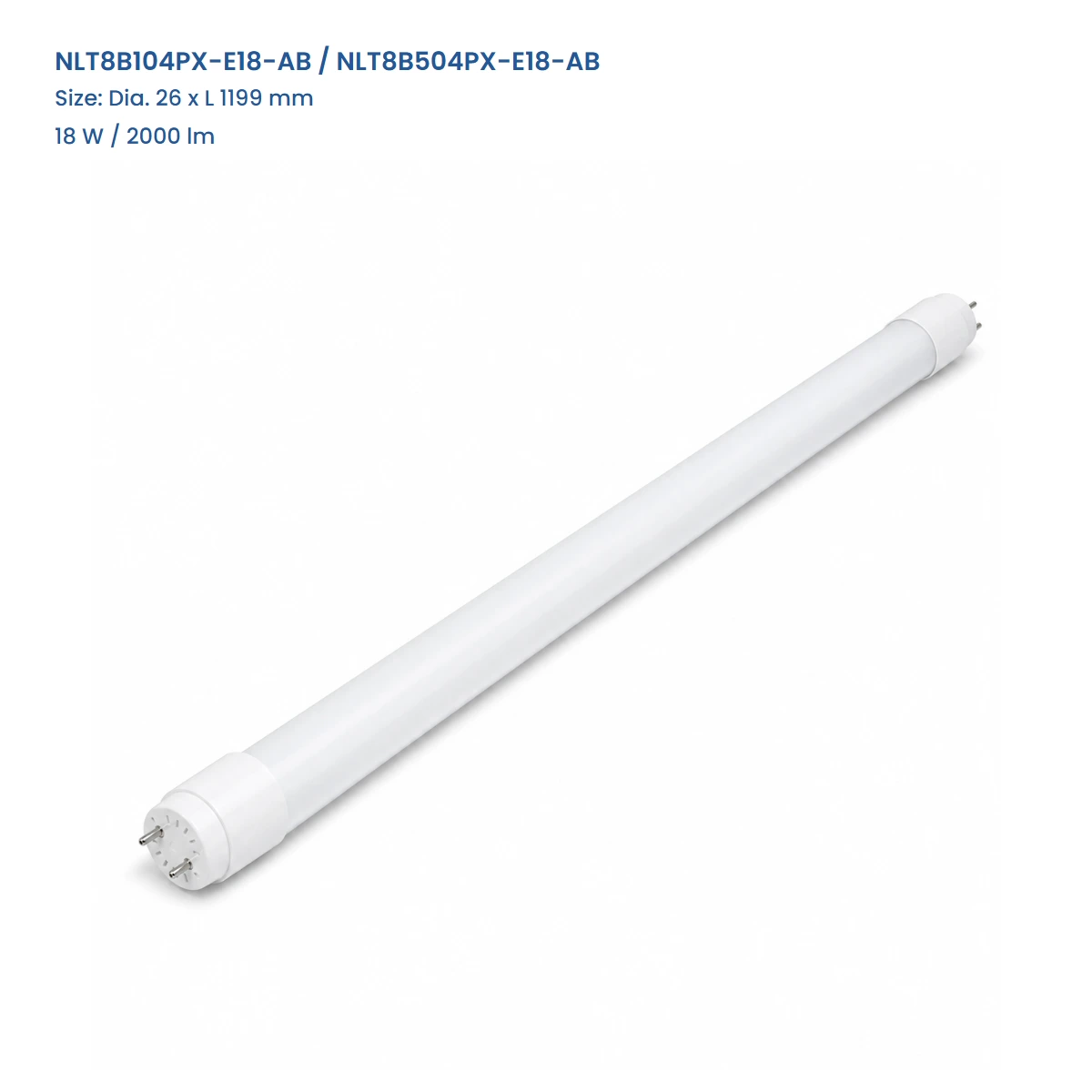

| NLT8B104PX-E18-AB | 26 x 1199 | 18 W | 32 W | 2000 lm | 3000-6500 K | Glass, PC cap | Ballast / direct AC |
| NLT8B504PX-E18-AB | 26 x 1199 | 18 W | 32 W | 2000 lm | 3000-6500 K | Glass, PC cap | Ballast / direct AC |
All listed rows use AC 120-277 V, PF >0.9 and CRI 80. Direct AC installation supports the documented single-ended or double-ended route; ballast operation requires an exact approved compatibility match.
Product Description
Product Details
Product Construction
The 26 mm T8 lamp uses a glass tube body, white fire-resistant PC end caps and G13 pins. Clear, milky and PET-coated shatter-resistant glass versions are listed for the series.
Selection & Installation Notes
Select the exact length, lumen package and glass finish before ordering. For ballast operation, match the electronic ballast against the approved compatibility list; for direct AC operation, remove the ballast and follow the supplied single-ended or double-ended input diagram for the ordered model.
Recommended Application
Applications

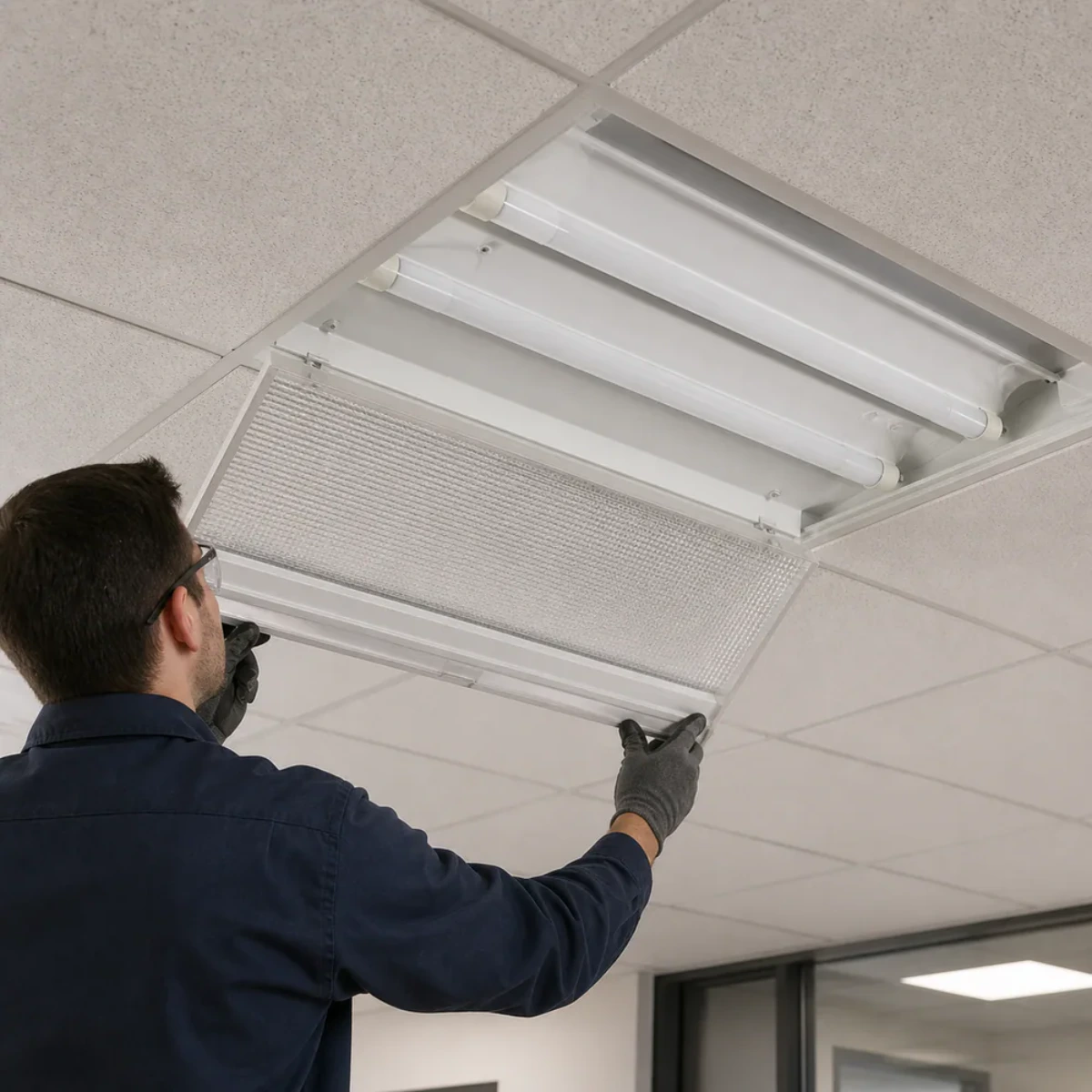

- Office Troffers: Provide linear general lighting in recessed and surface-mounted T8 office fixtures.
- Retail Aisles: Illuminate shelves, merchandise runs and general circulation areas from T8 fixtures.
- Schools and Libraries: Support even ambient lighting in classrooms, reading areas and study rooms.
- Service Corridors: Provide broad linear lighting in indoor corridors, storage rooms and back-of-house areas.
