New Lights

T8 LED Tubular Shop Light

Surface-mounted T8 tubular shop lights combine one or two frosted glass tubes with PC connector blocks that support the lamps, provide screw-fixing points and house the electrical connection. Four lengths cover 9-44 W fixture configurations for workshops, garages and commercial utility spaces.
  • Single and Double Formats: One- and two-tube constructions provide distinct fixture widths and connected loads.
  • Integrated Connector Blocks: The PC end assemblies support the glass tubes, form the mounting feet and contain the electrical terminals.
  • No-Flicker IC Driver: The internal driver is specified for stable illumination without visible flicker.
  • Wide Tubular Distribution: A 320-degree beam provides broad light around the exposed tube profile.
  • Defined Service Rating: The series lists a 25,000-hour rated lifetime with a two-year warranty.
Fixture FormatsSingle tube / double tube
Lengths & Rated Power590-1500 mm / 9-44 W
Input OptionsS: AC 180-265 V / PF >0.5; U: AC 85-265 V / PF >0.9
Light Options80-160 lm/W; 3000-8000 K; CRI 70 / 80 / 90 / 95 / 97
InstallationSurface mounted with screw-fixing connector blocks
Connection OptionsCable or socket input; interconnectable version available
Request a Quote
Complete single-tube T8 LED tubular shop light with white PC connector blocks and screw-mounting feet

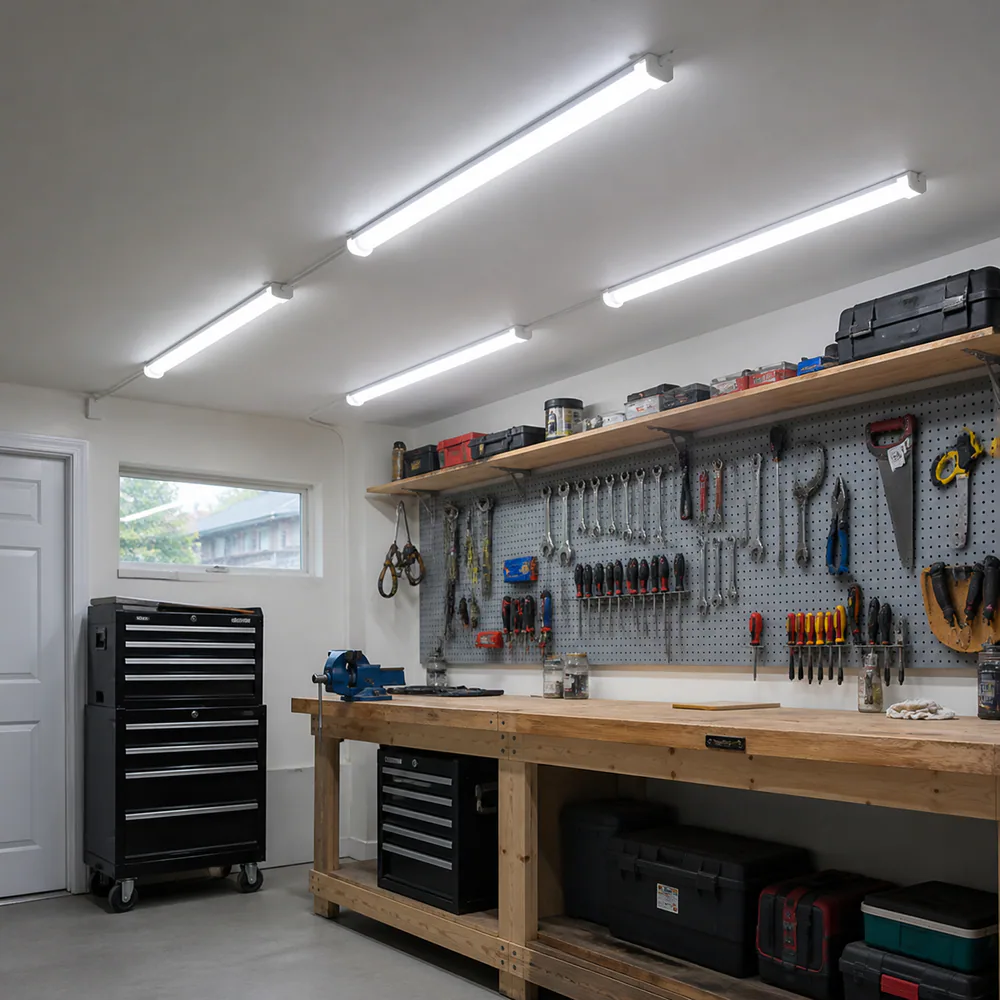

T8 LED tubular shop lights surface-mounted above a garage workshop bench

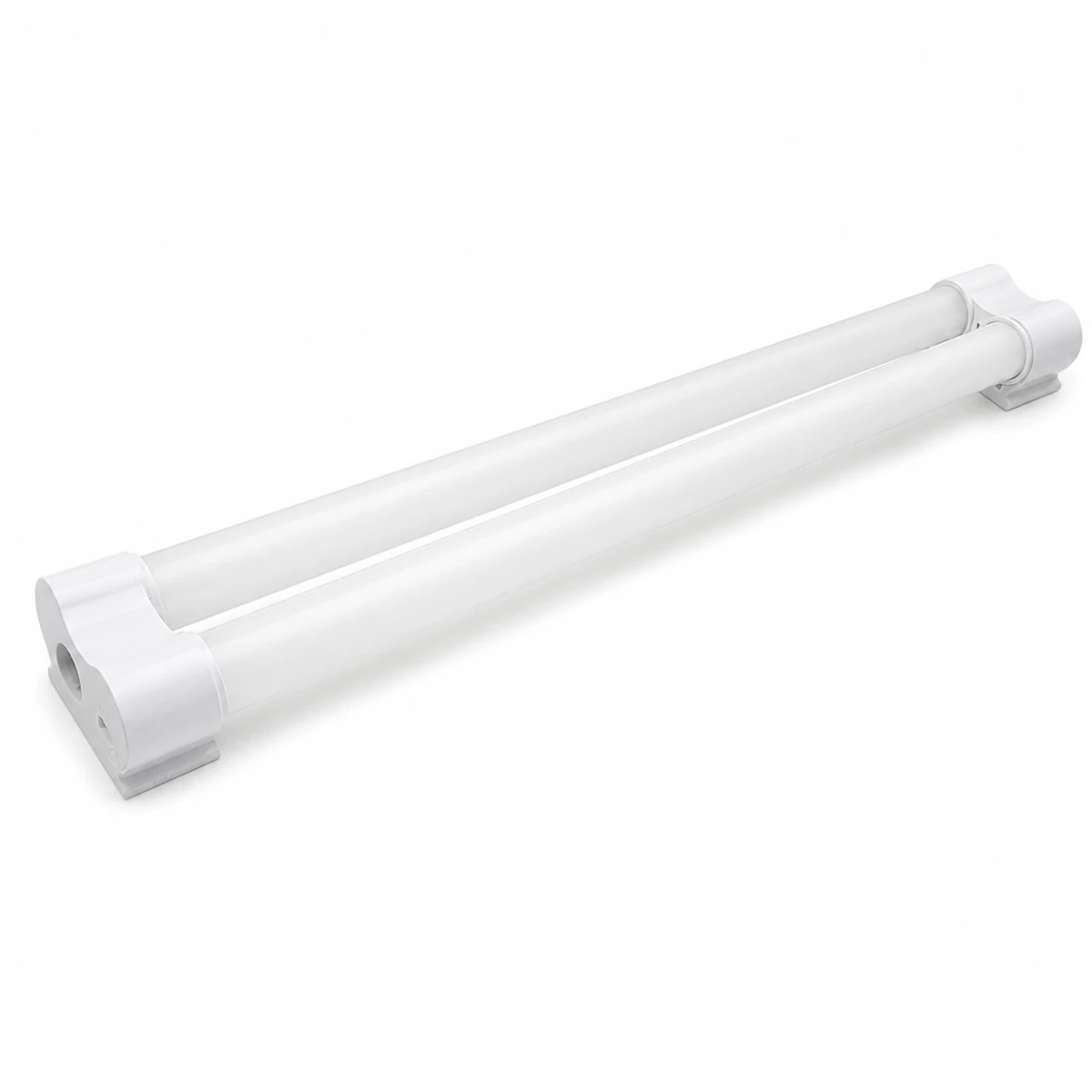

Complete double-tube T8 LED tubular shop light with shared white PC connector assemblies

Technical Specifications

Model Specifications

Model No.FormatTube D x L (mm)Rated PowerFluorescent EqV.Input VoltageEfficacyCCT / CRI
XGYT8B102SL-E9Single26 x 5909 W18 WS: 180-265 V; U: 85-265 V80-160 lm/W3000-8000 K / 70-97
XGYT8B103SL-E12Single26 x 89512 W30 WS: 180-265 V; U: 85-265 V80-160 lm/W3000-8000 K / 70-97
XGYT8B104SL-E18Single26 x 119918 W36 WS: 180-265 V; U: 85-265 V80-160 lm/W3000-8000 K / 70-97
XGYT8B105SL-E22Single26 x 150022 W58 WS: 180-265 V; U: 85-265 V80-160 lm/W3000-8000 K / 70-97
XGYT8B202SL-E18Double26 x 5909 W x 236 WS: 180-265 V; U: 85-265 V80-160 lm/W3000-8000 K / 70-97
XGYT8B203SL-E24Double26 x 89512 W x 260 WS: 180-265 V; U: 85-265 V80-160 lm/W3000-8000 K / 70-97
XGYT8B204SL-E36Double26 x 119918 W x 272 WS: 180-265 V; U: 85-265 V80-160 lm/W3000-8000 K / 70-97
XGYT8B205SL-E44Double26 x 150022 W x 2116 WS: 180-265 V; U: 85-265 V80-160 lm/W3000-8000 K / 70-97

All listed models use SMD2835 LEDs, 26 mm glass tubes and PC connector blocks with screw-fixing feet. PF options are >0.5 for S versions and >0.9 for U versions. Clear, milky or shatter-retention glass, cable or socket input, optional plug and cable length, interconnection, dimming and standby brightness are configuration options.

Product Description

Product Details

Product Construction

The fixture combines SMD2835 LEDs, 26 mm glass light bodies and fire-resistant PC end assemblies. Each end block supports the glass, provides a screw-mounting foot and houses the cable or socket terminal. Clear, milky and shatter-retention glass constructions are listed.

Selection & Installation Notes

Select the model by format, overall length, rated power, input range and glass construction. Fix both end assemblies to a suitable surface and route the selected cable or socket connection without loading the glass. For linked runs, calculate the total fixture load against the specified connector and circuit rating. Optional cable length, plug type, standby brightness and dimming require order-level configuration.

Recommended Application

Applications

  • Workshops and Garages: Mount the fixture above workbenches, service bays and enclosed garage work areas.
  • Retail Utility Areas: Provide linear general lighting in stockrooms, preparation zones and back-of-house spaces.
  • Schools and Healthcare: Illuminate classrooms, corridors and non-procedure support areas with surface-mounted linear light.
  • Libraries and Galleries: Provide broad linear illumination along reading zones, circulation paths and display areas.
  • Hotels and Restaurants: Use the slim fixture in corridors, kitchens and service spaces requiring surface installation.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What is the difference between the single- and double-tube fixtures?

Single-tube models use one lamp and double-tube models use two parallel lamps, producing different fixture widths, rated loads and fluorescent replacement references.

How is the shop light mounted?

The PC connector blocks include screw-fixing feet for surface installation. Mount both ends to a suitable substrate without placing mechanical load on the glass tube.

Can the fixture use cable or socket input?

Yes. Cable and socket inputs are listed options, with cable length and plug type selected for the required installation.

Can several shop lights be interconnected?

Yes, an interconnectable version is available. The permitted run depends on the configured connector, total fixture load and supply circuit rating.

Which glass constructions are available?

The series lists clear glass, milky glass and shatter-retention glass options. Select the construction for the required diffusion and site glass-control policy.

Are dimming or standby-light versions available?

Yes. Dimming and standby brightness are configured options; the standard standby level is 3 W, with 1-10 W available by configuration.
