c-UL-us Certified T8 LED Tube
- Retrofit Route Separation: Each electrical architecture has its own ordering code, preventing a ballast-compatible lamp from being treated as a direct-wire lamp.
- Diffuser and Body Choice: Transparent, opal, impact-conscious and metal-backed constructions provide distinct optical and structural formats.
- Output Aligned to Length: Short, mid-length and four-foot-class formats have their own stated output instead of one family-wide rating.
- North American Product Listing: Third-party marking identifies the family for both US and Canadian markets.
| Certification | cULus Listed for the United States and Canada |
|---|---|
| Electrical Types | Type A / Type B / Type A+B |
| Housing Options | Clear glass / milky glass / shatter-proof glass / ALU+PC |
| Dimensions | Dia. 26 x L 590 / 895 / 1199 mm |
|---|---|
| Rated Power | 9-18 W across listed configurations; Type A values depend on the matched ballast |
| Output & CCT | 1200-2150 lm; 3000-5000 K; indoor use |
Technical Specifications
Model Specifications
| Model No. | Electrical Type | Size Dia. x L (mm) | Rated Power | Power EqV. | Total Lumen | CCT |
|---|---|---|---|---|---|---|
| NLT8B102P-E9-A | Type A | 26 x 590 | Per ballast approx. 9 W | 17 W | 1300 lm | 3000-5000 K |
| NLT8B103P-E12-A | Type A | 26 x 895 | Per ballast approx. 12 W | 30 W | 1500 lm | 3000-5000 K |
| NLT8B104P-E15/18-A | Type A | 26 x 1199 | Per ballast approx. 15/18 W | 32 W | 1800/2150 lm | 3000-5000 K |
| NLT8B102P-E9-B | Type B | 26 x 590 | 9 W | 18 W | 1200 lm | 3000-5000 K |

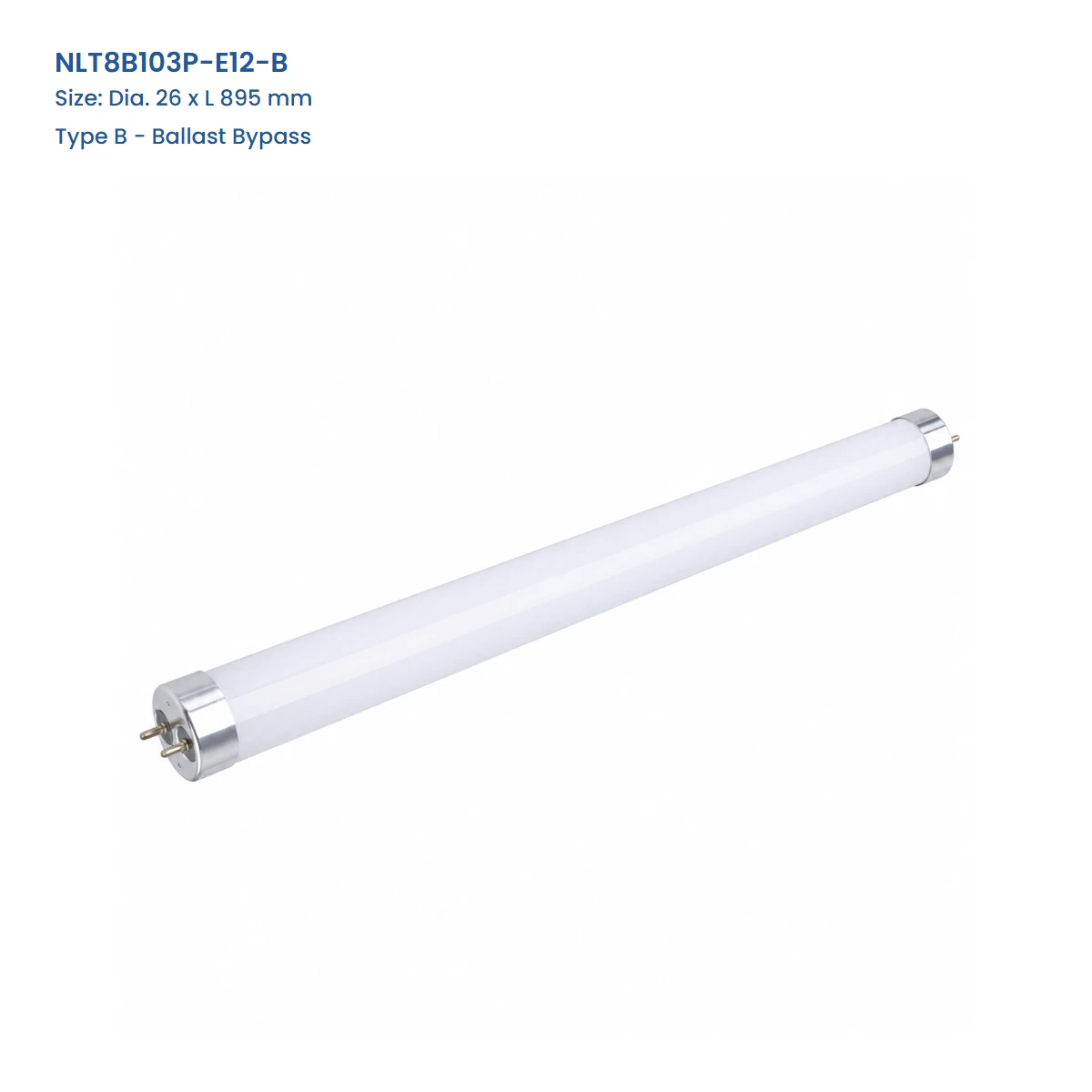

| NLT8B103P-E12-B | Type B | 26 x 895 | 12 W | 30 W | 1450 lm | 3000-5000 K |

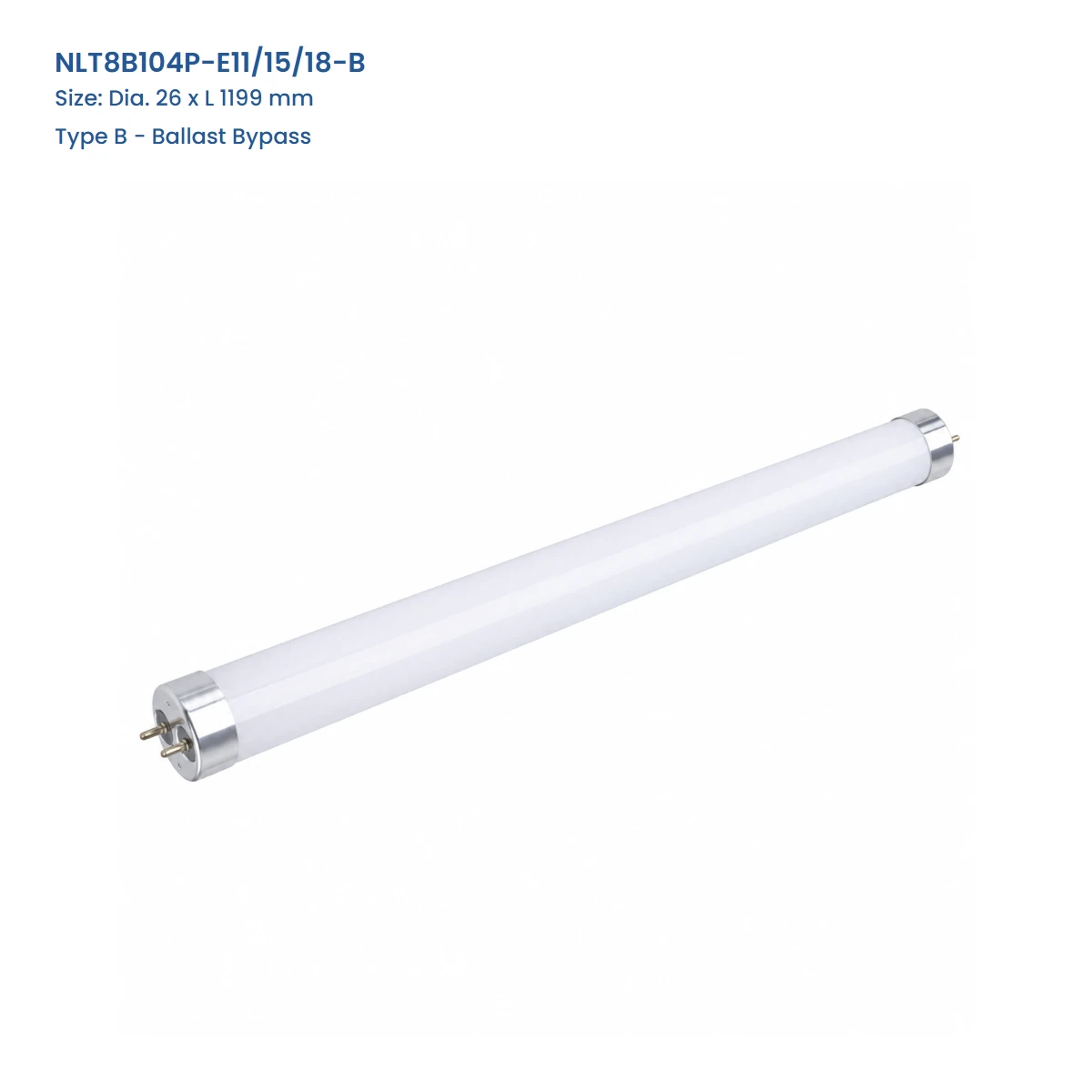

| NLT8B104P-E11/15/18-B | Type B | 26 x 1199 | 11/15/18 W | 32 W | 1450/1800/2150 lm | 3000-5000 K |

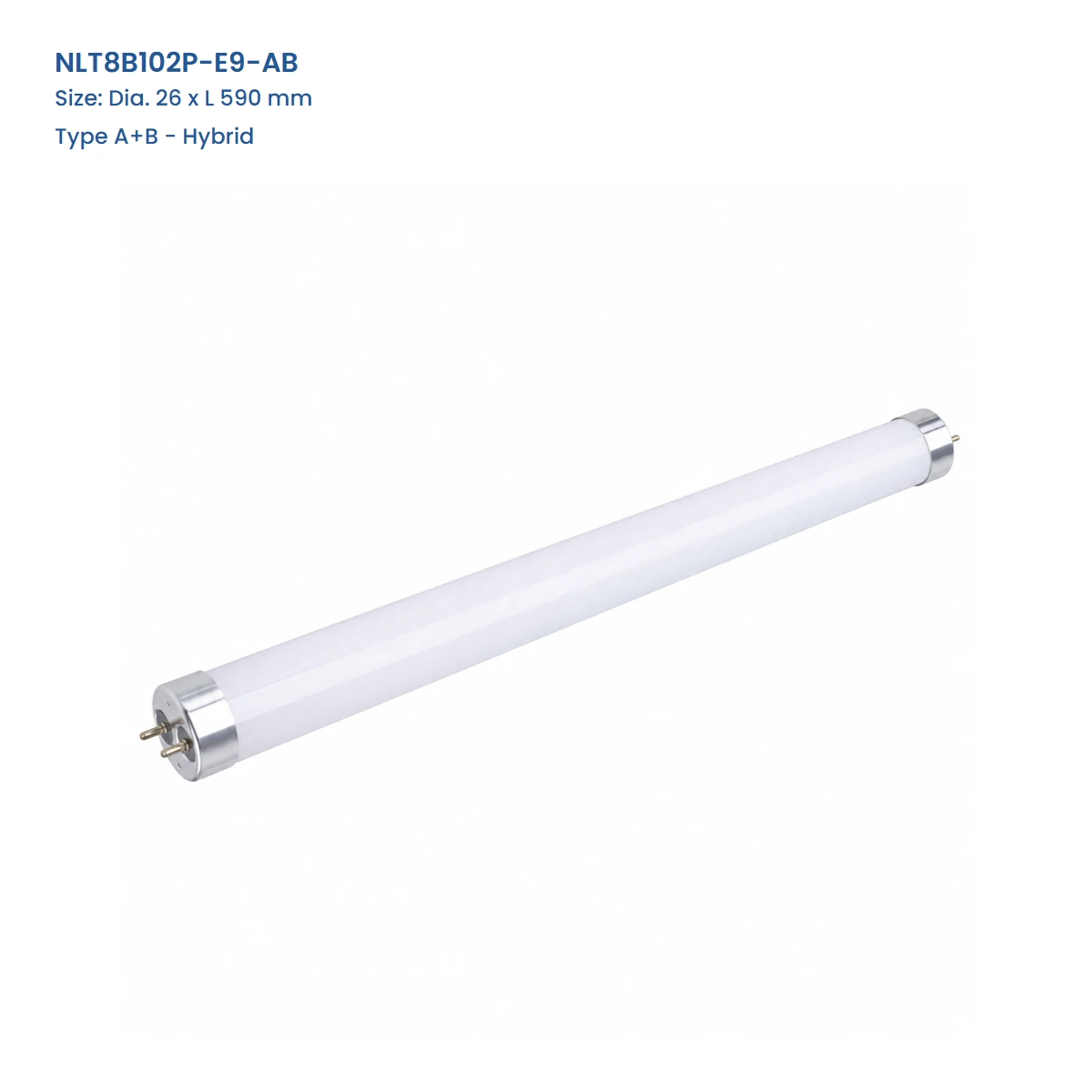

| NLT8B102P-E9-AB | Type A+B | 26 x 590 | 9 W | 17 W | 1350 lm | 3000-5000 K |
| NLT8B103P-E12-AB | Type A+B | 26 x 895 | 12 W | 30 W | 1450 lm | 3000-5000 K |

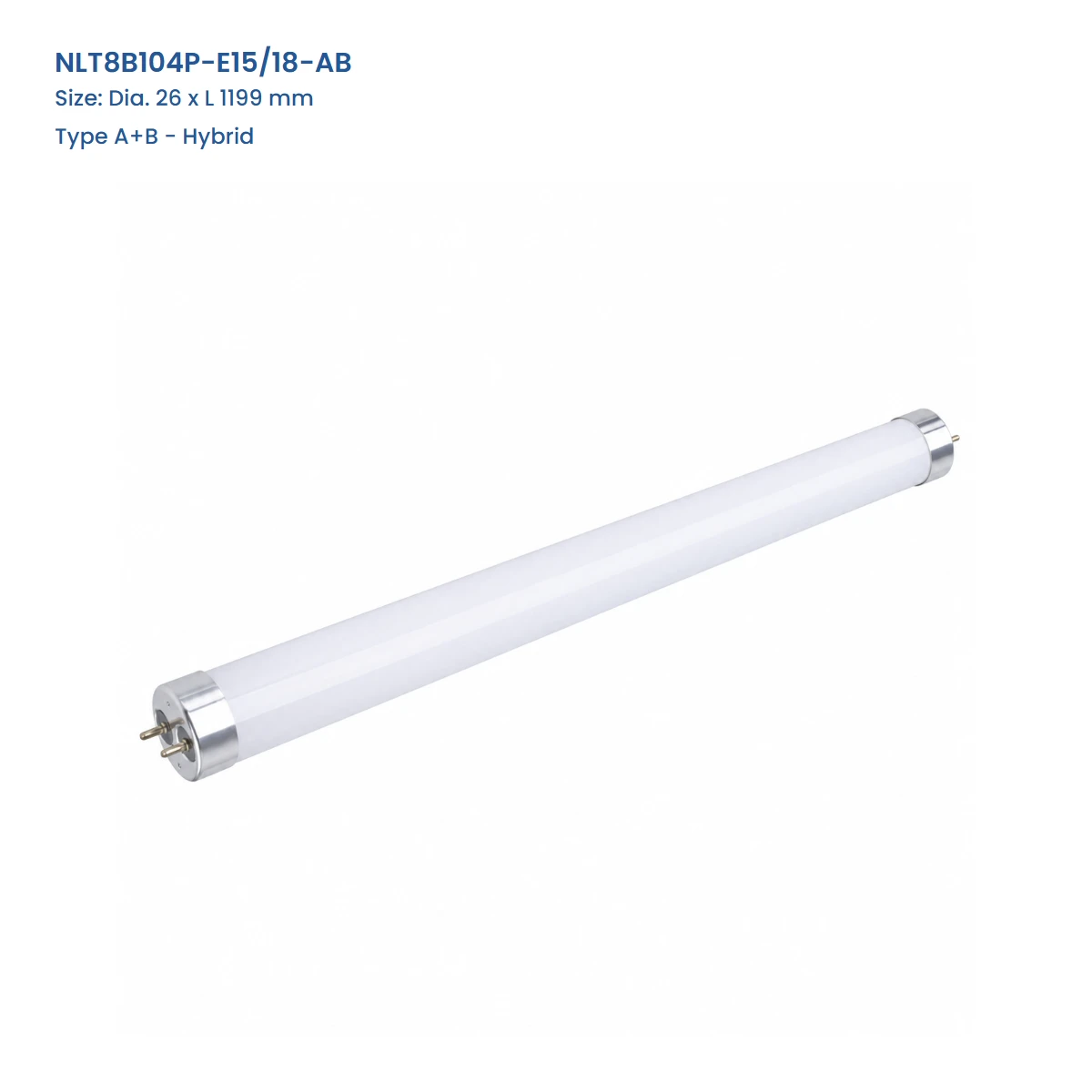

| NLT8B104P-E15/18-AB | Type A+B | 26 x 1199 | 15 W | 32 W | 1800/2000 lm | 3000-5000 K |
Type A rated power is listed by the source as dependent on the matched ballast. The Type A+B 1199 mm source row lists 15 W with two total-lumen values, which is preserved without inferring an unstated second power.
Product Description
Product Details
Product Construction
This T8 family uses a 26 mm tubular body with bi-pin end caps and offers clear glass, milky glass, shatter-proof glass or ALU+PC housing constructions. The family supplies separate electrical designs for the three routes: Type A, Type B and Type A+B.
Selection & Installation Notes
Select the electrical route before choosing the 590, 895 or 1199 mm ordering code. Lamps labeled Type A operate with a matched compatible ballast; lamps labeled Type B require the specified ballast-bypass wiring route; lamps labeled Type A+B support the documented hybrid route. Follow the approved label and installation instructions for the selected configuration.
Recommended Application
Applications
- Office Workspaces: Provide general linear lighting in offices fitted with compatible T8 luminaires.
- Retail Stores: Illuminate sales floors, shelving aisles and service areas with compatible linear fixtures.

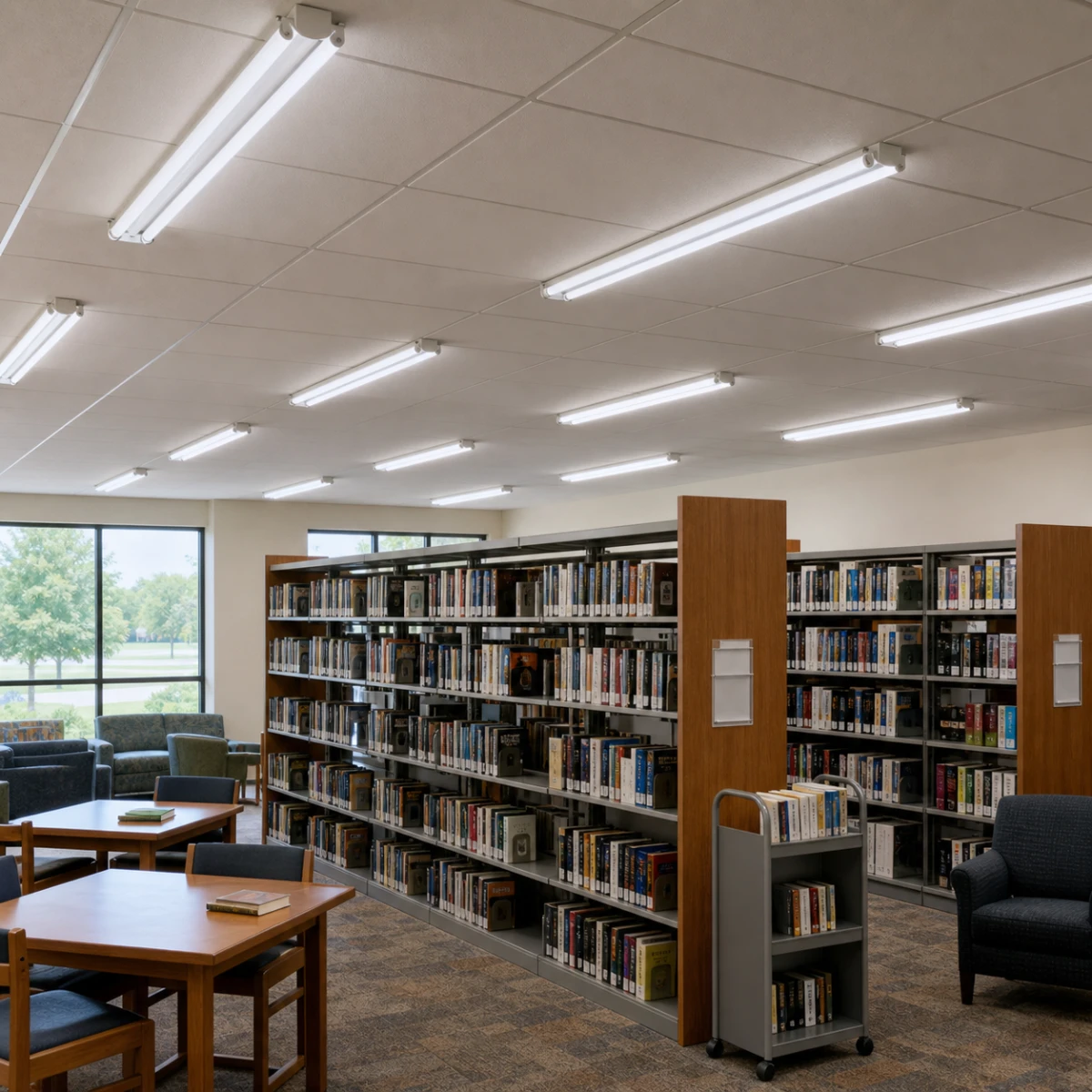

- Libraries and Galleries: Support reading, display and circulation areas with evenly arranged T8 fixtures.
- Industrial Warehouses: Serve indoor storage and work aisles where compatible T8 luminaires are installed.
