Smart T8 LED Tube with Wi-Fi & Bluetooth Control
- Flexible Nearby or Networked Access: Users can pair locally during setup and then manage connected lamps across supported accounts.
- Warm-to-Cool Scene Changes: One lamp family adapts from relaxed ambience to focused task lighting without swapping tubes.
- Near-Omnidirectional Tube Output: Light reaches around the cylindrical diffuser instead of leaving a narrow forward-only strip.
- Stable Light During Adjustments: Supported control changes are designed to avoid visible flicker in normal operation.
| Power & Replacement | 9 / 18 / 22 W; 18 / 36 / 58 W equivalent |
|---|---|
| Dimensions | Dia. 26 x L 590 / 1199 / 1499 mm |
| CCT & Efficacy | 3000-8000 K; 80-160 lm/W |
| Electrical & CRI | 180-260 V; Ra80 |
|---|---|
| Beam & Lifetime | 320 degrees; 35,000 hours |
| Smart Control | Wi-Fi / Bluetooth; Tuya Smart / Alexa / Google Home; dimming optional |
Technical Specifications
Model Specifications
| Model No. | Size D x L (mm) | Power | Replacement | Efficacy | CCT | Input / CRI / Beam |
|---|---|---|---|---|---|---|

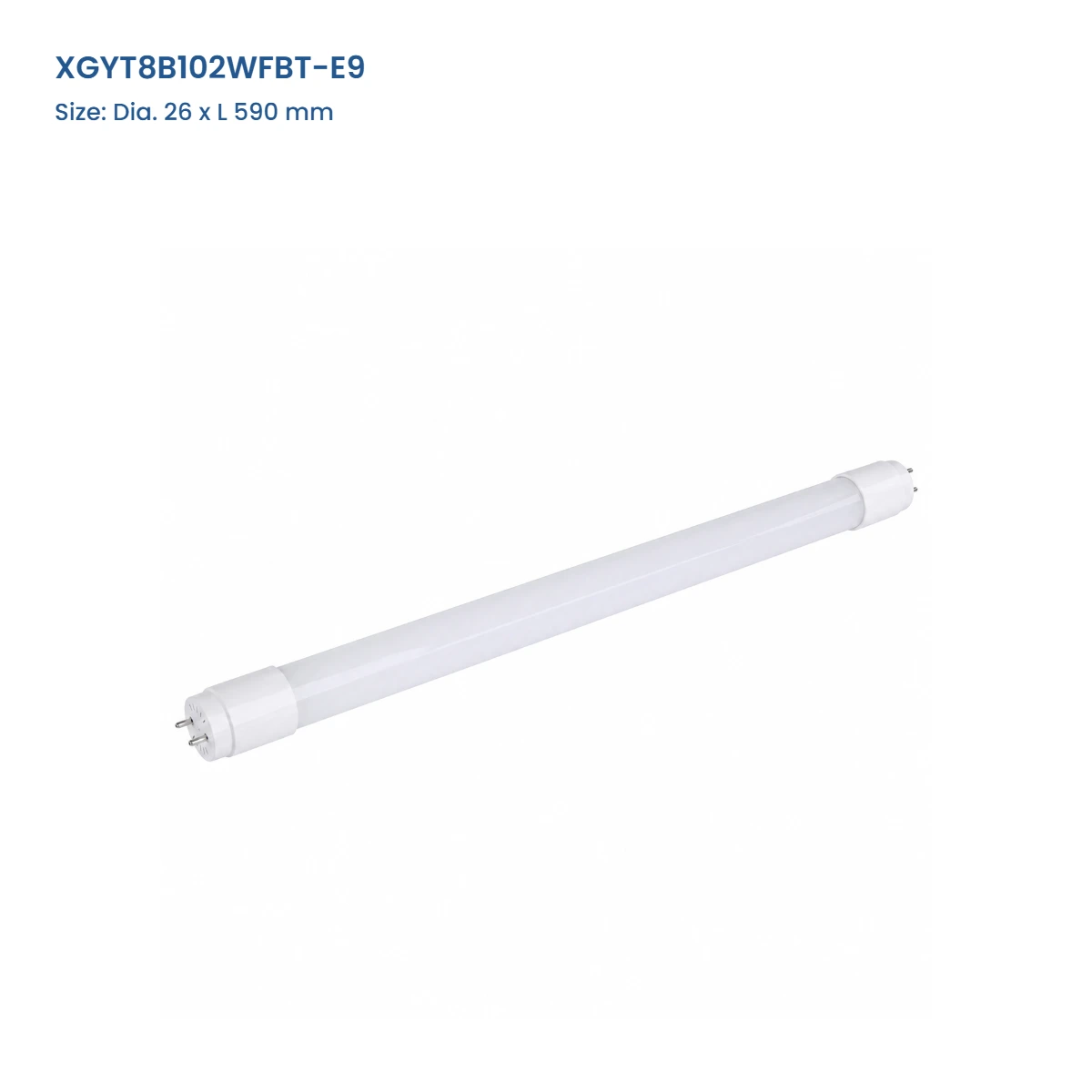

| XGYT8B102WFBT-E9 | 26 x 590 | 9 W | 18 W | 80-160 lm/W | 3000-8000 K | 180-260 V; Ra80; 320 degrees |
| XGYT8B104WFBT-E18 | 26 x 1199 | 18 W | 36 W | 80-160 lm/W | 3000-8000 K | 180-260 V; Ra80; 320 degrees |

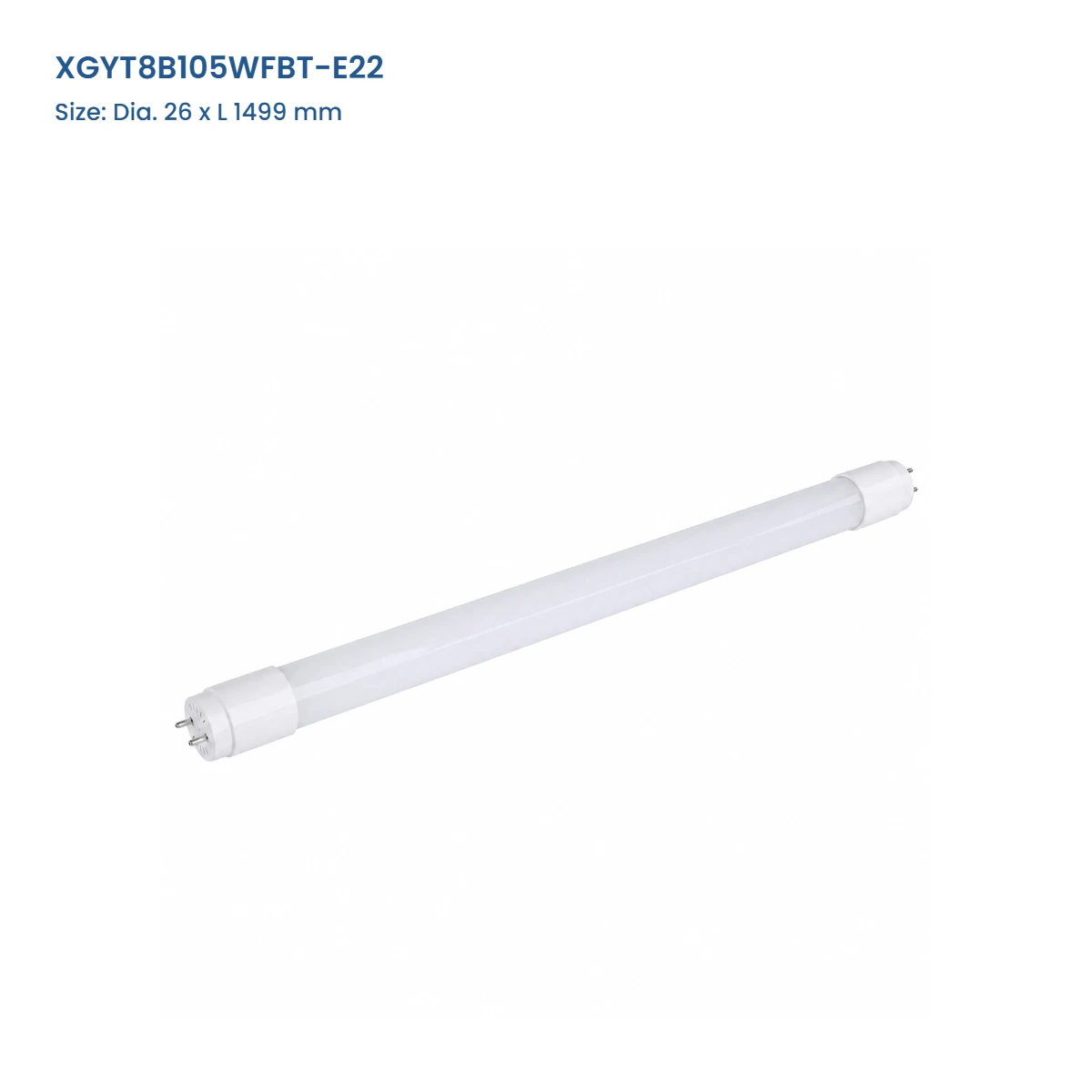

| XGYT8B105WFBT-E22 | 26 x 1499 | 22 W | 58 W | 80-160 lm/W | 3000-8000 K | 180-260 V; Ra80; 320 degrees |
Series features: Wi-Fi and Bluetooth control through Tuya Smart, Amazon Alexa and Google Home compatibility, no-flicker operation, optional dimming and a 35,000-hour rated life. Confirm the selected wireless module and fixture wiring before installation.
Product Description
Product Details
Product Construction
The 26 mm T8 body combines a white cylindrical diffuser, faceted white end caps, LED light source, driver and internal control electronics. The complete lamp retains the familiar linear tube form while housing the connected-lighting components inside the body.
Selection & Installation Notes
Select the 590, 1199 or 1499 mm model by fixture length and rated power. Confirm the existing lamp holders, fixture wiring, 180-260 V supply and required module before installation; the available sources do not establish ballast compatibility or one universal wiring topology. Offline behavior depends on the selected module and saved control logic.
Recommended Application
Applications

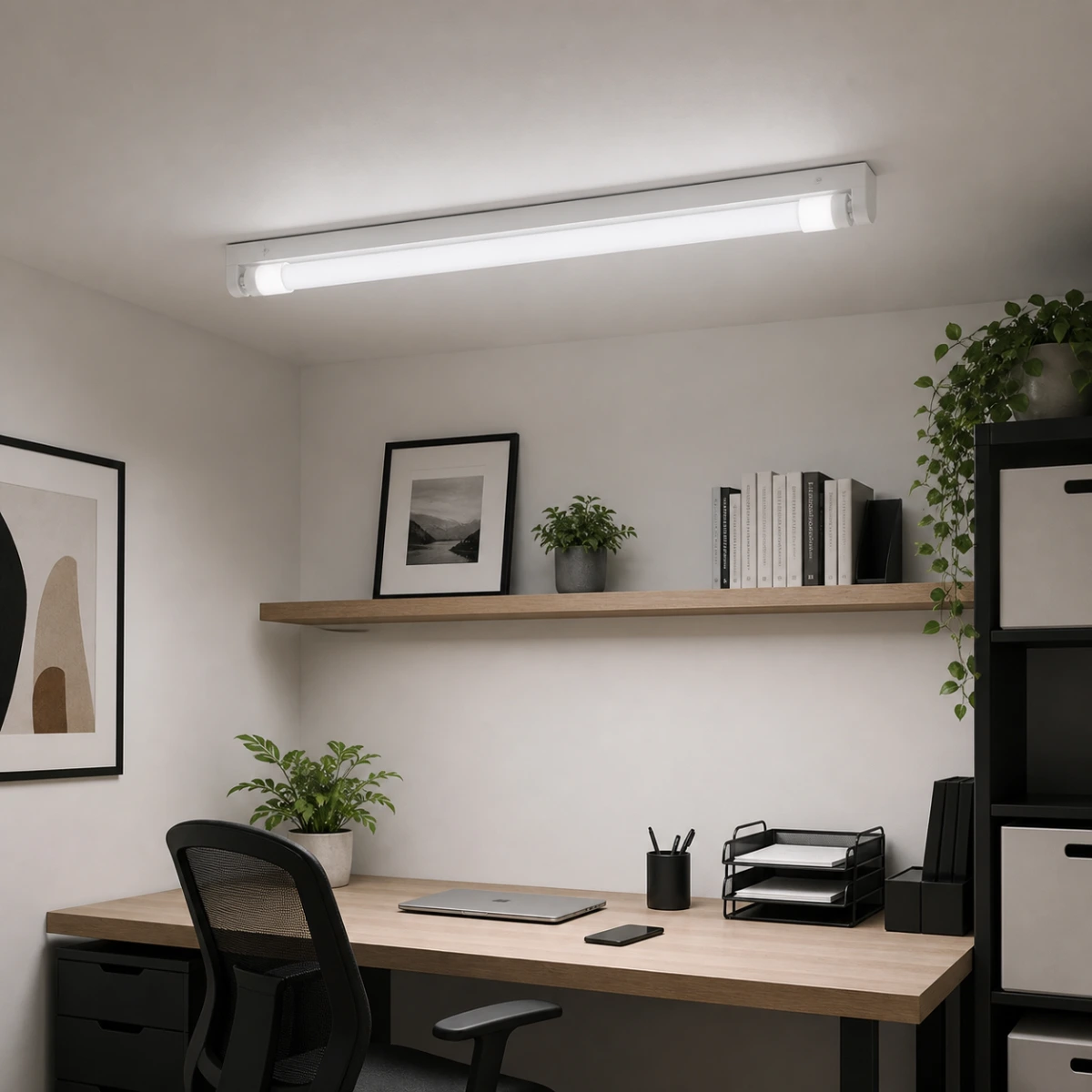

- Home Office Lighting: Use tunable white light and connected control above desks and everyday work areas.
- Cafes & Restaurants: Adjust white-light settings and schedules across customer seating and service areas.
- Libraries & Galleries: Group compatible tubes for coordinated lighting across reading, display and circulation spaces.
- Meeting & Retail Areas: Use connected T8 lighting in compatible indoor fixtures where scenes or scheduled operation are useful.
