T8 LED Glass Tubes for Eastern Europe & Southeast Asia

T8 LED glass tubes combine clear or milky glass with plastic or aluminium G13 end caps and single-ended or double-ended input options. The series is designed for general indoor lighting and protected linear or tri-proof fixtures.
  • Broad Lateral Distribution: A 320-degree beam carries light beyond the downward plane.
  • Alternative Lens Character: One glass treatment reveals the LED line while the other blends the source appearance.
  • Paired Hardware Families: Companion order codes distinguish polymer and metal end constructions.
  • Selectable Feed Layout: Fixture programs can specify current entry from one end or both ends.
Lengths590 / 895 / 1199 / 1500 mm
Rated Power9 / 12 / 18 / 22 W
Luminous Efficacy80-160 lm/W, configurable
CCT / CRI3000-8000 K / Ra70 or Ra80
Input VoltageAC 180-265 V / AC 85-265 V
Input MethodSingle-ended / double-ended
Body / CapsClear or milky glass / plastic or aluminum G13
Request a Quote
T8 LED glass tube with plastic G13 end cap on white background
XGYT8B102 T8 LED glass tube with plastic G13 end cap

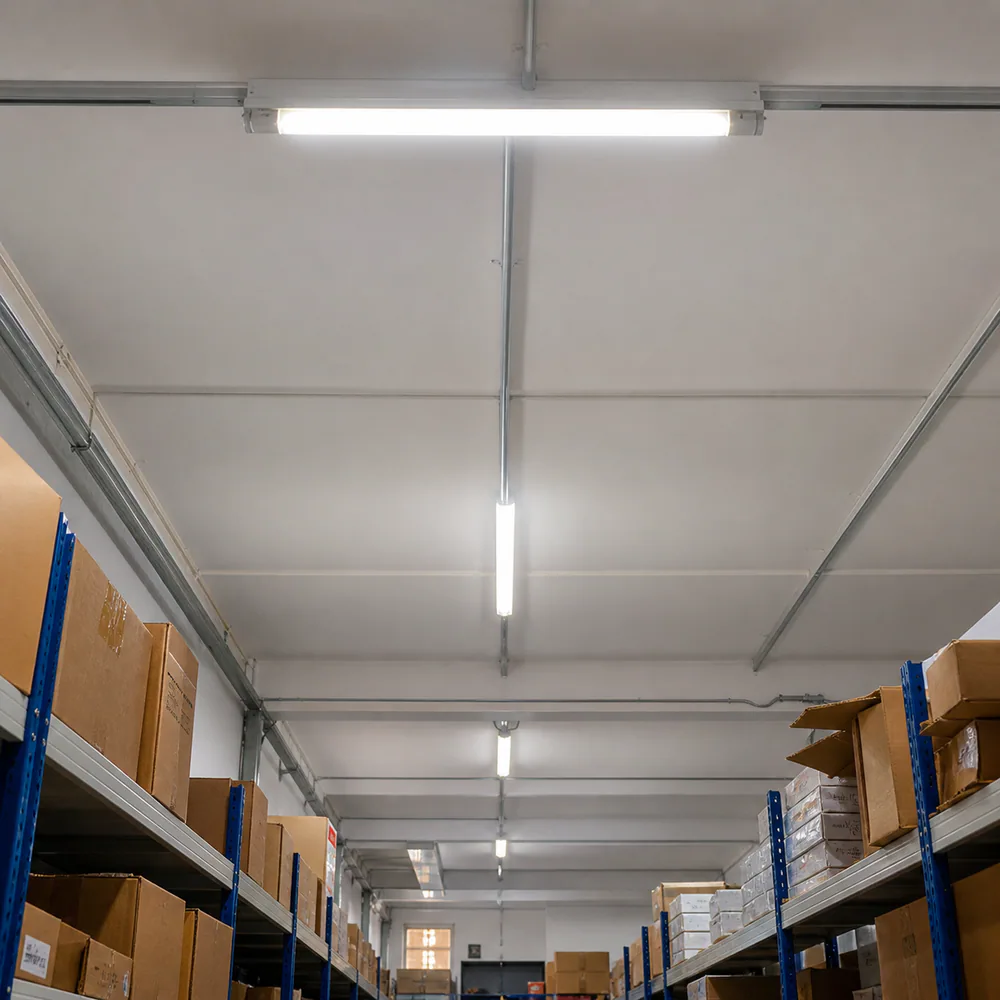

T8 LED glass tubes installed in protected linear fixtures above a warehouse aisle
XGYT8B302 T8 LED glass tube with aluminum G13 end cap
XGYT8B103 T8 LED glass tube with plastic G13 end cap
XGYT8B303 T8 LED glass tube with aluminum G13 end cap

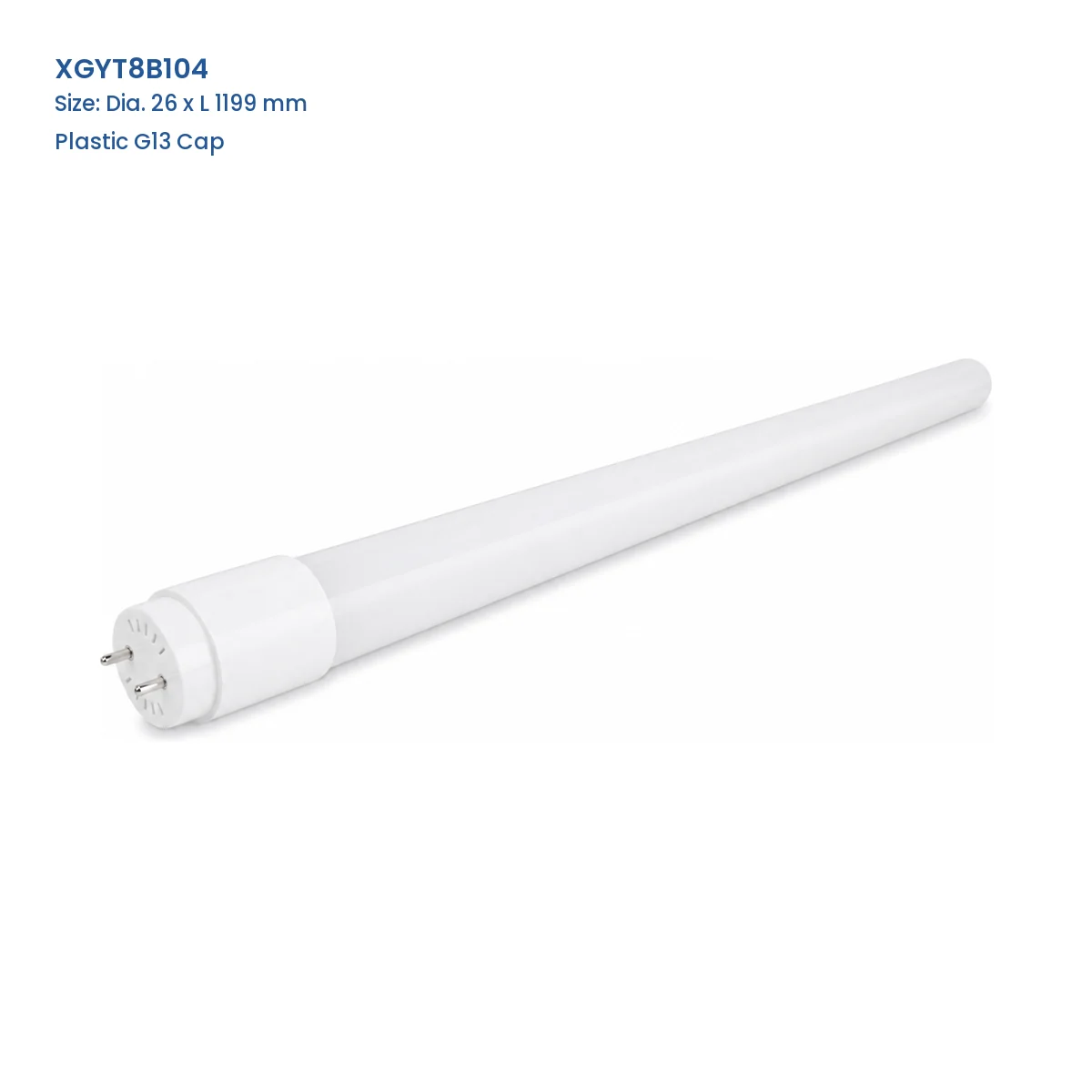

XGYT8B104 T8 LED glass tube with plastic G13 end cap

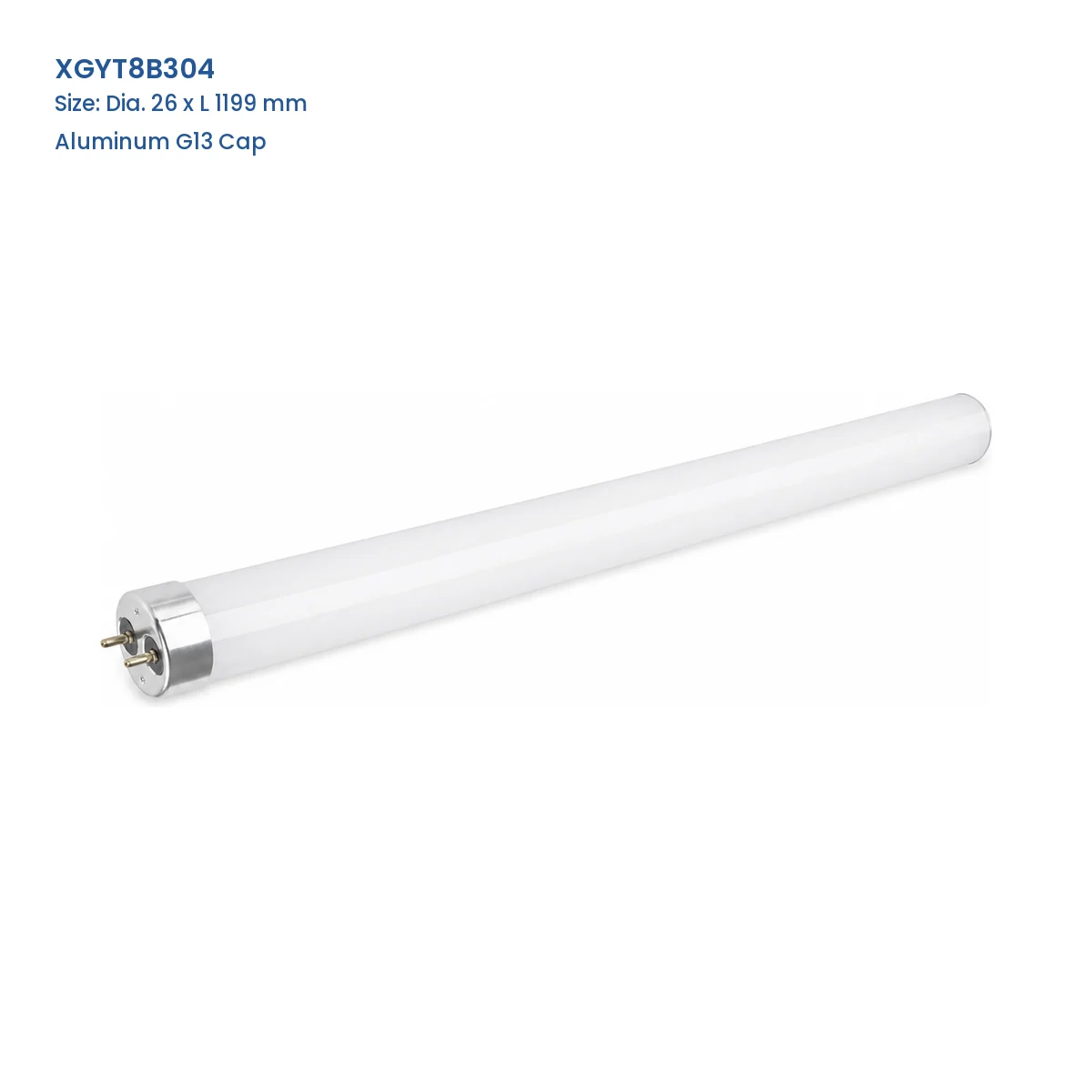

XGYT8B304 T8 LED glass tube with aluminum G13 end cap
XGYT8B105 T8 LED glass tube with plastic G13 end cap
XGYT8B305 T8 LED glass tube with aluminum G13 end cap

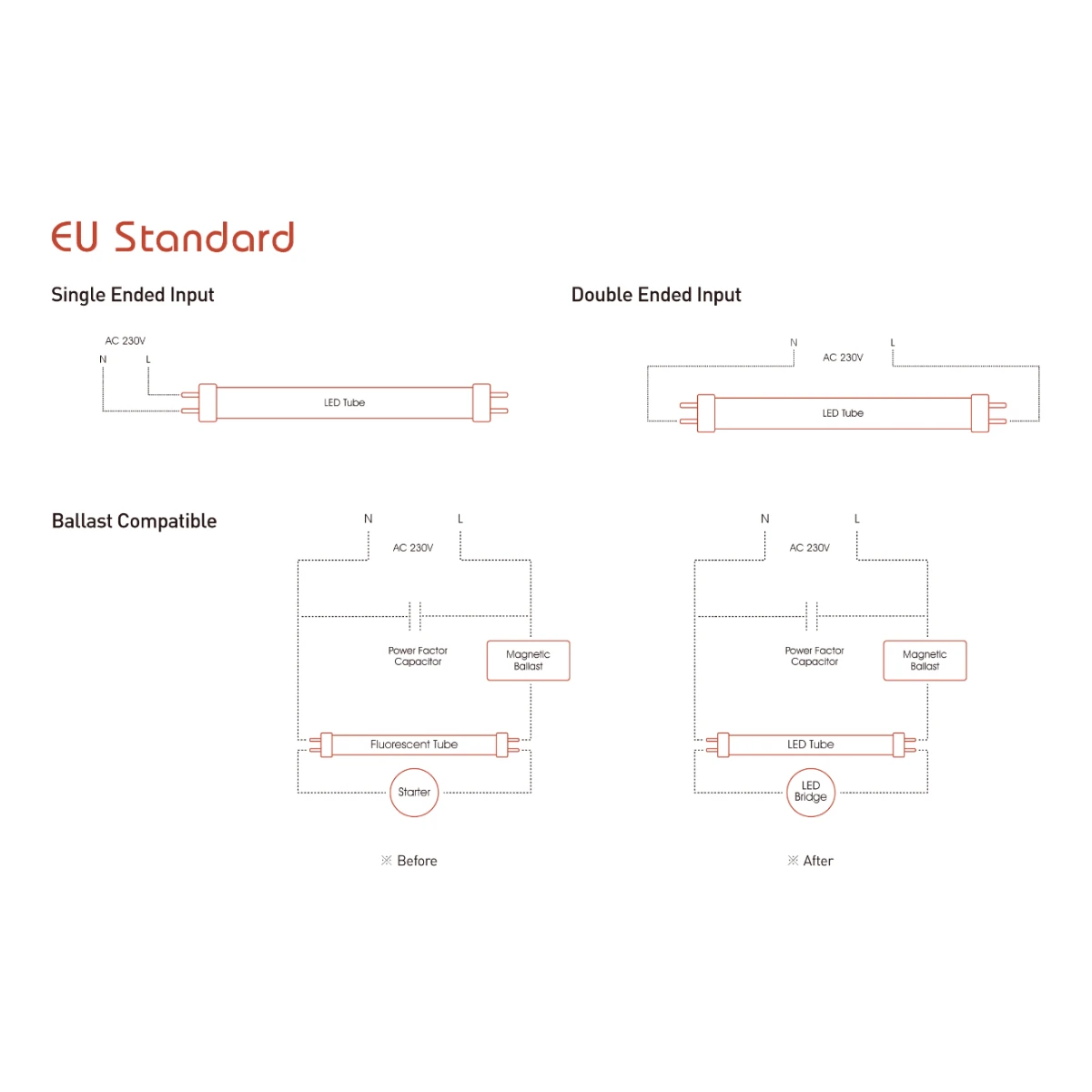

T8 LED tube single-ended, double-ended and magnetic ballast wiring diagram

Technical Specifications

Model Specifications

ModelDimensionsPowerReplacementInput / PFEfficacyCCT / CRIBody / Cap
XGYT8B102Dia.26 x L590 mm9 W18 WS: AC180-265V / >0.5; U: AC85-265V / >0.980-160 lm/W3000-8000K / Ra70/80Clear/Milky / Plastic G13
XGYT8B302Dia.26 x L590 mm9 W18 WS: AC180-265V / >0.5; U: AC85-265V / >0.980-160 lm/W3000-8000K / Ra70/80Clear/Milky / Aluminum G13
XGYT8B103Dia.26 x L895 mm12 W30 WS: AC180-265V / >0.5; U: AC85-265V / >0.980-160 lm/W3000-8000K / Ra70/80Clear/Milky / Plastic G13
XGYT8B303Dia.26 x L895 mm12 W30 WS: AC180-265V / >0.5; U: AC85-265V / >0.980-160 lm/W3000-8000K / Ra70/80Clear/Milky / Aluminum G13
XGYT8B104Dia.26 x L1199 mm18 W36 WS: AC180-265V / >0.5; U: AC85-265V / >0.980-160 lm/W3000-8000K / Ra70/80Clear/Milky / Plastic G13
XGYT8B304Dia.26 x L1199 mm18 W36 WS: AC180-265V / >0.5; U: AC85-265V / >0.980-160 lm/W3000-8000K / Ra70/80Clear/Milky / Aluminum G13
XGYT8B105Dia.26 x L1500 mm22 W58 WS: AC180-265V / >0.5; U: AC85-265V / >0.980-160 lm/W3000-8000K / Ra70/80Clear/Milky / Plastic G13
XGYT8B305Dia.26 x L1500 mm22 W58 WS: AC180-265V / >0.5; U: AC85-265V / >0.980-160 lm/W3000-8000K / Ra70/80Clear/Milky / Aluminum G13

The S and U electrical versions are configuration choices; confirm the selected input method before installation.

Product Description

Product Details

Product Construction

The 26 mm tubular assembly contains an SMD 2835 light engine and an internal IC driver between G13 ends. It is supplied as a complete linear lamp for installation in a compatible indoor fixture.

Selection & Installation Notes

Choose the complete order code, then verify every mechanical, optical and electrical attribute in the approved schedule. The supplied wiring diagram must match the holder arrangement and site circuit; do not energise the tube until the existing ballast, starter and wiring path have been identified and the required retrofit method confirmed. Compare related products in our T8 LED tube range.

Recommended Application

Applications

  • Commercial Workspaces: Use the selected tube in compatible office, classroom or general interior linear fixtures.
  • Retail Aisles: Match the required length and wiring version to supermarket or store lighting runs.
  • Hospitality Service Areas: Coordinate the chosen glass appearance with hotel or restaurant support-space fixtures.
  • Protected Parking Fixtures: Install the approved tube inside compatible enclosed or protected luminaires used in garage areas.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What is the difference between clear and milky glass?

Clear glass keeps the LED line more visible, while milky glass diffuses the source for a softer appearance.

What is the difference between the 1xx and 3xx models?

The 1xx models use plastic G13 end caps, while the paired 3xx models use aluminium G13 end caps at the same length and rated power.

Can the tube use single-ended or double-ended input?

Yes. Both input methods are available, but the tube and lampholder wiring must use the same configuration. Follow the diagram for the ordered version.

Which voltage and power-factor versions are available?

The S version uses AC 180–265 V with PF above 0.5, while the U version uses AC 85–265 V with PF above 0.9.

Can it replace a fluorescent tube in an existing fixture?

Only after the existing ballast, starter, lampholders and wiring are identified. Use the approved retrofit diagram for the selected input version and have the circuit checked before installation.

What lifetime and warranty apply to this series?

The service reference is above 25,000 hours with a two-year warranty. Confirm the operating conditions and warranty terms for the order.
