House-Number Solar Wall Light – XGYSWL-HNBP-E0.3
- Visitor-Facing Marker: A prominent front field helps guests and delivery personnel distinguish the destination after dark.
- No Lighting-Circuit Cable Run: Daylight collection and onboard storage support entrance marking where a mains lighting feed is impractical.
- Managed Night Output: Internal discharge programming allocates stored energy across the intended operating period.
| Dimensions | 300 x 150 x 81 mm |
|---|---|
| Light Output | 30 lm; 3000-6500 K; CRI 70/80 |
| Solar / Battery | 5.5 V / 1.5 W monocrystalline / 18650 2000 mAh |
| Control / Display | House-number display; smart discharge curve |
|---|---|
| Body / Protection | SPCC iron + PC / IP54 |
Technical Specifications
Model Specifications
| Model | Size | Solar | Display / Control | Output | Battery | Light / Timing | Body / IP |
|---|---|---|---|---|---|---|---|
| XGYSWL-HNBP-E0.3 | 300×150×81 mm | 5.5V / 1.5W mono | House no.; smart discharge | 30 lm | 18650 2000mAh | 3000–6500K; CRI70/80; 6–8h charge; 8–10h work | SPCC+PC; IP54 |
No-flicker operation is specified. Confirm rated power for the selected order configuration before production.
Product Description
Product Details

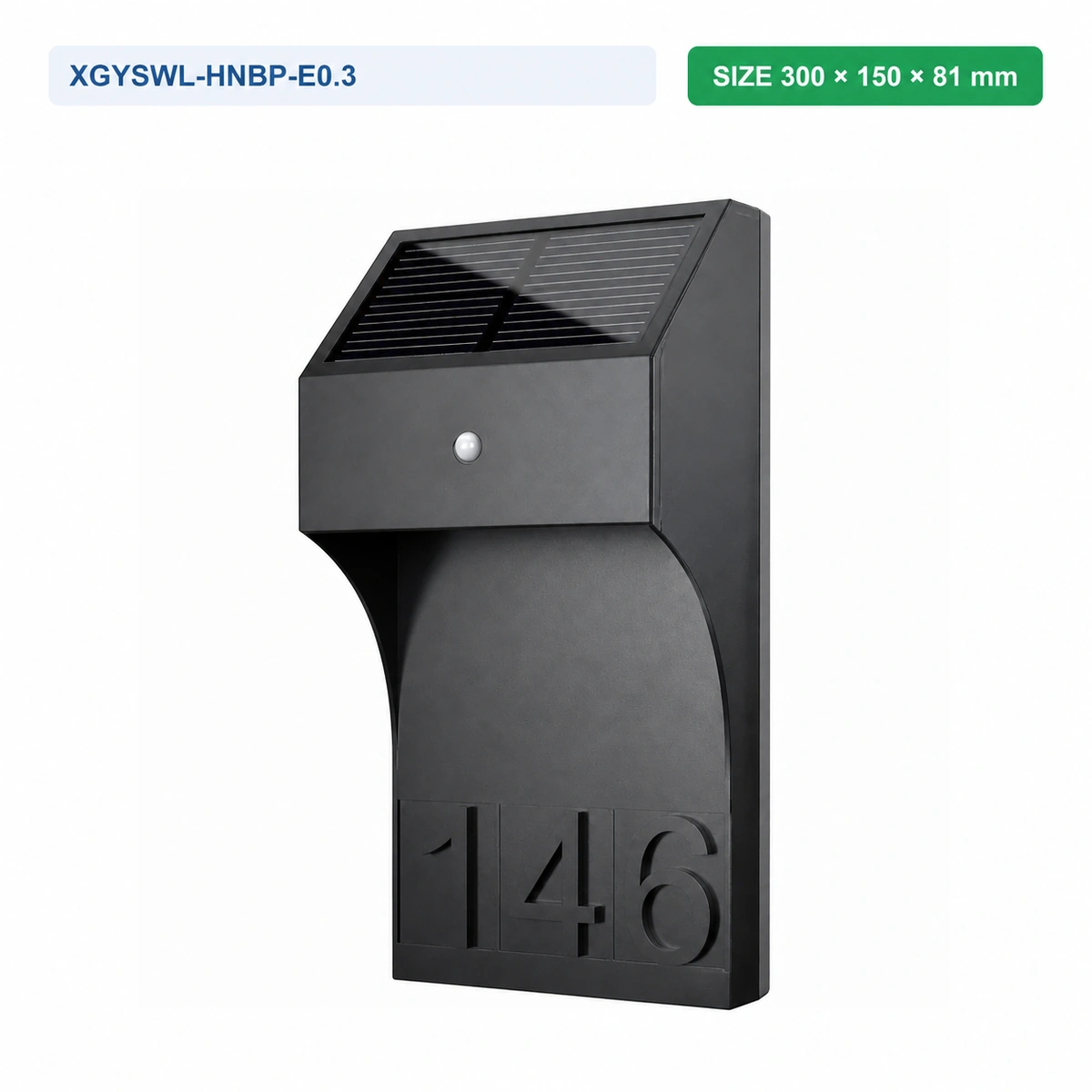

Product Construction
An angled upper energy-collection surface sits above a circular front element, curved lower light outlet and tall character plate. The SPCC iron and PC body houses the lighting and energy-storage components inside a 300 × 150 × 81 mm wall-mounted form.
Selection & Installation Notes
Confirm the available wall area, required address characters and final light-color selection before ordering. Fix the unit vertically in unobstructed daylight, preserve drainage around the enclosure and seal field penetrations independently. Compare related products in our solar wall lights range.
Recommended Application
Applications

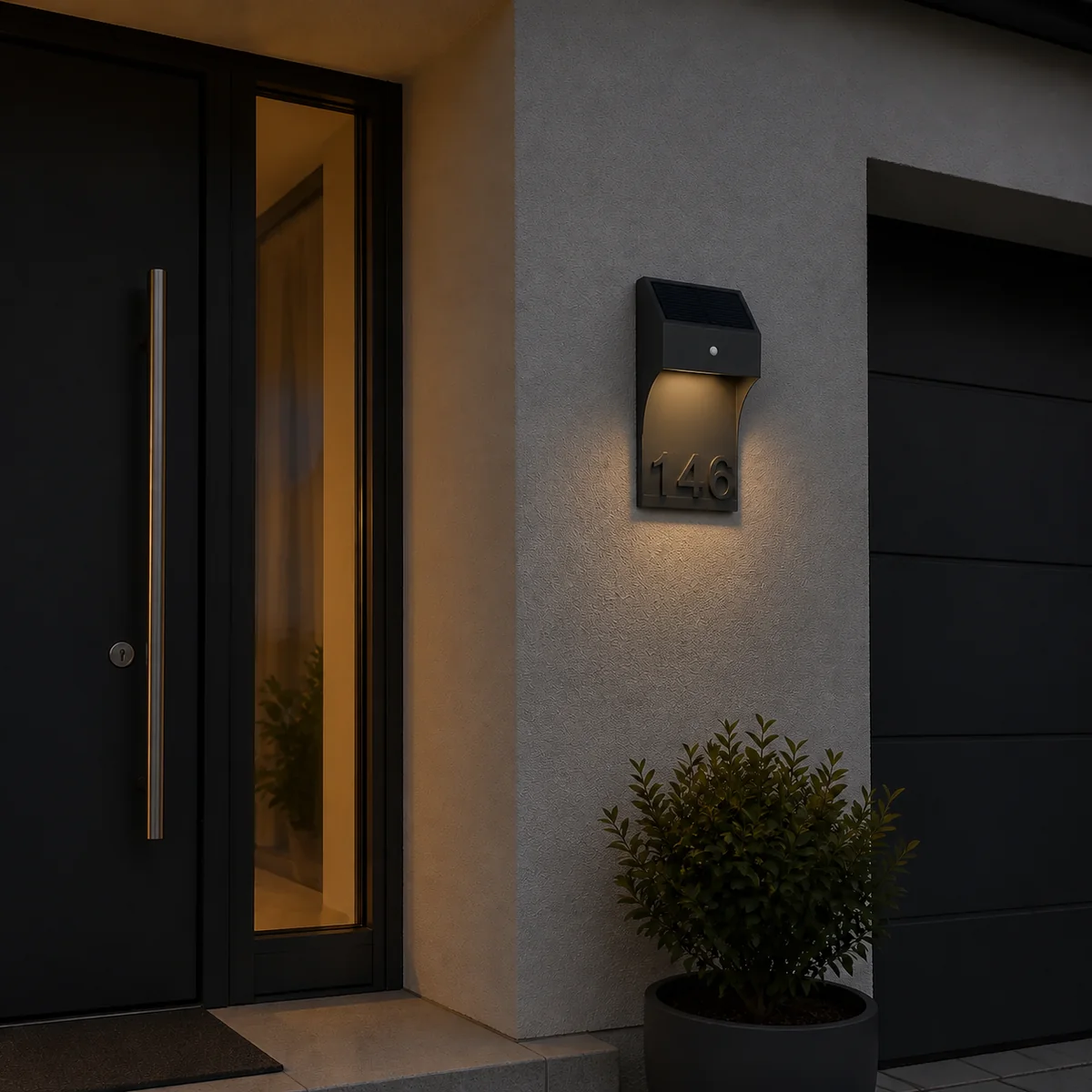

- Home Entrances: Localized lighting and a visible address marker support residential doorways.
- Gate Walls: The display identifies a property number on a sun-exposed wall without a mains lighting cable.
- Garage Side Doors: Low-output orientation lighting and address identification support secondary access points.
- Guesthouse Entries: The character plate marks room, cottage or building numbers at individual outdoor entrances.
