IP65 Solar Wall Lantern with Motion Sensor

XGYSWL-MYSW-HY04-E6.7 is a 6.7 W IP65 solar wall lantern with a 900 lm maximum output, integrated solar charging, and light and motion sensing.

No-Mains Boundary Lighting: The integrated energy system supports fixed exterior illumination without a mains supply cable.
Broad Rectangular Diffuser: The large front luminous face spreads light across the nearby wall and approach area.
Protected Sensor Position: The button and sensing element sit below the diffuser within the rear frame.
Lantern-Style Integrated Body: Charging, energy storage, sensing and illumination are contained in one rectangular wall unit.

Dimensions	222×148×91 mm
Rated Power / Maximum Output	6.7 W / 900 lm max
Solar Panel	5 V / 2.5 W

Battery	18650 3600 mAh
Housing / Protection	ABS + PC / IP65
Sensor	Light / motion sensor

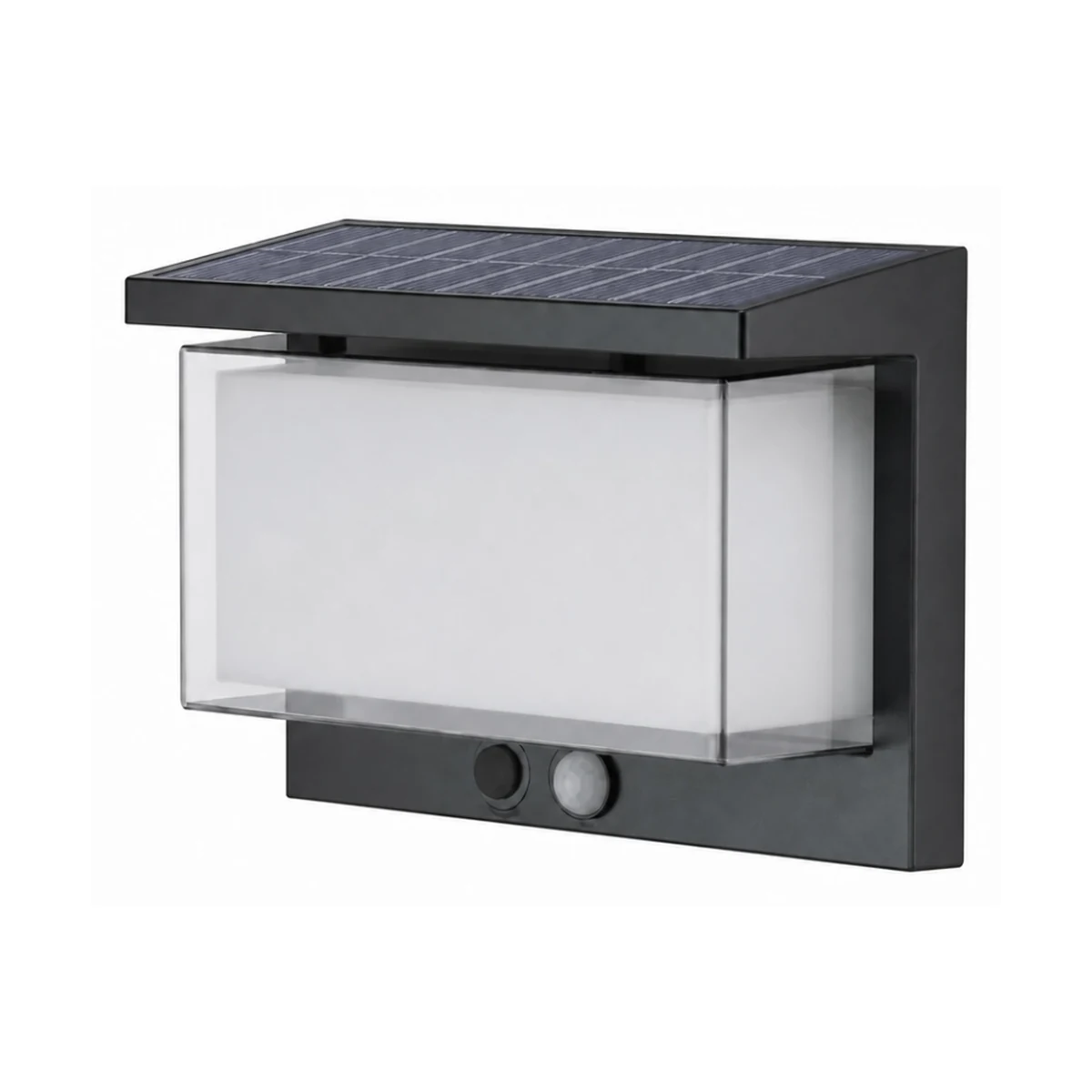

Black rectangular solar wall lantern with motion sensor on white background

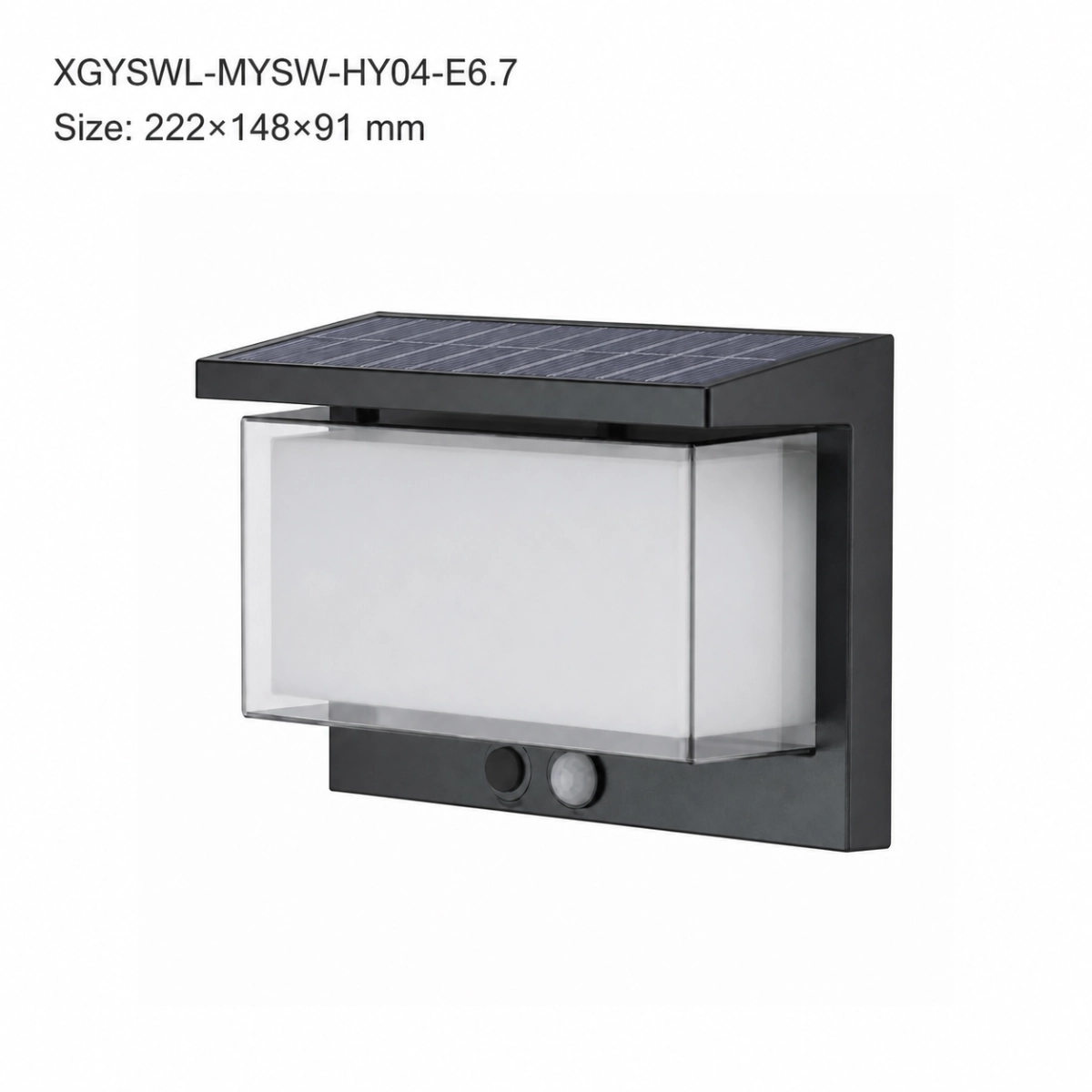

XGYSWL-MYSW-HY04-E6.7 IP65 solar wall lantern, 222×148×91 mm

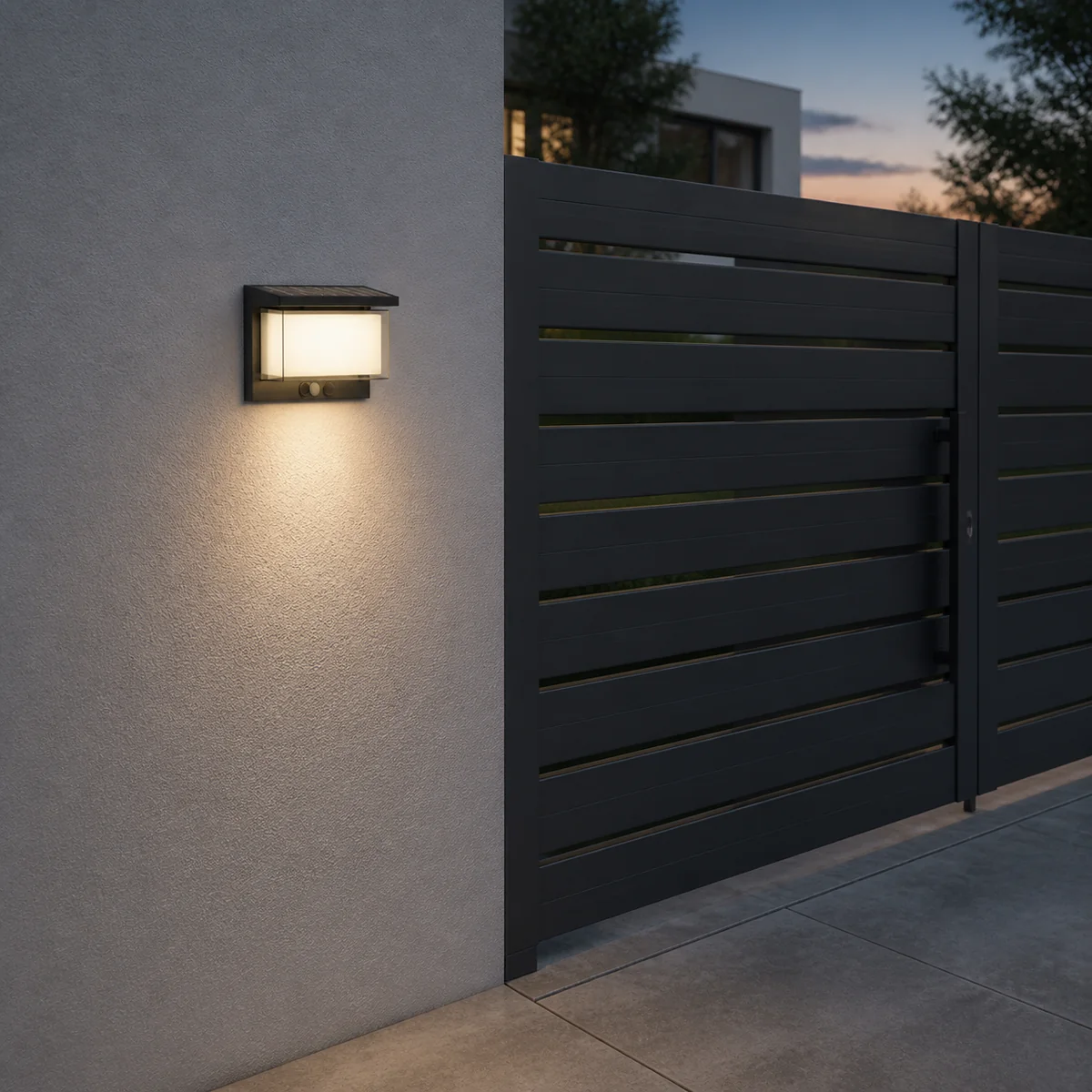

XGYSWL-MYSW-HY04-E6.7 solar wall lantern installed beside a residential boundary gate

Technical Specifications

Model Specifications

Model	Dimensions	Rated Power	Maximum Output	Solar Panel	Battery	Housing / Protection	Sensor
XGYSWL-MYSW-HY04-E6.7	222×148×91 mm	6.7 W	900 lm max	5 V / 2.5 W	18650 3600 mAh	ABS + PC / IP65	Light / motion sensor

Product Description

Product Details

Product Construction

The 222 × 148 × 91 mm housing uses ABS and PC components in a fixed wall-mounted lantern form.

Selection & Installation Notes

Choose a stable fixing surface with unobstructed daylight exposure, allow clearance around the projecting body, and preserve the IP65 sealing arrangement during mounting. Confirm the required detection sequence and timing before ordering. Compare related products in our solar wall lights range.

Recommended Application

Applications

Boundary Walls: Provides solar-powered illumination beside gates and residential boundary routes.
Residential Entrances: Adds sensor-assisted lighting beside exterior doors and arrival points.
Garden Access: Supports movement-responsive lighting along wall-lined garden access areas.
Remote Outbuildings: Provides fixed exterior lighting where a suitable daylight position is available.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What output does this solar wall light provide?

The XGYSWL-MYSW-HY04-E6.7 is rated at 6.7 W with a maximum output of 900 lm.

Where should the solar panel be positioned?

Position the integrated panel where it receives useful daylight and is not persistently shaded by eaves, walls, or vegetation.

Which sensors are integrated?

The product includes light and motion sensing. Confirm the required mode sequence, hold time and detection range in the order specification.

What does the IP65 rating mean for installation?

IP65 is the ingress-protection rating. Preserve the enclosure sealing and use an appropriate fixed mounting method on the exterior wall.

What battery is used?

It uses an 18650 battery rated at 3600 mAh.

Does the standard product include selectable sensor modes?

Selectable sensor modes are not confirmed for the standard configuration. Define any required sensing sequence or timing in the order specification.
