IP65 Open-Frame Solar Wall Light with Motion Sensor

XGYSWL-MYSW-ST01-E2.5 is a 2.5 W IP65 open-frame solar wall light with 250 lm output, integrated solar charging, and light and motion sensing.

Open Rectangular Frame: The outer perimeter leaves a clear central opening around the lamp body.
Separated Collection and Emission Planes: The charging face and output aperture occupy distinct surfaces.
Upright Framed Body: The enclosure follows a vertical wall-mounted proportion within the open perimeter.
Contrasting Translucent Lens: Dark opaque sections frame the light-emitting area.

Dimensions	163 × 111 × 100 mm
Rated Power / Maximum Output	2.5 W / 250 lm
Solar Panel	5.5 V / 1.5 W

Battery	18650 1200 mAh
Housing / Protection	ABS + PP / IP65
Sensor	Light / motion sensor

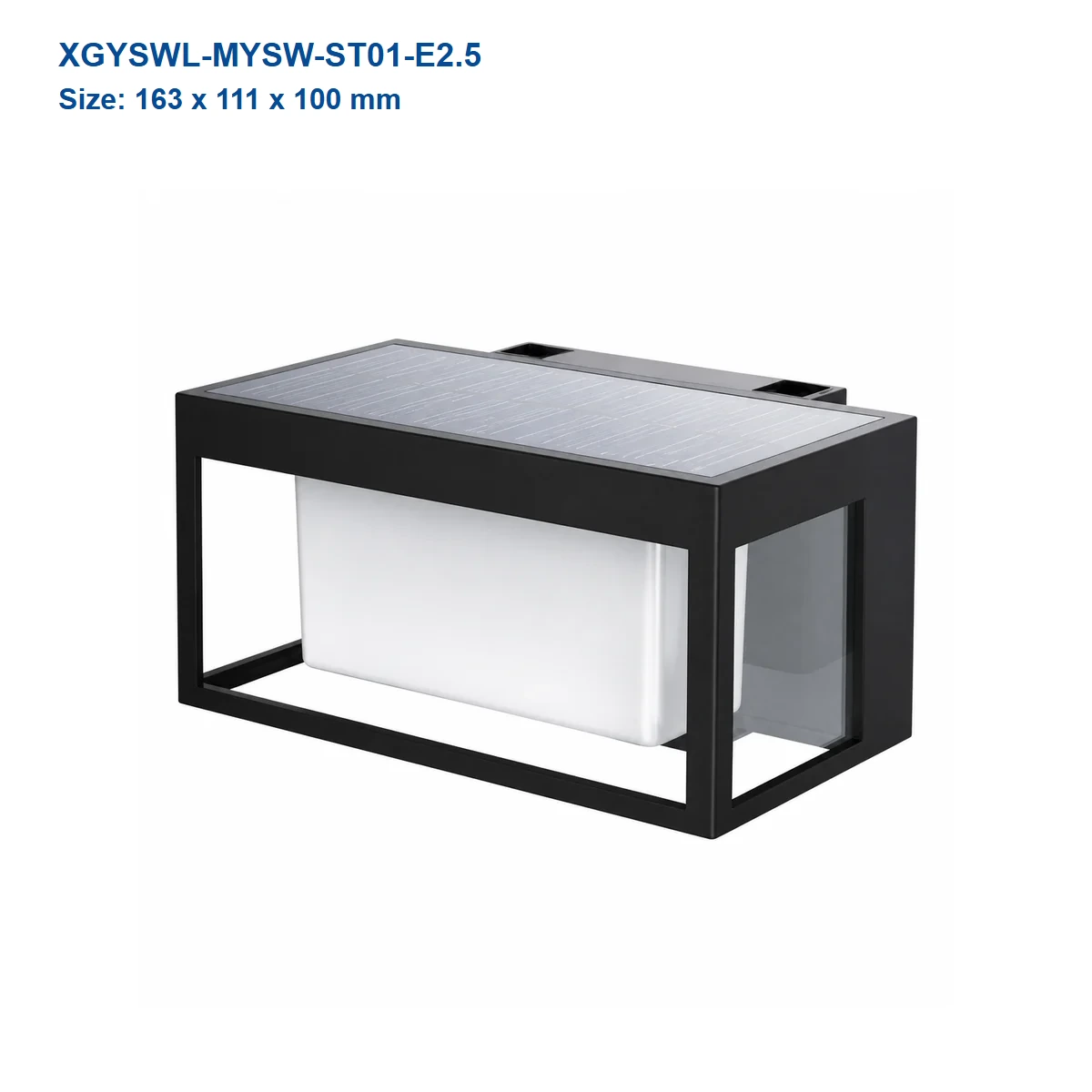

XGYSWL-MYSW-ST01-E2.5 open-frame solar wall light, 163 x 111 x 100 mm

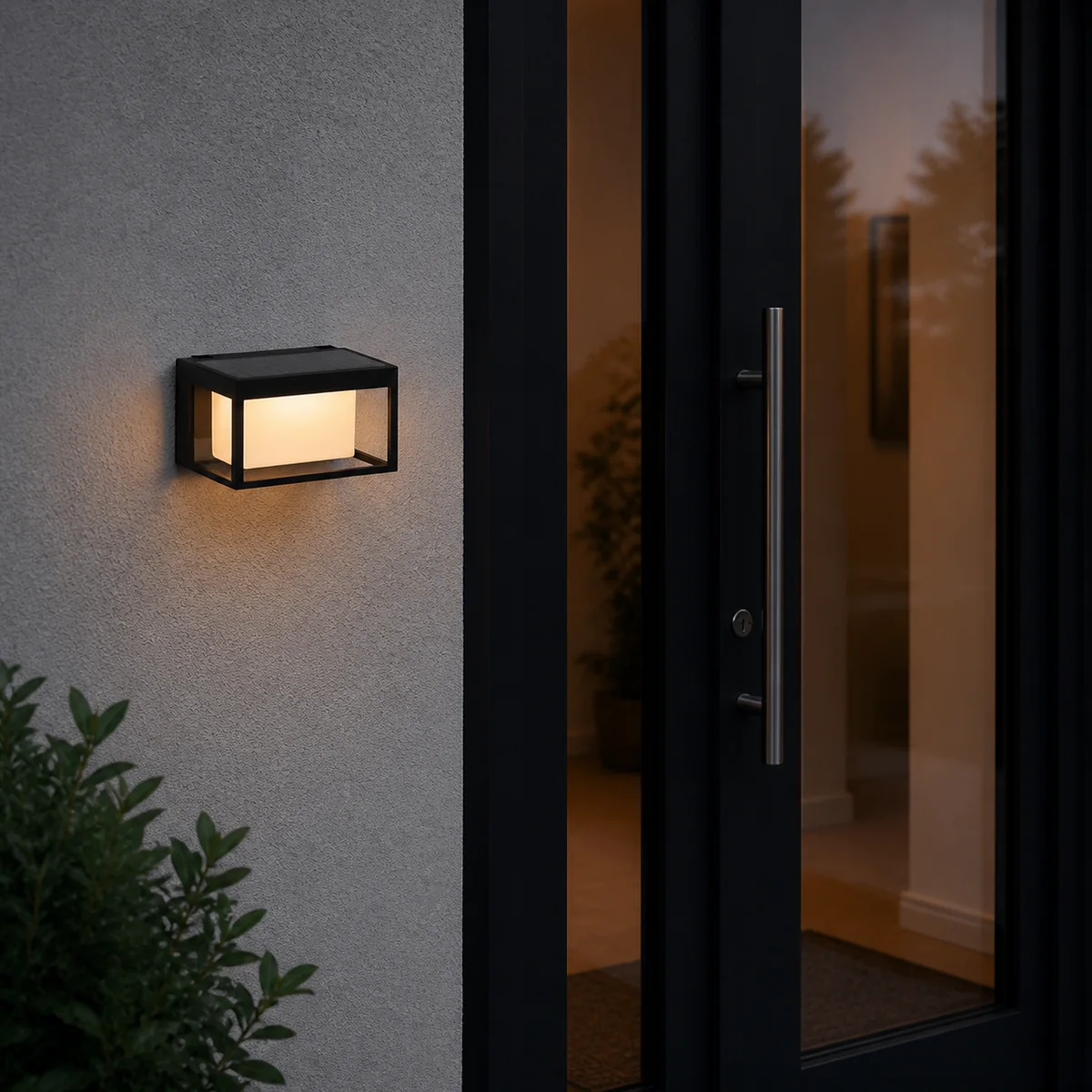

XGYSWL-MYSW-ST01-E2.5 open-frame solar wall light installed on an exterior wall

Technical Specifications

Model Specifications

Model	Dimensions	Rated Power	Maximum Output	Solar Panel	Battery	Housing / Protection	Sensor
XGYSWL-MYSW-ST01-E2.5	163 × 111 × 100 mm	2.5 W	250 lm	5.5 V / 1.5 W	18650 1200 mAh	ABS + PP / IP65	Light / motion sensor

Product Description

Product Details

Product Construction

This fixed assembly houses the operating components within a single exterior enclosure.

Selection & Installation Notes

Select a stable wall position with useful daylight exposure and preserve the IP65 enclosure arrangement during mounting. Define the required detection range, hold time and operating sequence in the order specification. Compare related products in our solar wall lights range.

Recommended Application

Applications

Residential Entrances: Adds sensor-assisted solar lighting beside exterior doors and arrival points.
Garden Paths: Provides local wall-mounted illumination beside garden circulation routes.
Courtyard Walls: Adds fixed solar lighting around residential courtyard boundaries.
Side Passages: Supports movement-responsive illumination along narrow exterior passages.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What output does this solar wall light provide?

The XGYSWL-MYSW-ST01-E2.5 is rated at 2.5 W with an output of 250 lm.

What solar panel and battery are used?

It combines a 5.5 V / 1.5 W solar panel with one 18650 battery rated at 1200 mAh.

Which sensor is included?

The product includes light and motion sensing. Define the required detection range, hold time and operating sequence in the order specification.

Where should the solar panel be positioned?

Position the solar surface where it receives useful daylight and is not persistently shaded by eaves, walls or vegetation.

What does IP65 require during installation?

IP65 is the ingress-protection rating. Preserve the enclosure sealing and use an appropriate fixed wall-mounting method.

What housing materials are used?

The housing uses ABS and PP.
