XGYSWL-STRP-E0.15 IP54 Solar Wall Light

The XGYSWL-STRP-E0.15 is a compact IP54 solar wall light with a 30 lm output and IR sensor control. Its 5.5 V / 0.7 W monocrystalline panel charges an internal 18650 1200 mAh battery for mains-free outdoor orientation lighting.

Mains-Free Placement: Integrated solar charging supports wall locations without a wired power feed.
Orientation Lighting: The 30 lm output provides low-level guidance around entrances and paths.
Automatic Activation: The IR sensor supports responsive operation along the intended approach route.
Compact Wall Profile: The enclosure fits mounting areas that can accommodate its listed dimensions.

Dimensions	95×85×100 mm
Rated Power / Output	0.15 W / 30 lm
Solar Panel	5.5 V / 0.7 W monocrystalline

Battery	18650 1200 mAh
Body / Protection	SPCC iron + PC / IP54
Sensor / Control	IR sensor

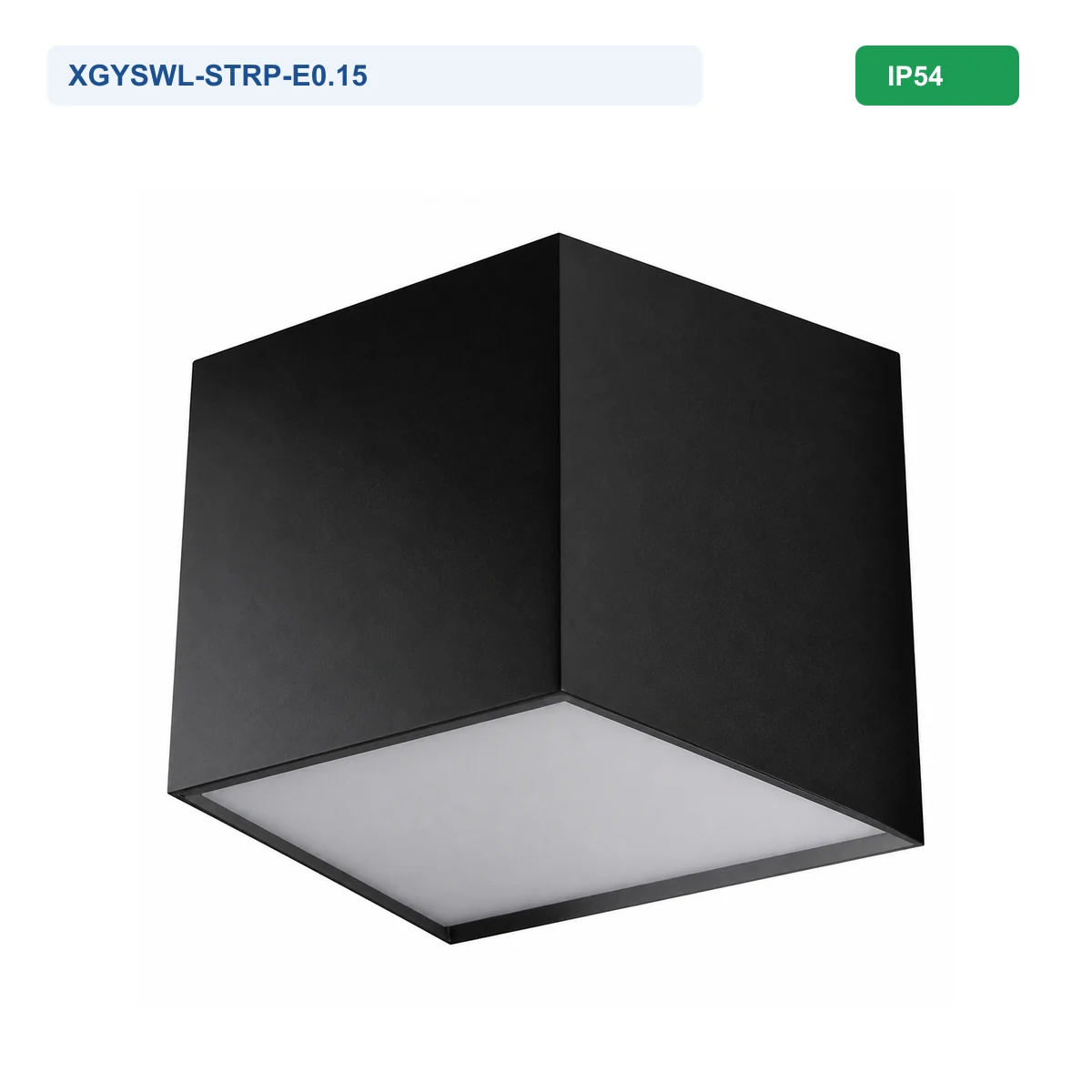

XGYSWL-STRP-E0.15 IP54 solar wall light product image

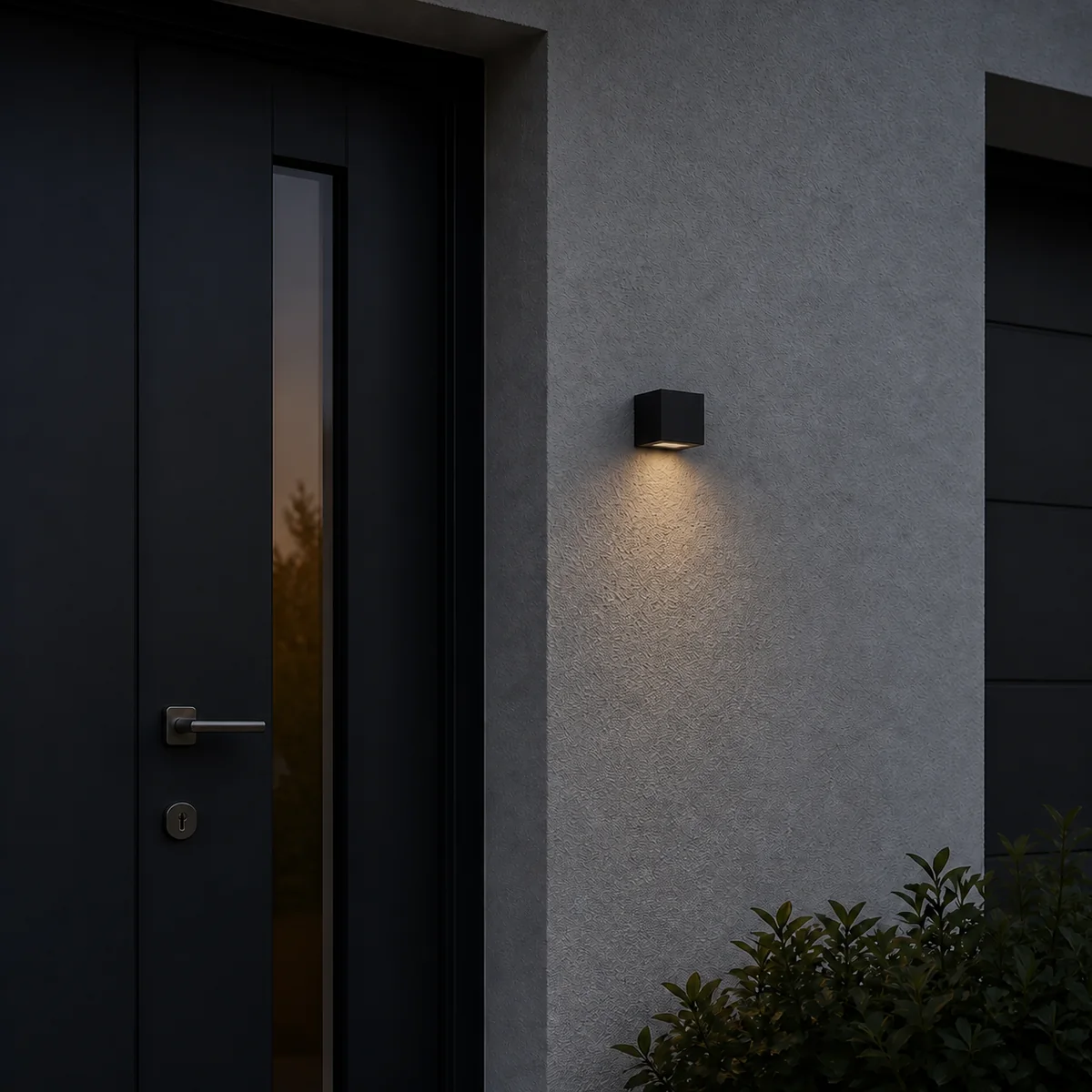

XGYSWL-STRP-E0.15 low-output solar wall light installed beside an exterior entrance at dusk

Technical Specifications

Model Specifications

Model No.	Dimensions	Rated Power	Output	Solar Panel	Battery	Protection
XGYSWL-STRP-E0.15	95×85×100 mm	0.15 W	30 lm	5.5 V / 0.7 W	18650 1200 mAh	IP54

Product Description

Product Details

Product Construction

The XGYSWL-STRP-E0.15 integrates a monocrystalline solar panel, an 18650 battery, an LED light and an IR sensor inside a 95 × 85 × 100 mm SPCC iron and PC enclosure.

Selection & Installation Notes

Mount the panel where it receives unobstructed daylight, with the sensor facing the intended approach route. Confirm wall strength, drainage and the required night operating mode before final fixing. The IP54 rating defines the outdoor exposure boundary. Compare related products in our solar wall lights range.

Recommended Application

Applications

Residential Entrances: Sensor control provides low-level guidance at sun-exposed exterior doorways.
Garden Side Passages: The 30 lm output supports orientation along paths beside homes and small buildings.
Boundary Walls: Solar charging serves wall positions where a mains cable is unavailable.
Outdoor Utility Areas: The compact enclosure suits protected service locations with clear daylight exposure.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

How much direct sun does XGYSWL-STRP-E0.15 need?

Install the panel where it receives unobstructed daylight. Shade, winter sun angle and dirt on the panel reduce the available charging energy.

Will it work through a full night?

Operating time depends on the daily solar charge, battery condition, ambient temperature and selected sensor mode. Verify the required night profile at the installation site.

Where should the sensor face?

Aim the IR sensor toward the expected approach path and away from moving plants, traffic or heat sources that could cause unwanted activation.

Can it be installed in fully exposed rain?

It is rated IP54. Match the mounting position to that rating and keep the product away from water jets or immersion.

What should be checked before fixing the product?

Check wall strength, panel sun exposure, sensor direction, drainage and the required night operating mode before final fixing.

Which OEM/ODM items can be configured?

We can configure supported housing finish, CCT, sensing sequence, labels and packaging after the electrical and environmental sample is approved.
