UGR < 13 LED Backlit Grid Panel
- Shielded Viewing Geometry: Recessed optical cells reduce direct sight of the emitting surface from shallow viewing angles.
- Separated Luminous Zones: Two lengthwise grid strips distinguish the emitting layout from a full-face diffuser panel.
- Low-Depth Backlit Assembly: The 30 mm body supports ceiling projects with limited plenum depth.
- Metric Ceiling Alignment: Square and elongated outlines match common modular ceiling planning patterns.
- Neutral White Perimeter: The white frame integrates with light-colored suspended ceiling systems.
| Glare rating | UGR<13 |
|---|---|
| Beam angle | 60 degrees |
| Available formats | 595 x 595 / 295 x 1195 mm; 30 mm depth |
| Rated power | 18-32 W (Isolated) |
|---|---|
| Luminous efficacy | 80-180 lm/W; customizable |
| Color temperature | 3000-6500 K |
Technical Specifications
Model Specifications
| Model | Dimensions | Rated Power | Efficacy | CCT | CRI Options | Voltage Marking | PF |
|---|---|---|---|---|---|---|---|

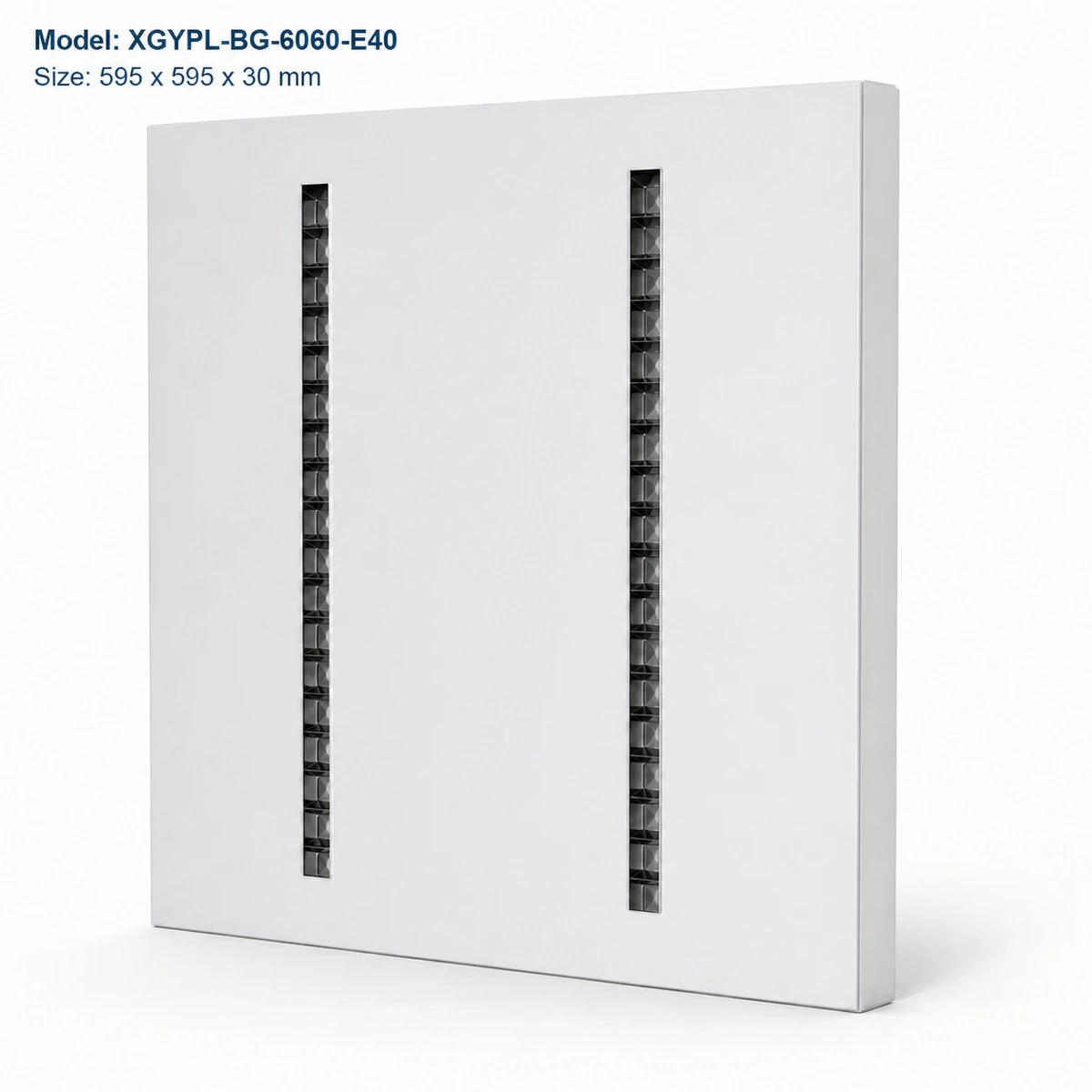

| XGYPL-BG-6060-E40 | 595 x 595 x 30 mm | 18-32 W (Isolated) | 80-180 lm/W | 3000-6500 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |

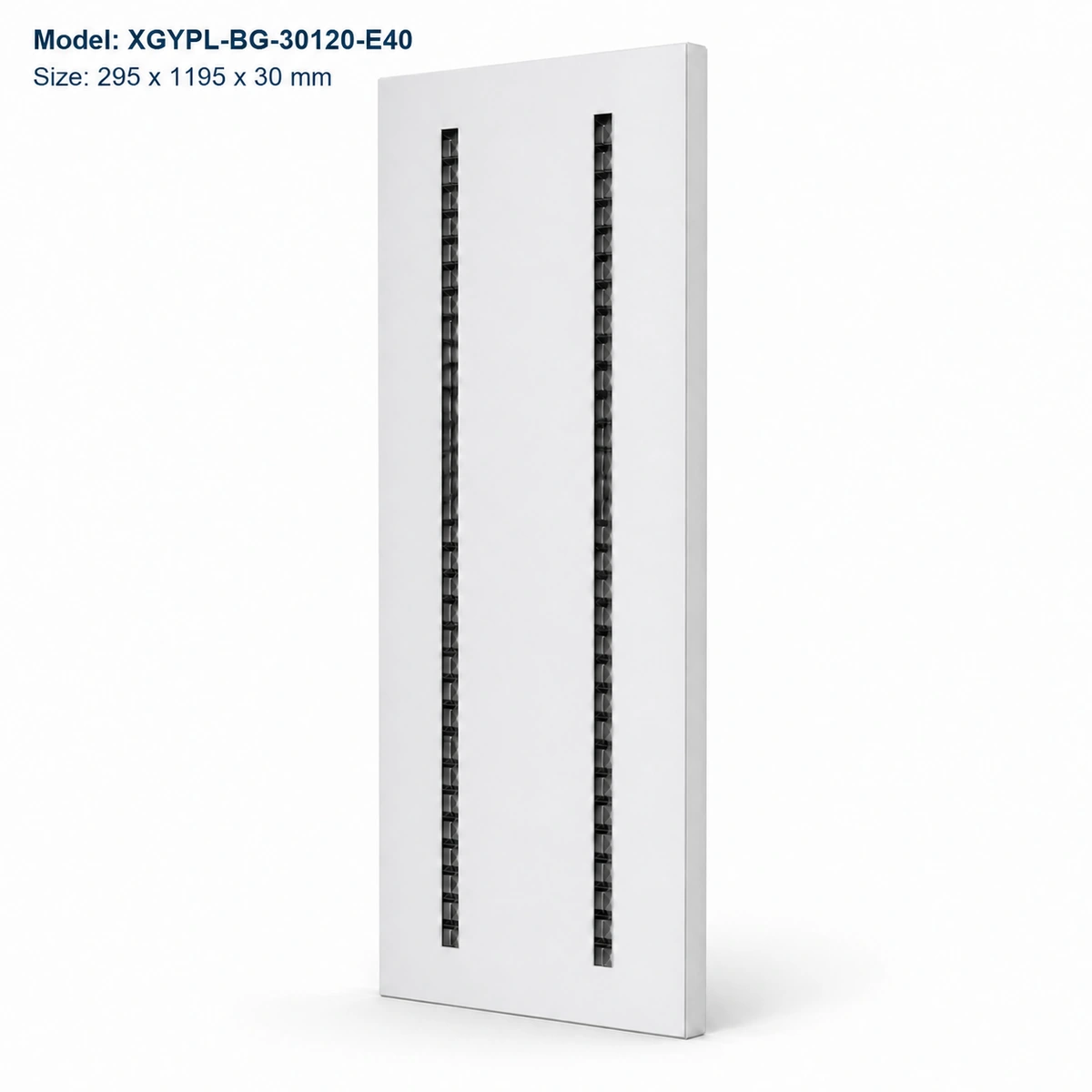

| XGYPL-BG-30120-E40 | 295 x 1195 x 30 mm | 18-32 W (Isolated) | 80-180 lm/W | 3000-6500 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |
UGR<13; 60-degree beam; No Flicker; 50000 h; indoor use; white finish. Luminous efficacy is customizable.
Product Description
Product Details
Product Construction
The rear light chamber feeds paired louver arrays set within a finished perimeter body rather than a continuous luminous face. A 30 mm housing supports square and rectangular ceiling formats, with optical cells dividing the luminous surface into two lengthwise grid sections.
Selection & Installation Notes
Select the exact model by ceiling module, support method and lighting layout. Confirm the required S or U driver marking, supply conditions and accessory scope before ordering. A room-level UGR result also depends on luminaire output, spacing, mounting height, room surfaces and viewing direction. Confirm whether surface mounting needs an accessory frame and whether that frame is included in the order. For other ceiling formats, compare our project-grade LED panels.
Recommended Application
Applications

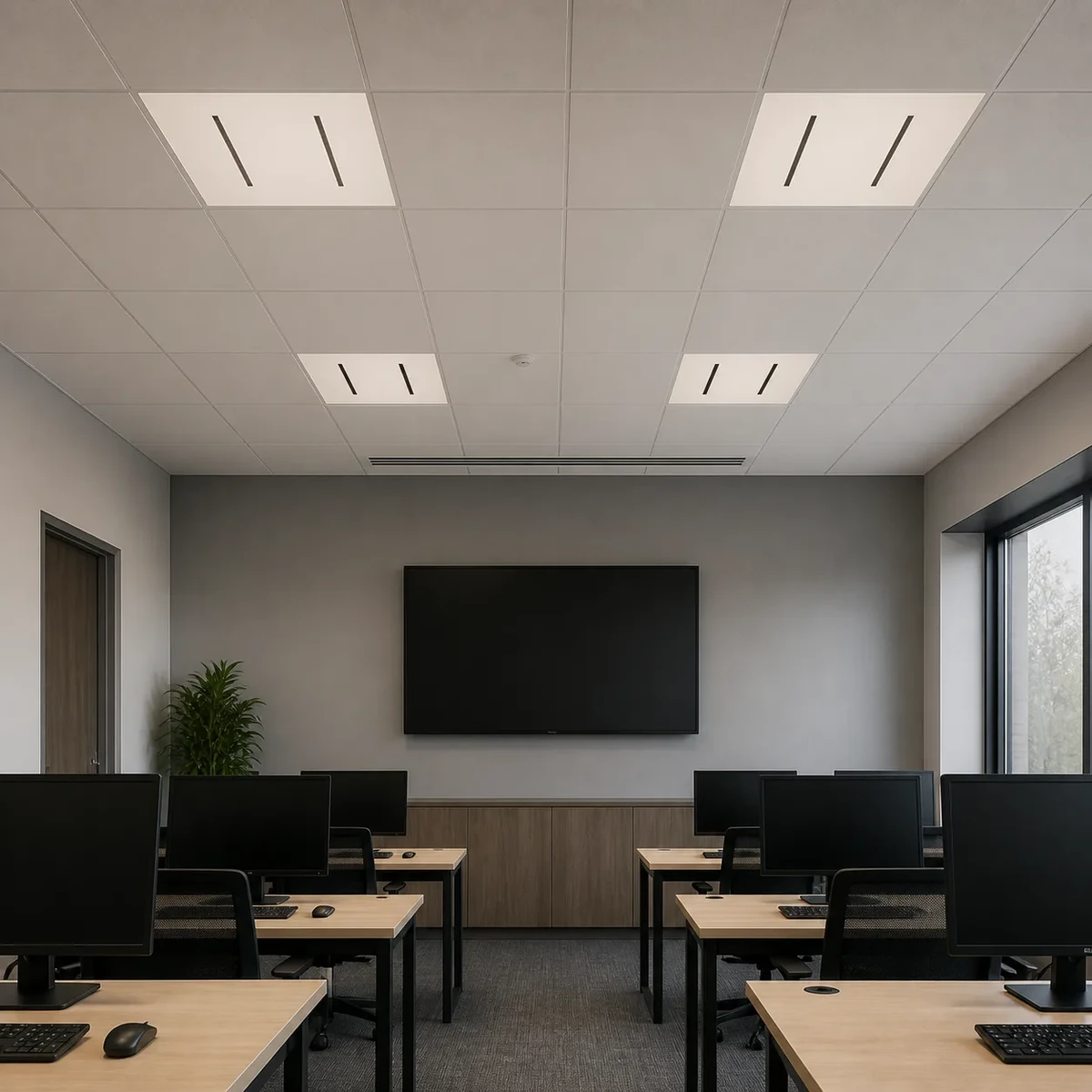

- Computer Training Rooms: Provide controlled ceiling illumination for rows of monitors and teaching displays.
- Control Rooms: Use low-glare panel layouts around operator desks and continuous screen-based work.
- Libraries and Study Areas: Provide focused general lighting for reading desks and quiet study zones.
- Meeting Rooms: Use grid-panel lighting for seated discussions, presentations and wall displays.
