Slim LED Side-Emission Panel
- 9 mm Side-Emission Body: Edge-fed light distribution keeps the optical panel shallow.
- Four Metric Formats: Square and rectangular sizes cover several common ceiling-grid layouts.
- Separate Driver Arrangement: The driver remains outside the slim optical body for ceiling-void installation.
- Optional Glare Configuration: A low-glare option can be specified for screen-based and task-oriented interiors.
| Construction | Side-emission light-guide panel |
|---|---|
| Housing depth | 9 mm |
| Panel formats | 595×595 / 620×620 / 295×1195 / 595×1195 mm |
| Rated power | 24–60 W / 50–72 W |
| Luminous efficacy | 80–160 lm/W |
|---|---|
| CCT | 3000–6500 K |
| Rated life | 50,000 h |
Technical Specifications
Model Specifications
| Model No. | Dimensions (mm) | Rated Power | Efficacy | CCT | Housing Depth |
|---|---|---|---|---|---|
| XGYPL-SE-6060-E40 | 595×595×9 | 24–60 W | 80–160 lm/W | 3000–6500 K | 9 mm |
| XGYPL-SE-6262-E40 | 620×620×9 | 24–60 W | 80–160 lm/W | 3000–6500 K | 9 mm |
| XGYPL-SE-30120-E40 | 295×1195×9 | 24–60 W | 80–160 lm/W | 3000–6500 K | 9 mm |
| XGYPL-SE-60120-E60 | 595×1195×9 | 50–72 W | 80–160 lm/W | 3000–6500 K | 9 mm |
Product Description
Product Details
Product Construction
The side-emission assembly guides light from the perimeter through a flat optical plate inside a 9 mm panel body. A separate driver sits outside the optical body, while four square and rectangular formats share the same slim ceiling profile.
Selection & Installation Notes
Choose the exact panel format for the measured ceiling grid, then confirm support, cable routing and accessible space for the separate driver. Specify the ordered power, efficacy target, CCT, CRI, driver and optional glare configuration before sampling. Treat the listed power values as order options unless a field-selectable driver is specifically approved. For related low-glare and sensor-ready formats, compare our project-grade LED panels.
Recommended Application
Applications
- Offices and Meeting Rooms: Use slim ceiling panels for workstation areas, meeting spaces and presentation rooms.

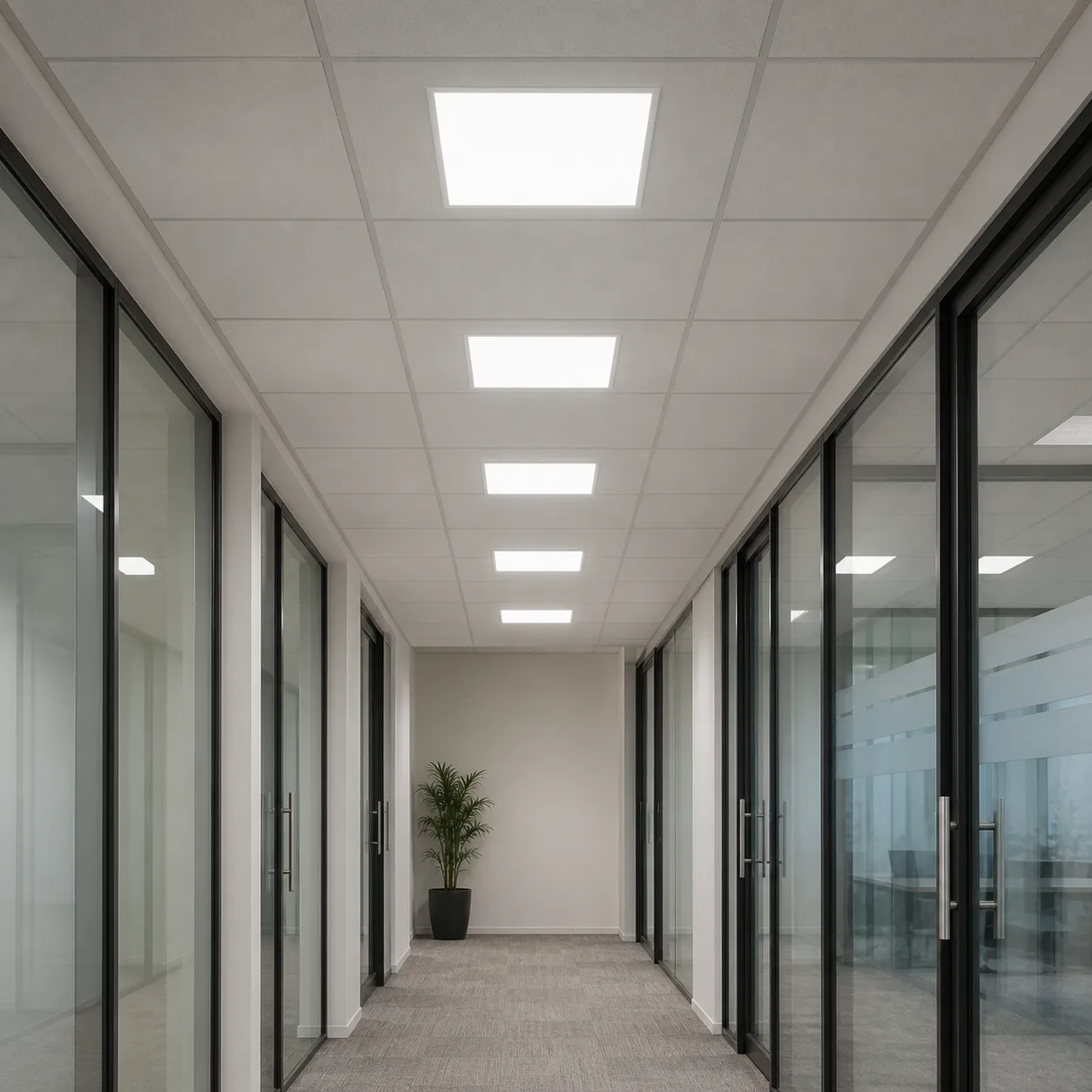

- Corridors and Reception Areas: The 9 mm optical body suits indoor circulation and welcome spaces with shallow ceiling details.
- Schools and Libraries: Square and linear formats support classrooms, study areas and circulation zones.
- Replacement Ceiling Grids: Four metric formats cover common square and rectangular module layouts.
