North American LED Backlit Panel with CCT Options
- Regional Ceiling Alignment: Square, narrow-linear and wide-linear formats address North American ceiling-module proportions.

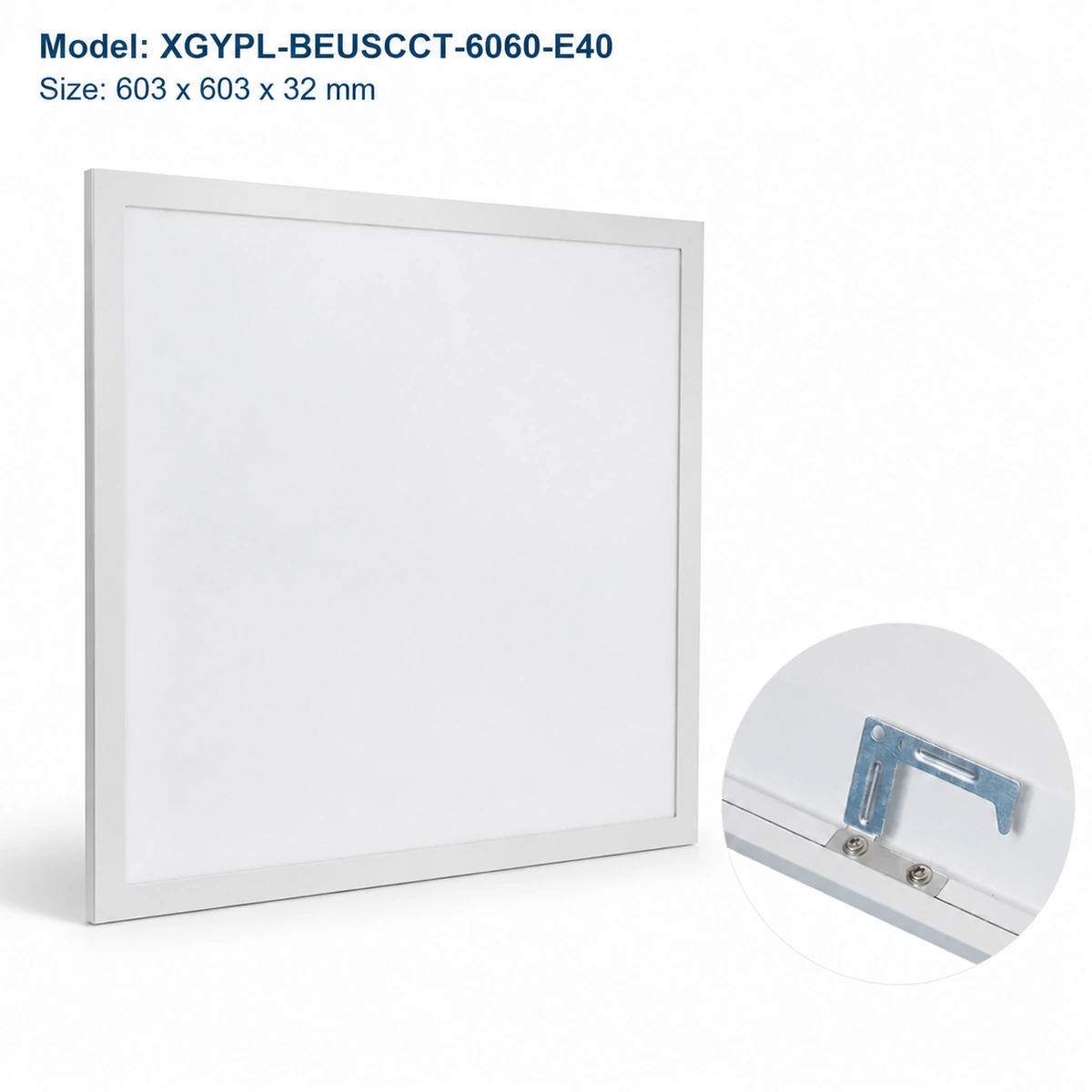

- Rear Support Layout: The formed backplate provides discrete perimeter support points for the assembled panel.
- Model-Specific Fit: Each footprint keeps a dedicated model so replacement selection follows measured grid geometry.
- Clean Luminous Face: A narrow white frame maintains a consistent ceiling boundary across all three proportions.
| Panel formats | 603 x 603 / 303 x 1213 / 603 x 1213 mm |
|---|---|
| Rated power | 20-40 W (Isolated) |
| Luminous efficacy | 110-150 lm/W; customizable |
| CCT options | 3000 / 4000 / 5000 K |
|---|---|
| Housing depth | 32 mm |
| Dimming options | Triac / 0-10 V |
Technical Specifications
Model Specifications
| Model | Dimensions | Rated Power | Efficacy | CCT Options | CRI Options | Voltage Marking | PF |
|---|---|---|---|---|---|---|---|
| XGYPL-BEUSCCT-6060-E40 | 603 x 603 x 32 mm | 20-40 W (Isolated) | 110-150 lm/W | 3000/4000/5000 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |
| XGYPL-BEUSCCT-30120-E40 | 303 x 1213 x 32 mm | 20-40 W (Isolated) | 110-150 lm/W | 3000/4000/5000 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |
| XGYPL-BEUSCCT-60120-E60 | 603 x 1213 x 32 mm | 20-40 W (Isolated) | 110-150 lm/W | 3000/4000/5000 K | Ra80/90 | S:220-240 V / U:100-240 V | 0.5/0.9 |
Series-wide features: No Flicker, Triac / 0-10 V dimming, 50000 h, indoor use, white finish and 112-degree beam. Luminous efficacy is customizable.
Product Description
Product Details
Product Construction
The XGYPL-BEUSCCT assembly uses a 32 mm backlit body. The family is specified with No Flicker, Ra80/90 options, 50000 h lifetime and indoor use.
Selection & Installation Notes
Measure the actual tee spacing and available depth before choosing the exact model. Confirm the ordered driver, dimming interface and S- or U-coded version before approval. Treat 20-40 W as a configurable range, not proof of a field wattage switch. For other ceiling dimensions and project configurations, compare our project-grade LED panels.
Recommended Application
Applications
- North American Offices: Match the selected panel footprint to a compatible office ceiling module.
- School Interiors: Use the required format and selected CCT in compatible classroom ceilings.
- Retail Fit-Outs: Coordinate the panel footprint and selected color temperature with the tenant ceiling plan.
- Ceiling Replacements: Measure the existing grid and support layout before selecting the corresponding panel format.
