IP65 Backlit LED Panel

IP65 backlit LED panels with a 30 mm housing are available in four square and rectangular formats for damp or dusty indoor ceiling installations.

IP65 Protection: Sealed panel construction resists dust and water ingress in indoor installations.
Back-Emission Optics: LEDs sit behind the front diffuser in the deeper BE panel body.
Wide-Angle Distribution: A 112° beam angle provides broad general illumination from the ceiling.

Protection	IP65 / Indoor
Construction	30 mm backlit housing
Rated power	24–60 W

Luminous efficacy	80–180 lm/W, configurable
CCT / CRI	3000–6500 K / Ra80 or Ra90
Input versions	S: 220–240 V; U: 100–240 V

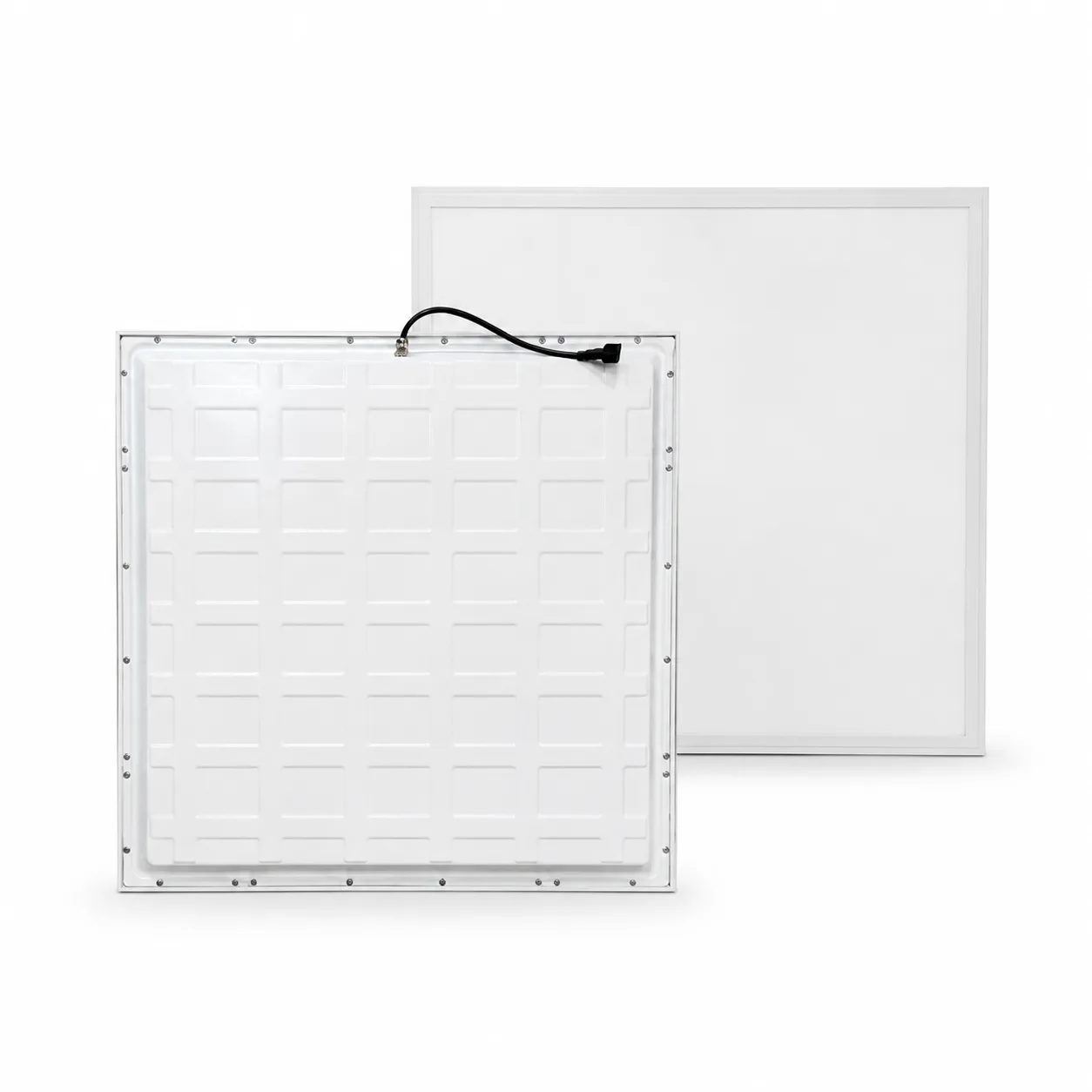

IP65 backlit LED panel shown from the front and 30 mm rear housing

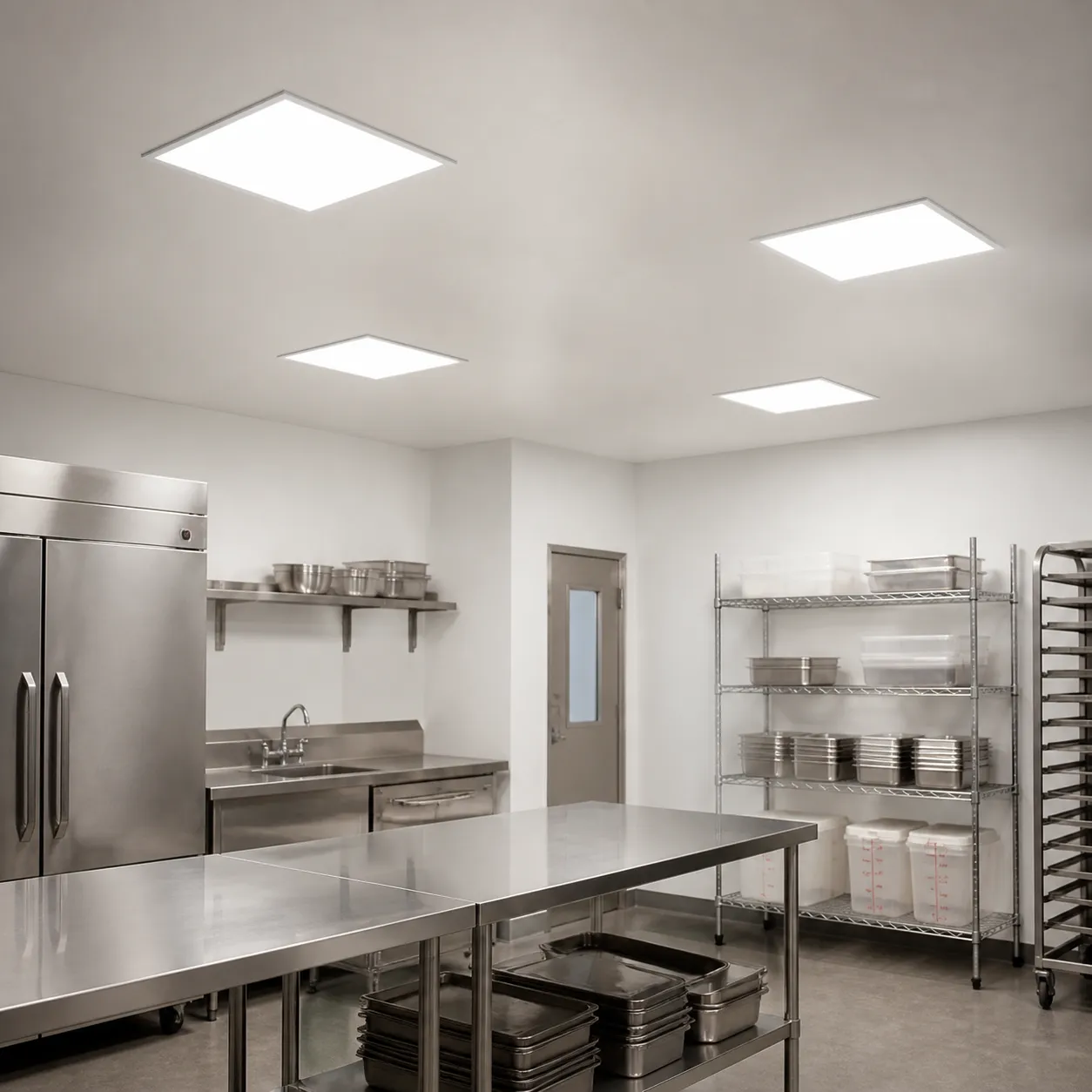

Square IP65 backlit LED panels installed in an indoor commercial preparation room ceiling

Technical Specifications

Model Specifications

Model	Dimensions	Rated Power	Efficacy	CCT
XGYPL-BE-6060-E40	595 x 595 x 30 mm	24-60 W (Isolated)	80–180 lm/W	3000–6500 K
XGYPL-BE-6262-E40	620 x 620 x 30 mm	24-60 W (Isolated)	80–180 lm/W	3000–6500 K
XGYPL-BE-30120-E40	295 x 1195 x 30 mm	24-60 W (Isolated)	80–180 lm/W	3000–6500 K
XGYPL-BE-60120-E60	595 x 1195 x 30 mm	50-60 W (Isolated)	80–180 lm/W	3000–6500 K

Shared Electrical & Optical Specifications
Parameter	Value
Protection / use	IP65 / Indoor
Input versions	S: 220–240 V; U: 100–240 V
CRI options	Ra80 / Ra90
Beam angle	112°
Power factor options	0.5 / 0.9
Rated life	50,000 h
Light output	No flicker
Frame color	White

Power ranges are ordered configurations. Luminous efficacy is customizable. Confirm the selected power, efficacy, CCT, CRI and power factor together with the driver package before production.

Product Description

Product Details

Product Construction

A white perimeter frame surrounds the square or rectangular illuminated surface.

Selection & Installation Notes

Choose the BE family for the backlit version; SE identifies the separate slim version. Match the overall dimensions to the grid or prepared opening and allow space for the driver and cable entry. Driver inclusion, its ingress rating, mounting accessories and sealing at the installation are specified for the order. For other ceiling formats and panel configurations, compare our project-grade LED panels.

Recommended Application

Applications

Commercial Kitchens: Provide ceiling lighting in indoor food-preparation areas exposed to routine moisture.
Service Corridors: Provide general lighting along indoor service and access corridors.
Healthcare Support Areas: Light indoor support rooms and circulation areas used by healthcare staff.
Indoor Utility Rooms: Provide general lighting in indoor maintenance and utility spaces.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

Is the IP65 Backlit LED Panel for indoor or outdoor use?

It is an indoor panel. The panel rating does not establish an outdoor rating for a separate driver, connection or complete ceiling installation.

Is a driver included, and does it have the same IP65 rating?

The driver package is specified with the order. Confirm whether the driver and its enclosure are included and which ingress rating applies to the complete installation.

Which backlit model fits a 600 x 600 mm ceiling grid?

XGYPL-BE-6060-E40 measures 595 x 595 x 30 mm. Check the actual grid module, support method and accessory clearances before ordering.

Is 180 lm/W standard on every backlit panel?

No. Luminous efficacy is configurable within 80–180 lm/W. The order specification sets the selected power, efficacy, CCT and driver combination.

Does IP65 approve pressure washing?

No. IP65 is not blanket approval for pressure washing or aggressive cleaning chemicals. Check the cleaning method against the installed sealing arrangement and project requirements.

Are the S and U input versions interchangeable?

No. S and U are separate ordered input versions: S is 220-240 V and U is 100-240 V. Specify the required version with the driver package before production.
