Rechargeable Magnetic Sensor Light Bars – TQT088 Series
- Remote brightness control: each TQT088 model includes remote dimming.
- Two operating modes: M1 keeps the light on, while M2 uses darkness detection with infrared motion sensing.
- Consistent efficacy: all three length variants are listed at 100 lm/W.
- Wide white-light range: the series covers 3000–6500 K color temperature.
| Body Lengths | 206 / 306 / 406 mm |
|---|---|
| Rated Power | 1 / 1.5 / 2 W |
| Battery Capacity | 1000 / 1500 / 2200 mAh |
| CCT / Efficacy | 3000–6500 K / 100 lm/W |
|---|---|
| Charging / Mounting | Type-C / magnetic adhesive plate |
| Control / Modes | Remote dimming; M1 continuous; M2 darkness + IR sensing |
Technical Specifications
Model Specifications
| Model | Dimensions | Power | Battery | Efficacy | Dimming | CCT | Charging |
|---|---|---|---|---|---|---|---|

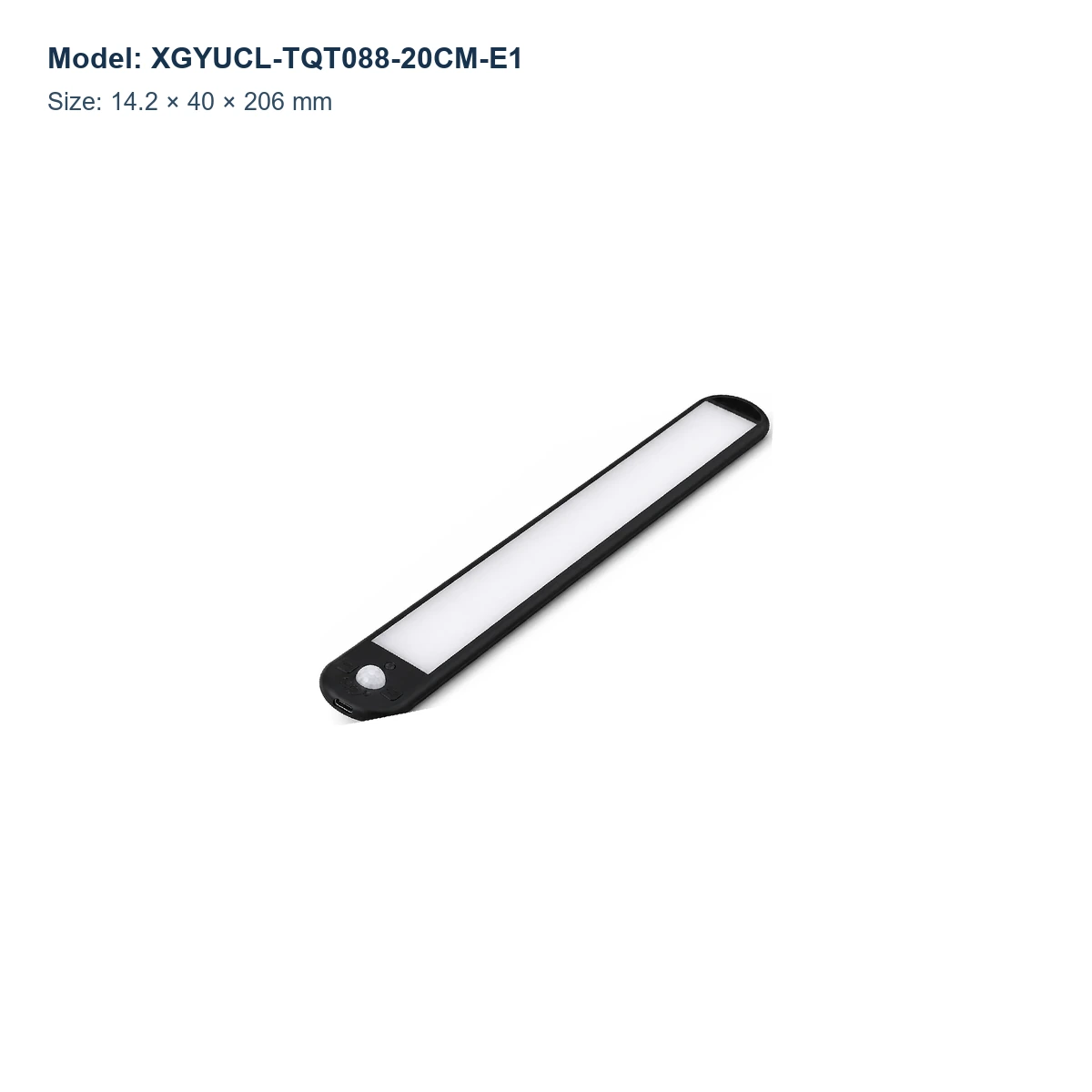

| XGYUCL-TQT088-20CM-E1 | 14.2 × 40 × 206 mm | 1 W | 1000 mAh | 100 lm/W | Remote Dimming | 3000–6500 K | Type-C |

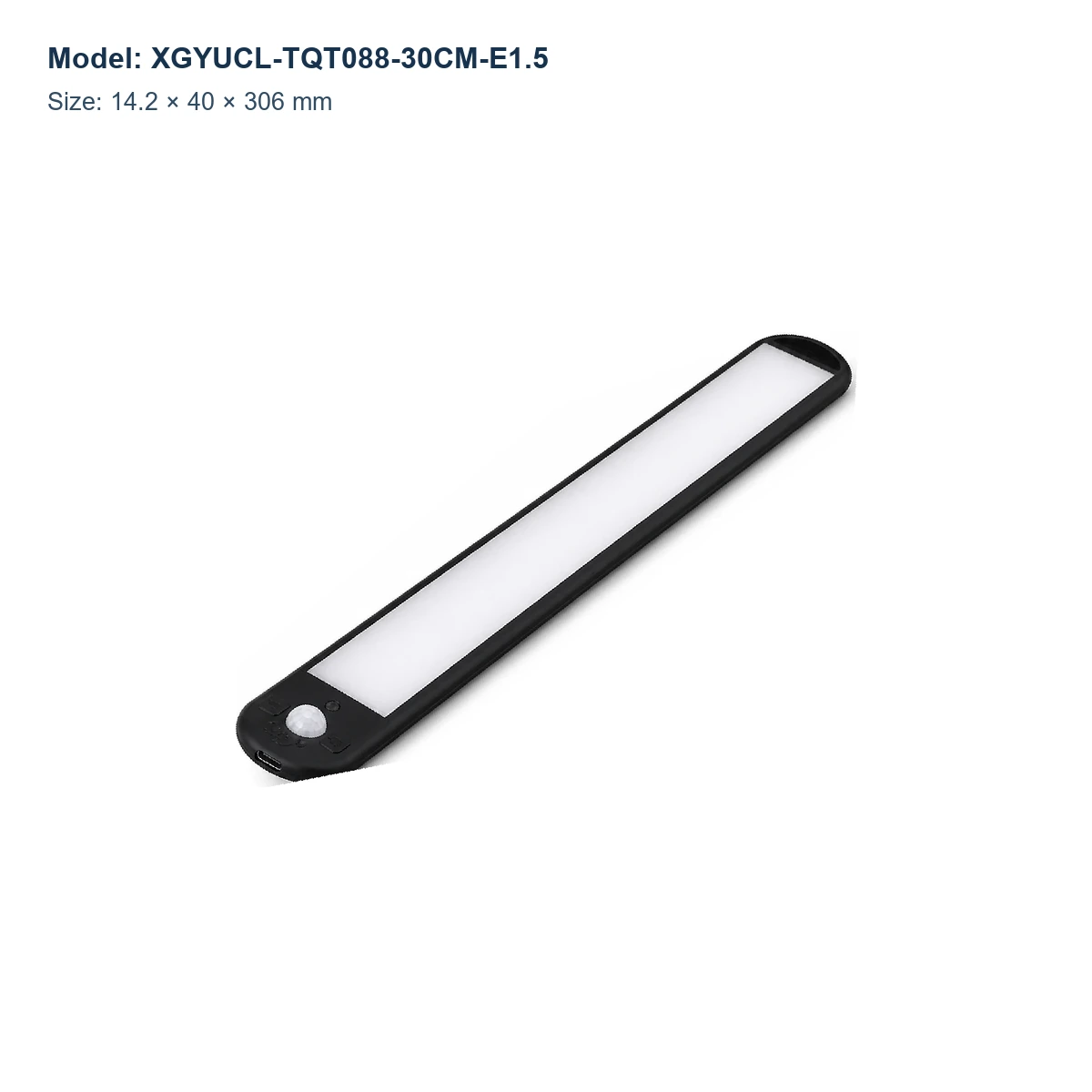

| XGYUCL-TQT088-30CM-E1.5 | 14.2 × 40 × 306 mm | 1.5 W | 1500 mAh | 100 lm/W | Remote Dimming | 3000–6500 K | Type-C |
| XGYUCL-TQT088-40CM-E2 | 14.2 × 40 × 406 mm | 2 W | 2200 mAh | 100 lm/W | Remote Dimming | 3000–6500 K | Type-C |
Product Description
Product Details
Product Construction

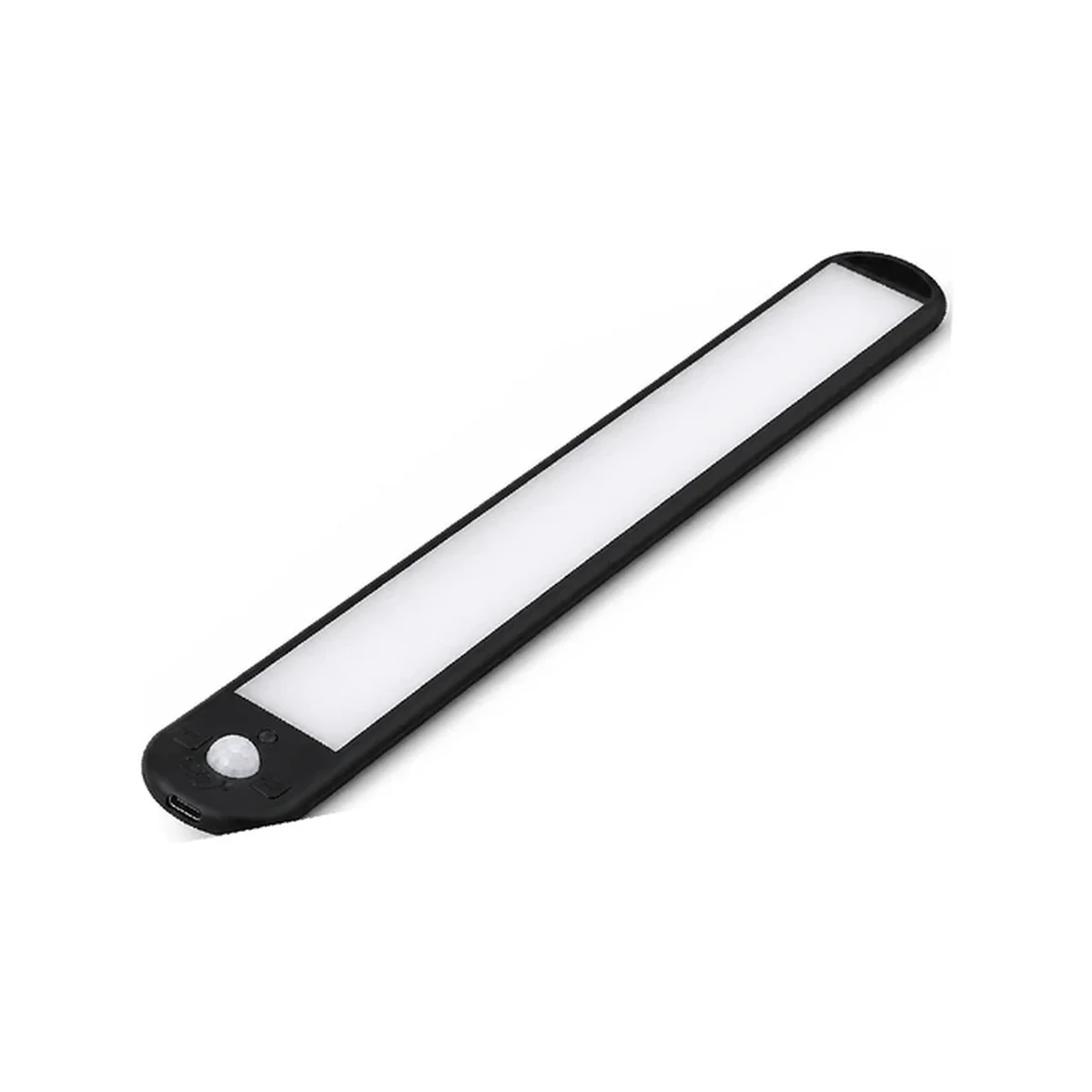

The slim rechargeable body combines an aluminum casing, a PC diffuser, end caps and a Type-C charging port. A separate magnetic adhesive plate remains on the mounting surface while the bar is removed for charging.
Selection & Installation Notes
Select the 206, 306 or 406 mm body by the available mounting space, then match its power and battery capacity. Keep the sensor end clear of cabinet lips and door edges, test the intended approach direction, and clean the surface before fixing the adhesive plate. Compare related products in our cabinet lights range.
Recommended Application
Applications

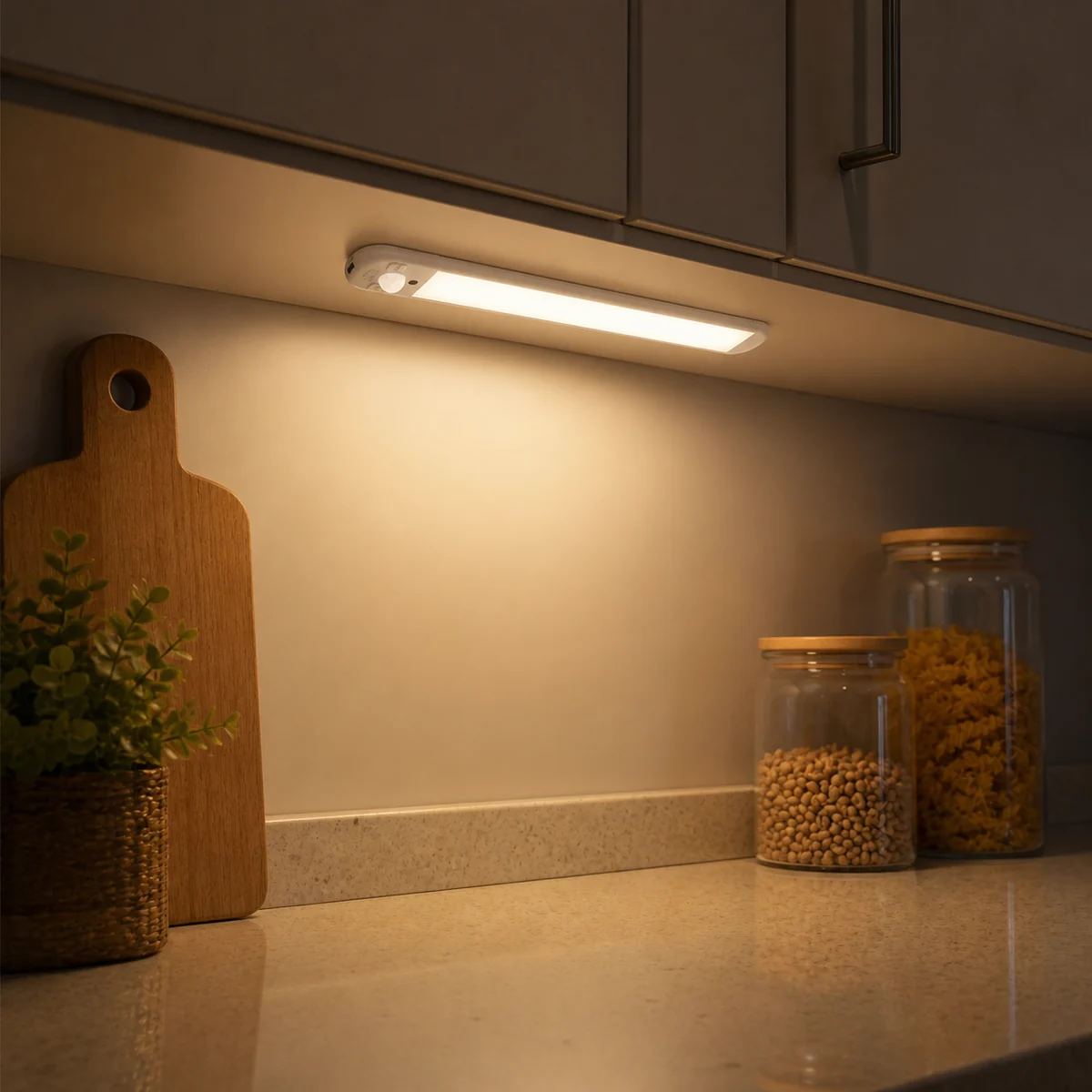

- Under-Cabinet Task Lighting: Mount the slim bar beneath kitchen cabinets with the sensor clear of the front lip.
- Wardrobes And Closets: Use M2 mode for night-time motion response inside storage areas.
- Shelf Display Lighting: Choose the body length that fits within the shelf opening and keeps the diffuser unobstructed.
- Bedside Route Lighting: Install the rechargeable bar along an indoor night route where the infrared sensor faces the approach path.
