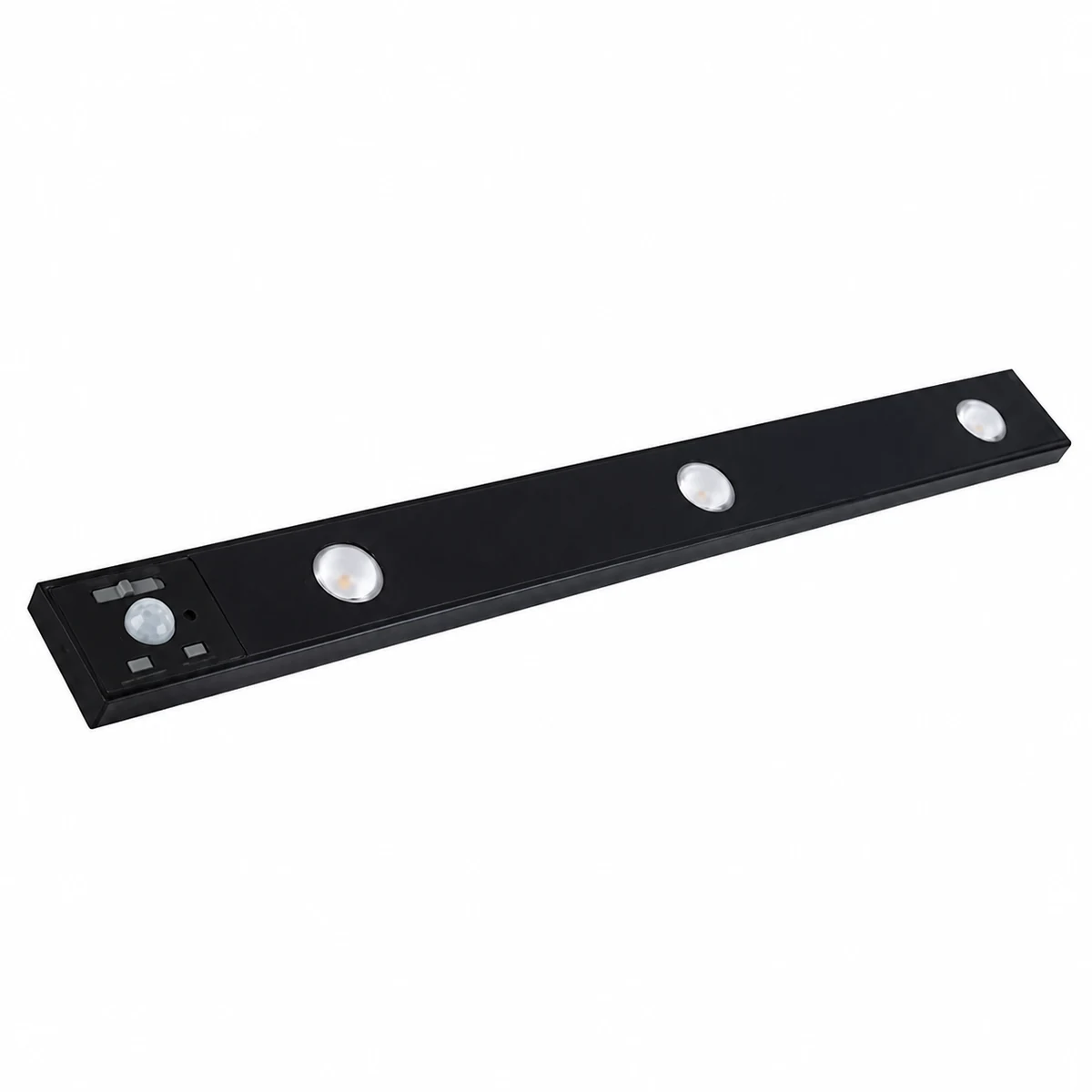

Three-Lens Rechargeable Sensor Cabinet Light
- Zoned Optical Pattern: Three rounded optics mark separate light zones across the cabinet surface.
- Tool-Free Service Access: The bar detaches from its fixing points when charging access is needed.
- Cable-Based Recharging: A Type-C lead is supplied with the rechargeable unit.

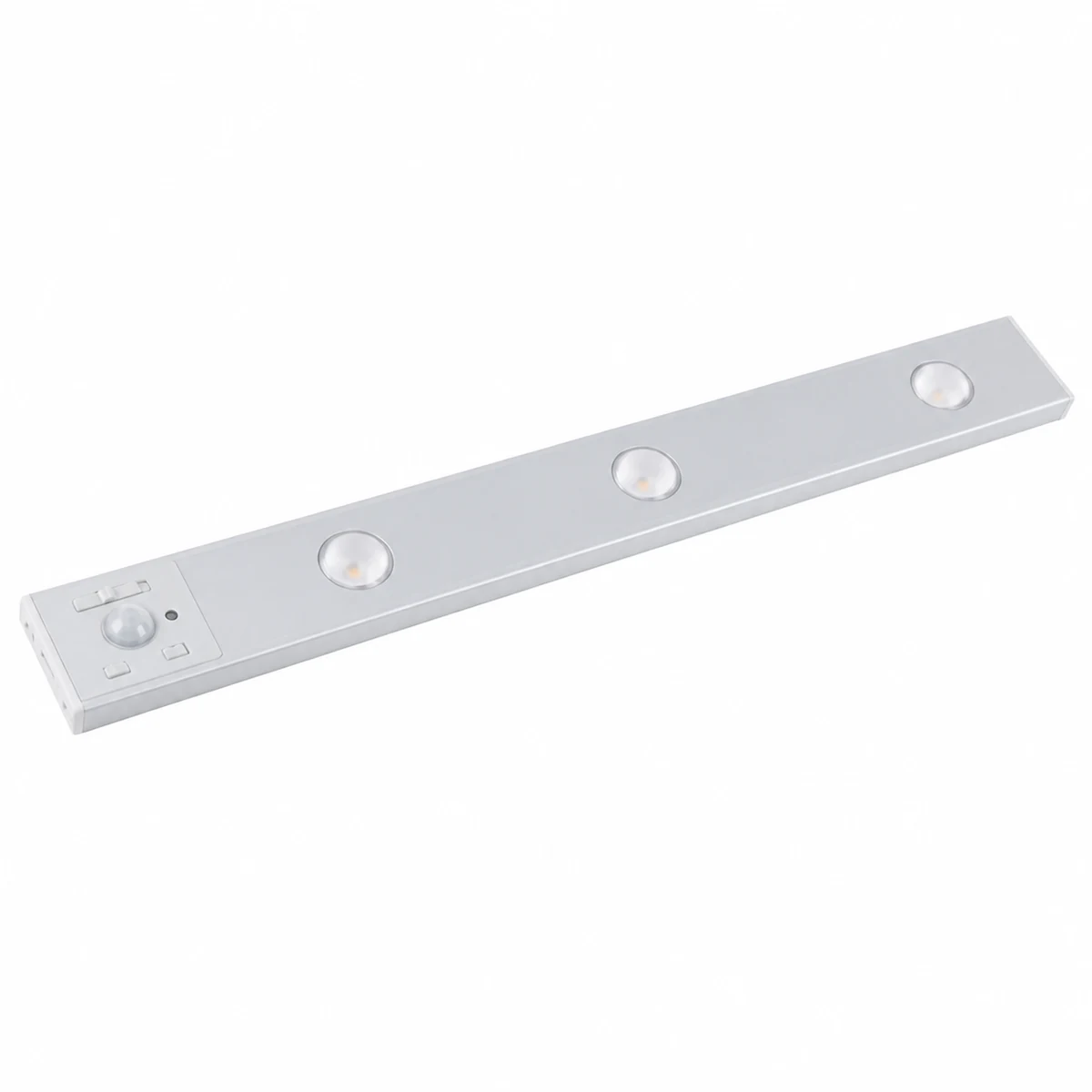

- Two Finish Options: Black and white versions coordinate with light or dark cabinet interiors.
| Length Range | 200 / 300 / 400 / 600 mm |
|---|---|
| Cross Section | 40 × 11 mm |
| Rated Power | 0.5–1.2 W |
| Battery Capacity | 600–1500 mAh |
|---|---|
| Light Colors | 3000 / 4000 / 6500 K |
| Charging & Mounting | Type-C cable; 2 magnetic plates |
Technical Specifications
Model Specifications
| Model No. | Dimensions (L x W x H) | Rated Power | Battery | Efficacy | CCT |
|---|---|---|---|---|---|
| XGYUCL-Z0-CAJMYGYD-200-CCT-E2 | 200 x 40 x 11 mm | 0.5 W | 600 mAh | 100 lm/W | 3000-6500 K |
| XGYUCL-Z0-CAJMYGYD-300-CCT-E4 | 300 x 40 x 11 mm | 0.8 W | 900 mAh | 100 lm/W | 3000-6500 K |
| XGYUCL-Z0-CAJMYGYD-400-CCT-E4 | 400 x 40 x 11 mm | 1.2 W | 1200 mAh | 100 lm/W | 3000-6500 K |
| XGYUCL-Z0-CAJMYGYD-600-CCT-E5 | 600 x 40 x 11 mm | 1.2 W | 1500 mAh | 100 lm/W | 3000-6500 K |
All models use a three-position slide switch. M1 is 100% Always On; M2 is Night & IR Sensor Trigger.
Product Description
Product Details
Product Construction
The 40 × 11 mm profile combines an aluminum casing, three PMMA lenses and ABS end parts around the internal battery and sensing components.
Selection & Installation Notes
Select the 200, 300, 400 or 600 mm model by the clear mounting opening, required coverage and matched electrical row. Position the three lenses toward the target surface, keep the sensor face clear of cabinet lips and stored items, and approve the complete three-step switch sequence on the production sample. Compare other formats in our under-cabinet lights range.
Recommended Application
Applications

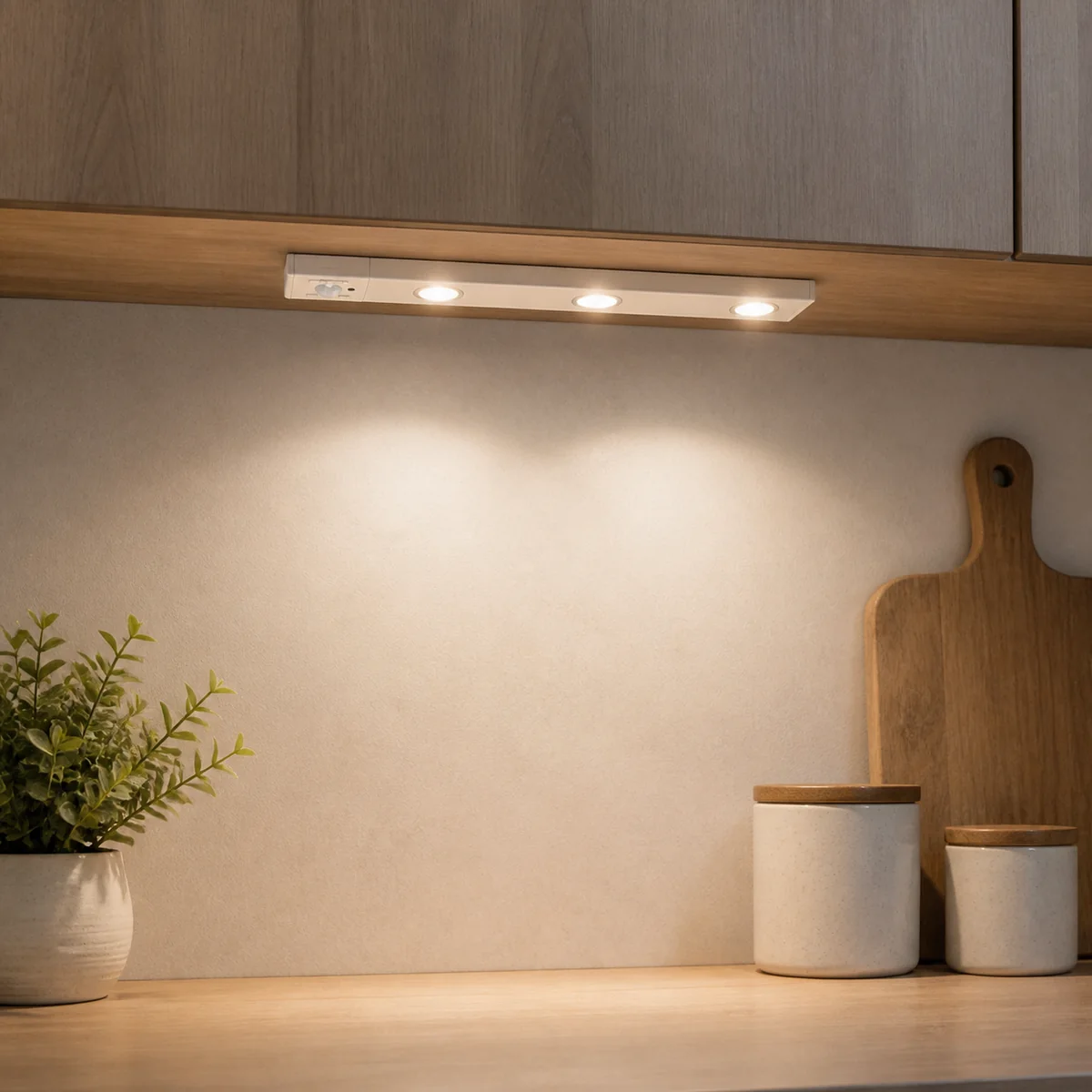

- Kitchen Worktops: Place the slim bar beneath wall cabinets to illuminate food preparation surfaces.
- Wardrobe Shelves: Position the sensor end toward the opening for convenient interior shelf lighting.
- Display Shelving: Use the three separated lenses to define light across merchandise or collection shelves.
- Home Office Shelves: Mount the bar beneath shelving above compact desk and storage areas.
