AC Hand-Sweep Dimmable Cabinet Lamp
The AC Hand-Sweep Dimmable Cabinet Lamp is a linear furniture-lighting product with a specified local sensor interface. Confirm the required sensor response, dimming behavior and electrical configuration in the approved order specification.
- Furniture-Edge Integration: The elongated form follows cabinet and shelf lines as a discreet design element.
- Uncluttered Interaction: The local interface supports operation without adding a separate visible wall control.
- Defined Adjustment Intent: The project brief records the required response and user experience.
- Schedule Traceability: The complete code keeps the selected assembly aligned through production and replacement.
| Control | 1-3 cm IR hand sweep; hold to dim |
|---|---|
| Power supply | AC100-240V |
| Length range | 500-1000 mm |
| Rated power | 6-10 W |
|---|---|
| Luminous efficacy | 70-80 lm/W |
| CCT | 3000-6500 K |
Technical Specifications
Model Specifications
| Model | Dimensions (L x W x H) | Rated Power | Power Supply | Luminous Efficacy | CCT |
|---|---|---|---|---|---|

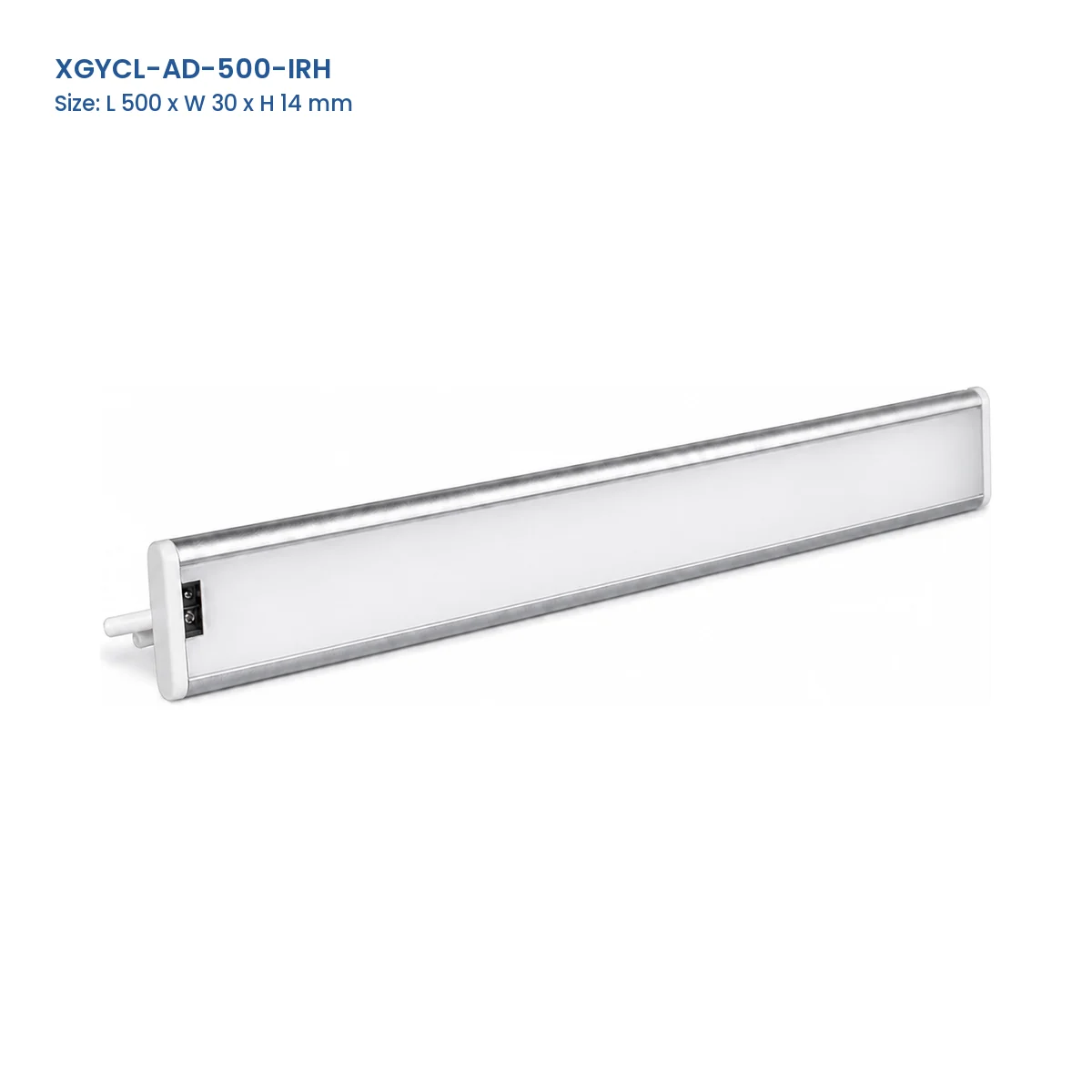

| XGYCL-AD-500-IRH | 500 x 30 x 14 mm | 6 W | AC100-240V | 70-80 lm/W | 3000-6500 K |
| XGYCL-AD-600-IRH | 600 x 30 x 14 mm | 7 W | AC100-240V | 70-80 lm/W | 3000-6500 K |

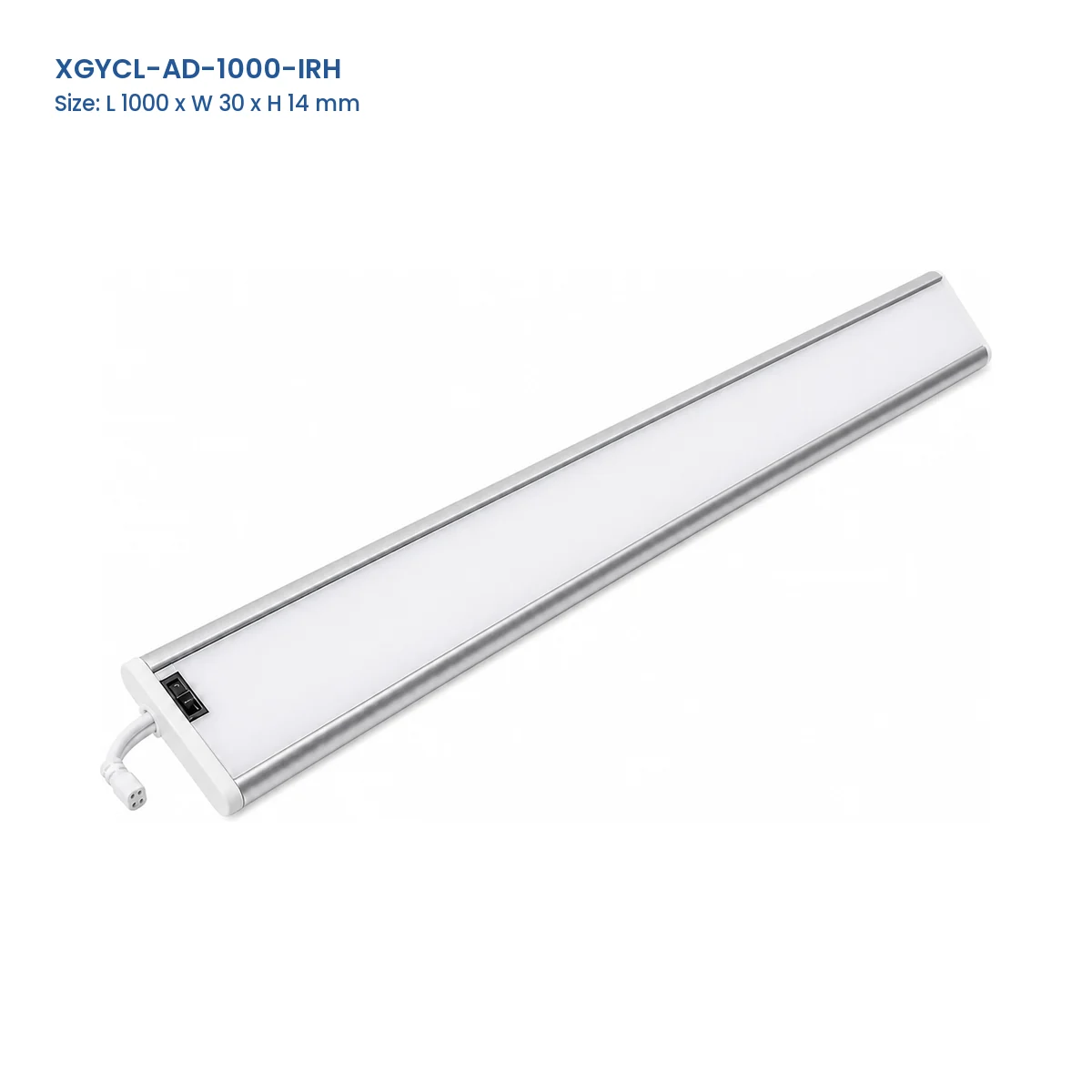

| XGYCL-AD-1000-IRH | 1000 x 30 x 14 mm | 10 W | AC100-240V | 70-80 lm/W | 3000-6500 K |
Product Description
Product Details
Product Construction
An extruded body holds a light-producing strip behind a translucent cover. End components contain connection and sensing hardware according to the selected build.
Selection & Installation Notes
Compare the catalogue code with the furniture drawing. Record the available run, substrate, fasteners, cable path, clearance at the control end and maintenance access, then approve a physical sample. Compare related options in our cabinet light range.
Recommended Application
Applications
- Kitchen Cabinets: Integrate the selected lamp into an approved under-cabinet lighting layout.
- Display Cabinets: Use the specified assembly within compatible furniture display designs.

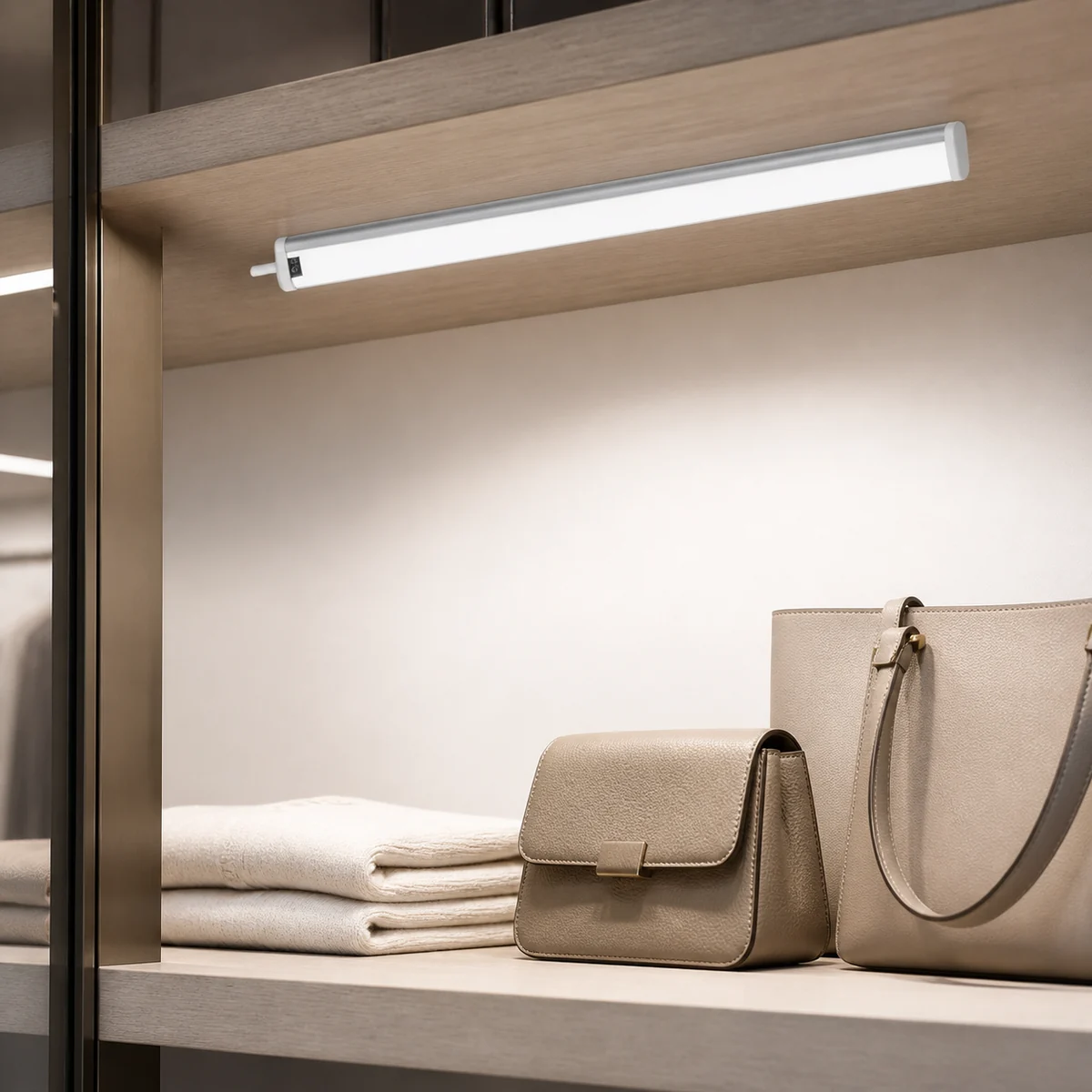

- Retail Shelving: Coordinate the lamp, wiring and local control within an approved shelf-lighting system.
- OEM Furniture Programs: Build the confirmed cabinet-lamp configuration into a approved furniture design.
