LED Solar Wall Lamps
- Four Visual Profiles: Distinct product forms support different wall proportions and architectural contexts.
- Vertical-Surface Footprint: The installed lamp occupies a wall position while leaving ground and horizontal surfaces clear.
- Daylight-Oriented Positioning: The collection area can be directed toward available daylight and away from persistent shade.
- Enclosed Component Layout: Energy-storage and operating components remain within the selected lamp assembly.
| Rated Power | 2–3 W |
|---|---|
| Output | 150 or 300 lm |
| Solar Panel | 5.5 V polysilicon; 0.5–1.55 W |
| Battery | One or two 18650 cells by reference |
|---|---|
| Housing | ABS + PC |
| Protection | IP54 |
Technical Specifications
Model Specifications
| Model | Rated Power (W) | Dimensions W x H x T (mm) | Total Lumen (lm) | Solar Panel | Battery | Body Material |
|---|---|---|---|---|---|---|

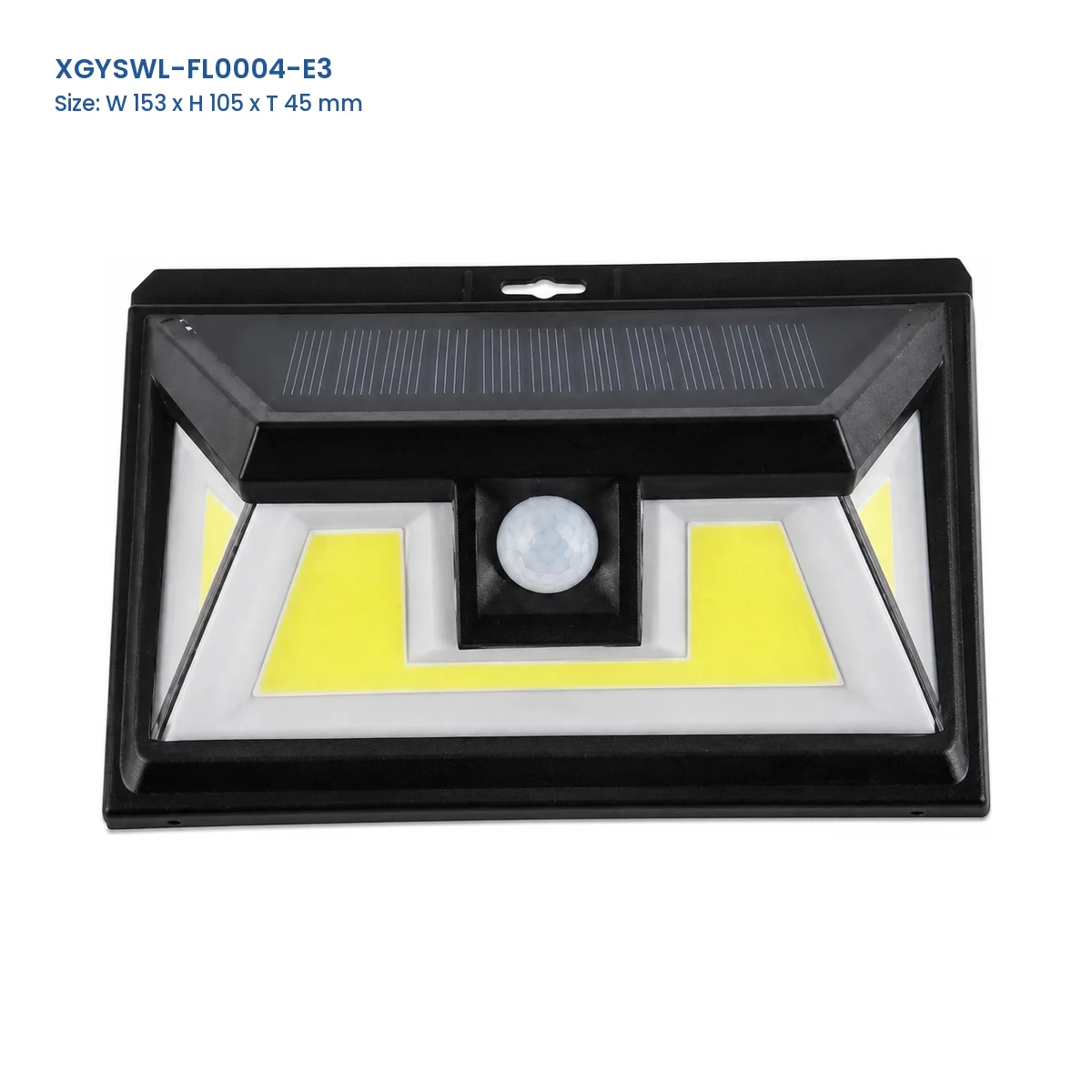

| XGYSWL-FL0004-E3 | 3 | 153 x 105 x 45 | 300 | 5.5 V / 1.0 W polysilicon | 1 x 18650 / 2200 mAh | ABS + PC |

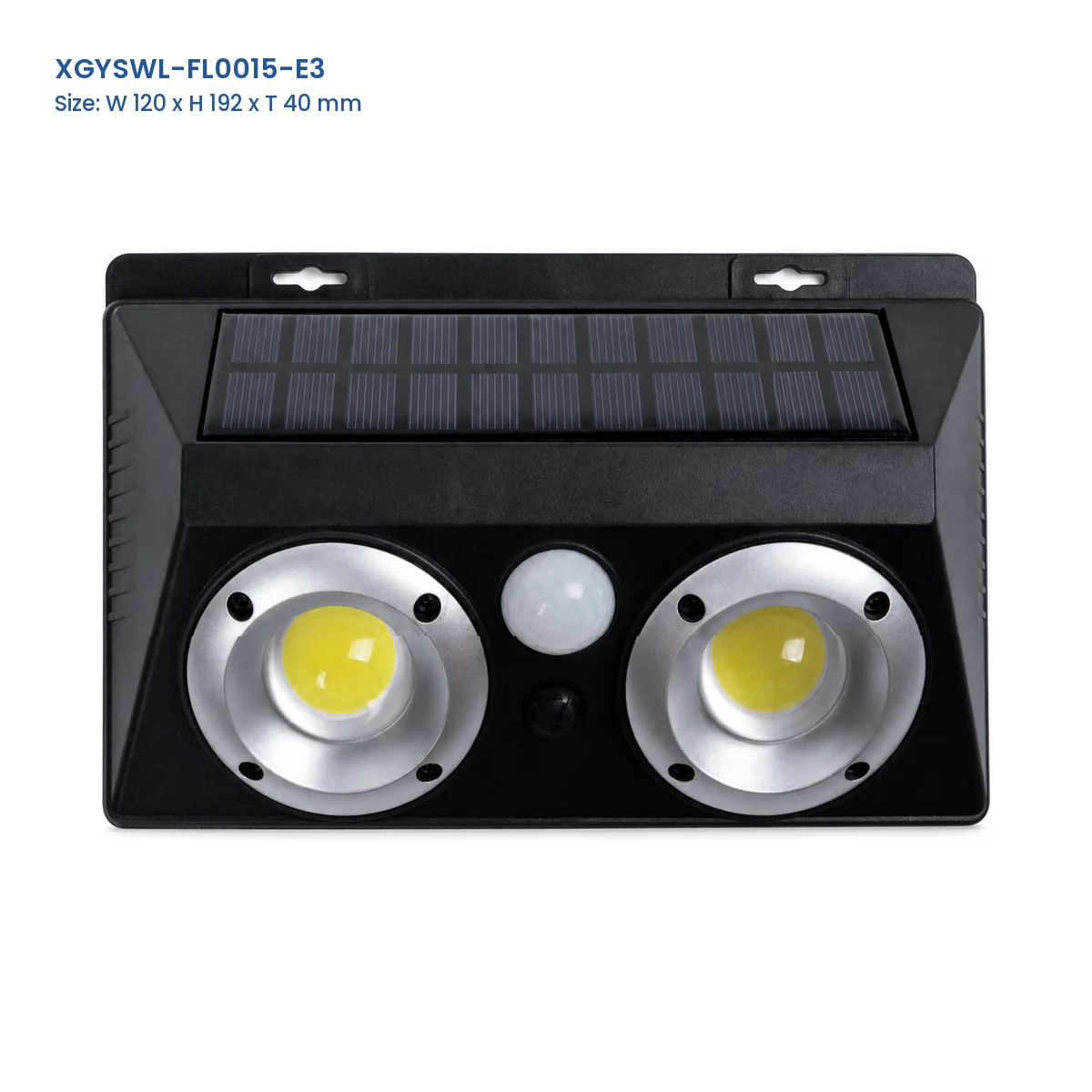

| XGYSWL-FL0015-E3 | 3 | 120 x 192 x 40 | 300 | 5.5 V / 1.0 W polysilicon | 2 x 18650 / 1200 mAh | ABS + PC |

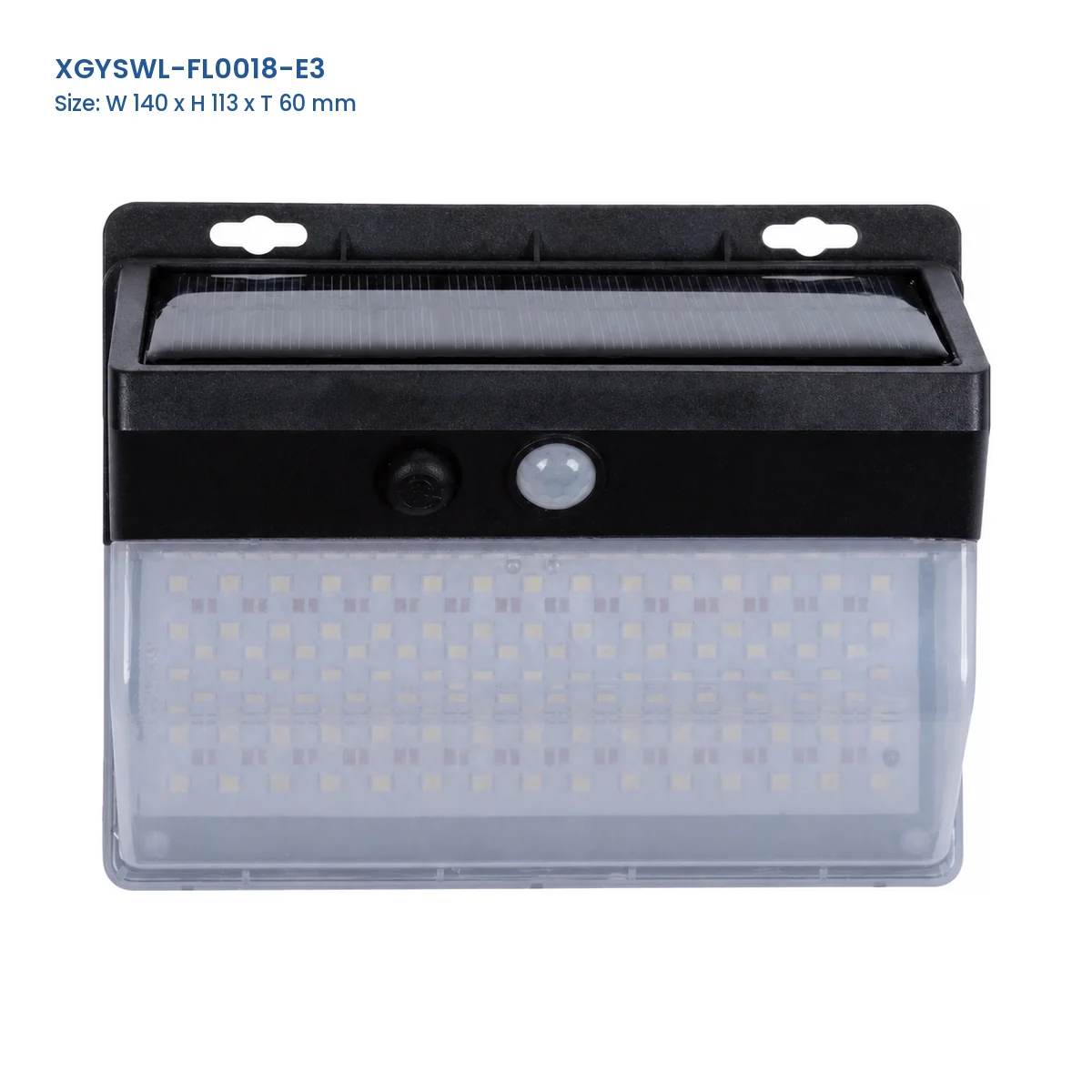

| XGYSWL-FL0018-E3 | 3 | 140 x 113 x 60 | 150 | 5.5 V / 0.5 W polysilicon | 1 x 18650 / 1200 mAh | ABS + PC |

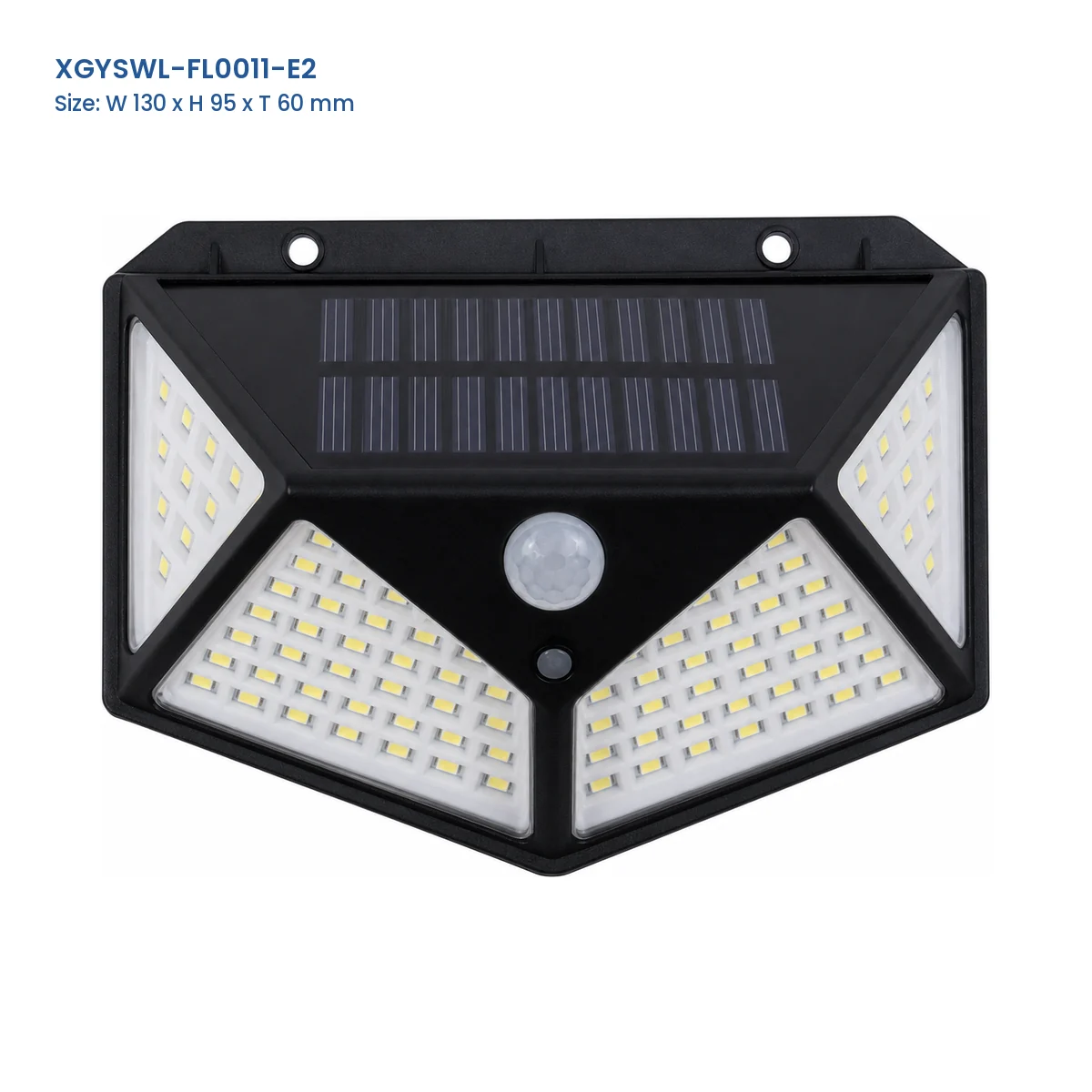

| XGYSWL-FL0011-E2 | 2 | 130 x 95 x 60 | 150 | 5.5 V / 1.55 W polysilicon | 1 x 18650 / 1200 mAh | ABS + PC |
Product Description
Product Details
Product Construction
The selected design places a light-emitting face and collection surface within one assembly. Internal energy-storage, electrical and operating arrangements remain enclosed within the approved construction.
Selection & Installation Notes
Check the substrate, anchor method, fastening access, service clearance and nearby obstructions at each position. Record the environmental exposure and required operating method in the project specification before approving the sample and installation plan. Compare related products in our solar wall light range.
Recommended Application
Applications

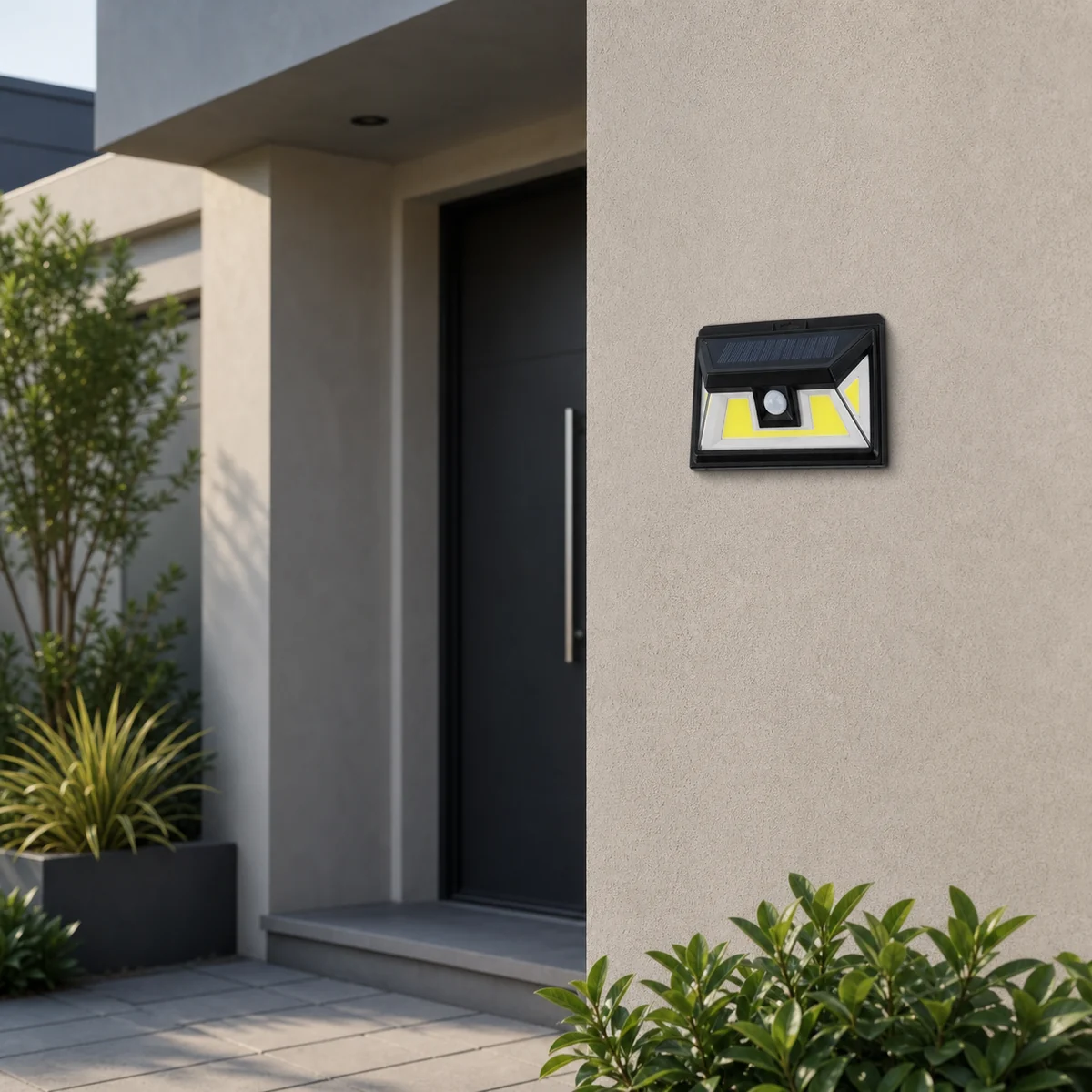

- Residential Entrances: Place the selected wall lamp beside an entrance with a verified mounting surface and daylight access.
- Garden Gate Walls: Coordinate the lamp position with the gate layout, surrounding shade and maintenance access.
- Building Side Routes: Use wall-mounted lighting along side passages where the installation position meets the approved site plan.
- Courtyard Boundaries: Integrate the selected body design into courtyard walls planned for suitable exposure and mounting conditions.
