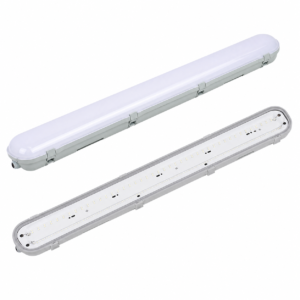

Integrated SMD LED Tri-Proof Fixture
- 160-Degree Light Distribution: The documented 160-degree beam distributes light across broad linear work and circulation areas.
- No-Flicker Operation: The specified driver system provides steady output without visible flicker.
- 25,000-Hour Service Reference: The catalog records a 25,000-hour operating-life reference for the integrated luminaire.
- Clip-Mounted Housing: Stainless-steel back clips support surface mounting, while side clips close the diffuser cover.
| Profiles | SMD-OX / SMD-OC / SMD-OS |
|---|---|
| Available Lengths | 600 / 605 / 1200 / 1500 mm |
| Power Range | 18-72 W |
| Output Options | 100-160 lm/W |
| Color Quality | 3000-6500 K / Ra80 |
|---|---|
| Electrical Options | S: 220-240 V / U: 100-260 V; PF 0.5 or 0.9 |
| Protection / Optics | IP65 / 160-degree beam |
Technical Specifications
Model Specifications
| Model | Series | Dimensions / Mount Distance | Rated Power | Efficacy | CCT / CRI | Input / PF | IP / Beam |
|---|---|---|---|---|---|---|---|
| XGYLEDTP-SOX02-E18/20 | SMD-OX | 85 x 80 x 600 mm / 260 mm | 18/20 W | 100-160 lm/W | 3000-6500 K / Ra80 | S: 220-240 V; U: 100-260 V / PF 0.5 or 0.9 | IP65 / 160 degrees |
| XGYLEDTP-SOX04-E36/40/54 | SMD-OX | 115 x 80 x 1200 mm / 810 mm | 36/40/54 W | 100-160 lm/W | 3000-6500 K / Ra80 | S: 220-240 V; U: 100-260 V / PF 0.5 or 0.9 | IP65 / 160 degrees |
| XGYLEDTP-SOX05-E54/60 | SMD-OX | 115 x 80 x 1500 mm / 1110 mm | 54/60 W | 100-160 lm/W | 3000-6500 K / Ra80 | S: 220-240 V; U: 100-260 V / PF 0.5 or 0.9 | IP65 / 160 degrees |
| XGYLEDTP-SOC02-E40 | SMD-OC | 80 x 70 x 605 mm / 260 mm | 40 W | 100-160 lm/W | 3000-6500 K / Ra80 | S: 220-240 V; U: 100-260 V / PF 0.5 or 0.9 | IP65 / 160 degrees |
| XGYLEDTP-SOS04-E60 | SMD-OC | 80 x 70 x 1200 mm / 810 mm | 60 W | 100-160 lm/W | 3000-6500 K / Ra80 | S: 220-240 V; U: 100-260 V / PF 0.5 or 0.9 | IP65 / 160 degrees |
| XGYLEDTP-SOS02-E20 | SMD-OS | 105 x 78 x 600 mm / 260 mm | 20 W | 100-160 lm/W | 3000-6500 K / Ra80 | S: 220-240 V; U: 100-260 V / PF 0.5 or 0.9 | IP65 / 160 degrees |
| XGYLEDTP-SOS04-E40/60 | SMD-OS | 105 x 78 x 1200 mm / 810 mm | 40/60 W | 100-160 lm/W | 3000-6500 K / Ra80 | S: 220-240 V; U: 100-260 V / PF 0.5 or 0.9 | IP65 / 160 degrees |
| XGYLEDTP-SOS05-E60/72 | SMD-OS | 105 x 78 x 1500 mm / 1110 mm | 60/72 W | 100-160 lm/W | 3000-6500 K / Ra80 | S: 220-240 V; U: 100-260 V / PF 0.5 or 0.9 | IP65 / 160 degrees |
Dimensions are shown as W x H x L, followed by the documented back-clip mount distance. Slash-separated powers remain grouped exactly as printed for each catalog housing configuration. SOS04 references occur under both SMD-OC and SMD-OS; use the complete model reference, series and dimensions together.
Product Description
Product Details
Product Construction
SMD 2835 LEDs use board or strip layouts behind a PC or PS cover, with the internal driver housed above a HIPS, ABS or PC base. A rubber or silicone sealing ring and the specified cable entry complete the documented IP65 housing assembly.
Selection & Installation Notes
Choose OX, OC or OS from the required housing cross-section, then match the overall dimensions, rated-power combination and documented mounting-center distance in the technical table. Specify the S or U input range and corresponding power-factor option before installation. The catalog prints SOS04 under both the SMD-OC and SMD-OS families; distinguish these entries by the complete model reference, series profile and dimensions.
Recommended Application
Applications
- Warehouse Aisles: Surface-mounted linear runs provide protected general lighting along storage and picking routes.
- Production Workshops: Sealed housings protect the integrated LED components from workshop dust and incidental moisture.
- Parking Garages: Ceiling-mounted fixtures illuminate vehicle lanes, parking bays and pedestrian routes in enclosed structures.
- Service Corridors: Continuous linear lighting supports visibility through plant rooms, utility passages and maintenance routes.
- Covered Loading Areas: IP65 configurations provide linear lighting beneath canopies and sheltered exterior work zones.
