Dual-Housing Full-Plastic Surface-Mounted Ceiling Light
This full-plastic surface-mounted LED ceiling light series pairs a round HY05 housing with a square HY06 housing. The two formats support coordinated indoor ceiling-lighting projects with separate shape and size selections.

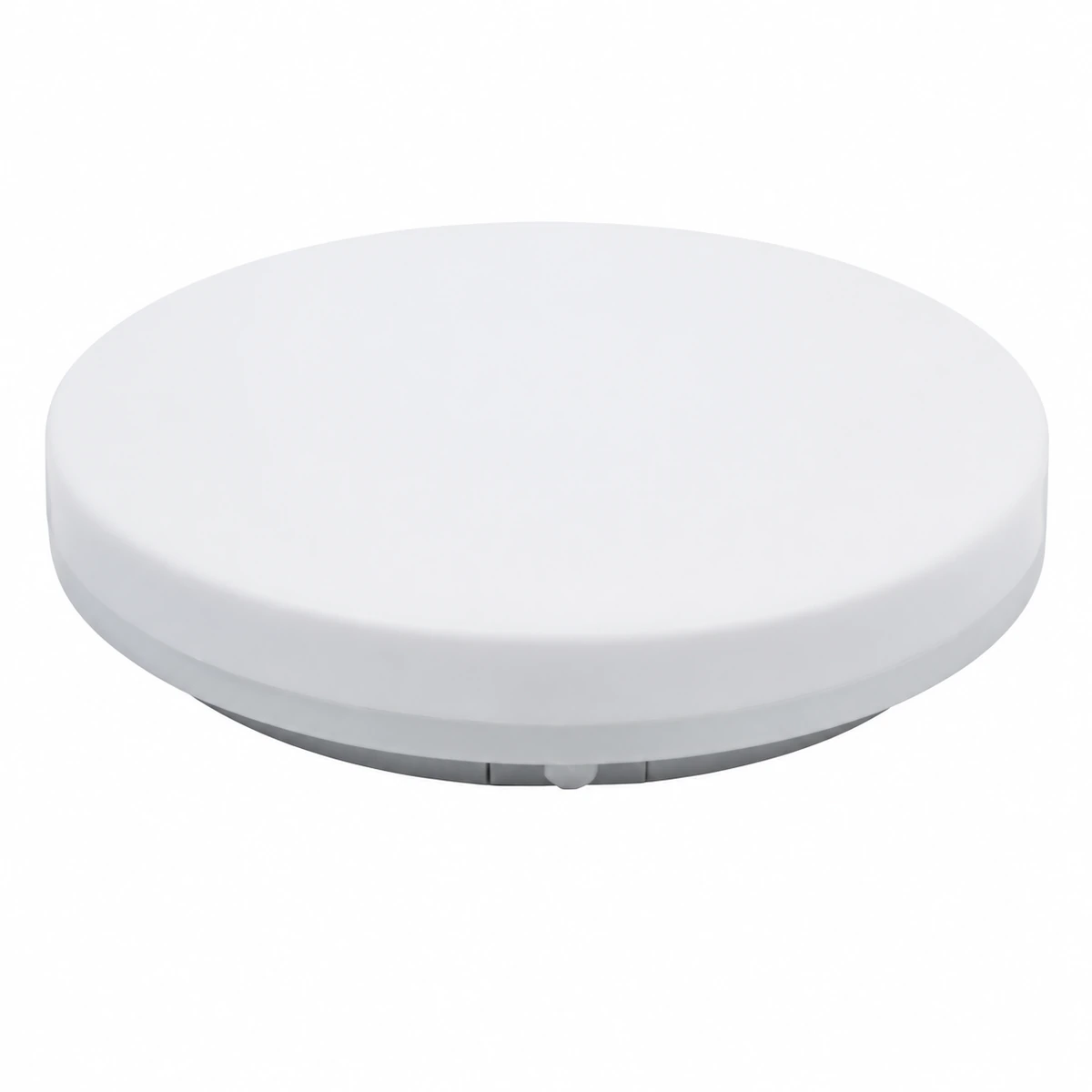

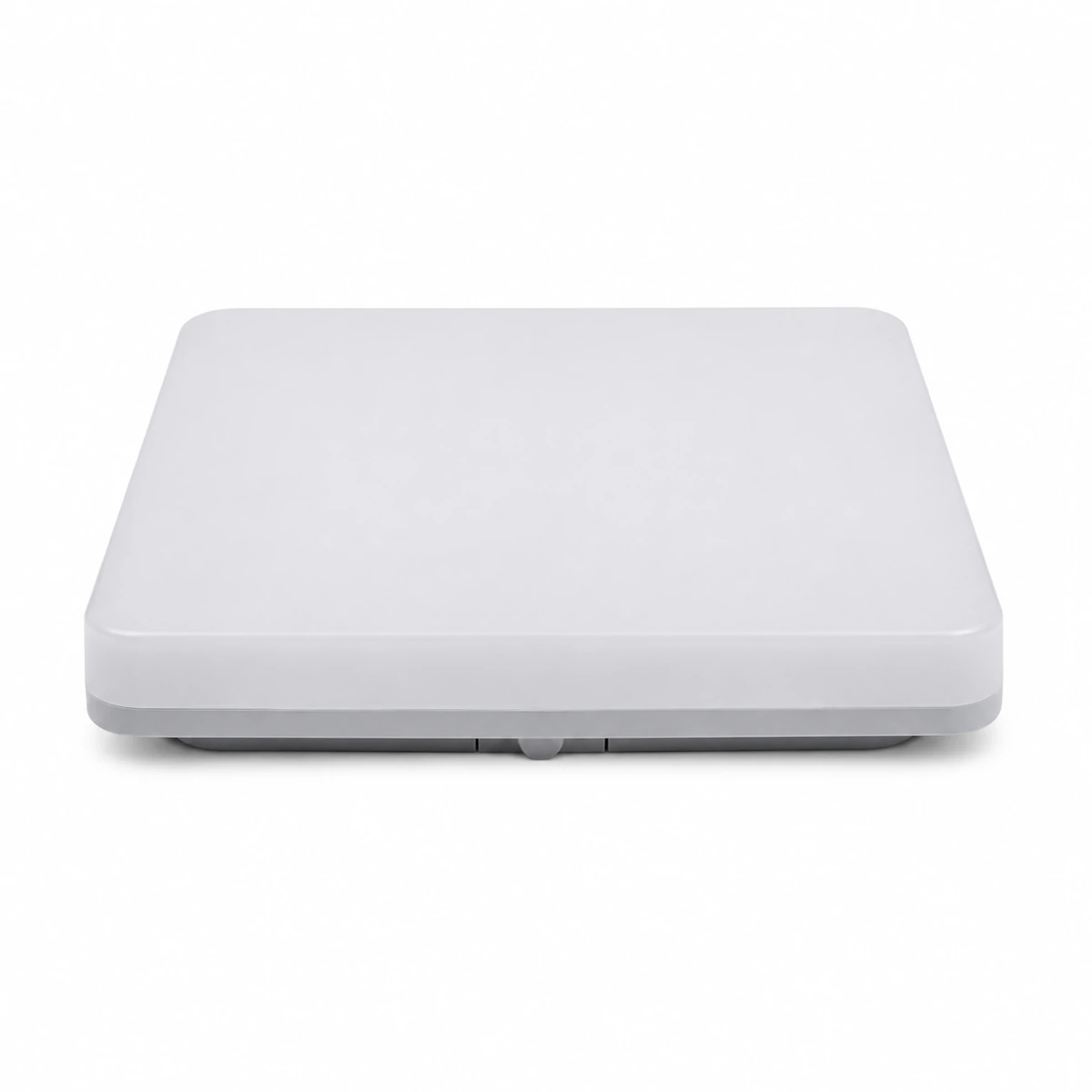

- Round and Square Formats: HY05 provides a round face, while HY06 provides a square face for distinct ceiling layouts.
- Surface-Mounted Installation: The shallow housing mounts directly to a finished ceiling without a recessed cutout.
- Full-Plastic Housing: Both series use a full-plastic body for a consistent construction platform.
- IP54 Construction: The series is specified for defined indoor dust and incidental splash exposure.
| Power range | 15 / 18 / 24 W |
|---|---|
| Diameter range | 220 / 280 / 330 mm |
| Rated efficacy | 90 lm/W |
|---|---|
| CCT range | 3000–6500 K |
Technical Specifications
Model Specifications
| Model No. | Series | Size ØxH | Power | Efficacy | CCT | IP |
|---|---|---|---|---|---|---|
| XGYCL2-HY05-E15 | HY05 | 220×50 mm | 15 W | 90 lm/W | 3000–6500 K | IP54 |
| XGYCL2-HY05-E18 | HY05 | 280×50 mm | 18 W | 90 lm/W | 3000–6500 K | IP54 |
| XGYCL2-HY05-E24 | HY05 | 330×50 mm | 24 W | 90 lm/W | 3000–6500 K | IP54 |
| XGYCL2-HY06-E15 | HY06 | 220×50 mm | 15 W | 90 lm/W | 3000–6500 K | IP54 |
| XGYCL2-HY06-E18 | HY06 | 280×50 mm | 18 W | 90 lm/W | 3000–6500 K | IP54 |
| XGYCL2-HY06-E24 | HY06 | 330×50 mm | 24 W | 90 lm/W | 3000–6500 K | IP54 |
Product Description
Product Details
Product Construction

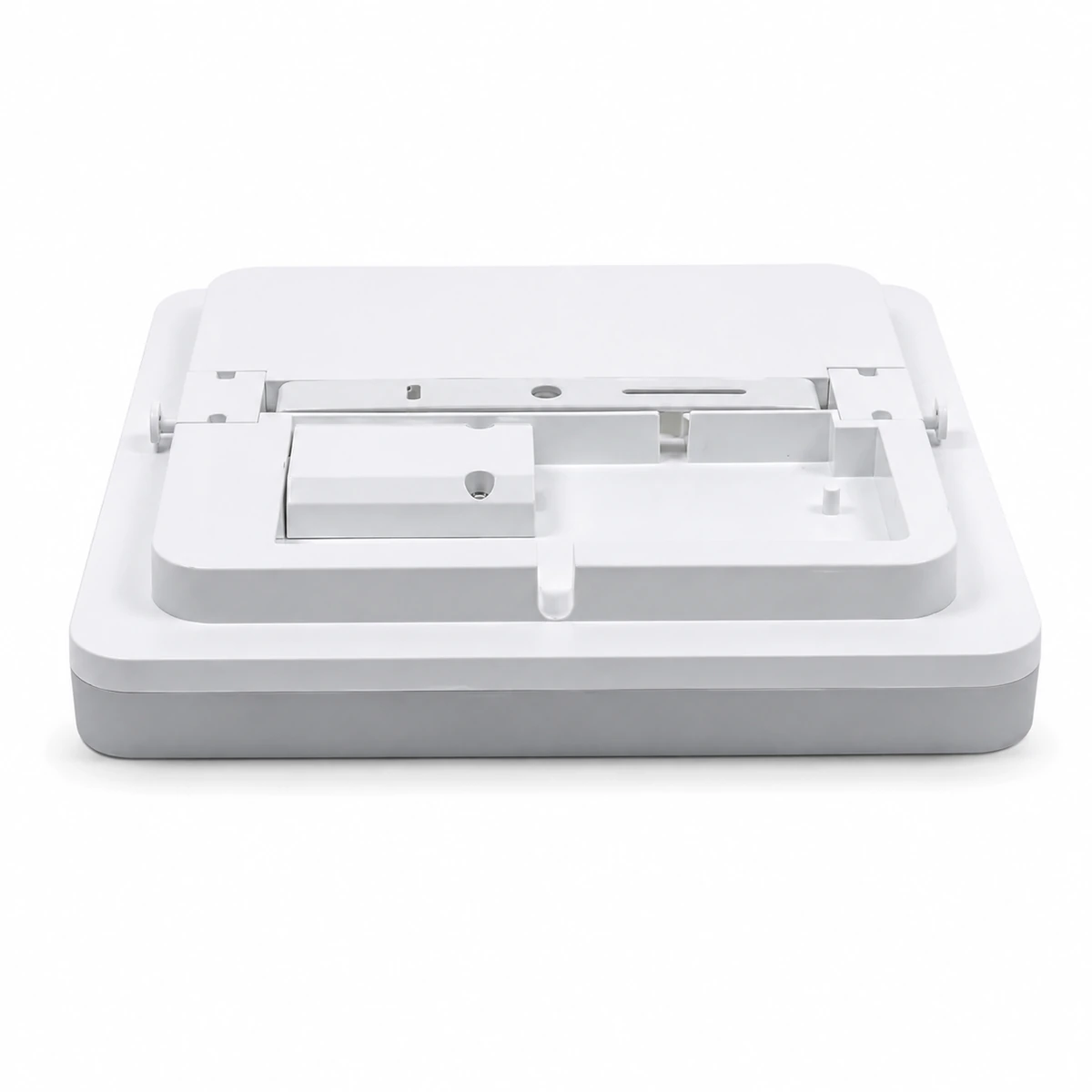

A diffuser and perimeter frame form the visible front, while the rear carries the mounting interface and cable-entry area.
Selection & Installation Notes
Choose the appropriate model from the ceiling footprint and lighting plan. Confirm the fixing substrate, cable entry, junction space, supply and any order-specific control requirement before sample approval. Compare related ceiling lights.
Recommended Application
Applications

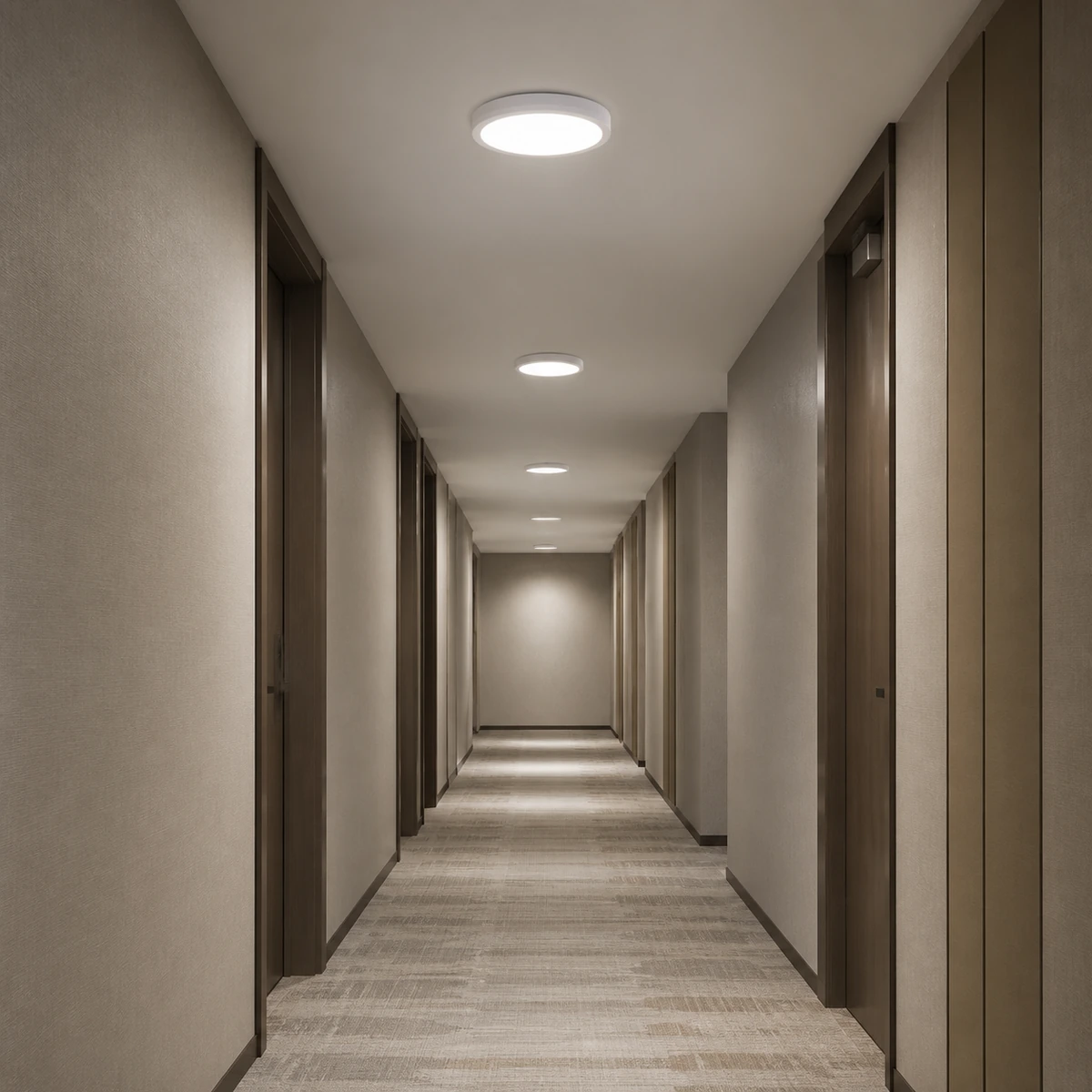

- Hotel Corridors: Round or square housings provide coordinated ceiling lighting along guest-room approaches and circulation routes.
- Apartment Common Areas: Surface-mounted fittings serve hallways, lift lobbies and shared entrance zones.
- Office Circulation: The selected housing format provides general lighting for corridors, copy areas and internal passageways.
- Retail Support Areas: Shallow ceiling-mounted fittings illuminate stock corridors, staff rooms and other indoor service spaces.
