Face Ring Surface-Mounted Ceiling Light
- Flush-Fitting Round Appearance: The face-ring design creates a defined circular edge close to the ceiling plane.
- Five-Size Family: A coordinated model progression covers compact through larger ceiling-light formats.
- General Indoor Format: The round family supports residential, hospitality and commercial interior lighting layouts.
- Separate IP Constructions: IP44 and IP20 are distinct ordered configurations, so the selected version must match the installation requirement.
| Power range | 12–48 W |
|---|---|
| Diameter range | 200–500 mm |
| Rated efficacy | 80 lm/W |
|---|---|
| CCT range | 3000–6500 K |
Technical Specifications
Model Specifications
| Model No. | Size ØxH | Power | Efficacy | CCT | Material | IP |
|---|---|---|---|---|---|---|
| XGYCL2-NLFR-E12 | 200×55 mm | 12 W | 80 lm/W | 3000–6500 K | PP / PMMA lens | IP44/IP20 |
| XGYCL2-NLFR-E18 | 260×55 mm | 18 W | 80 lm/W | 3000–6500 K | PP / PMMA lens | IP44/IP20 |
| XGYCL2-NLFR-E24 | 300×55 mm | 24 W | 80 lm/W | 3000–6500 K | PP / PMMA lens | IP44/IP20 |
| XGYCL2-NLFR-E38 | 400×55 mm | 36 W | 80 lm/W | 3000–6500 K | PP / PMMA lens | IP44/IP20 |
| XGYCL2-NLFR-E48 | 500×55 mm | 48 W | 80 lm/W | 3000–6500 K | PP / PMMA lens | IP44/IP20 |
Product Description
Product Details
Product Construction

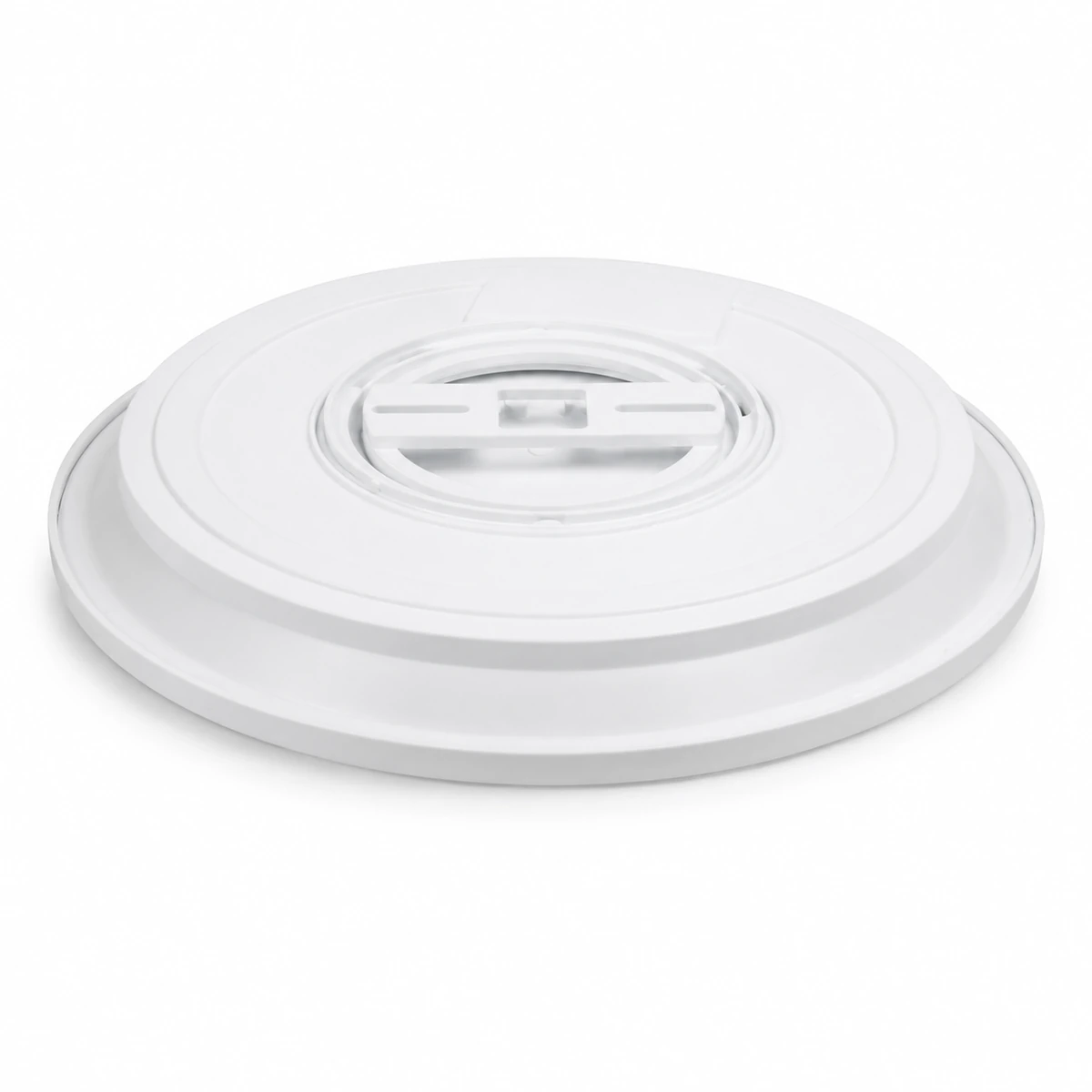

A PP body supports the face ring around a PMMA lens, forming a complete surface-mounted ceiling luminaire. The housing attaches at the ceiling surface rather than entering a recessed cutout.
Selection & Installation Notes
Choose the model by ceiling space and the required power-and-diameter combination. Confirm the mounting substrate, cable entry, supply, service clearance, CCT configuration and ordered IP construction before installation. Compare related housings in our all-plastic flush ceiling light range.
Recommended Application
Applications

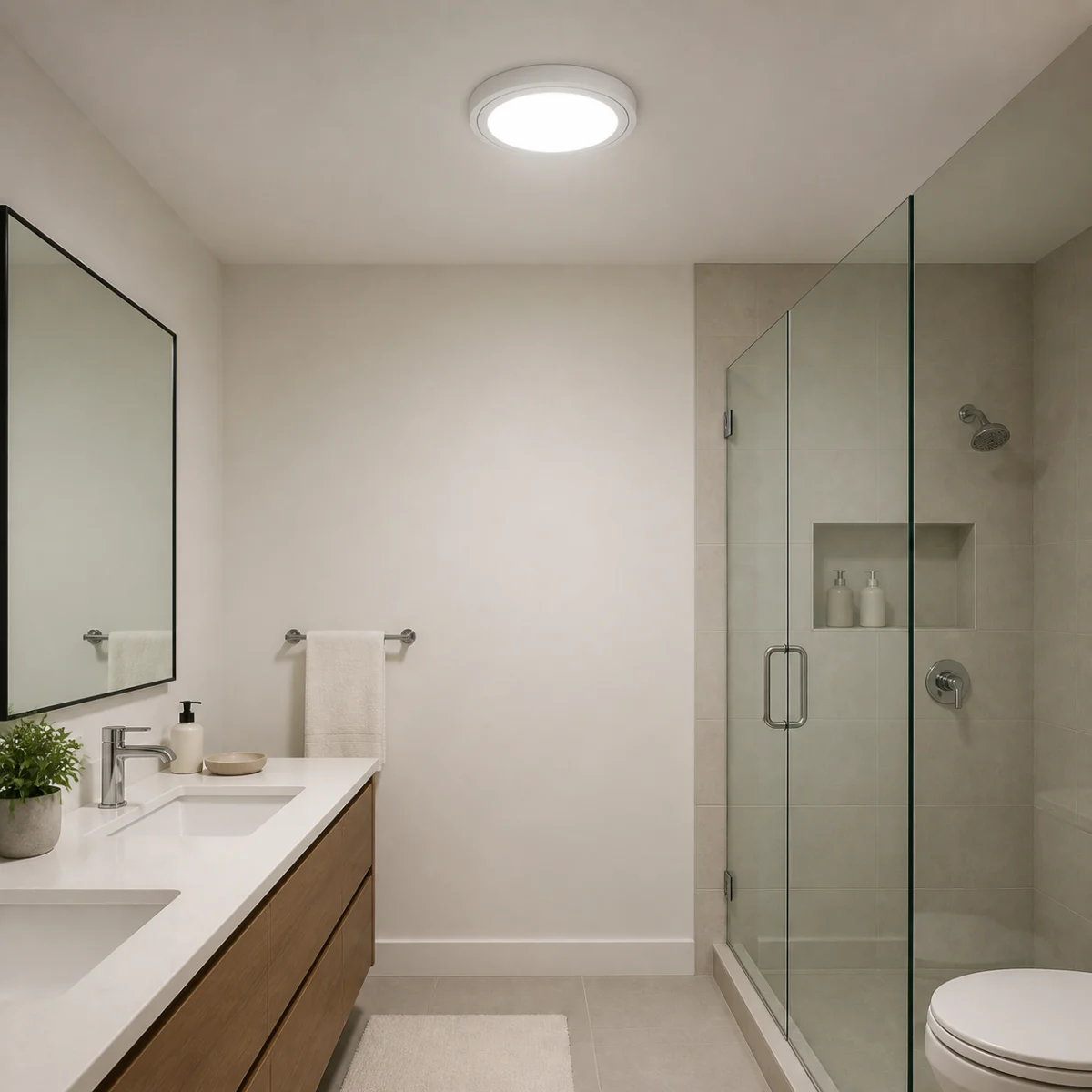

- Residential Living Spaces: The round surface-mounted fitting provides general ceiling light in bedrooms and living areas.
- Apartment Corridors: The low-profile ceiling format serves halls and shared internal passageways.
- Hospitality Guest Rooms: Coordinated housing sizes support general lighting layouts in guest rooms and internal corridors.
- Small Offices: The surface-mounted family provides general overhead lighting where a recessed ceiling cutout is not used.
