Large-Format PP Surface-Mounted Ceiling Light

HY10 is a large-format round PP surface-mounted LED ceiling light family for indoor ceiling layouts. Its shallow profile supports direct ceiling installation, with CCT and sensing requirements defined for the selected order configuration.

Large Round Format: HY10 provides a broad circular ceiling profile for larger indoor layouts.
Surface-Mounted Installation: The shallow fitting mounts directly to a finished ceiling without a recessed cutout.
PP Housing: The molded polypropylene body provides a consistent construction platform across the series.
IP54 Construction: The series is specified for defined indoor dust and incidental splash exposure.

Power range	12–45 W
Diameter range	230–480 mm

Height range	45–60 mm
CCT range	3000–6000 K

Rear view of round HY10 large-format PP surface-mounted ceiling light

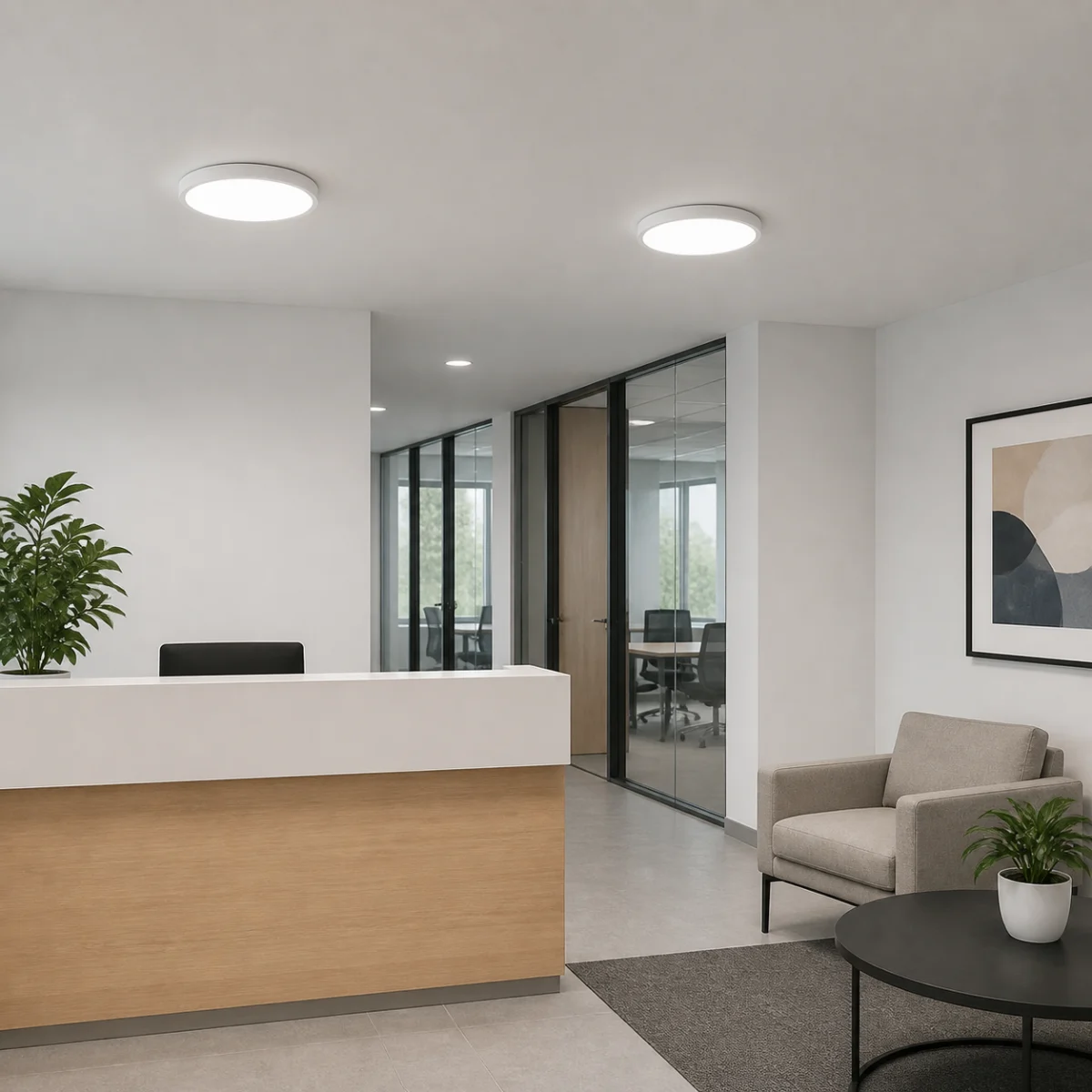

HY10 surface-mounted ceiling lights installed in an office reception

Technical Specifications

Model Specifications

Model No.	Size ØxH	Power	Efficacy	CCT	Material	IP
XGYCL2-HY10-E12	230×45 mm	12 W	80 lm/W	3000–6000 K	PP	IP54
XGYCL2-HY10-E18	280×47 mm	18 W	80 lm/W	3000–6000 K	PP	IP54
XGYCL2-HY10-E28	380×57 mm	28 W	80 lm/W	3000–6000 K	PP	IP54
XGYCL2-HY10-E45	480×60 mm	45 W	80 lm/W	3000–6000 K	PP	IP54

Product Description

Product Details

Product Construction

A broad diffuser forms the visible face, while the molded perimeter and rear mounting plane contain the light engine and cable-entry area.

Selection & Installation Notes

Choose the model from the ceiling footprint, mounting height and lighting plan. Confirm the fixing substrate, junction space, supply and requested control behavior before sample approval. Compare related ceiling lights.

Recommended Application

Applications

Office Receptions: The broad round format provides general ceiling lighting across reception and waiting areas.
Meeting Rooms: Surface-mounted installation serves rooms with finished ceilings and planned central light positions.
Retail Common Areas: Large ceiling footprints illuminate customer circulation and shared interior zones.
Apartment Shared Spaces: Round fittings provide general lighting for entrance halls, lift lobbies and common rooms.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What distinguishes the HY10 ceiling light family?

HY10 combines a broad round face, PP construction and surface-mounted installation in a family of ceiling-light sizes.

Does HY10 require a recessed ceiling cutout?

No. HY10 mounts on the ceiling surface. The installer still needs a suitable fixing substrate, cable entry and junction arrangement.

Does every HY10 include a microwave sensor?

No. Microwave sensing is an order-specific option. Define the required detection and switching behavior before sample approval.

Is the CCT field a fixed color temperature?

No single fixed CCT is defined for every order. Specify the required color-temperature positions and selection method for the approved configuration.

Where can an IP54 HY10 be installed?

No permanent-outdoor or washdown suitability is established for HY10. Use it in an indoor location that matches the selected configuration and installation requirements.

What should the HY10 sample confirm before production?

The sample should fix the model, housing dimensions, electrical configuration, CCT or sensing behavior, label information and packaging.
