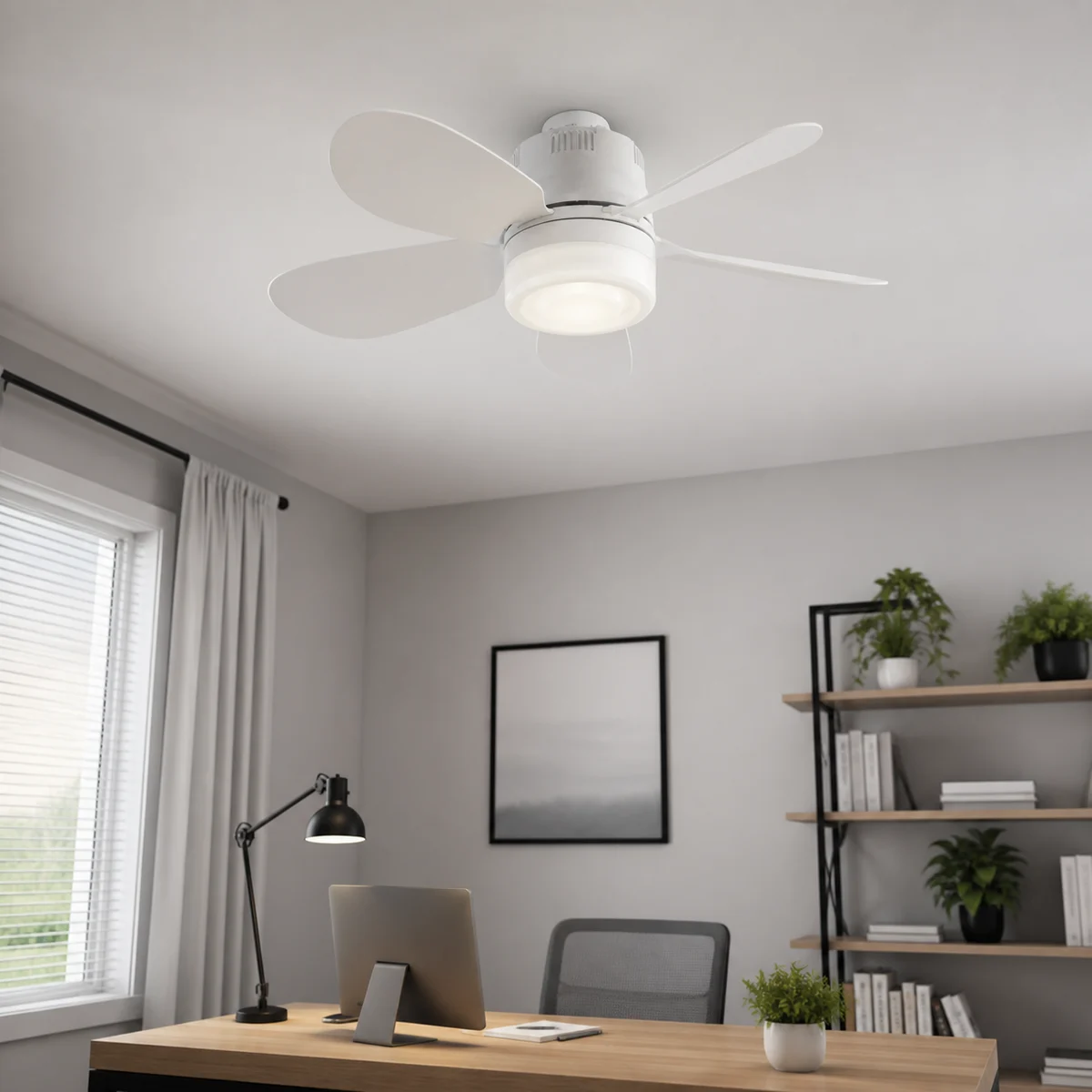

XGYFANCL-HS-JG-E24 Mounted-Blade LED Fan Light
- Exposed Airfoil Layout: Individual vanes remain visible around the fixture body.
- Dual-Purpose Fixture: Ambient illumination and room circulation originate from one product.
- Defined Silhouette: The extended elements establish a recognisable ceiling span.
- Order-Specific Interface: The approved version establishes the connection and controller supplied for installation.
| Mounting | E27 / rod / ceiling |
|---|---|
| Dimensions | Bulb Φ105×160; fan Φ480×160 mm |
| Rated power pair | 12/12 W |
| Efficacy | 75 lm/W |
| CCT | 3000–6500 K |
|---|---|
| Fan control | 3 steps / IR remote |
| Material / use | PP + ABS + nylon + aluminium / IP20 dry indoor |
Technical Specifications
Model Specifications
| Model | Mounting | Dimensions | Rated Power | Efficacy | CCT | Fan Steps |
|---|---|---|---|---|---|---|
| XGYFANCL-HS-JG-E24 | E27 / rod / ceiling | Bulb Φ105×160; fan Φ480×160 mm | 12/12 W | 75 lm/W | 3000–6500 K | 3 |
The paired power value is retained exactly as published. Confirm circuit assignment, supply voltage, interface and mechanical support on the approved electrical specification and sample.
Product Description
Product Details
Product Construction
The XGYFANCL-HS-JG-E24 places its luminous component at the centre of a radial air-moving assembly. The joined housing is prepared for installation as a single overhead unit.
Selection & Installation Notes
Use the complete order code, then verify the physical arrangement, electrical supply, operating method, connection interface, structural support, moving clearance, service access and included hardware against the approved specification and sample. Compare related products in our Edison-screw fan light range.
Recommended Application
Applications
- Residential Bedrooms: Use the confirmed unit where the room plan specifies a visible-blade ceiling light and fan.
- Living Room Ceilings: Coordinate the approved blade profile and light section with the ceiling layout.
- Hotel Guest Rooms: Apply the accepted appearance and operating package across matching room types.
- OEM Interior Programs: Carry the approved product definition into repeated project schedules.
