Universal-Head E27 LED Fan Light
- Warm-to-Cool White Light: The CCT range provides adjustable white-light selection from 3000 K to 7000 K.
- Remote Brightness Adjustment: The IR handset changes light output without a separate wall dimmer.
- Three Airflow Settings: The handset provides three operating steps for room adjustment.
- Timer Function: Timed operation is available from the supplied IR handset.
| Dimensions | Ø260×172 mm |
|---|---|
| Rated Power | 22/7 W |
| Efficacy | 85 lm/W |
| CCT / Material | 3000–7000 K / PP |
|---|---|
| Control | IR remote; brightness, CCT, three-step fan, timer |
Technical Specifications
Model Specifications
| Model No. | Variant | Size Ø×H | Rated Power | Efficacy | CCT | Material |
|---|---|---|---|---|---|---|
| XGYFANCL-HS-UH-E29 | Universal-head E27 | Φ260×172 mm | 22/7 W | 85 lm/W | 3000–7000 K | PP |
Product Description
Product Details
Product Construction

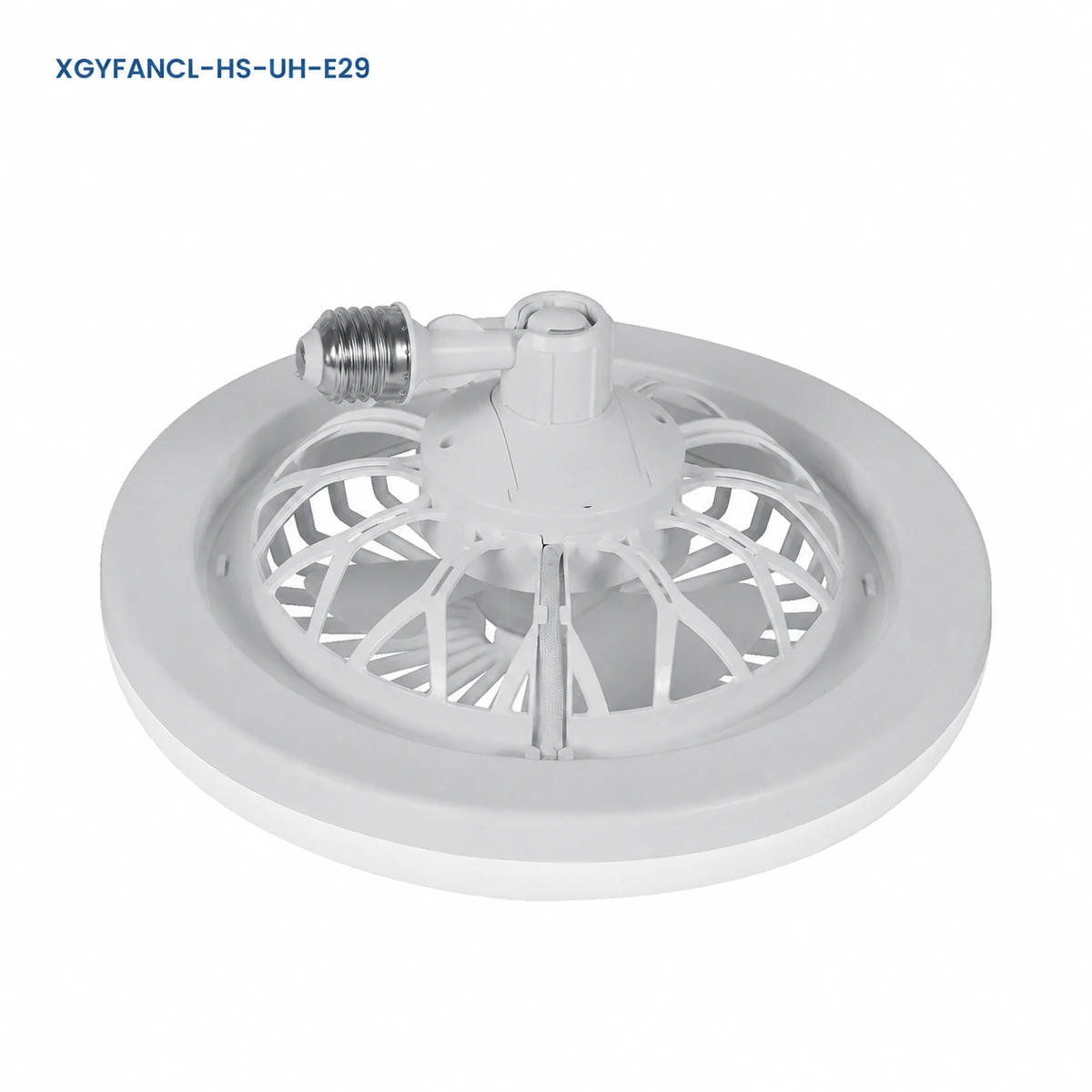

The XGYFANCL-HS-UH-E29 combines an E27 screw-in head, a circular protective grille, a central motor housing and a lower light diffuser inside a Ø260 × 172 mm PP body.
Selection & Installation Notes
Use the product with a compatible E27 lampholder that supports the assembled load, and allow clear space around the full product body. Confirm the supply voltage, holder condition and ceiling support before installation. The IP20 construction is for dry, protected interiors. Compare related products in our Edison screw fan lights range.
Recommended Application
Applications

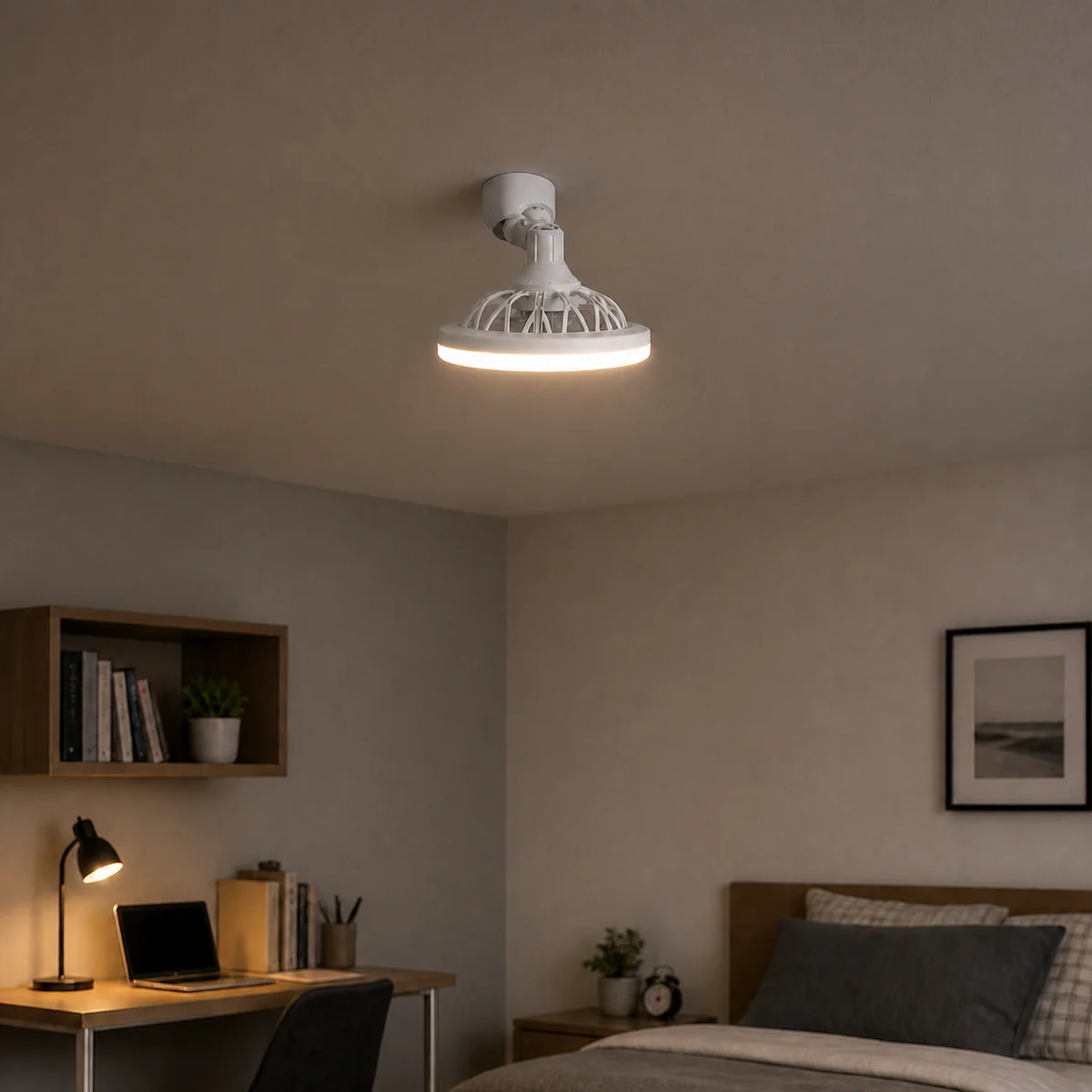

- Primary Bedrooms: The combined light and fan serves dry indoor sleeping spaces with a compatible E27 ceiling lampholder.
- Small Living Rooms: Remote brightness, CCT, fan-speed and timer controls support everyday room adjustment.
- Home Offices: Integrated lighting and air movement suit compact work areas with limited ceiling space.
- Dry Indoor Retrofits: The screw-in format provides a combined fan-light option for protected indoor renovation projects.
