E27/E26/B22 Folding-Blade LED Fan Lights

This E27/E26/B22 screw-in LED fan-light family uses folding blades to reduce the stored diameter and extend the operating span. Ten configurations cover 30/10 W to 70/15 W rated-power pairs, 3000–6500 K CCT adjustment and IR remote control.

Warm-to-Cool Light: The CCT range supports white-light adjustment for different room conditions.
Remote Brightness Control: The handset adjusts the light without reaching the fitting.
Three Airflow Settings: The remote provides selectable fan-speed steps.
Timer Operation: Timed running is available from the IR handset.

Mounting	E27 / E26 / B22
Rated Power	30/10 W to 70/15 W
Collapsed Diameter	Ø170–275 mm by configuration
Extended Diameter	Ø290–500 mm by configuration

Efficacy	80 lm/W
CCT	3000–6500 K
Control	IR remote; brightness, CCT, three-step fan, timer

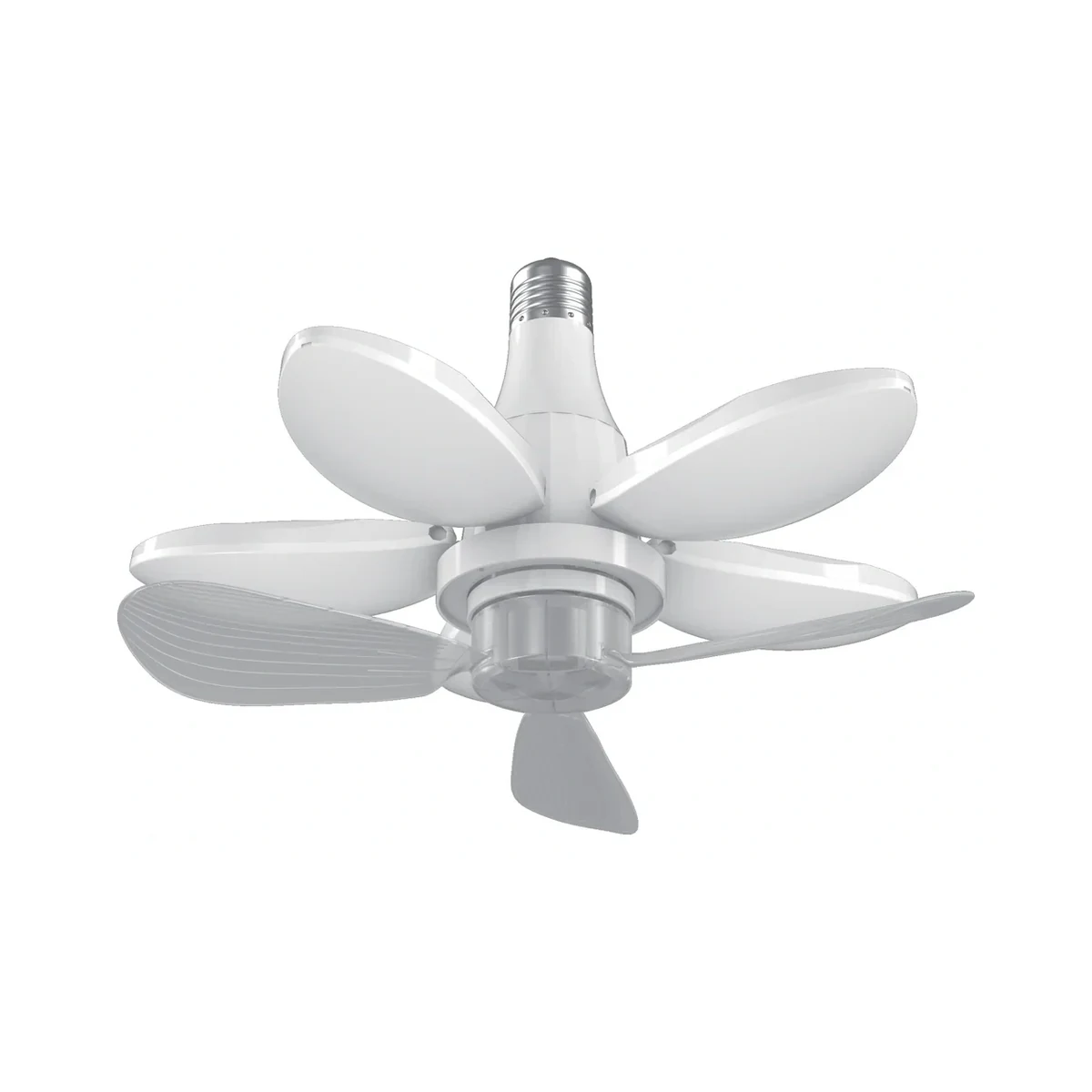

White folding-blade LED fan light on white background

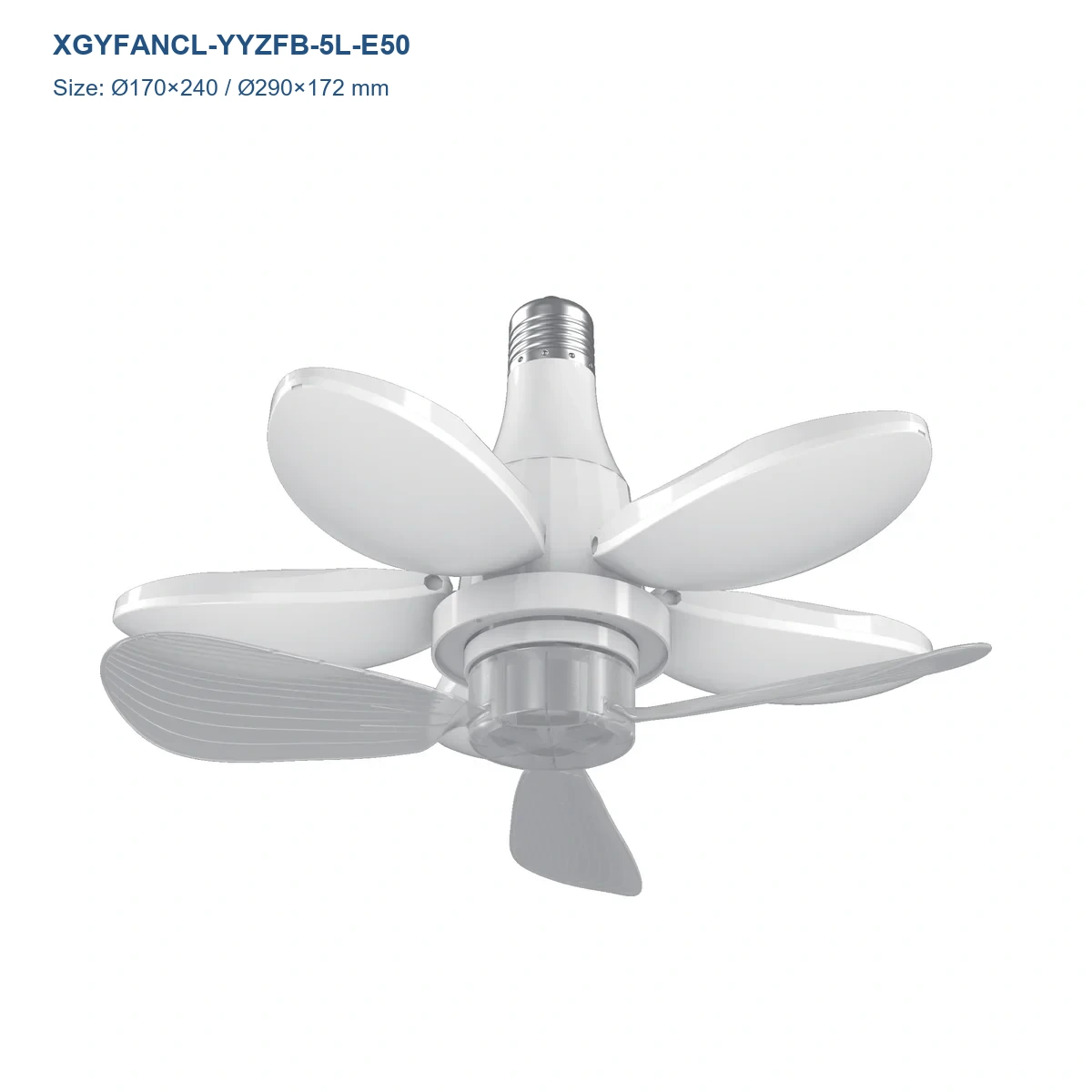

XGYFANCL-YYZFB-5L-E50 E27/E26/B22 Folding-Blade LED Fan Light model

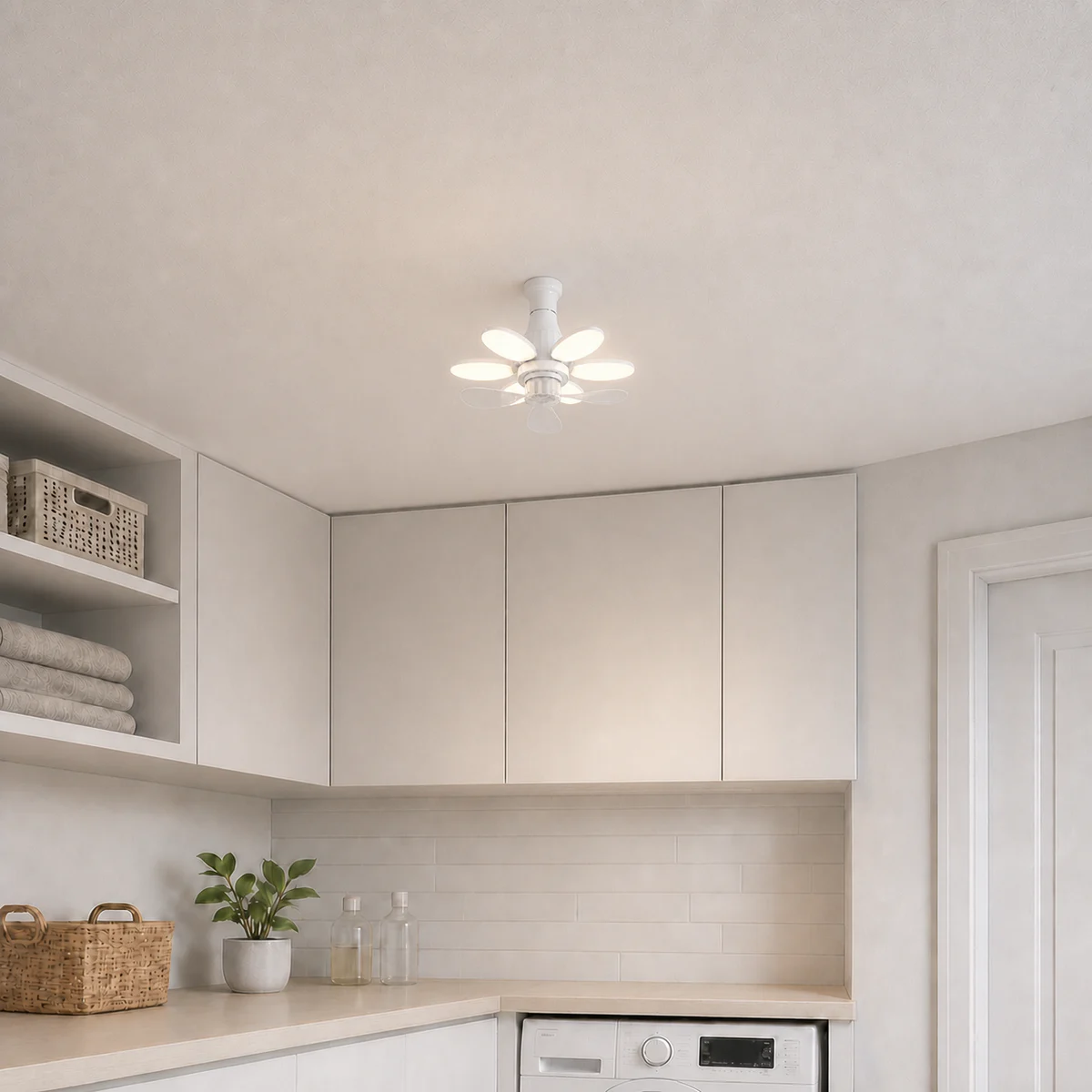

folding-blade LED fan light installed in a protected indoor utility room

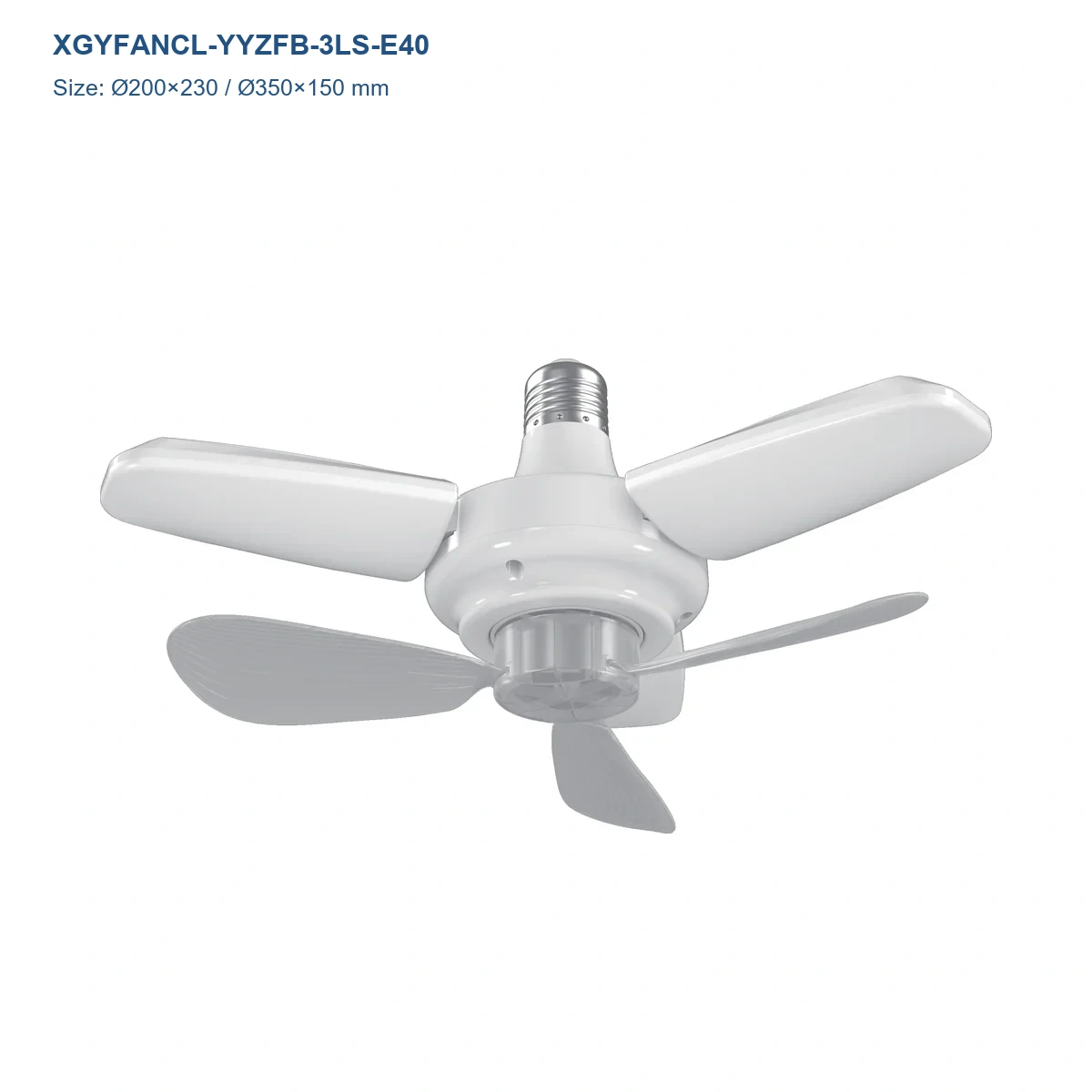

XGYFANCL-YYZFB-3LS-E40 E27/E26/B22 Folding-Blade LED Fan Light model

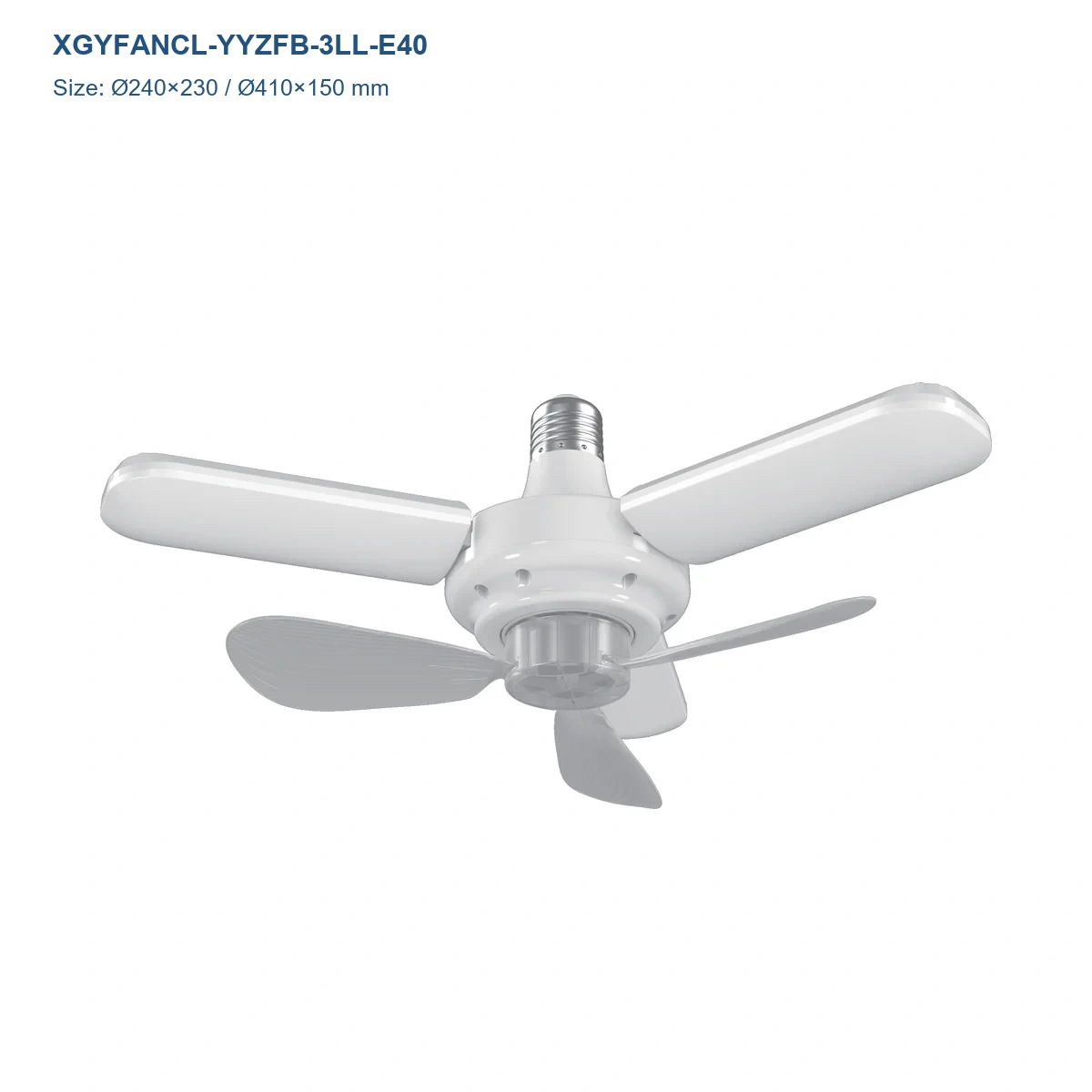

XGYFANCL-YYZFB-3LL-E40 E27/E26/B22 Folding-Blade LED Fan Light model

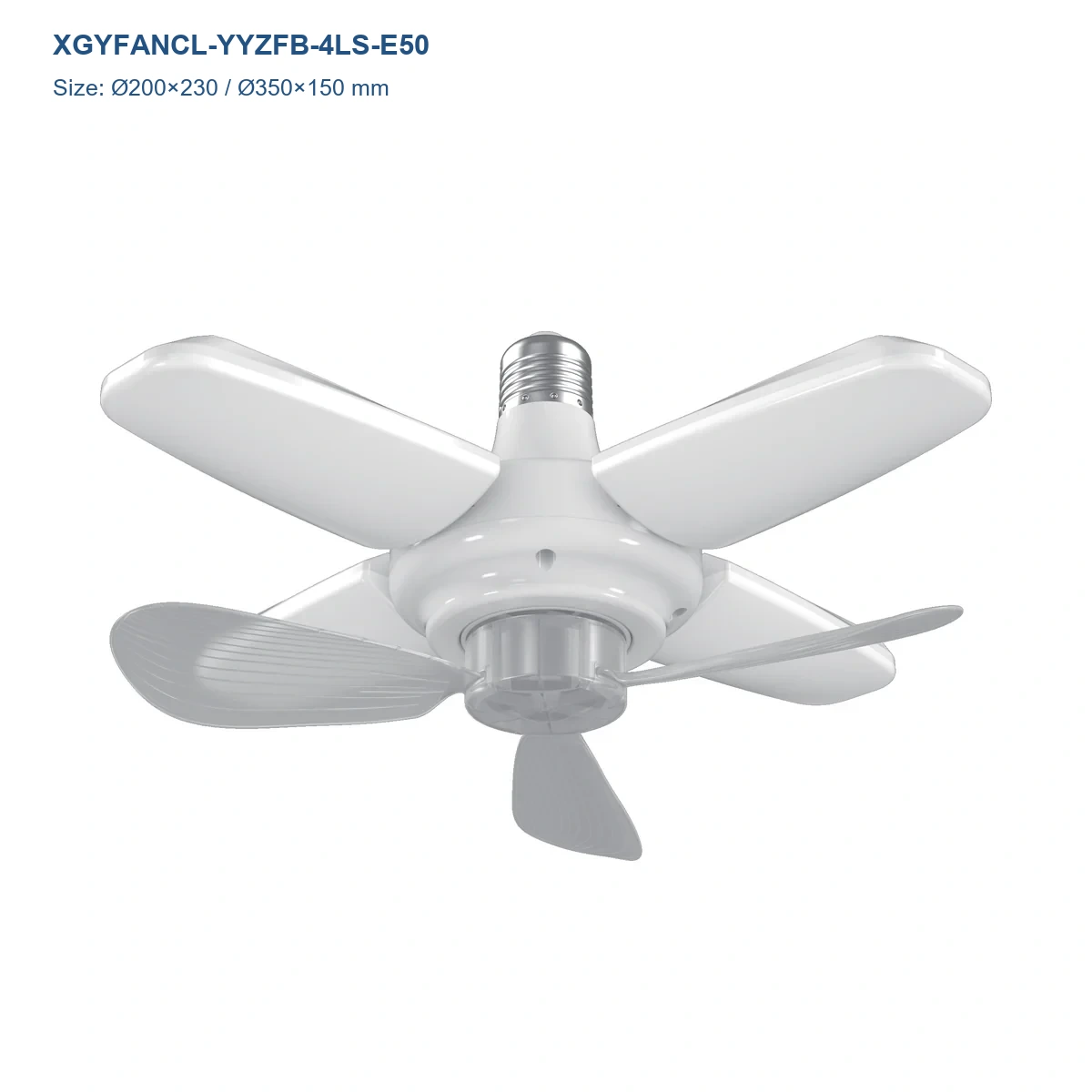

XGYFANCL-YYZFB-4LS-E50 E27/E26/B22 Folding-Blade LED Fan Light model

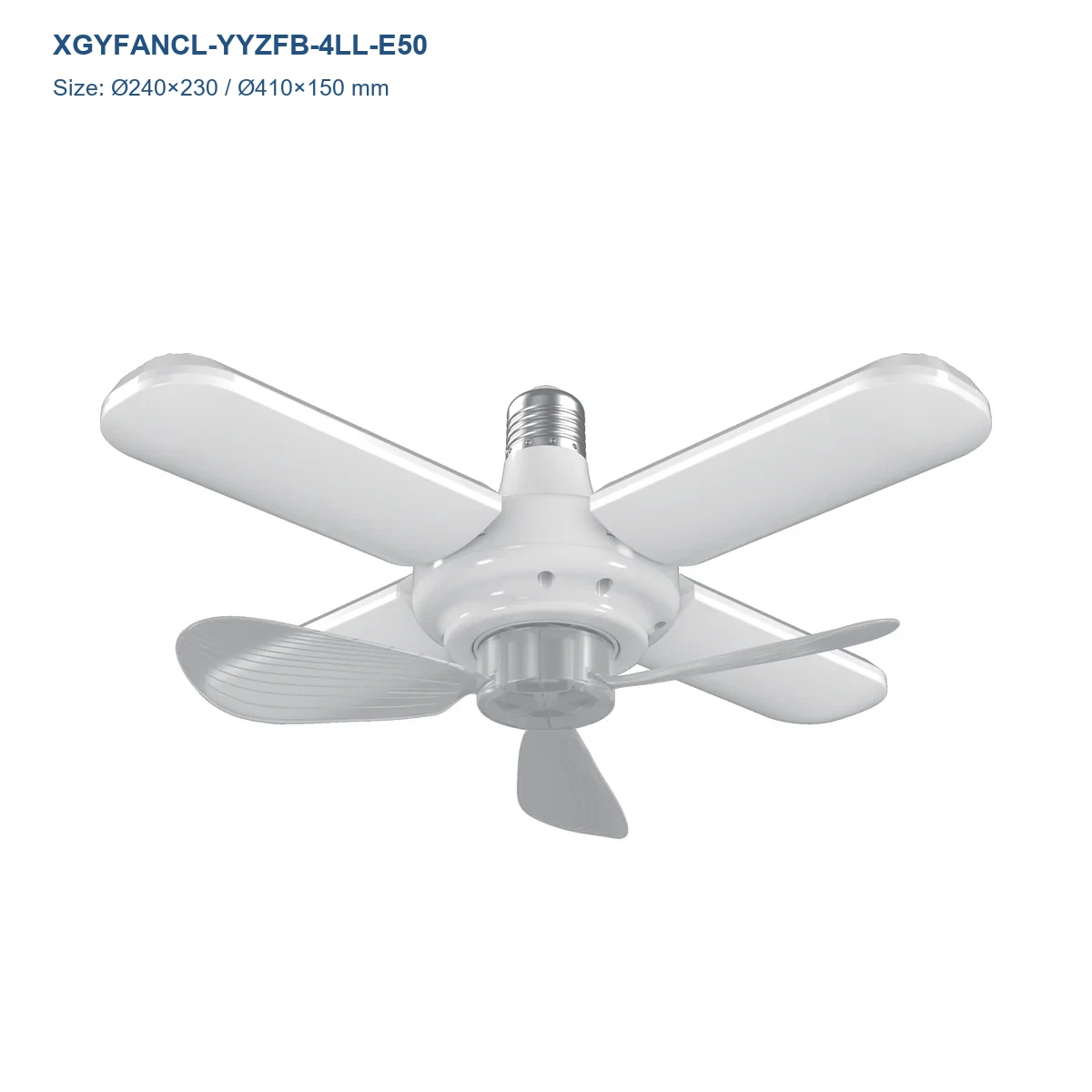

XGYFANCL-YYZFB-4LL-E50 E27/E26/B22 Folding-Blade LED Fan Light model

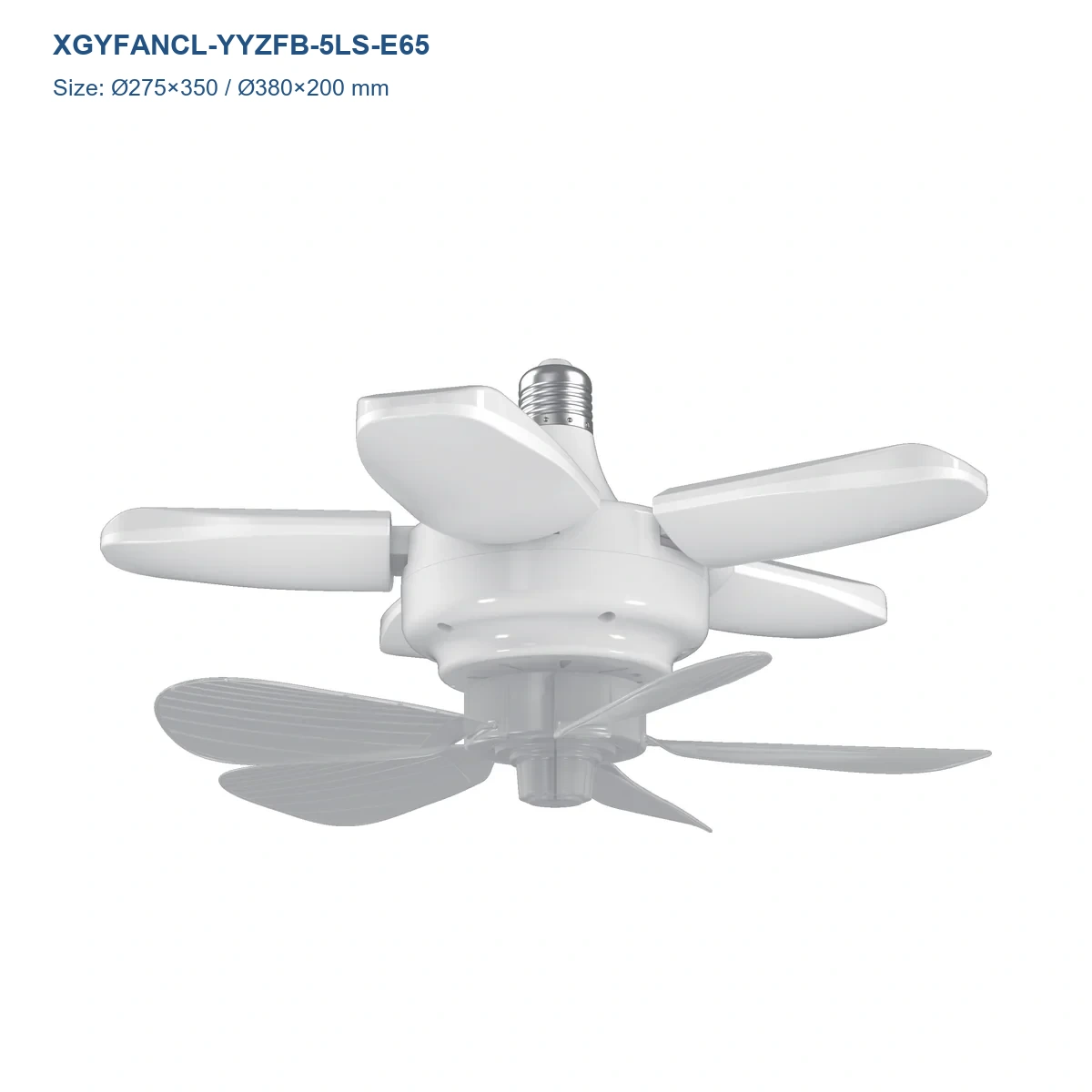

XGYFANCL-YYZFB-5LS-E65 E27/E26/B22 Folding-Blade LED Fan Light model

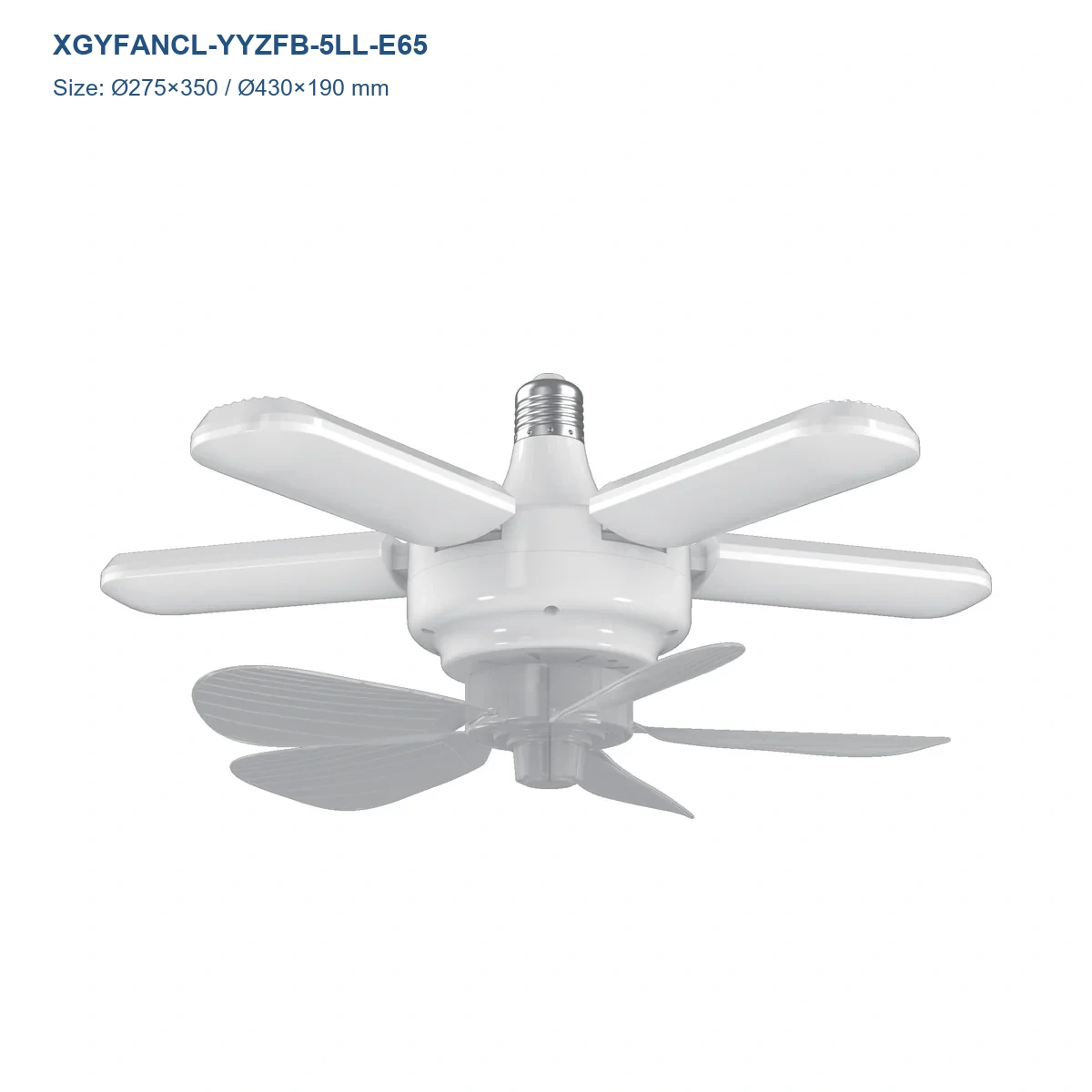

XGYFANCL-YYZFB-5LL-E65 E27/E26/B22 Folding-Blade LED Fan Light model

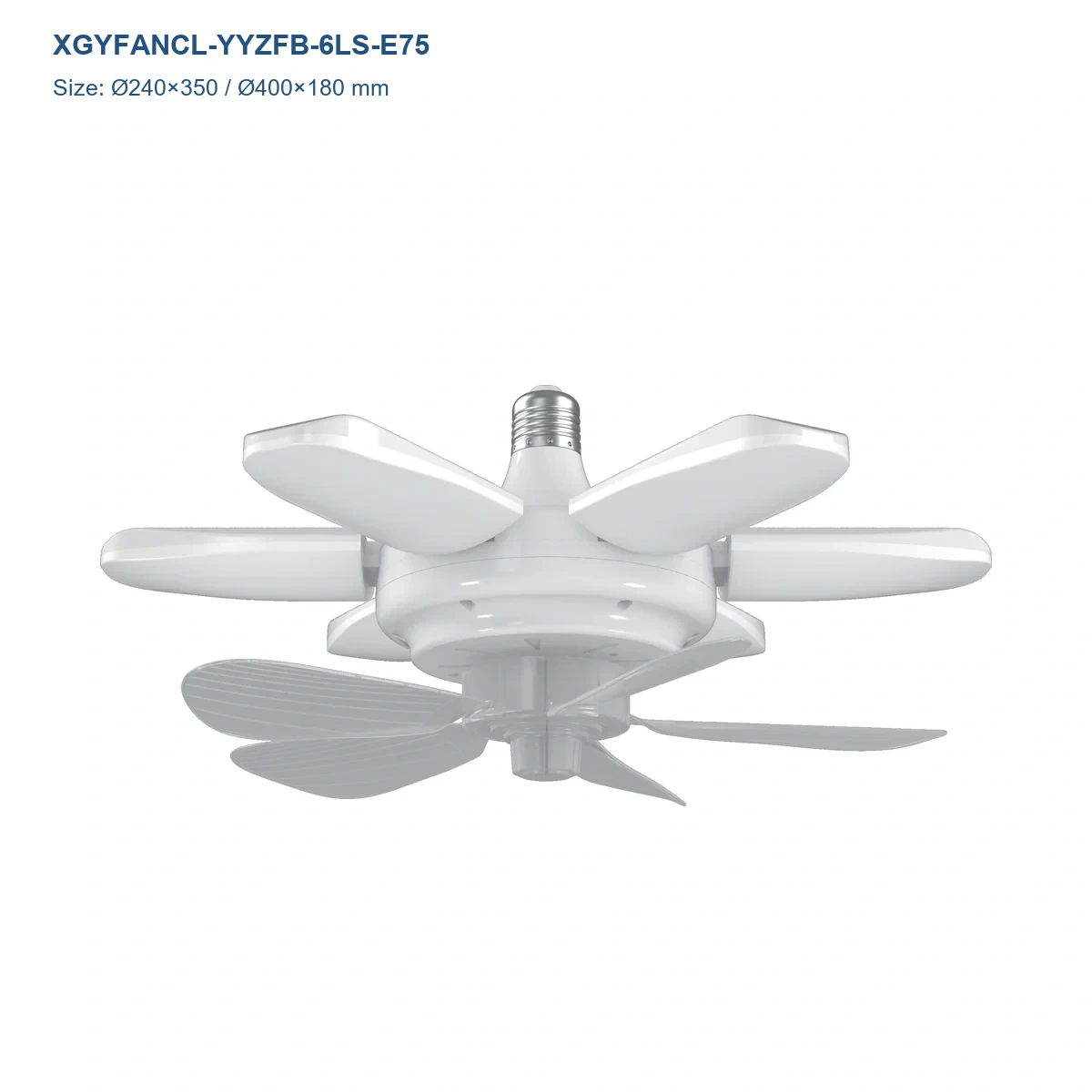

XGYFANCL-YYZFB-6LS-E75 E27/E26/B22 Folding-Blade LED Fan Light model

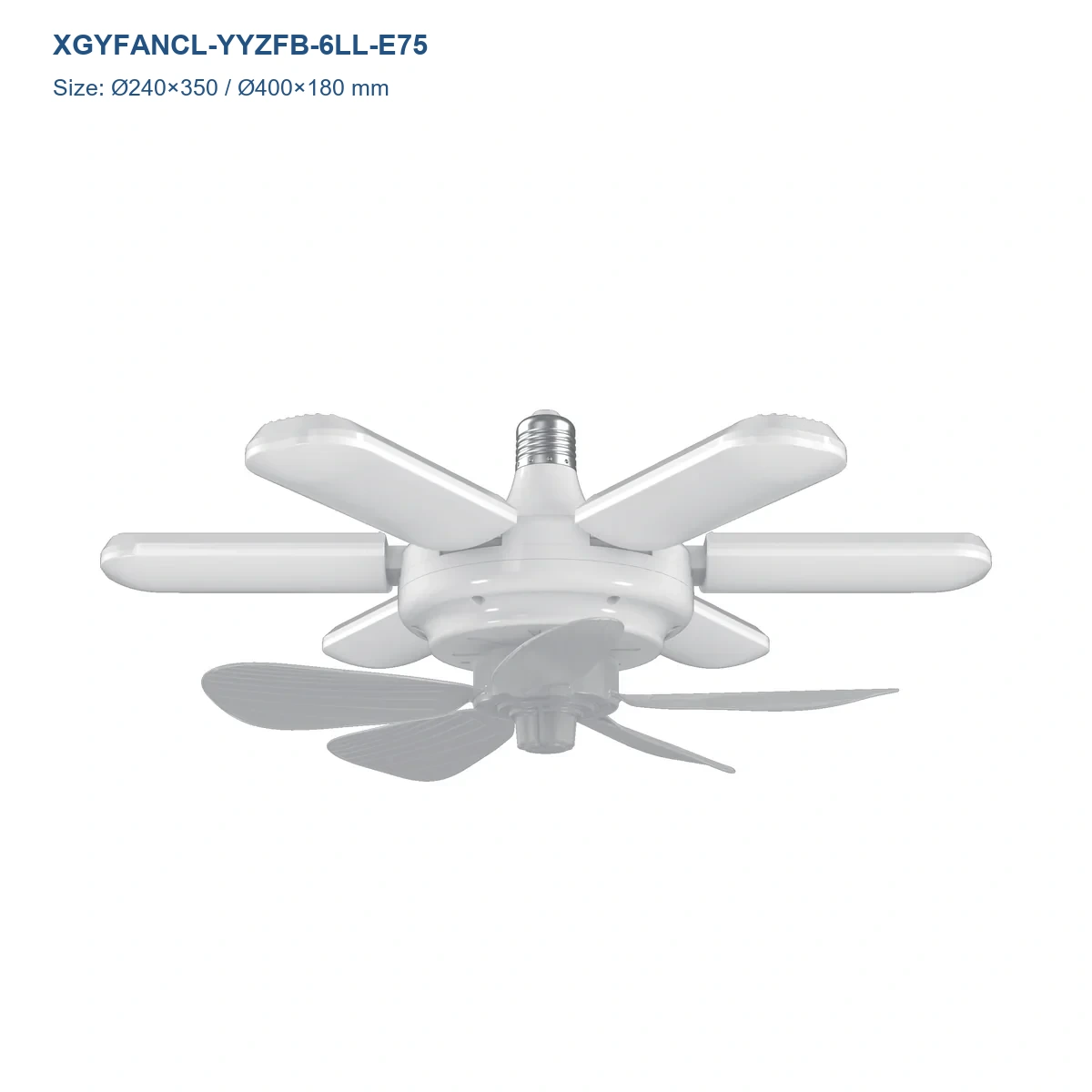

XGYFANCL-YYZFB-6LL-E75 E27/E26/B22 Folding-Blade LED Fan Light model

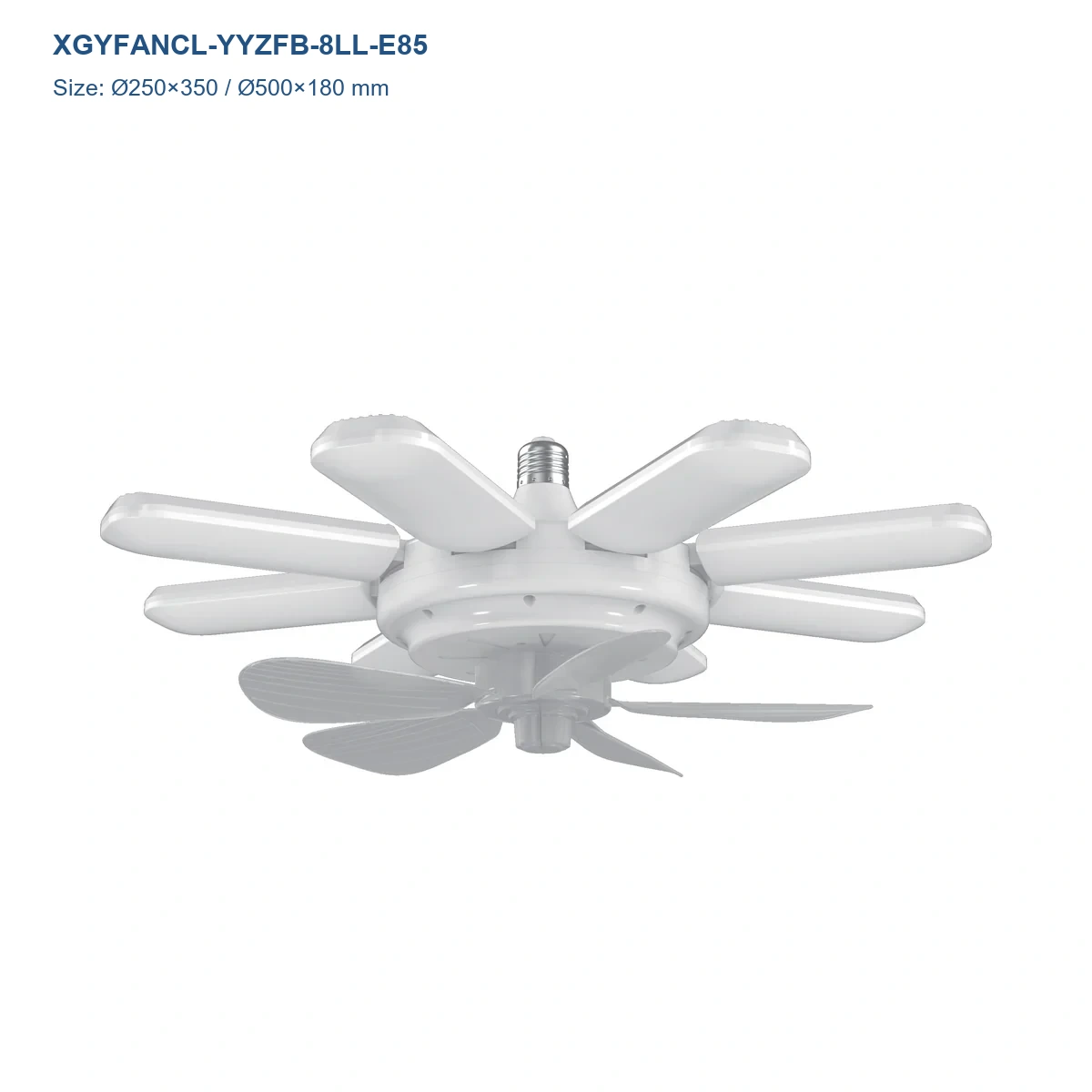

XGYFANCL-YYZFB-8LL-E85 E27/E26/B22 Folding-Blade LED Fan Light model

Technical Specifications

Model Specifications

Model No.	Mounting	Collapsed / Extended	Rated Power	Efficacy	CCT	Fan Steps
XGYFANCL-YYZFB-5L-E50	E27 / E26 / B22	Φ170×240 / Φ290×172 mm	40/10 W	80 lm/W	3000–6500 K	3
XGYFANCL-YYZFB-3LS-E40	E27 / E26 / B22	Φ200×230 / Φ350×150 mm	30/10 W	80 lm/W	3000–6500 K	3
XGYFANCL-YYZFB-3LL-E40	E27 / E26 / B22	Φ240×230 / Φ410×150 mm	30/10 W	80 lm/W	3000–6500 K	3
XGYFANCL-YYZFB-4LS-E50	E27 / E26 / B22	Φ200×230 / Φ350×150 mm	40/10 W	80 lm/W	3000–6500 K	3
XGYFANCL-YYZFB-4LL-E50	E27 / E26 / B22	Φ240×230 / Φ410×150 mm	40/10 W	80 lm/W	3000–6500 K	3
XGYFANCL-YYZFB-5LS-E65	E27 / E26 / B22	Φ275×350 / Φ380×200 mm	50/15 W	80 lm/W	3000–6500 K	3
XGYFANCL-YYZFB-5LL-E65	E27 / E26 / B22	Φ275×350 / Φ430×190 mm	50/15 W	80 lm/W	3000–6500 K	3
XGYFANCL-YYZFB-6LS-E75	E27 / E26 / B22	Φ240×350 / Φ400×180 mm	60/15 W	80 lm/W	3000–6500 K	3
XGYFANCL-YYZFB-6LL-E75	E27 / E26 / B22	Φ240×350 / Φ400×180 mm	60/15 W	80 lm/W	3000–6500 K	3
XGYFANCL-YYZFB-8LL-E85	E27 / E26 / B22	Φ250×350 / Φ500×180 mm	70/15 W	80 lm/W	3000–6500 K	3

Product Description

Product Details

Product Construction

The range combines a screw-in base, a central LED light body and folding fan blades that extend during operation. The ten configurations provide collapsed diameters from Ø170 to Ø275 mm and extended diameters from Ø290 to Ø500 mm.

Selection & Installation Notes

Select the E27, E26 or B22 mounting option and compare both the collapsed and extended dimensions for the chosen model. Confirm supply voltage, lampholder condition, mechanical load support and open operating clearance before installation. The IP20 construction is for dry, protected interiors. Compare related products in our Edison screw fan lights range.

Recommended Application

Applications

Primary Bedrooms: The combined light and fan serves dry indoor sleeping spaces with a compatible ceiling lampholder.
Small Living Rooms: Remote brightness, CCT, fan-speed and timer controls support everyday room adjustment.
Home Offices: Integrated lighting and air movement suit work areas with adequate ceiling clearance.
Dry Indoor Retrofits: The selectable screw-in bases support protected renovation projects after compatibility checks.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

Can this fan light be installed in any existing lampholder?

Not automatically. The installation requires the correct E27, E26 or B22 mounting option, matching supply voltage, adequate mechanical support and clear operating space.

What must be checked above and around the blades?

Check both the collapsed and extended dimensions for the selected model, and keep the full operating area clear of walls, cabinets, curtains and other fittings.

What does the IR remote control?

The IR remote adjusts light brightness and CCT, selects three fan-speed steps and sets the timer.

Can it be used in a bathroom or outdoors?

No. The IP20 construction is for dry, protected indoor locations.

How should a sample be approved?

Approve the mounting base, supply voltage, mechanical fit, collapsed and extended clearance, light functions, remote functions, noise and appearance on the target fitting.
