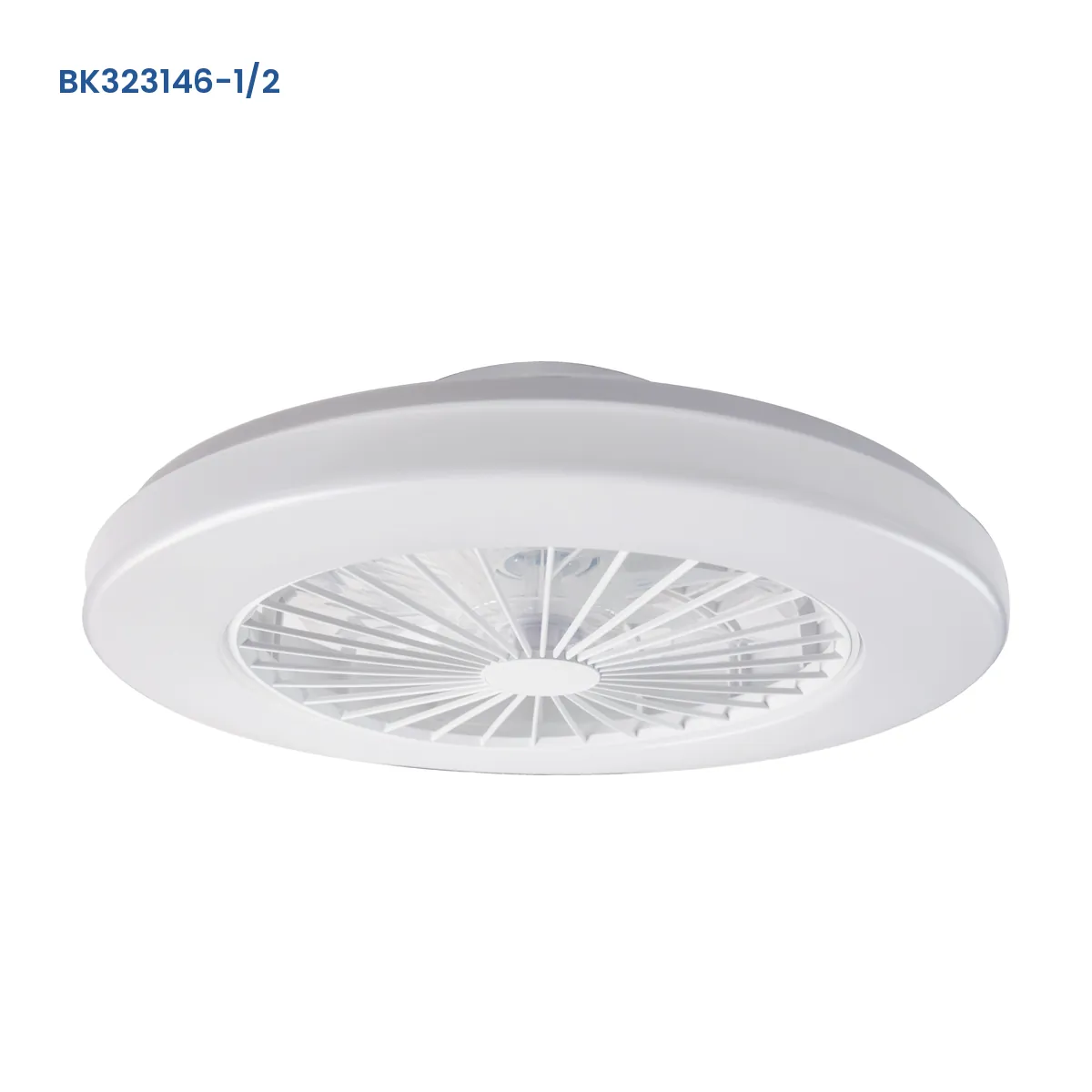

Compact White Ceiling-Mount LED Fan Light with Grid
- Restrained White Presence: The compact form keeps the overhead appearance visually restrained.
- Graphic Front Character: The grid adds a clear geometric element to the underside.
- Dual-Purpose Room Element: Ambient illumination and air movement share one ceiling position.
| Dimensions | Φ480 × 148 mm |
|---|---|
| Light / fan load | Max 40 W / Max 15 W HF |
| Efficacy / CCT | 110 lm/W / 3000–5500 K |
| Input | AC 220–240 V |
| Material | PP base / MS diffuser / PC blade / PP grid |
|---|---|
| Control | IR remote: brightness, CCT, 24-step fan, reverse, timer |
| Optics & use | 120° / Ra80 / PF 0.9 / IP20 indoor |
Technical Specifications
Model Specifications
| Model | Diffuser | Dimensions | Light / Fan Load | Efficacy | CCT | Material |
|---|---|---|---|---|---|---|
| XGYFANCL-BK323146-1/2-E55 | Starry/Opal | Φ480 × 148 mm | Max 40 W / Max 15 W HF | 110 lm/W | 3000–5500 K | PP / MS / PC / PP |
Shared conditions: AC 220–240 V, Ra80, 120° beam angle, PF 0.9 and IP20. The full E55/E60 or E55/E62 suffix remains in Model; Starry/Opal is shown separately as the diffuser configuration. Confirm the ordered configuration on the approved sample.
Product Description
Product Details
Product Construction
The product combines an LED light section and fan within a compact white ceiling-mounted body. A visible grid forms part of the front face.
Selection & Installation Notes
Use the complete sales model on the room schedule, and confirm the required face appearance and finish against the approved sample. Before installation, verify the electrical supply, control method, ceiling interface, structural support, clearance, service access and included hardware. Compare related products in our ceiling fan light range.
Recommended Application
Applications

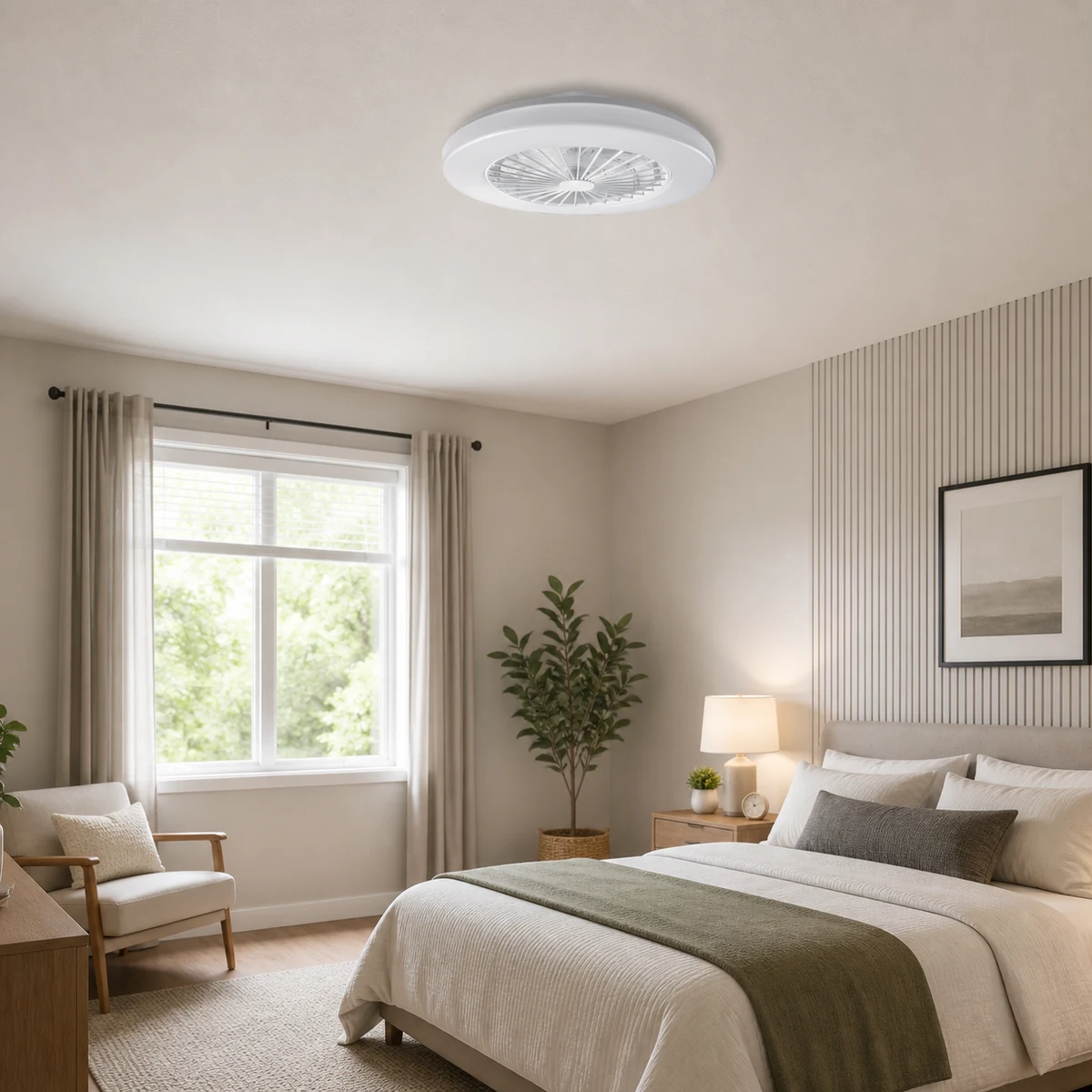

- Residential Bedrooms: The combined ceiling fixture supports normal room lighting and air movement.
- Compact Living Rooms: Its compact white form suits a centrally planned overhead position.
- Hotel Guest Rooms: The compact finish fits repeatable interior schemes with one combined ceiling product.
- Home Workspaces: General room light and air movement come from the same ceiling location.
