XGYFANCL-JLSFSD014-E36 RGBW Grid Ceiling Fan Light
- Linear Face Pattern: Repeating linework gives the lower surface a recognizable architectural expression.
- Integrated Dual Use: The selected product serves specified illumination and air-movement roles.
- Consolidated Ceiling Point: Both room functions use one assigned overhead position.
- Approved RGBW Definition: The finalized order establishes the chromatic and interaction boundaries.
| Dimensions | Φ495 × 140 mm |
|---|---|
| Light load / output | Max 24 W / 3000 lm |
| Fan load | Max 12 W HF |
| CCT | 3000–6500 K |
| Material | PP |
|---|---|
| Control | IR remote: brightness, CCT, RGBW, fan speed, reverse, timer |
| Use boundary | IP20 / dry indoor ceiling |
Technical Specifications
Model Specifications
| Model | Dimensions | Light Power | Fan Power | Output | CCT | Material |
|---|---|---|---|---|---|---|
| XGYFANCL-JLSFSD014-E36 | Φ495 × 140 mm | Max 24 W | Max 12 W HF | 3000 lm | 3000–6500 K | PP |
The family reference lists Ra80, a 120° beam angle, PF 0.9 and IP20. Confirm the ordered electrical version on the approved specification and sample.
Product Description
Product Details
Product Construction
The assembled ceiling unit places a grid-style luminous surface around the fan section. This patterned face forms the visible identity of the model when viewed from below.
Selection & Installation Notes
Match the complete model code to the room schedule. RGBW behavior remains order-specific, so verify the available colors, modes and operating sequence on the approved specification and sample. Confirm the electrical supply, controller, ceiling interface, structural support, clearance, service access and included hardware before installation. Review related products in our ceiling fan light range.
Recommended Application
Applications
- Bedroom Ceiling Layouts: Use the confirmed unit where one combined light and fan is included in the room plan.
- Residential Living Rooms: Coordinate the fixture with its assigned ceiling connection, support and surrounding layout.

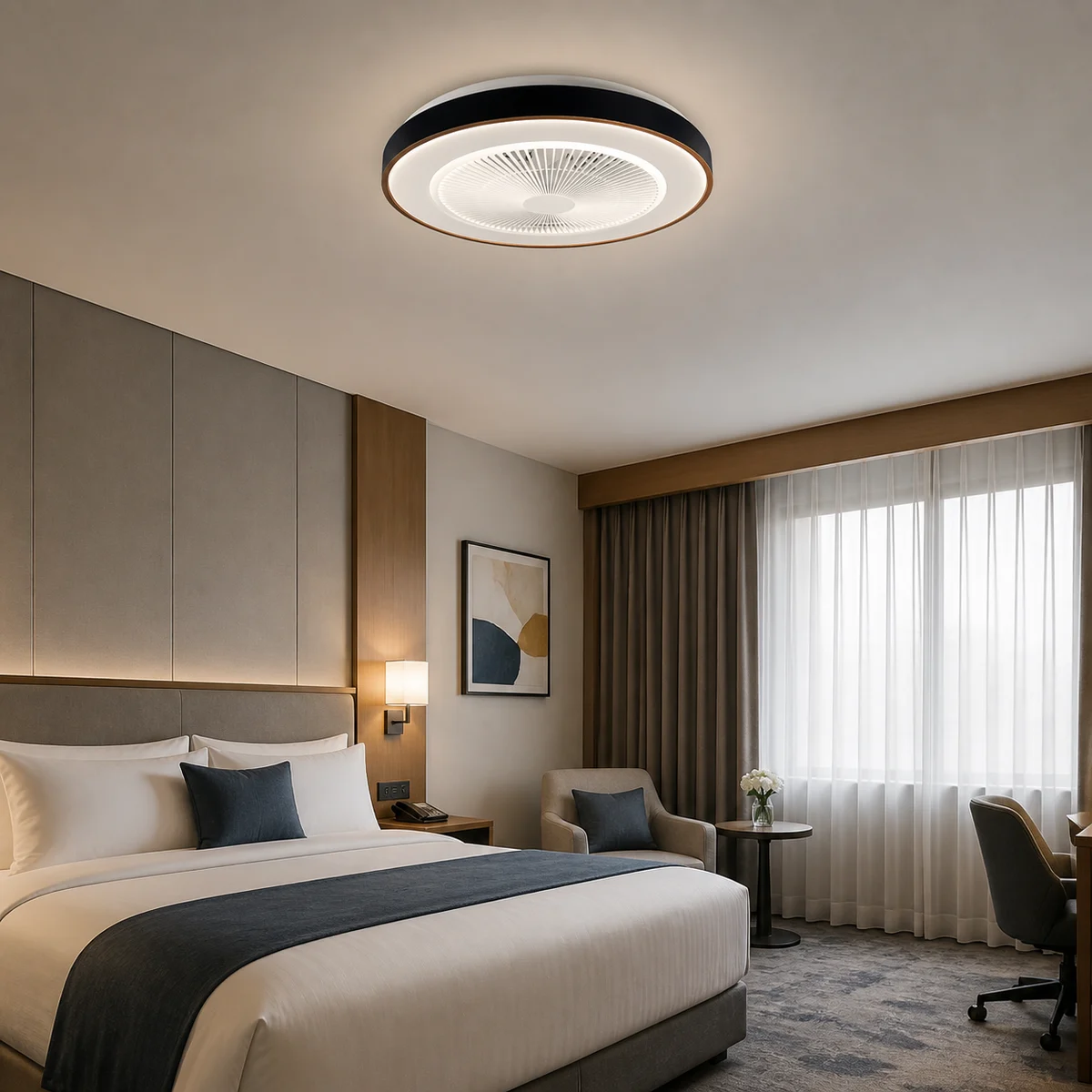

- Hospitality Guest Rooms: Apply the approved operating package consistently across matching room types.
- OEM Project Schedules: Record the accepted visual and functional definition for repeated interior installation.
