XGYFANCL-GJ23055-E62 RGBW Grid Ceiling Fan Light

The XGYFANCL-GJ23055-E62 is an indoor RGBW grid ceiling fan light with a Φ500 × 225 mm PS and PMMA housing, 2500 lm output and a guarded central fan. An IR remote adjusts white light, RGBW accents and fan functions.

Adjustable White And RGBW: White-light adjustment and RGBW accent modes share the same ceiling fixture.
Grid-Covered Central Fan: A radial housing grid covers the central rotating blades.
IR Remote Control: One handset adjusts brightness, CCT, RGBW output, fan speed, reverse airflow and timer settings.
25,000-Hour Rated Life: The rated operating life supports planned fixture maintenance.

Dimensions	Φ500 × 225 mm
Light load / output	Max 42 W / 2500 lm
Fan load	Max 20 W HF
CCT	3500–6800 K

Material	PS + PMMA
Control	IR remote: brightness, CCT, RGBW, fan speed, reverse, timer
Use boundary	IP20 / dry indoor ceiling

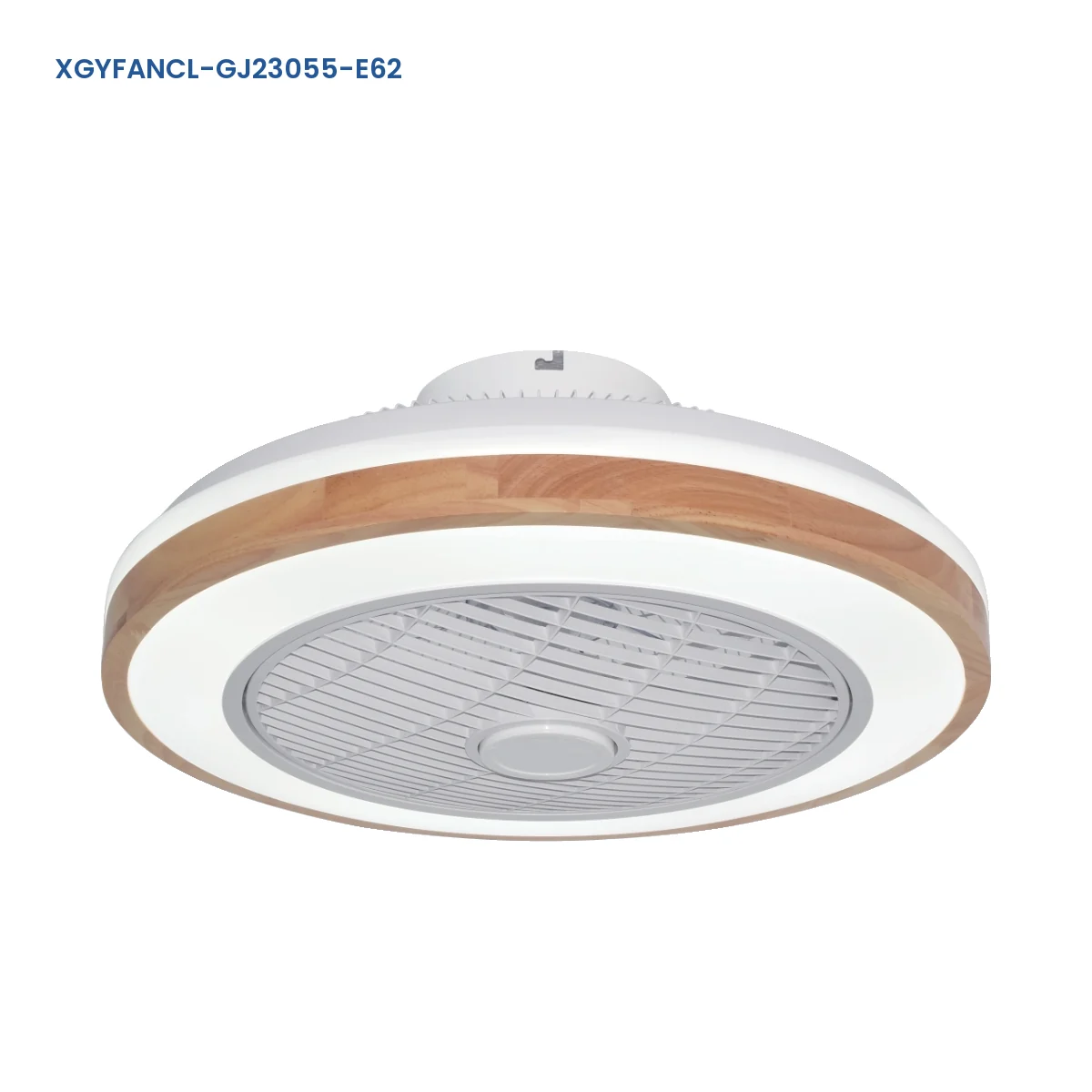

XGYFANCL-GJ23055-E62 Ceiling-Mount RGB LED Fan Light with Grid model

Ceiling-mount RGB LED fan light installed in a bedroom using white light

Technical Specifications

Model Specifications

Model	Dimensions	Light Power	Fan Power	Output	CCT	Material
XGYFANCL-GJ23055-E62	Φ500 × 225 mm	Max 42 W	Max 20 W HF	2500 lm	3500–6800 K	PS + PMMA

Operating conditions: Ra80, a 120° beam angle, PF 0.9 and IP20. Confirm the ordered electrical version on the approved specification and sample.

Product Description

Product Details

Product Construction

The XGYFANCL-GJ23055-E62 uses a circular PS and PMMA housing. The light section surrounds a central fan, while the radial grid covers the rotating blades.

Selection & Installation Notes

Choose this model when its Φ500 × 225 mm body, Max 42 W light load, Max 20 W HF fan load, 2500 lm output and 3500–6800 K range suit the room. Install it on a dry indoor ceiling within its IP20 use boundary, and confirm the AC 220–240 V supply, ceiling substrate, mounting hardware and housing clearance before installation. Compare other configurations in our ceiling fan lights range.

Recommended Application

Applications

Living Rooms: The Φ500 housing combines adjustable white room lighting, RGBW accents and ceiling-mounted air movement.
Media Rooms: RGBW accents support occasional color settings while adjustable white remains available for normal room lighting.
Teen Bedrooms: The guarded central fan keeps the rotating section behind the housing grid.
Serviced Apartments: Remote brightness, CCT, RGBW, fan speed, reverse and timer functions share one handset.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

Can the GJ23055-E62 provide normal white room lighting?

Yes. Adjustable white output is provided for everyday room lighting, while RGBW remains an optional accent setting.

What are the dimensions of the GJ23055-E62?

The housing size is Φ500 × 225 mm. Confirm ceiling clearance and the supporting substrate before installation.

What light and fan loads are listed?

The light load is Max 42 W and the fan load is Max 20 W HF, with 2500 lm light output.

Which functions are available from the IR remote?

The IR handset controls brightness, CCT, RGBW output, fan speed, reverse airflow and the timer.

Can this fan light be used outdoors or in a wet room?

No. Its IP20 construction is for dry, protected indoor ceilings.

What must be confirmed before installation?

Confirm the ordered model, supply voltage, ceiling condition, mounting hardware and clear space around the housing before installation.
