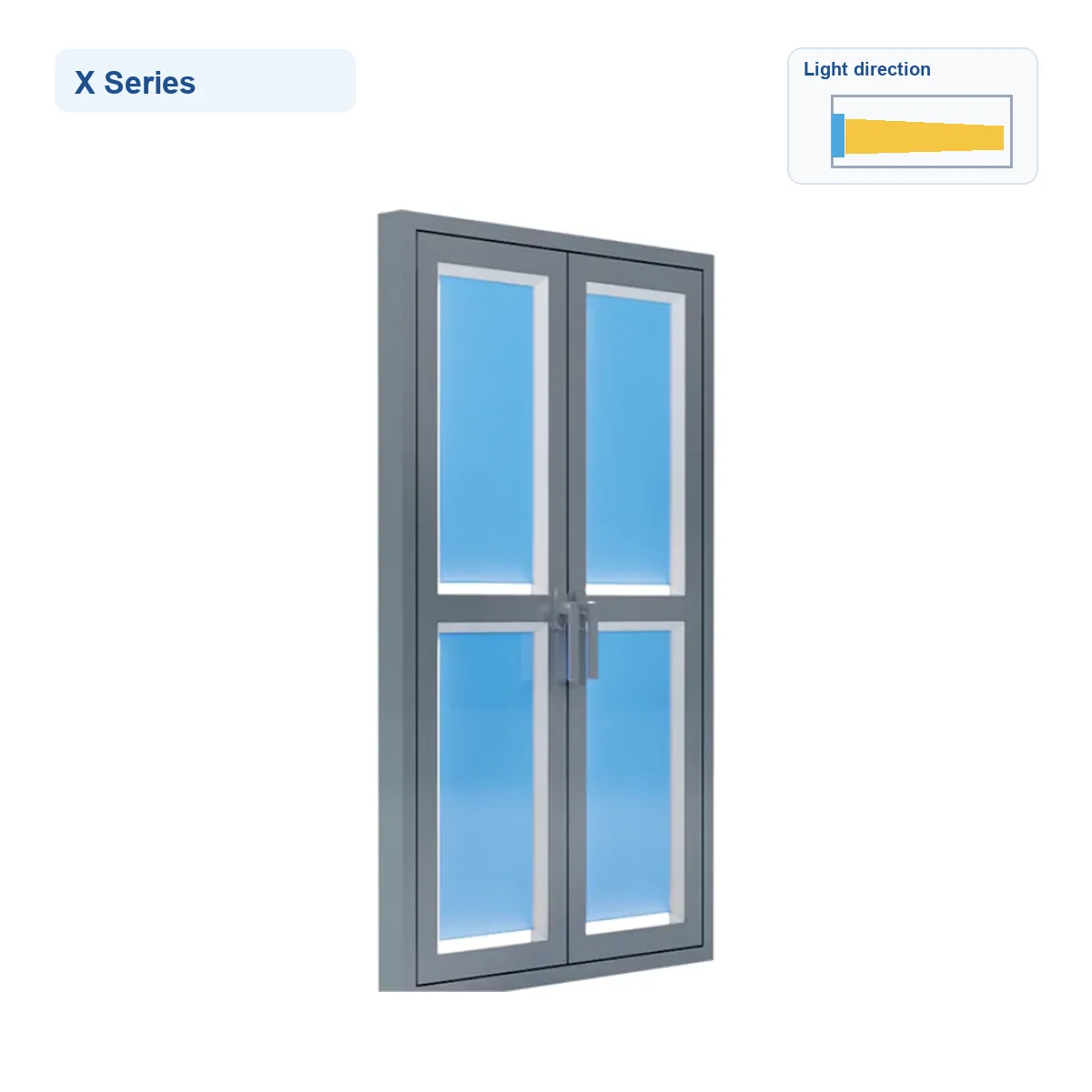

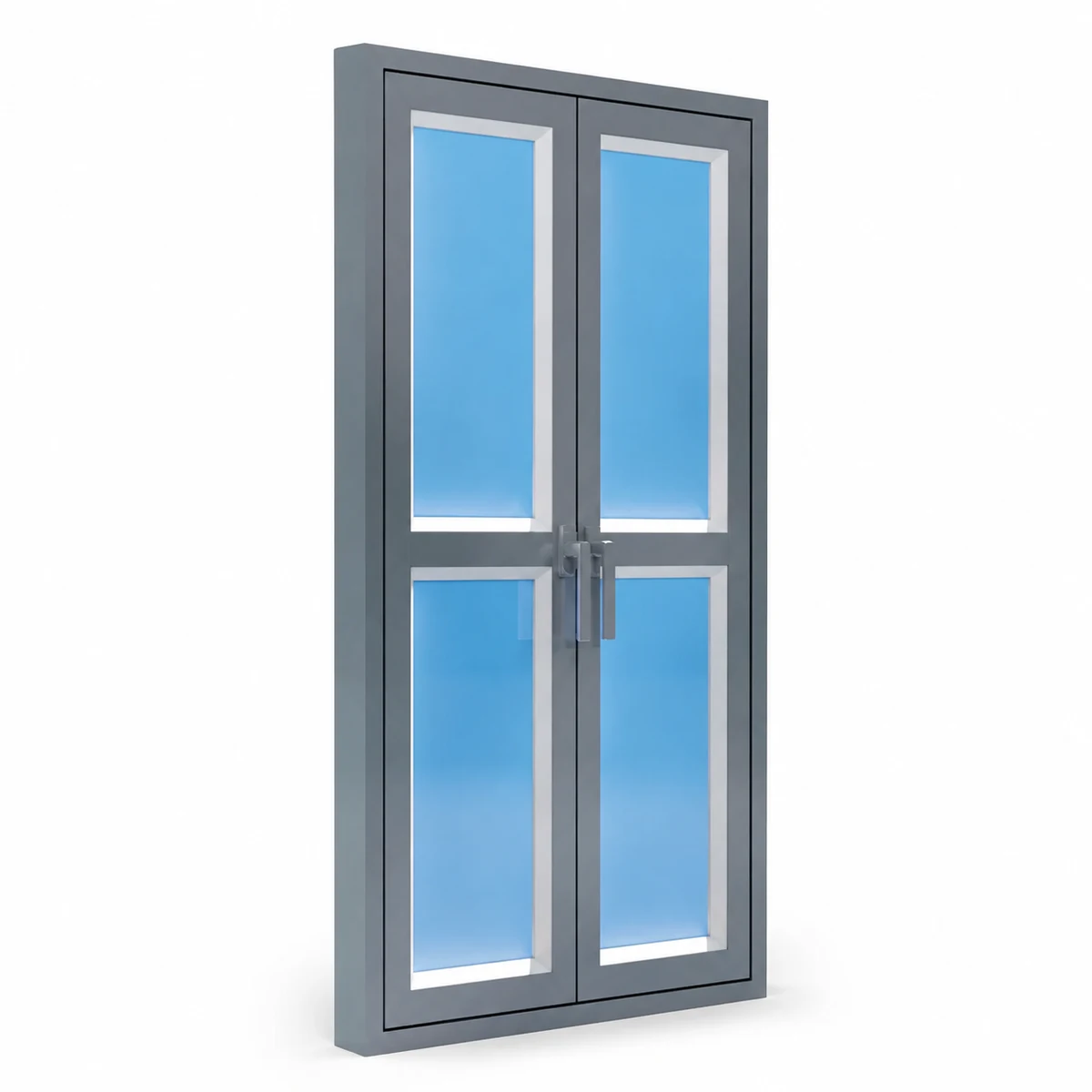

X Series Window-Style Artificial Skylight
The X Series is a 1332×781 mm window-style artificial skylight that projects light horizontally from a blue wall-mounted optical surface. Model XGYSSL-YRX13078-E160 uses 160 W input, four 527×227 mm light sections, 10000 lm output and adjustable 2100–5700 K light.
- Blue Window Appearance: The optical face creates a window-like focal point on an interior wall.
- Side-Cast Illumination: The system projects illumination laterally into the room.
- Natural-Looking Colors: High color rendering supports faithful interior color appearance.
- Scene Tone Adjustment: The controller shifts between warm and cool white ambience.
| Body | 1332×781×60 mm |
|---|---|
| Interface | 1332×771 mm |
| Light Surface | 4 × 527×227 mm |
| Power / Output | 160 W / 10000 lm |
|---|---|
| CCT / CRI | 2100–5700 K / Ra93 |
Technical Specifications
Model Specifications
| Model No. | Body Size | Interface | Light Surface | Power / Output | CCT |
|---|---|---|---|---|---|
| XGYSSL-YRX13078-E160 | 1332×781×60 mm | 1332×771 mm | 4 × 527×227 mm | 160 W / 10000 lm | 2100–5700 K |
Product Description
Product Details
Product Construction
The XGYSSL-YRX13078-E160 uses a 1332 × 781 × 60 mm wall-mounted body with four 527 × 227 mm light sections arranged behind the blue optical surface. The installation interface measures 1332 × 771 mm.
Selection & Installation Notes
Plan the wall opening, structural support, wiring route, driver space and maintenance access around the full body. Specify the required controller behavior before installation. Compare related formats in our artificial skylights range.
Recommended Application
Applications

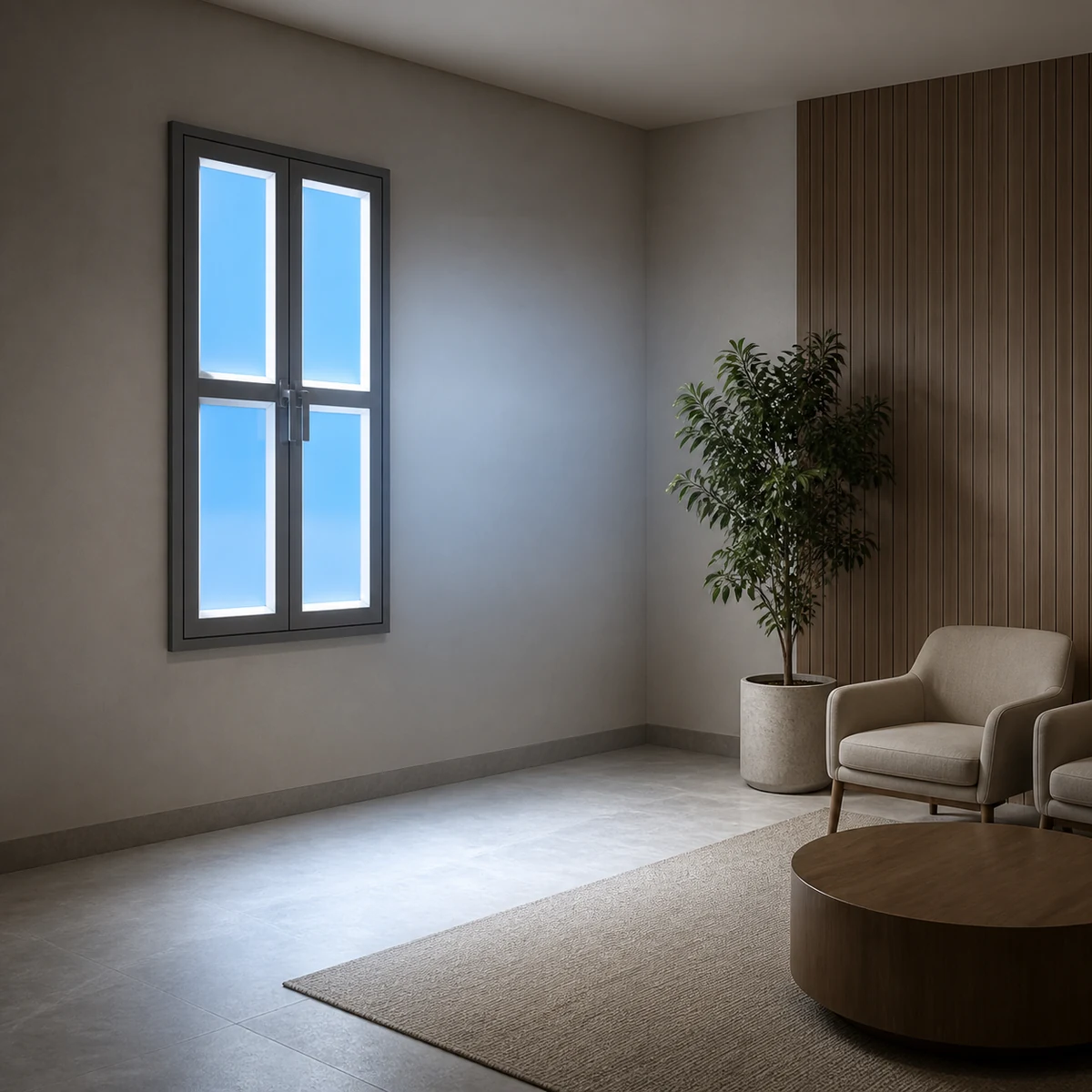

- Windowless Lounges: The vertical optical surface creates a window-like lighting feature on an interior wall.
- Meeting Rooms: Horizontal illumination supports wall-oriented layouts and adjustable ambient scenes.
- Hospitality Interiors: The framed blue surface adds a sky-window focal point to enclosed guest spaces.
- Retail Display Areas: Ra93 color rendering supports natural-looking merchandise and interior finishes.
